15°–60° COB ZOOM
200W Zoom COB Stage Light overview
The listed 15°–60° optical range gives the fixture two different design roles. Use the narrower end for more concentrated placement and the wider end for broader face-light or wash coverage. Final throw, field size and intensity must be evaluated in the actual venue.
200W COB source
Specify the white-light version; an RGB source is a separate customizable option.
15°–60° zoom
Adjust the optical range for a tighter field or broader face-light coverage.
3200K–5600K
The adjustable white-light range applies to the white configuration, not the custom RGB source.
VERIFIED PRODUCT DETAIL
Choose adjustable white or request the custom RGB version.
The supplied product data lists a 200W warm-white COB source and an RGB three-in-one source as a customizable option. The 3200K–5600K adjustable range belongs to the white-light configuration. Confirm the selected source, color behavior and channel chart before production.
PRODUCT & EFFECT VIEWS
Review the zoom COB fixture from every angle.

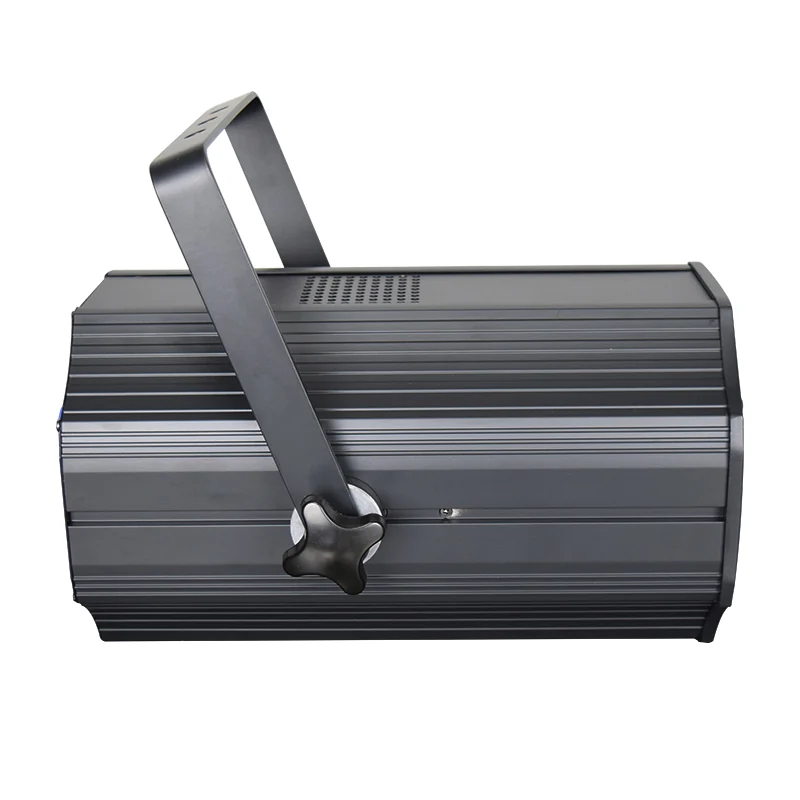

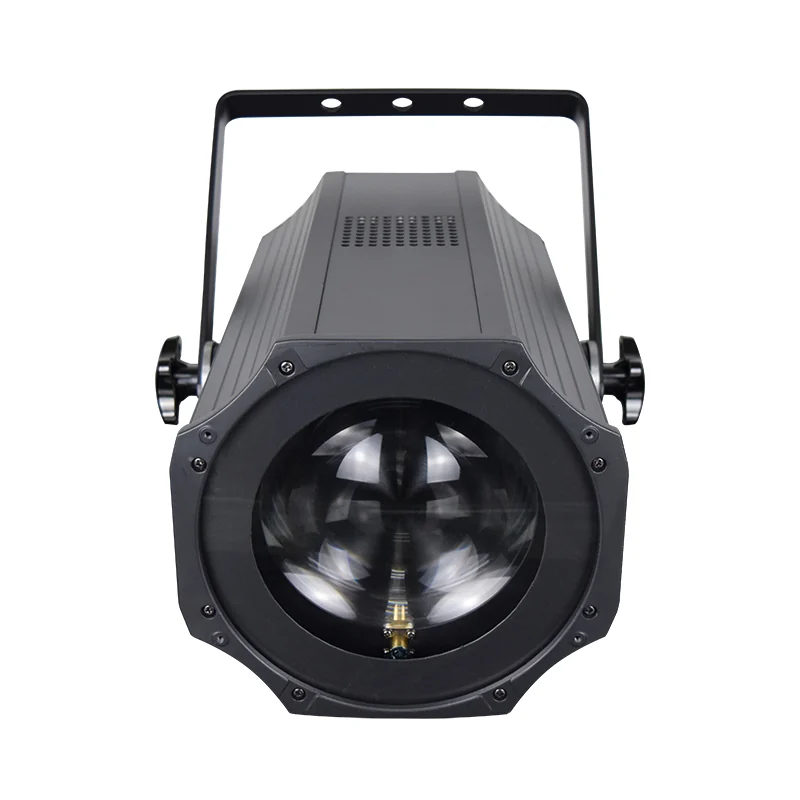

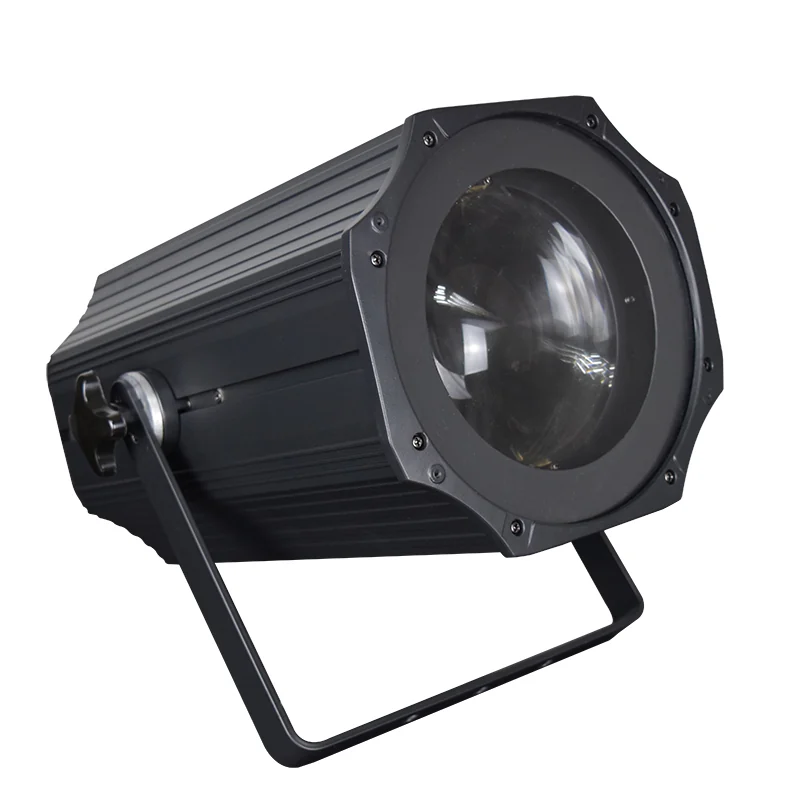

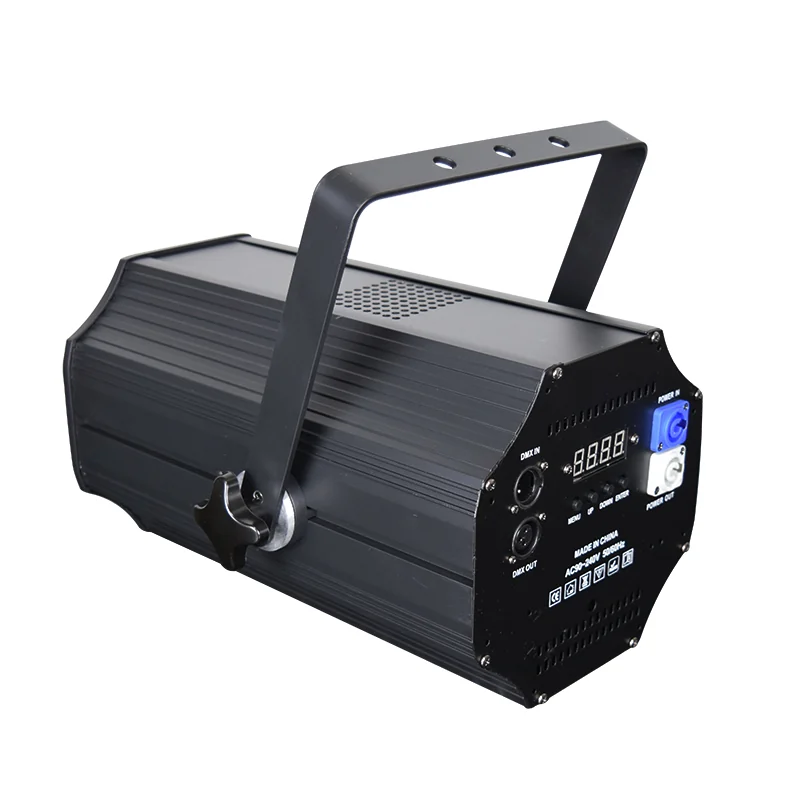

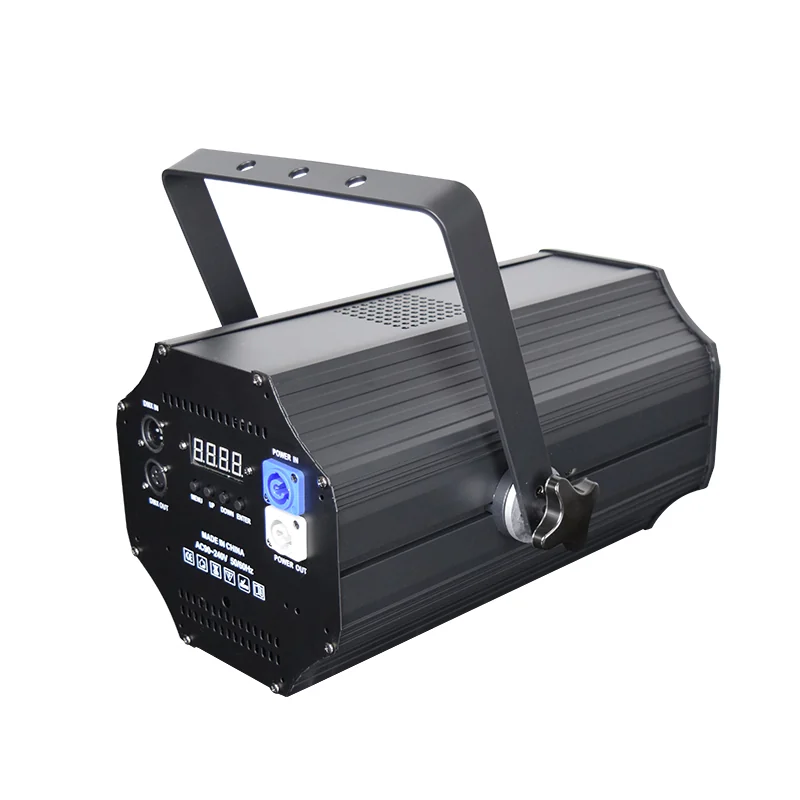

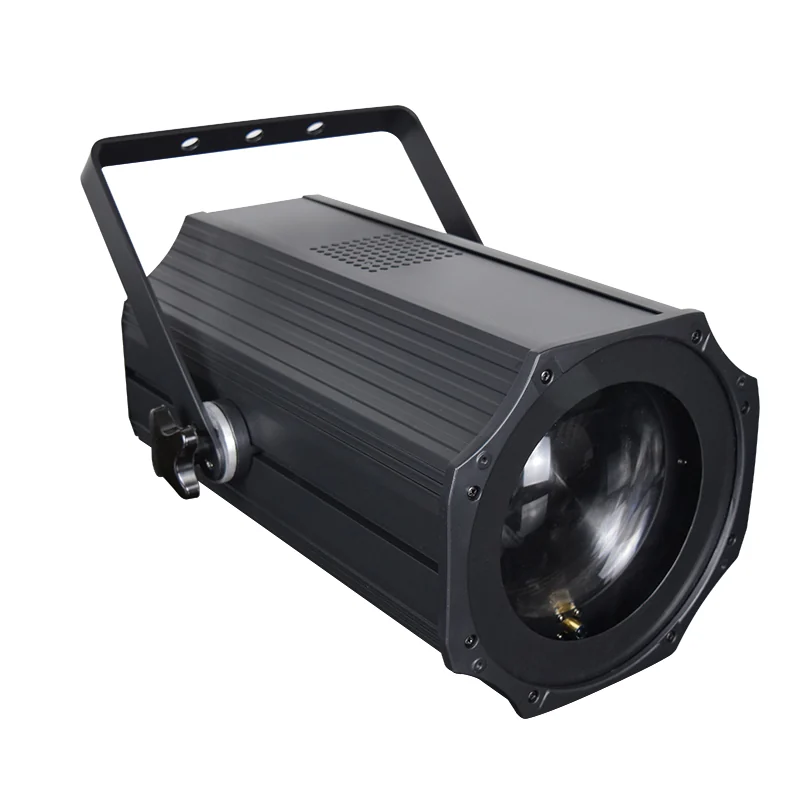

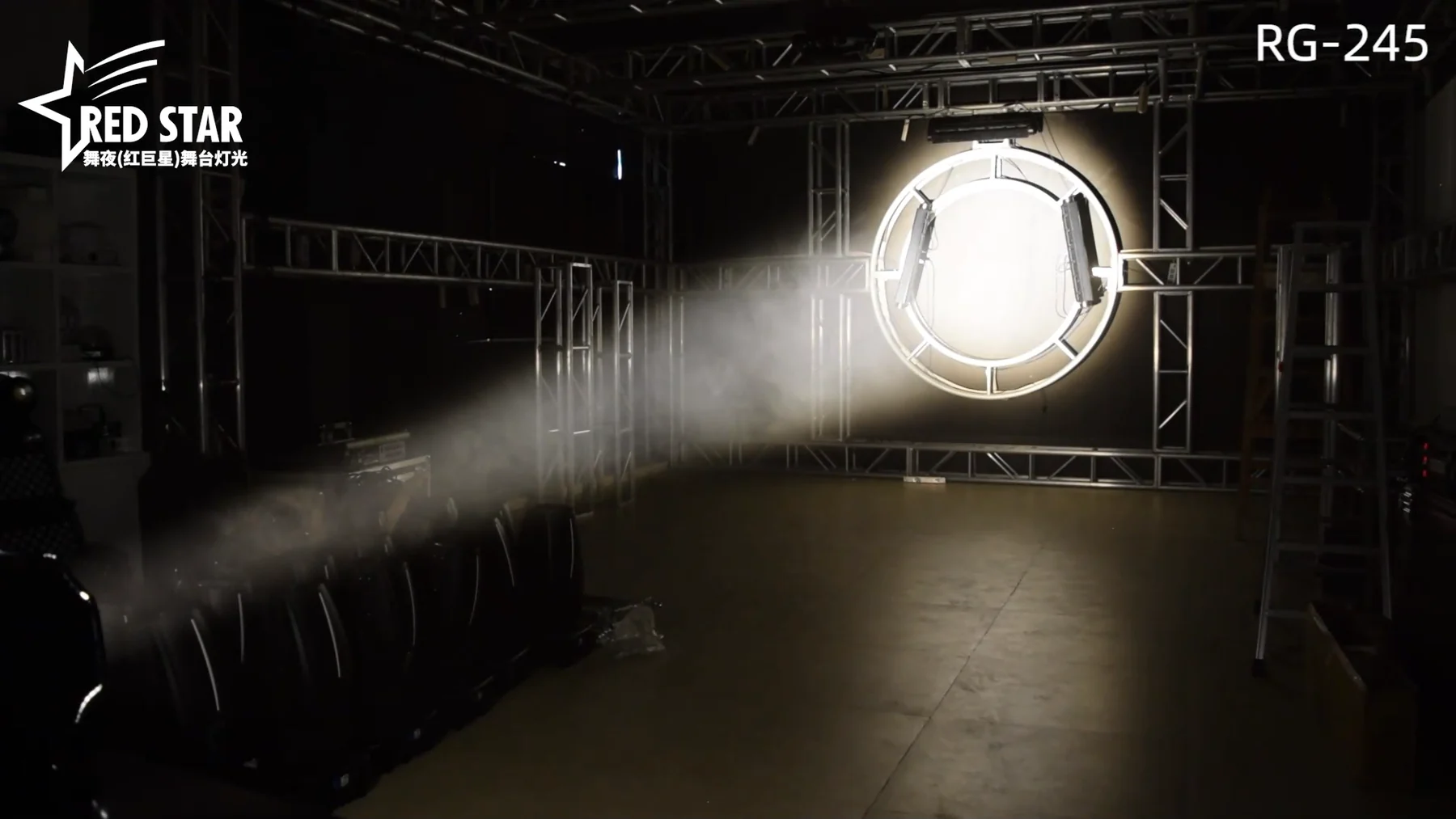

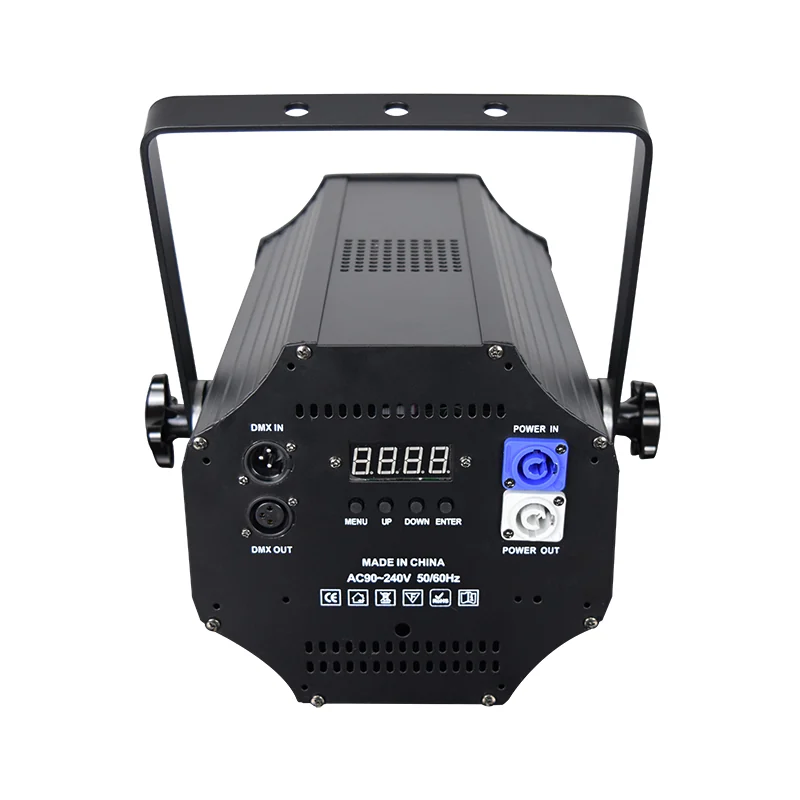

Inspect the lens, housing, yoke, rear control panel and supplied beam demonstrations in one complete visual sequence.
CONTROL & PERFORMANCE
Run 3-channel DMX or synchronize fixtures without a console.

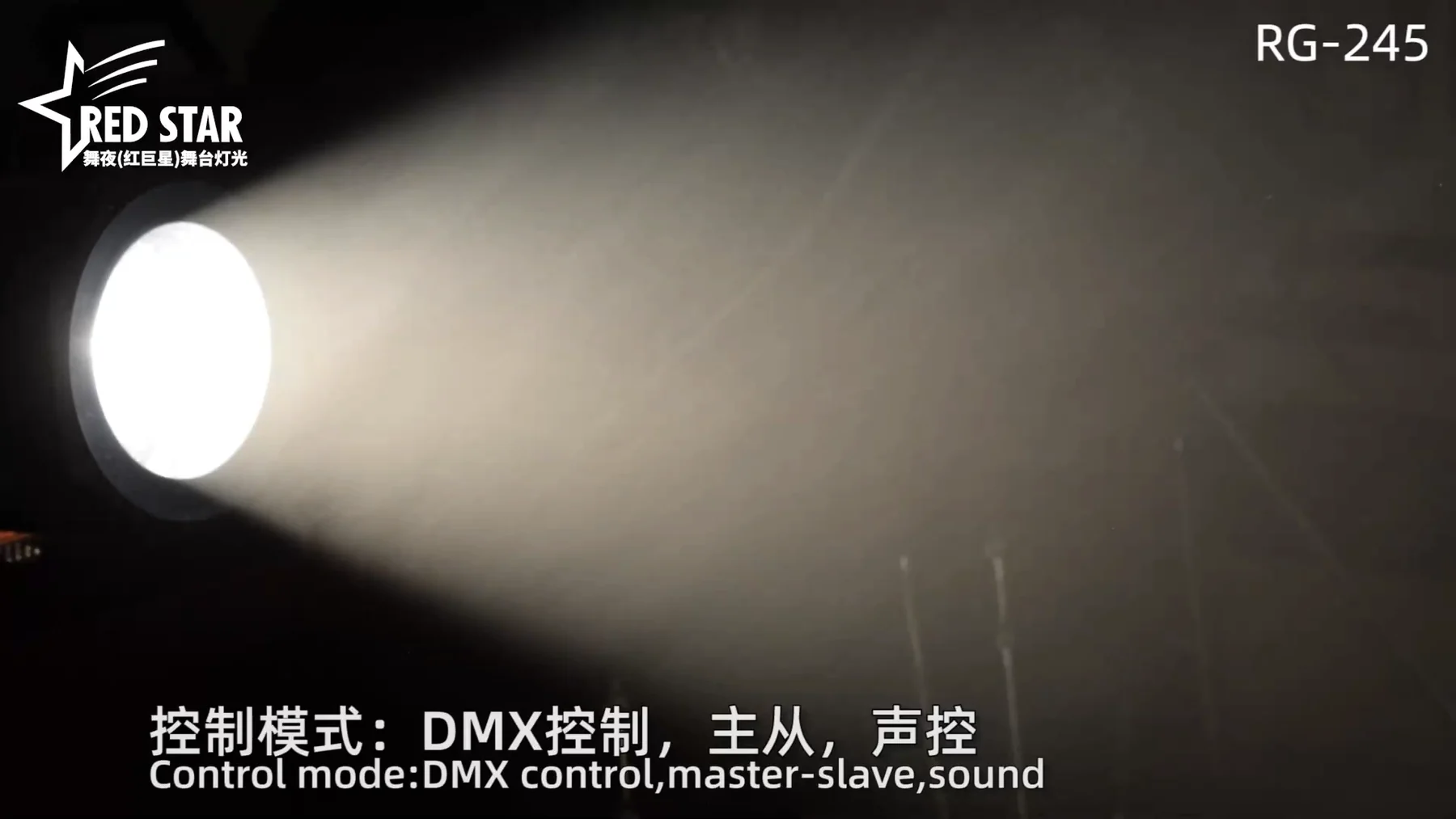

The supplied operating modes are DMX512, Master-slave and Sound. The listed DMX mode uses three channels. Request the current channel chart for the ordered white-light or customized RGB source because channel functions may differ by configuration.
Specifications
Technical specifications
| Model | RG-245 |
|---|---|
| Public product power | 200W COB source |
| Light source | 200W warm-white COB; custom RGB 3-in-1 option |
| Voltage | AC 90–240V, 50/60Hz |
| DMX channels | 3CH |
| Net weight | 5.25kg |
| Control modes | DMX512 / Master-slave / Sound |
| LED configuration | 200W COB |
| Color system | 3200K–5600K adjustable white; custom RGB option |
| Zoom range | 15°–60° |
APPLICATION FIT
Match the beam width and white-light setting to the production.
For 200W Zoom COB Stage Light projects, use the zoom range to move between concentrated accents and broader stage illumination. The adjustable-white version can support event, theatre and camera-facing work when tested with the actual cameras, while the customized RGB version targets projects that need color output from the same fixture format. Compare related LED PAR lights when planning your lighting rig.
B2B ORDER FLOW
Confirm the source and zoom requirements before production.
For your 200W Zoom COB Stage Light order, send the quantity, destination, venue and fixture position. State whether you need the adjustable-white or customized RGB three-in-one source, how the 15°–60° range will be used, and whether the fixtures will run by DMX, Master-slave or Sound control. For DMX network planning, consult ESTA’s DMX512-A guide and request this fixture’s current channel chart.
PRODUCT FAQ
Questions Before You Order.
Direct answers about configuration, control, installation and quotation.
What is the zoom range?
The listed beam-angle range is 15° to 60°.
Is the zoom motorized?
The supplied data confirms the adjustable angle range but does not specify the adjustment mechanism. Confirm it with the ordered version.
What color temperature is available?
The adjustable-white configuration lists a 3200K–5600K range.
Is an RGB version available?
Yes. An RGB three-in-one COB source is listed as a customizable option.
Does the RGB version also have the same adjustable-white range?
That is not confirmed. Treat the white-light and customized RGB versions as separate configurations until the current source and channel chart are approved.
Which control modes are listed?
DMX512, Master-slave and Sound control.
How many DMX channels are listed?
Three channels. Request the current channel functions for the selected light-source version.
What should I send for a quotation?
State source version, quantity, destination, voltage, venue, mounting position, zoom use and control requirements.
