LED SPOT SYSTEM

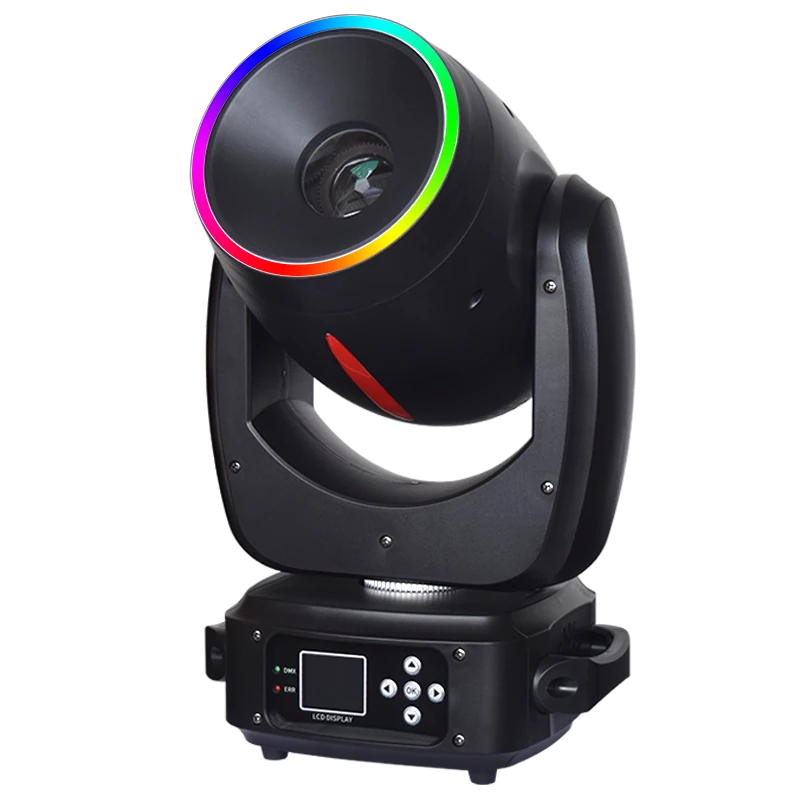

200W LED Spot Moving Head Light — build scenes with fixed and rotating gobos.
200W LED Spot Moving Head Light uses a 180W white LED in the 200W LED Spot series. Two gobo wheels, a color wheel, prism and frost provide optical options for projected patterns and aerial effects.
180W white LED
The source rating is distinct from the 200W product-series name.
Two gobo wheels
Ten fixed gobos plus open and seven rotating gobos plus open are listed.
13 colors + open
The wheel includes a half-color effect for split-color looks.
3-facet prism
The single prism rotates in both directions for repeated projections.
PRODUCT VIEWS

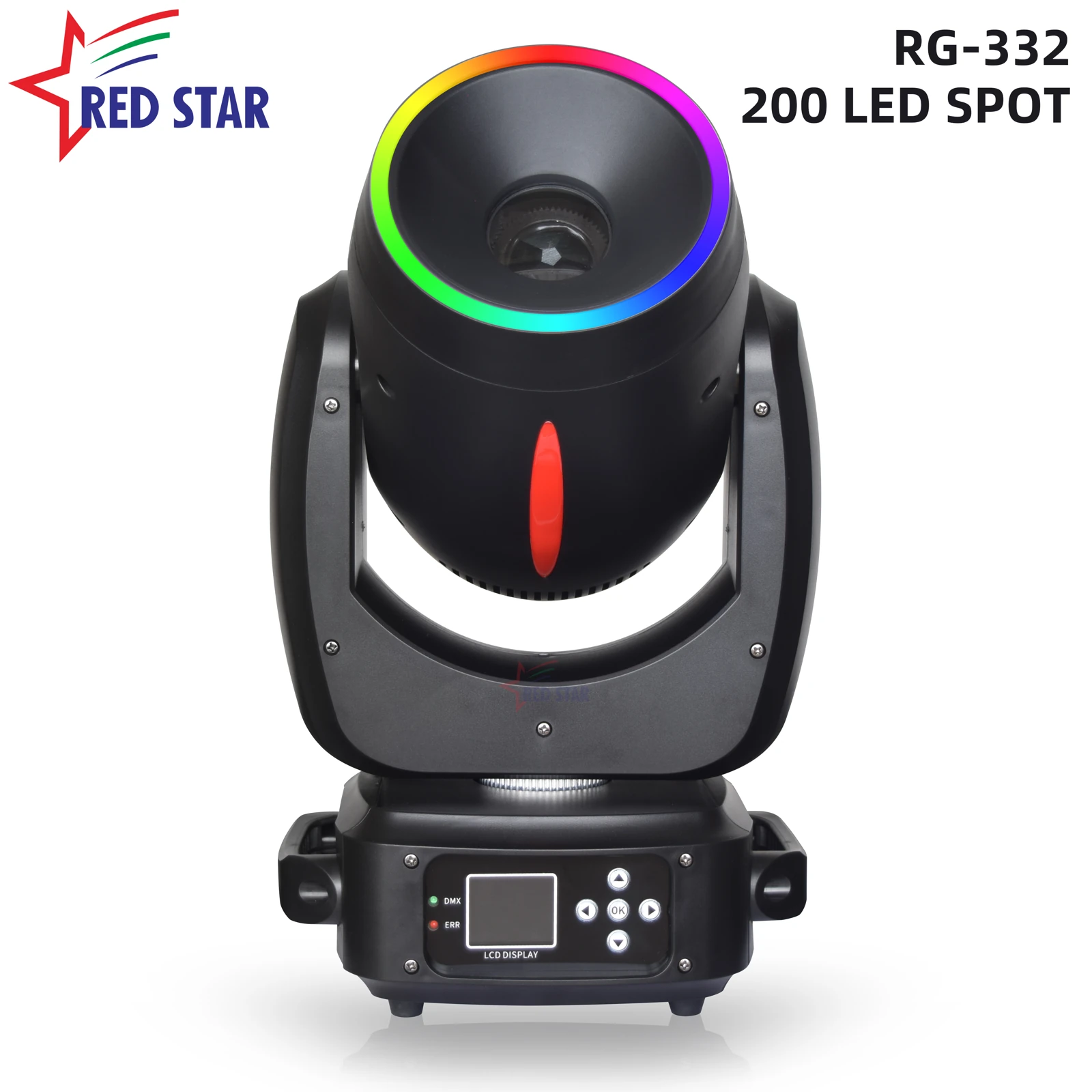

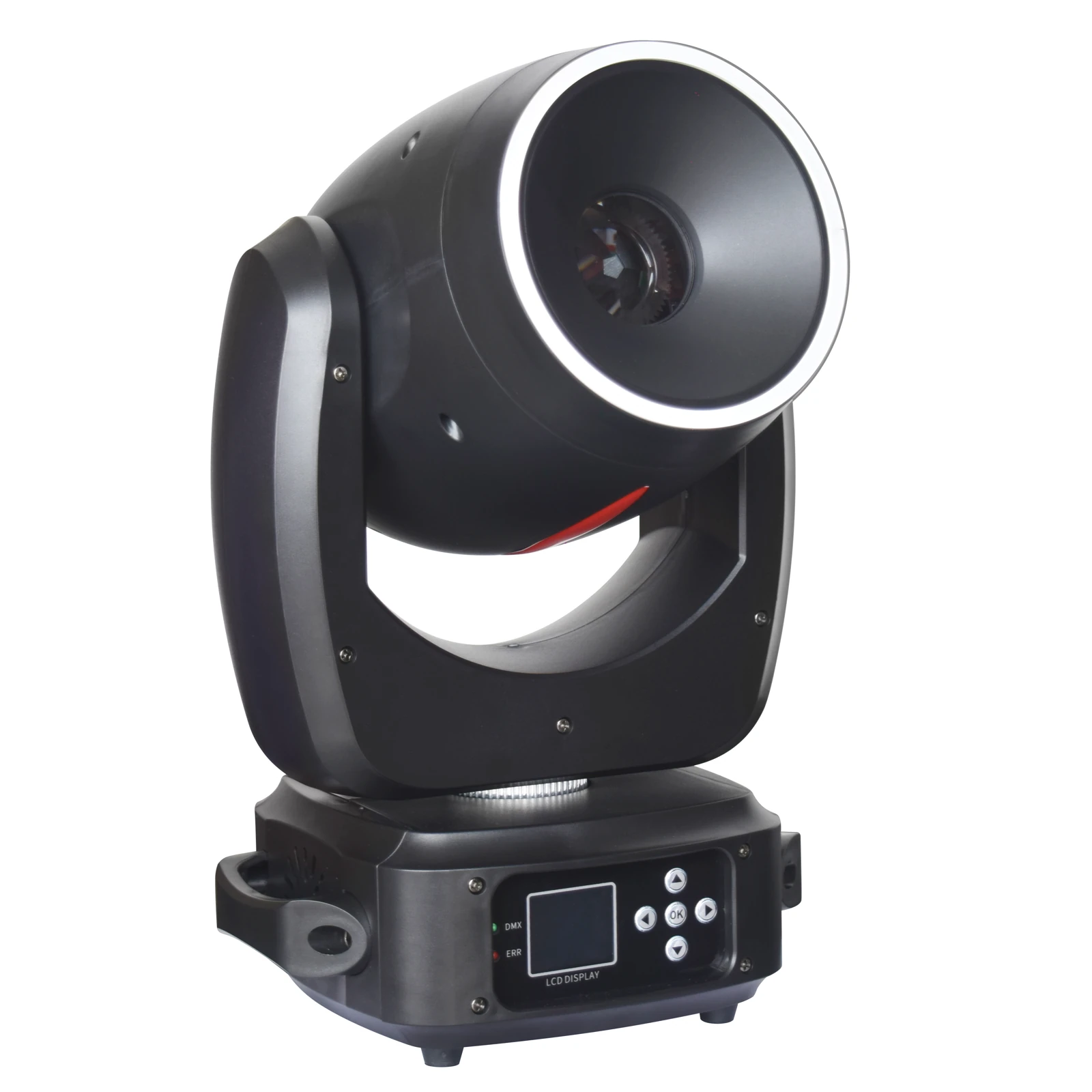

Review the front and side profile.
These views show the optical face, support arms and front control panel.
COLOR DEMONSTRATION
See blue and yellow aerial looks.
The supplied demonstration images show the fixtures producing colored aerial light. Visibility depends on the demonstration environment and atmospheric conditions.
GOBO AND PRISM
Compare a pattern with repeated projections.
The rotating-gobo demonstration and prism image illustrate pattern and repetition roles in the optical system.
PRODUCT VIDEO
Watch the spot, gobo and prism effects in motion.
The RG-332 demonstration shows moving spot effects, gobo patterns and the three-facet prism in operation.
Specifications
Technical specifications
| Model | RG-332 |
|---|---|
| Public product power | 200W LED Spot series |
| Light source | 180W white LED |
| DMX channels | 11CH / 16CH |
| Color wheel | 13 colors + open; half-color effect |
| Fixed gobo wheel | 1 wheel: 10 gobos + open |
| Rotating gobo wheel | 1 wheel: 7 gobos + open, including 3 glass gobos; shake and bidirectional flow |
| Prism system | 1 × 3-facet prism; bidirectional rotation |
| Frost | Linear frost and pulse frost |
| Pan / tilt | Pan 540° / Tilt 245° |
| Dimming | Mechanical dimming |
| Strobe | 0.5–14Hz; pulse and random strobe |
INTENSITY AND TEXTURE
Combine dimming, strobe and frost cues.
Mechanical dimming, 0.5–14Hz strobe, pulse and random strobe, linear frost and pulse frost are listed.

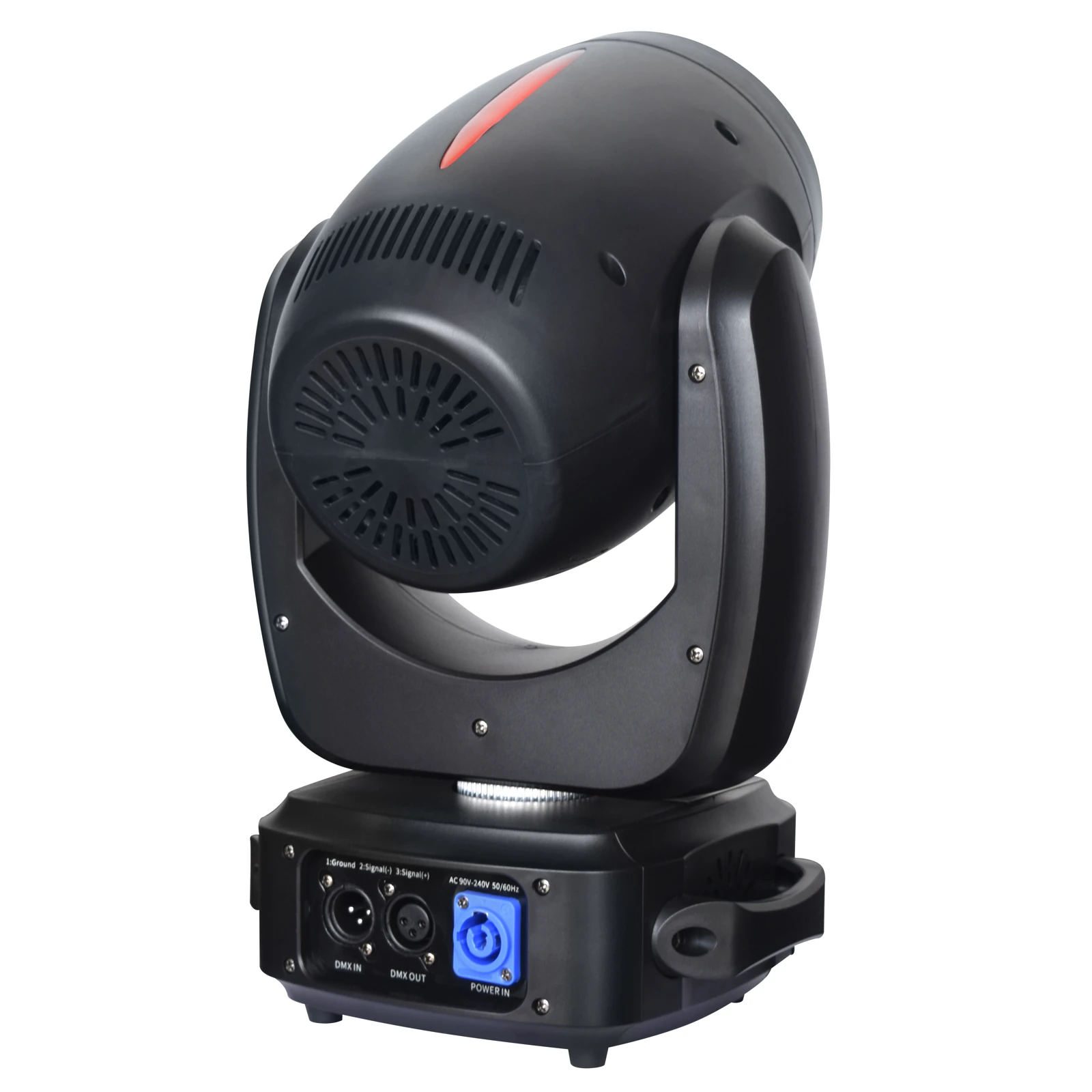

REAR CONNECTIONS

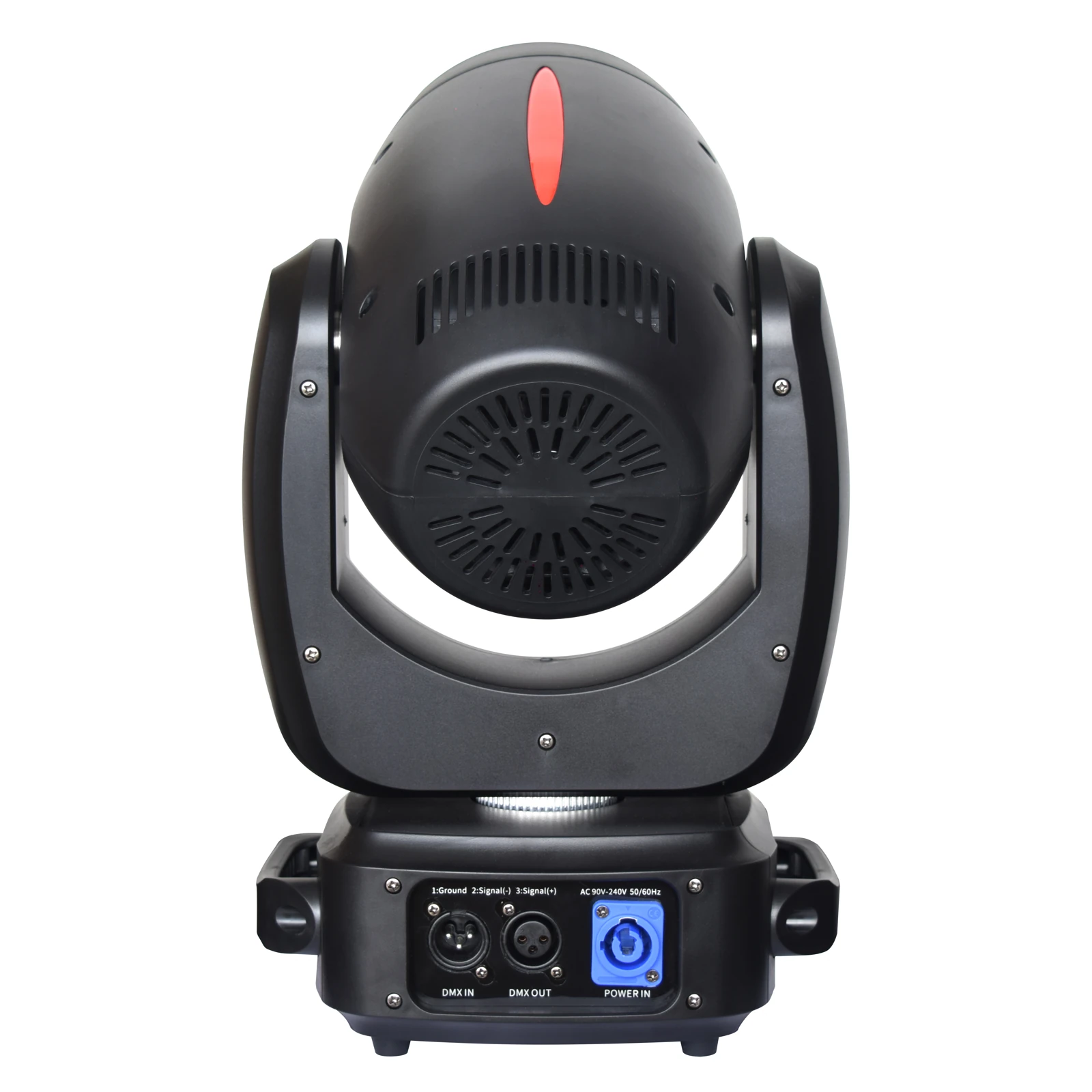

Review the rear housing and connections.
The rear views show ventilation and the marked DMX and power connections.

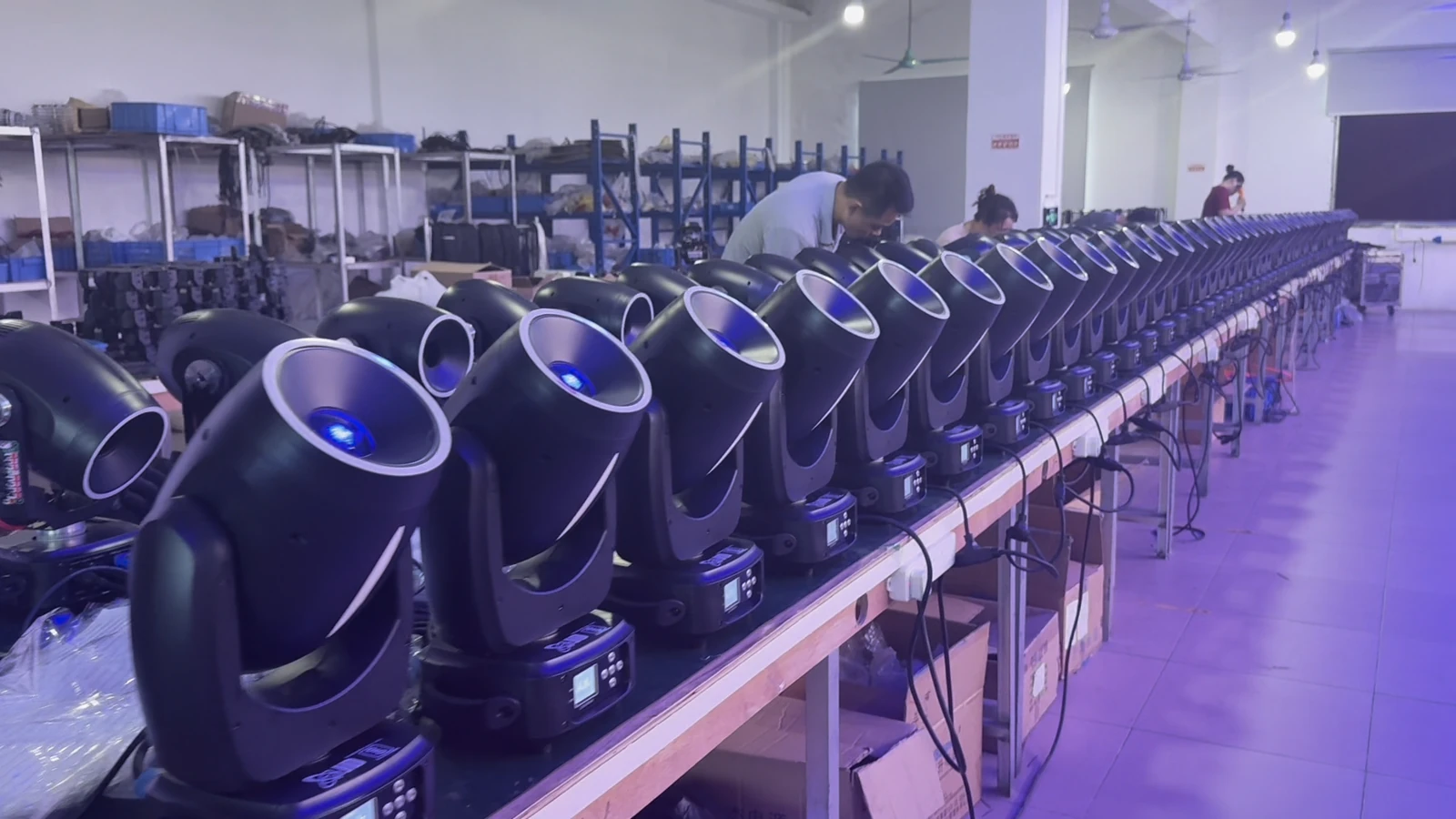

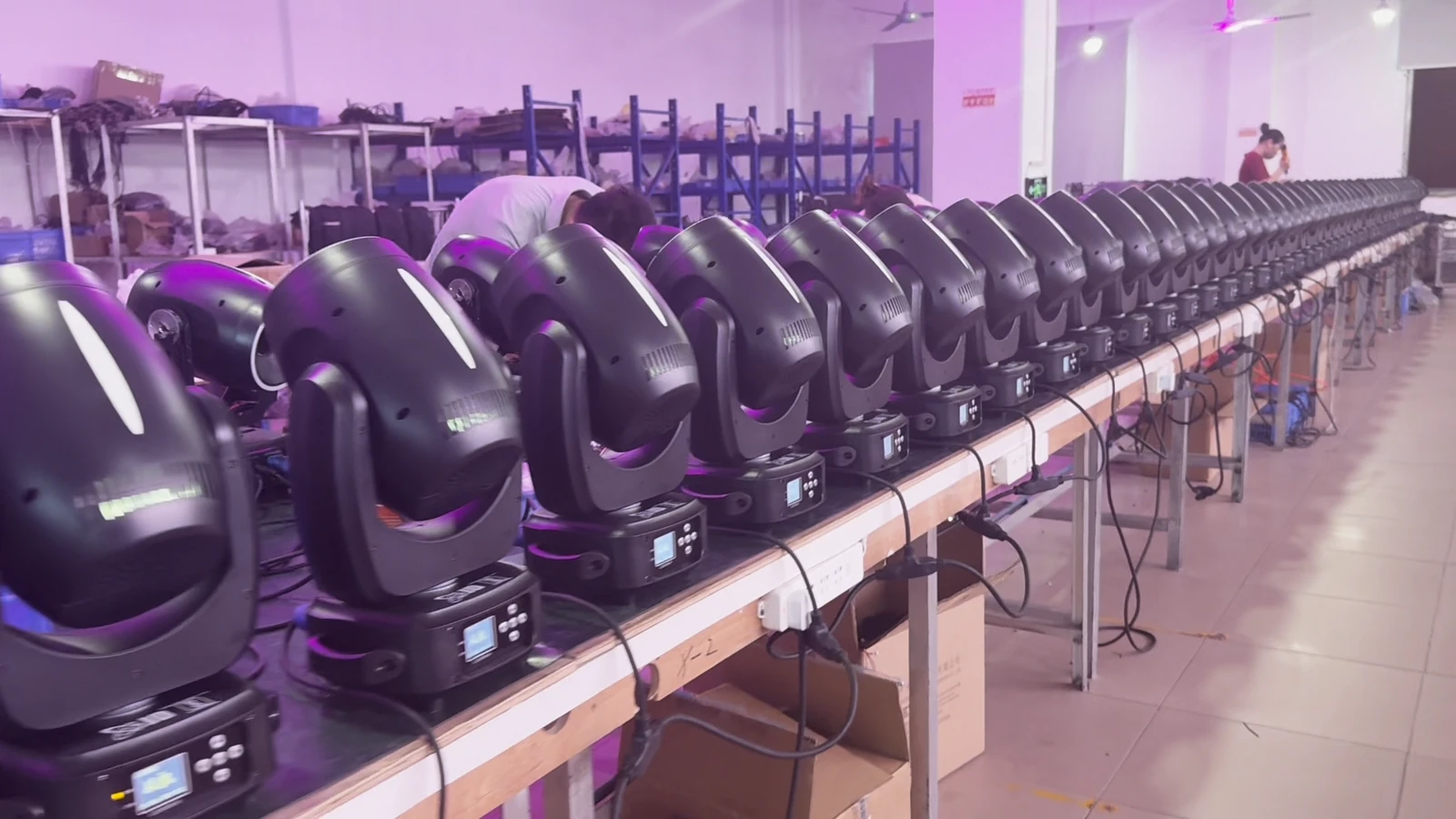

WORKBENCH IMAGES
View the supplied powered-on fixture rows.
These supplied workshop photographs show rows of fixtures powered on at a bench. They provide production-context views of the hardware configuration.
APPLICATION FIT
Specify patterns, color and projection roles.
Use the spot system for projected gobo patterns, prism repetition and moving aerial accents. Describe the projection surface and throw distance before selecting quantity, then identify the rotating-gobo, fixed-gobo and frost looks needed in the show. Frost adds softened cues; it does not by itself establish the coverage of a dedicated wash fixture.
Compare the moving head light range when choosing spot, beam or wash roles for the lighting system.
B2B ORDER FLOW
Request the selected fixture configuration.
Identify 200W LED Spot Moving Head Light and the source configuration in your inquiry so the offer addresses the required lighting and control setup. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.
PRODUCT FAQ
Questions Before You Order.
Sources, optical functions, control and order configuration.
Does the 200W name refer to the LED source rating?
The product is named the 200W LED Spot series. Its supplied LED source rating is 180W. Use the specified source rating separately from the product name.
Which gobo wheels are included?
One fixed wheel has ten gobos plus open. One rotating wheel has seven gobos plus open, including three glass gobos. Shake and bidirectional flow are listed.
What color wheel is specified?
The current specification lists 13 colors plus open, with a half-color effect.
What prism is included?
One rotatable three-facet prism is listed, with bidirectional rotation.
Which dimming, strobe and frost functions are listed?
Mechanical dimming, 0.5–14Hz strobe, pulse and random strobe, linear frost and pulse frost are specified.
Which channels and movement ranges are listed?
Profiles are 11CH and 16CH. Pan is 540° and tilt is 245°.
What display interface does it use?
The fixture has an LCD screen with Chinese and English interface options.
What should I include in an inquiry?
Provide quantity, destination, fixture positions, projection surfaces and desired gobos or prism looks. Include console profile, electrical requirements, accessories, packing and schedule.
