BEAM · SPOT · WASH

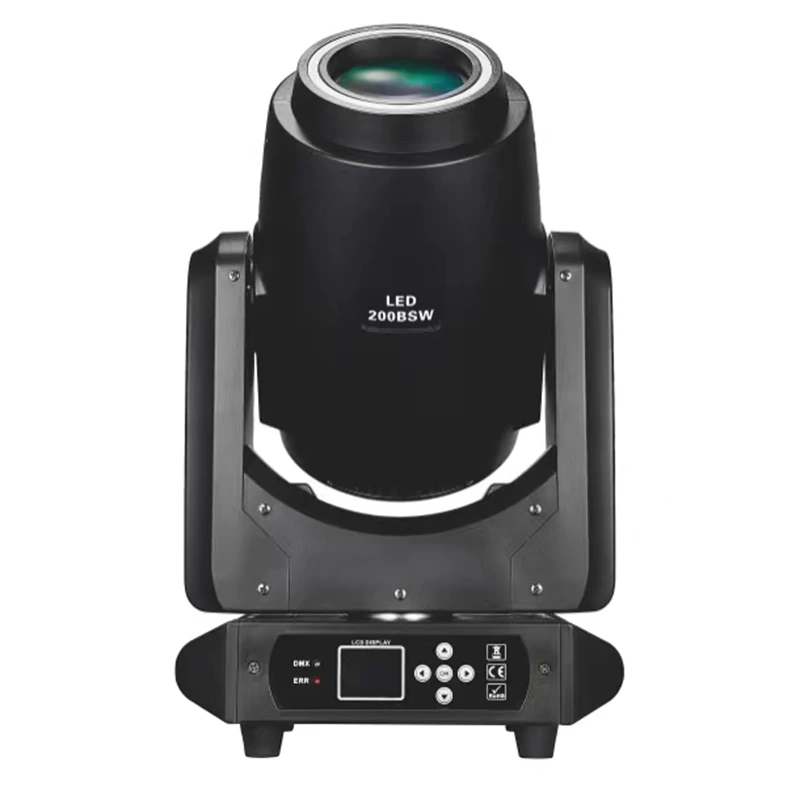

200W LED BSW Moving Head Light — three optical roles with a 200W LED source.
This 200W LED BSW moving head light combines a narrow beam setting, focused gobo projection and an 8° frost effect for indoor event rigs. The 3–30° magnification range and linear focus let programmers adapt projected looks to different cues.
7000K white source
The LED module provides the white source for the color wheel, with a listed source lifespan of 50,000 hours.
Fixed and replaceable patterns
Use 8 replaceable rotating gobos plus open and 7 fixed gobos plus open to build varied pattern cues.
Wheel-based color effects
Adjust rainbow-effect speed and use half-step colors alongside the fixed color positions.
Console-led operation
Program pan, tilt, optical effects, dimming and strobe through DMX512 with RDM support.
OPTICS & MOTION
Shape patterns, split beams and change cue speed.
Linear focusing sharpens gobo looks. The rotating prism has adjustable rotation and speed, while 0–100% linear dimming and 0.5–14Hz strobe support gradual fades or rhythmic accents. Pan travel is 540° in 3.0 seconds; tilt travel is 250° in 2.0 seconds.

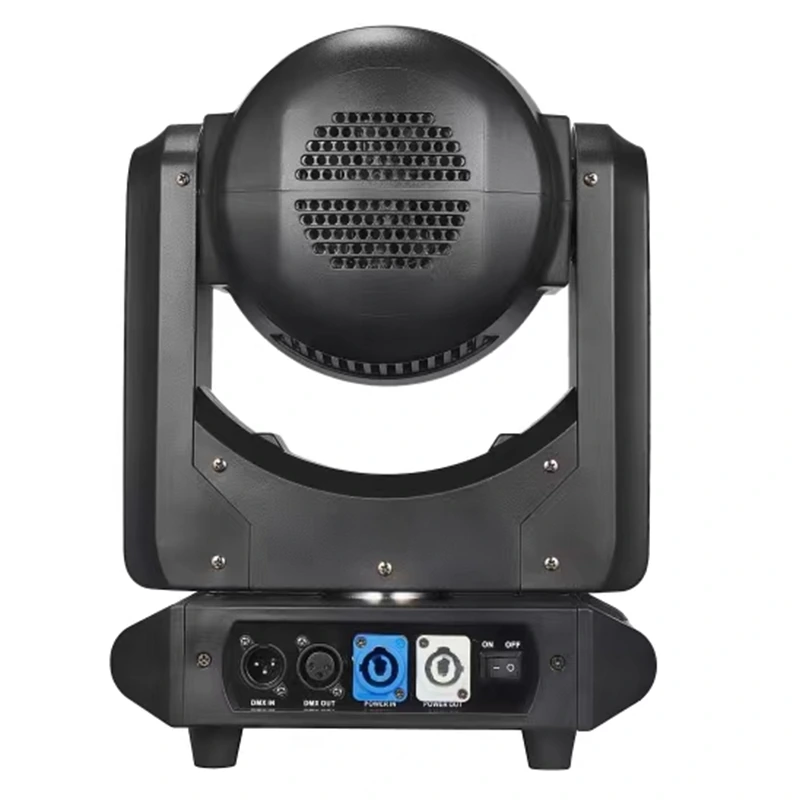

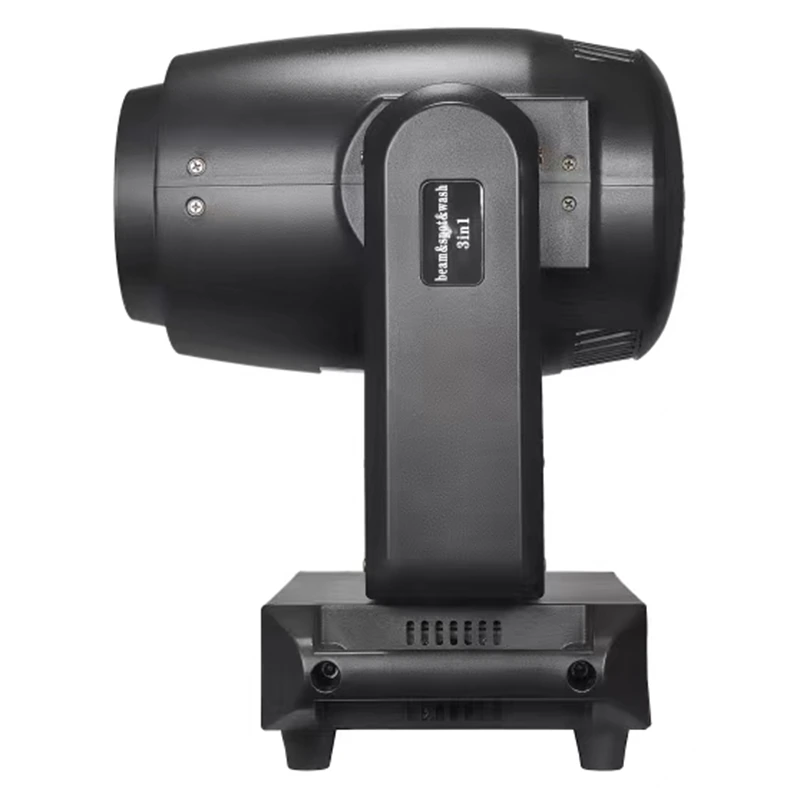

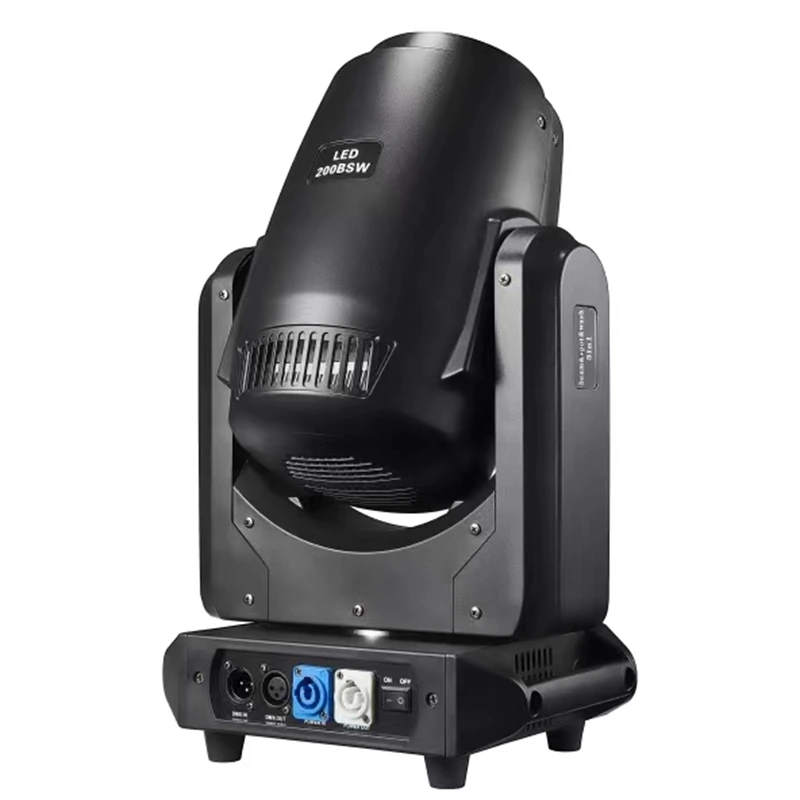

FIXTURE DETAILS
Inspect the housing, yoke and connection panel.
The supplied rear, side and angled views show the cooling vents, moving-head support and power/DMX connections. All views remain uncropped for product inspection.

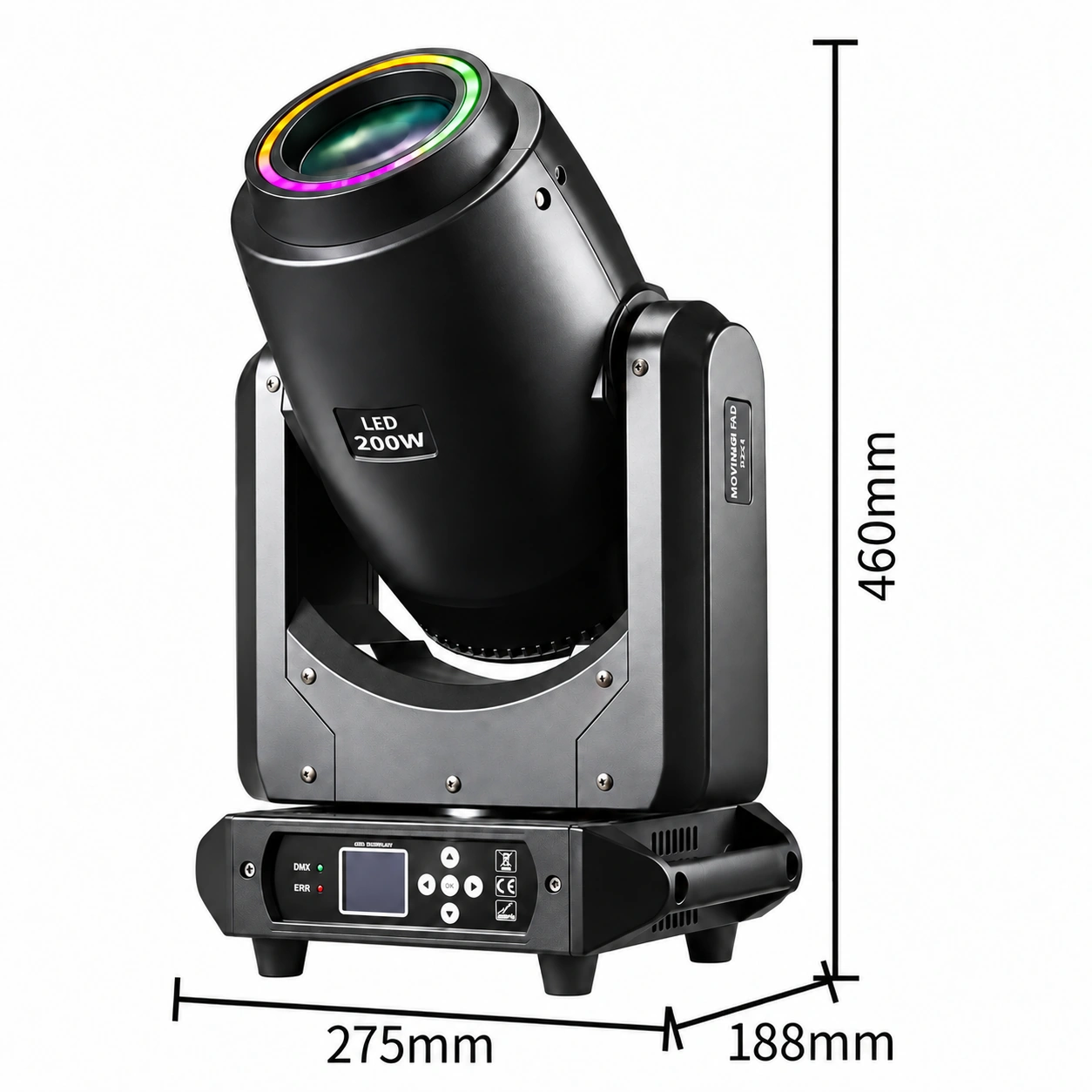

DIMENSIONS
Plan space for the moving head.
The fixture measures 275 × 188 × 460mm. Allow additional space for head movement, ventilation and cable routing when designing the mounting position.
Specifications
Technical specifications
| Model | RG-330C |
|---|---|
| Light source | 200W LED module; 7000K |
| Voltage | AC 100–240V, 50–60Hz |
| DMX channels | 15CH |
| IP rating | IP20 |
| Product dimensions | 275 × 188 × 460mm |
| Rated lamp lifespan | 50,000 hours (listed LED source lifespan) |
| Control modes | DMX512 / RDM |
| Beam angle | 0–3° parallel beam; 3–30° magnification range |
| Color wheel | 8 colors + white; adjustable rainbow and half-step effects |
| Fixed gobo wheel | 7 patterns + open |
| Rotating gobo wheel | 8 replaceable patterns + open; variable-speed gobo flow and reversible rotation |
| Prism system | One rotating prism; adjustable rotation and speed |
| Frost | 8° |
| Focus | Linear focusing |
| Pan / tilt | Pan 540° in 3.0s; tilt 250° in 2.0s |
| Dimming | 0–100% linear |
| Strobe | 0.5–14Hz |
APPLICATION FIT
Build programmed looks for indoor stages and event rooms.
For 200W LED BSW Moving Head Light applications, IP20 makes this fixture suitable for dry indoor locations. Use the beam and gobo functions for show accents, or the frost setting for softer cues; test the required throw distance and coverage before specifying a complete rig. Compare the wider range of beam, spot and wash moving heads for other fixture requirements.
B2B ORDER FLOW
Send the rig brief for a matched quotation.
For your 200W LED BSW Moving Head Light order, include quantity, destination, venue size, throw distance, required effects, supply voltage and plug type. Specify console requirements, mounting accessories, spare gobos and preferred packing so the quotation can describe the actual order. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.
PRODUCT FAQ
Questions Before You Order.
Answers about the source, optical effects, control and indoor use.
What does BSW mean for this fixture?
BSW stands for beam, spot and wash. This fixture combines narrow-beam effects, focused gobo projection and an 8° frost setting for softer output.
Does 200W describe the LED source or total input power?
200W describes the LED light source module. Use the electrical data for the ordered batch when planning total input load and power distribution.
Which colors and gobos are available?
The color wheel has 8 colors plus white, adjustable rainbow effects and half-step colors. The rotating gobo wheel has 8 replaceable patterns plus open; the fixed wheel has 7 patterns plus open.
What optical adjustments are listed?
The fixture lists a 0–3° parallel-beam setting, 3–30° magnification range, linear focus, an 8° frost setting and one rotating prism with adjustable speed.
Which control protocol and channel count does it use?
It uses 15 DMX512 channels and supports DMX512 and RDM. Request the current channel chart for your console profile.
Is this fixture suitable for outdoor events?
It is rated IP20 and should be used in dry indoor locations. It is not a weatherproof fixture for exposed outdoor installations.
What movement and strobe ranges are listed?
Pan travel is 540° in 3.0 seconds and tilt travel is 250° in 2.0 seconds. Strobe is adjustable from 0.5–14Hz, with 0–100% linear dimming.
What information is needed for a quotation?
Send quantity, destination, venue and throw distance, intended optical effects, voltage and plug type, console requirements, mounting accessories and packing preferences.
