LED BEAM PERFORMANCE
200W LED Beam Moving Head Light with Rainbow Effect — build beam cues with rainbow color and prism layers.
This 200W LED beam moving head light with rainbow effect combines a 7000K LED module, fixed color and gobo wheels, two prism systems and an RGB front ring. It suits buyers planning beam accents for DJ shows, clubs and event lighting systems.
200W LED source
A 7000K LED module supplies the beam, with a rated source lifespan of 50,000 hours.
Rainbow color effects
The fixed wheel offers 14 colors plus white, adjustable rainbow-effect speed and half-step colors.
Two prism systems
Select the 8-facet prism or the 8+16+24 prism system; the supplied demonstration also shows stacking.
18-channel DMX512
Use a console for programmed cues, or choose Auto, Master/Slave and Sound Activated playback.
PRISM EFFECTS
Compare single and stacked prism looks.
The demonstration shows the 8-facet prism, the 8+16+24 prism system and prism stacking. Compare their beam patterns when selecting the look for a cue; the footage is an effect demonstration rather than a photometric measurement.

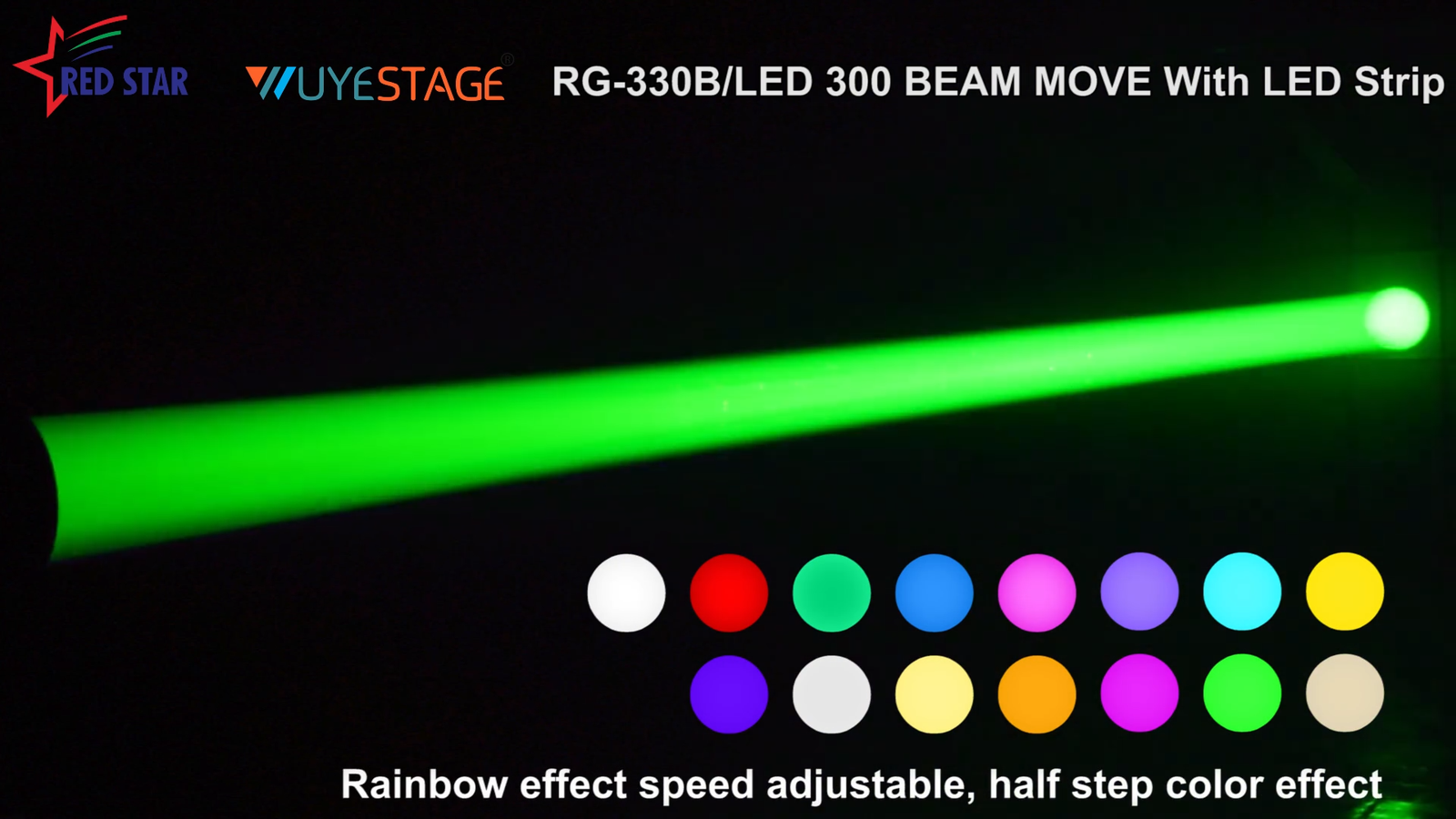

COLOR AND GOBO WHEELS
Switch colors, half-step looks and projected patterns.
A fixed color wheel provides 14 colors plus white with adjustable rainbow speed and half-step color effects. The fixed gobo wheel adds 17 patterns plus open white. Linear focus lets you adjust the projected look for the installation distance.
RGB FRONT RING
Add a visible color accent around the lens.
The supplied frames show the front-ring LED strip alongside the beam system. The labeled demonstration specifies 27 three-in-one RGB LEDs. Use the ring as a visible fixture accent when planning stage positions and audience sightlines.

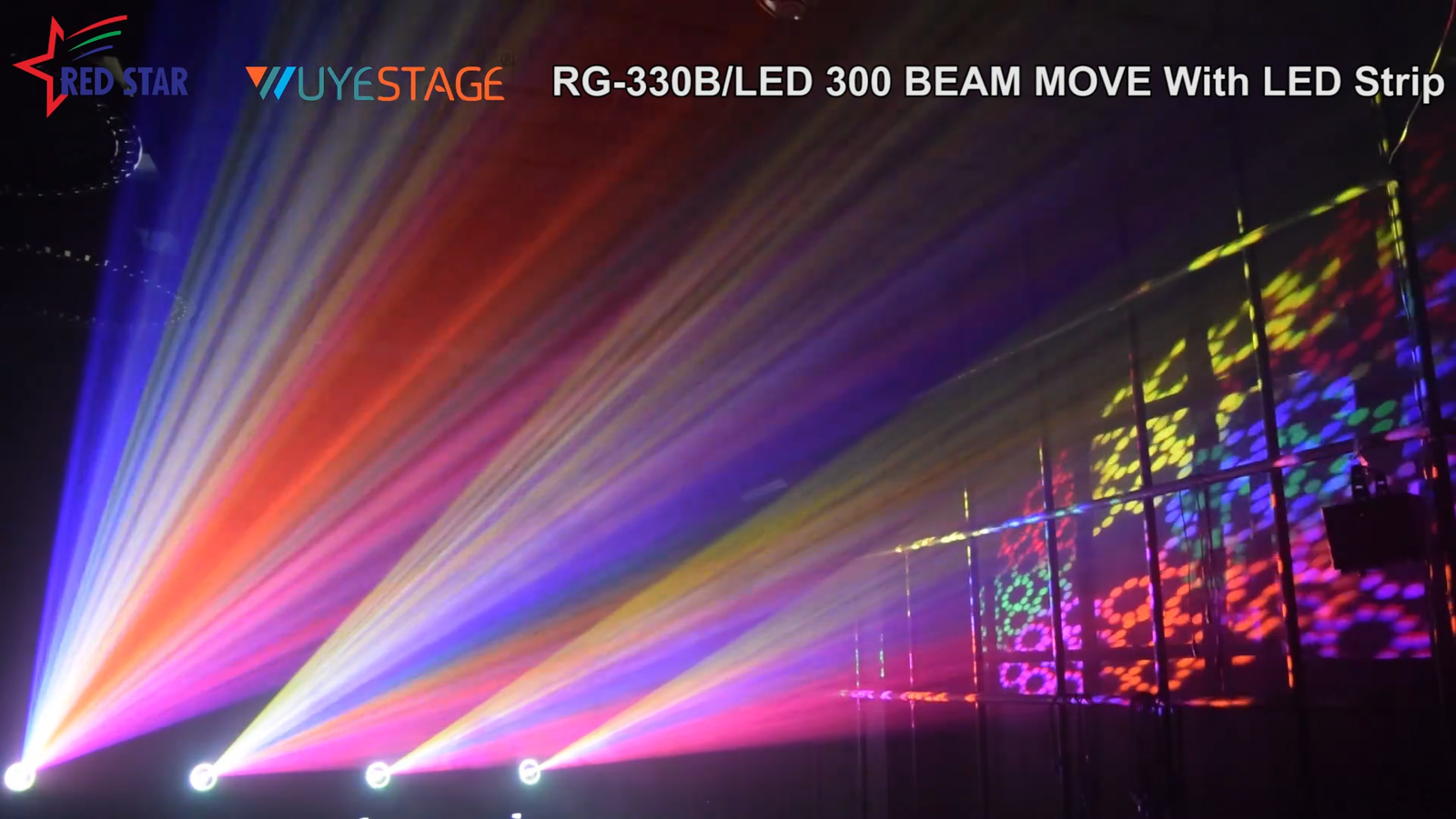

BEAM LOOKS
See color and prism combinations across multiple fixtures.
These supplied demonstration frames show radial prism patterns, coordinated beam arrays and rainbow-colored projection. Visibility varies with atmospheric haze, ambient light and placement; use the video to compare the moving effects.

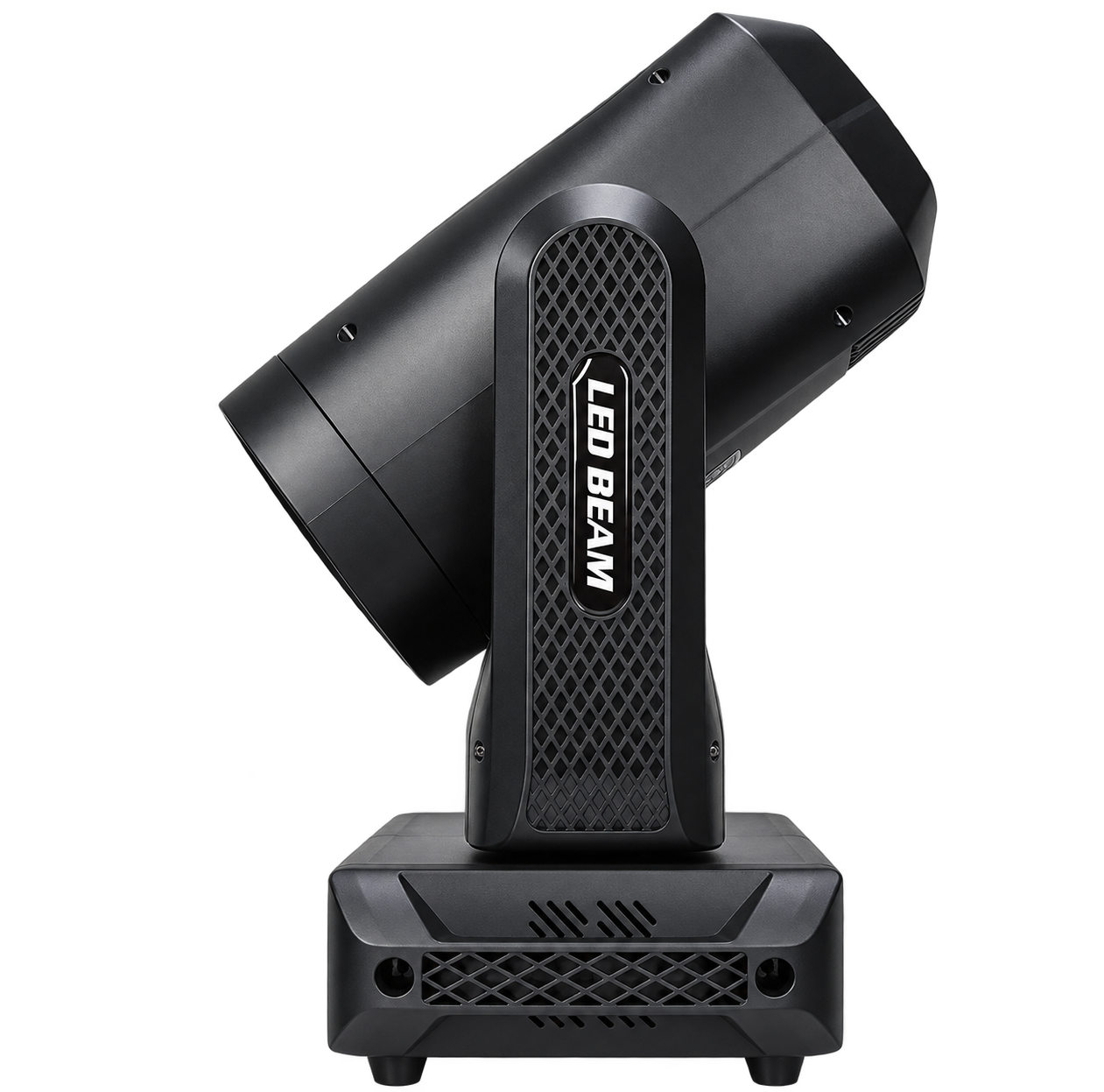

PRODUCT VIEW
Inspect the yoke and side housing.
The side view complements the front Hero image and shows the moving-head yoke and vented enclosure. Specify mounting and accessory requirements with your inquiry.
PRODUCT VIDEO
Watch the rainbow and prism demonstration.
The verified product video shows the LED beam, color wheel, gobo patterns, prism combinations and RGB ring in operation.
Specifications
Technical specifications
| Model | RG-330B |
|---|---|
| Light source | 200W LED module; 7000K |
| Voltage | AC 100–240V / 50–60Hz |
| DMX channels | 18CH |
| Rated lamp lifespan | 50,000 hours (rated source lifespan) |
| Control modes | DMX512, Auto, Master/Slave, Sound Activated |
| RGB front ring | 27 three-in-one RGB LEDs (front-ring strip) |
| Color wheel | 1 fixed wheel: 14 colors + white; adjustable rainbow speed; half-step color effects |
| Fixed gobo wheel | 1 fixed wheel: 17 gobos + open white |
| Prism system | 8-facet prism and 8+16+24 prism system; stacking demonstrated |
| Focus | 0–100% linear |
| Pan / tilt | Pan: 540° / 3.0s; tilt: 270° / 2.0s |
| Dimming | 0–100% linear |
| Strobe | 0.5–14 flashes per second |
MOTION AND CONTROL
Prepare the movement range and DMX patch.
The stated pan travel is 540° in 3.0 seconds and tilt travel is 270° in 2.0 seconds. The listed DMX mode uses 18 channels. Request the channel chart before building a console profile.
APPLICATION FIT
Plan it as a beam and decorative effect fixture.
For 200W LED Beam Moving Head Light with Rainbow Effect applications, choose this fixture where moving beams, prism patterns and rainbow color are part of the show design. Plan an indoor or protected installation, with dedicated wash and performer lighting selected separately.
Compare the optical roles of other beam moving head lights before specifying the fixture mix.
B2B ORDER FLOW
Send the installation brief for a matched quotation.
For your 200W LED Beam Moving Head Light with Rainbow Effect order, the quotation should reflect fixture quantity, operation and delivery needs. Include the beam and prism looks you intend to use so the technical discussion addresses the actual show setup. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.
PRODUCT FAQ
Questions Before You Order.
Source, optical effects, control and quotation details.
What light source does the fixture use?
It uses a 200W LED module with a stated color temperature of 7000K and a rated source lifespan of 50,000 hours.
What color effects are available?
The fixed color wheel has 14 colors plus white. Rainbow-effect speed is adjustable, and half-step color effects are listed.
How many gobo patterns are included?
The fixed gobo wheel has 17 patterns plus open white. The focus adjustment is 0–100% linear.
Which prism effects are shown?
The specification lists one 8-facet prism and an 8+16+24 prism system. The supplied demonstration shows both systems and a stacked prism look.
Does it have a front LED ring?
Yes. The supplied product demonstration shows a front-ring strip labeled as 27 three-in-one RGB LEDs, providing a visible color accent around the lens.
How is the fixture controlled?
The listed DMX512 mode uses 18 channels. Auto, Master/Slave and Sound Activated modes are also available. Request the channel chart for console setup.
What are its motion, dimming and strobe specifications?
Pan travel is 540° in 3.0 seconds and tilt travel is 270° in 2.0 seconds. Dimming is 0–100% linear, and strobe is adjustable from 0.5 to 14 flashes per second.
What should I include in a quotation request?
Send quantity, destination, venue type, fixture positions, desired effects, AC supply and plug, control mode and delivery schedule. Ask for mounting options, channel documentation, dimensions, weights and packing details needed for the order.
