IP67 DUAL-WHITE COB PAR
200W IP67 Four-Eye COB PAR Light overview
The four-eye face uses two white and two warm-white 50W COB LEDs. Use the pairings for different white-light looks, then confirm the current channel functions and ordered color specifications before programming.
4 × 50W COB
Four 50W COB sources form the face of the listed 200W fixture.
2 white + 2 warm-white
Two sources of each white type provide the stated dual-white arrangement.
IP67 fixture
Include protected power and data connections in the complete outdoor installation plan.
VERIFIED PRODUCT DETAIL
Plan the IP67 fixture as one part of the complete outdoor system.
The current product data lists IP67 protection and a −20°C to 40°C working range. Outdoor operation still requires suitable protected power and data connections, mounting, drainage and installation practices for the actual site.

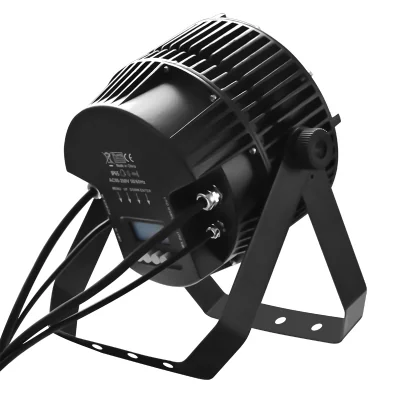

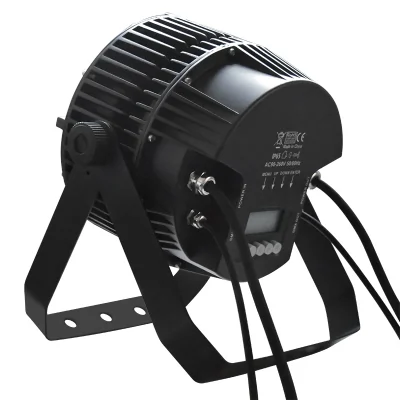

PRODUCT VIEWS
Review the fixture and supplied effect views.
These supplied images document the product appearance and visual effects; they are not photometric measurements.
Specifications
Technical specifications
| Model | RG-451 |
|---|---|
| Public product power | 200W |
| Light source | 4 × 50W COB; 2 white + 2 warm-white |
| Rated fixture power | 200W |
| Voltage | AC 90–240V, 50/60Hz |
| DMX channels | 8CH |
| IP rating | IP67 |
| Product dimensions | 24 × 24 × 29cm |
| Net weight | 6.4kg |
| Control modes | DMX512 / Auto / Sound |
| LED configuration | 4 × 50W COB; 2 white + 2 warm-white |
| Color system | Dual white |
APPLICATION FIT
Plan dual-white coverage and the complete outdoor installation.
Specify the intended white-light looks, mounting distance and outdoor positions. Include protected power and data connections, mounting and drainage in the site plan; the fixture rating does not establish protection for the whole system. Compare related LED PAR lights when planning your lighting rig.
B2B ORDER FLOW
Confirm the selected source, control profile and shipment.
For your 200W IP67 Four-Eye COB PAR Light order, specify the required looks and operating setup so the ordered version can be confirmed. For DMX network planning, consult ESTA’s DMX512-A guide and request this fixture’s current channel chart.
PRODUCT FAQ
Questions Before You Order.
200W IP67 Four-Eye COB PAR Light: specifications, control and order planning.
How are the four COB sources configured?
Two white and two warm-white 50W COB LEDs.
What is the rated fixture power?
200W.
What protection rating is currently supplied?
IP67 for the current RG-451 fixture version.
Does IP67 cover the whole installation?
No. Cables, connectors, mounting and power distribution need site-appropriate protection.
What working temperature is listed?
−20°C to 40°C.
How is the 200W IP67 Four-Eye COB PAR Light controlled?
DMX512, Auto and Sound modes; 8 DMX channels are listed.
Is the color temperature adjustable?
Two white and two warm-white sources are confirmed, but no Kelvin range or mixing behavior is supplied.
What should be confirmed for an outdoor order?
Version, IP documentation, connections, mounting, quantity, destination and operating conditions.
START YOUR PROJECT
Request Product Information.
Tell us the quantity and delivery requirements. Our sales team will prepare suitable options for your project.
