ADJUSTABLE WHITE COB STAGE LIGHT

200W COB LED Stage Light with Manual Zoom

200W white and warm-white COB stage light with adjustable 3200–6500K color temperature, Ra ≥ 90 and 15–50° manual zoom. Complete-fixture power is 280W, with 6CH DMX and a listed net weight of 8.8kg.

200W COB / 280W fixture
3200–6500K / Ra ≥ 90
15–50° manual zoom / 6CH

Get a Quote

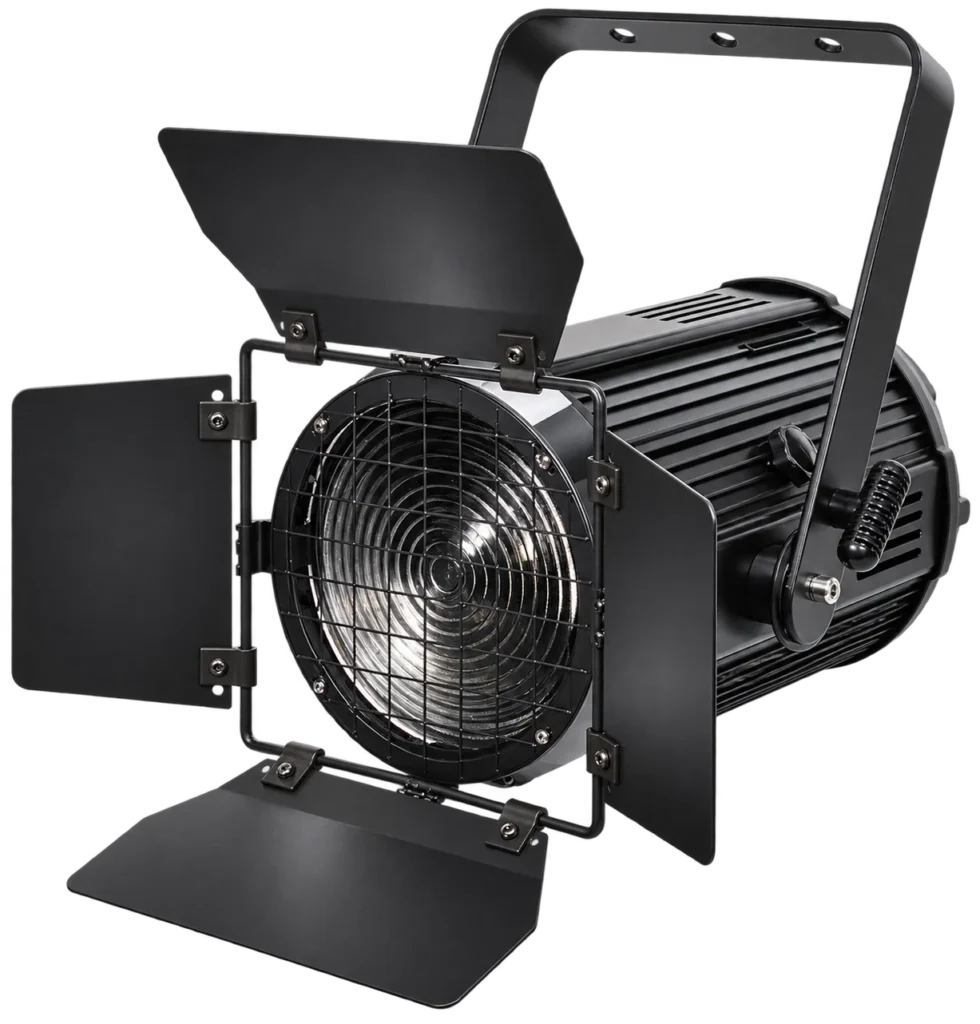

200W COB LED Stage Light with Manual Zoom COB stage light with barn doors front lens protective grille and mounting yoke

ADJUSTABLE WHITE COB

200W COB LED Stage Light with Manual Zoom — set white-light color temperature and coverage.

200W COB LED Stage Light with Manual Zoom uses one 200W white and warm-white COB LED. Color temperature is adjustable from 3200K to 6500K on the same fixture, with a specified CRI of Ra ≥ 90.

3200–6500K adjustable CCT

One fixture adjusts between the listed warm and cool white color temperatures.

15–50° manual zoom

Set the light angle manually for the intended coverage and lighting distance.

Ra ≥ 90

Use the specified CRI when defining the white-light color-rendering requirement.

6CH DMX

Choose the six-channel profile and request its matching chart for console patching.

WHITE AND WARM DEMONSTRATION

Compare white and warm coverage looks.

The supplied images show two fixtures lighting a floor area in white and warm looks. They illustrate the demonstration setup rather than a measured output or lux comparison.

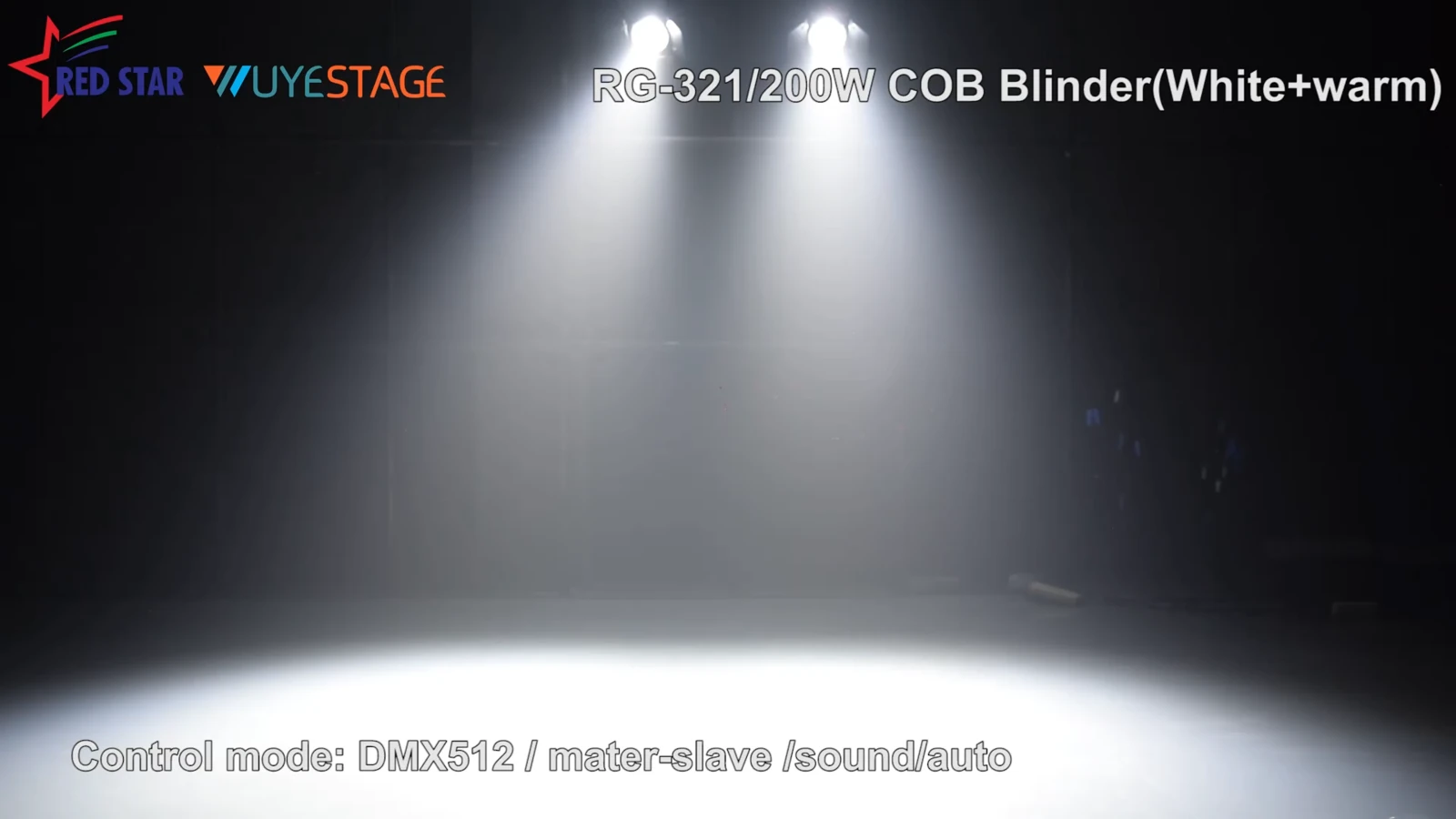

Two RG-321 fixtures demonstrating white-light coverage on the floor

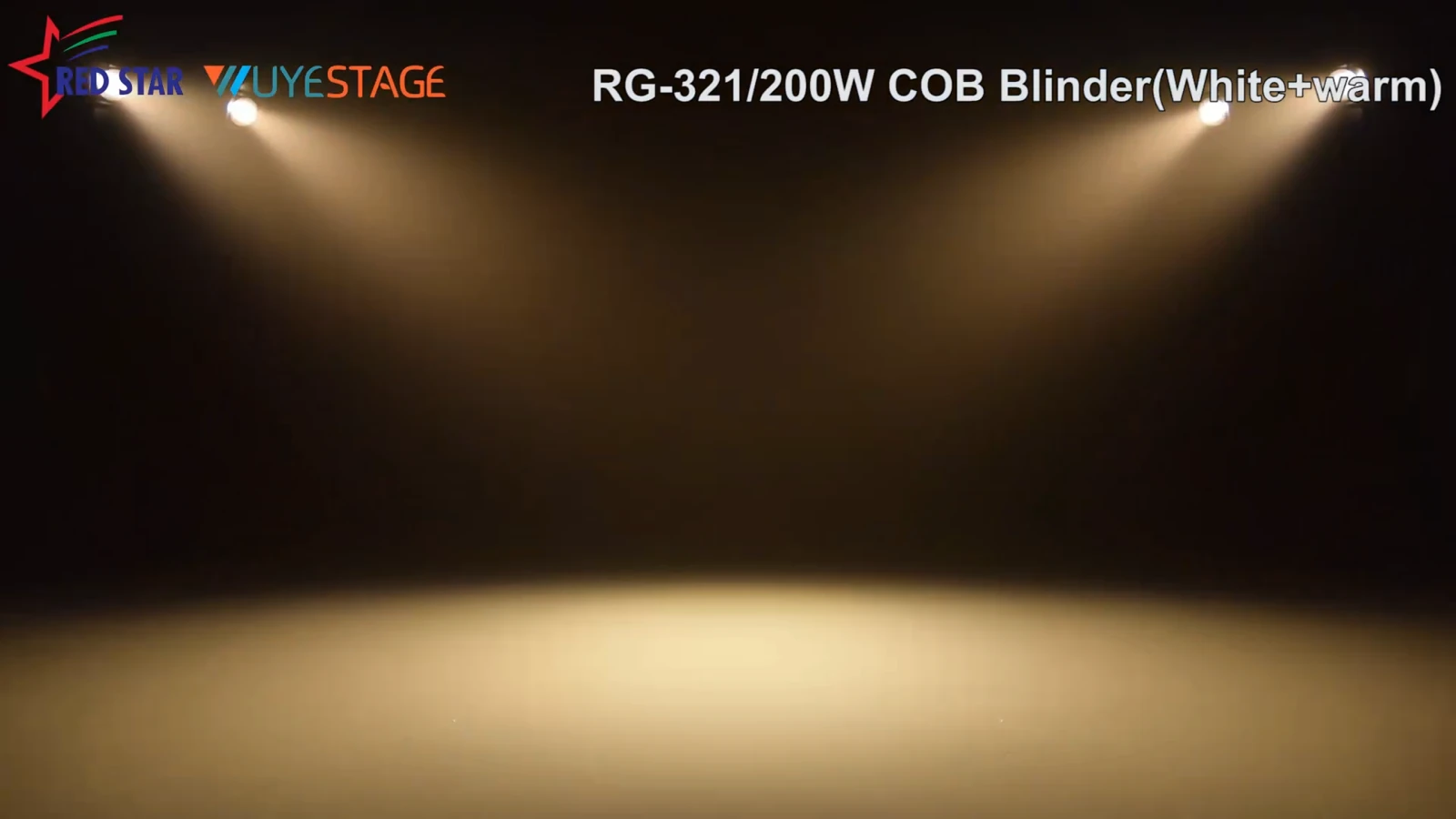

Two RG-321 fixtures demonstrating warm-light coverage on the floor

PRODUCT VIDEO

Watch the COB stage-light demonstration.

Compare the white and warm looks in the demonstration, then check the required field at your mounting distance. Manual zoom is a setup adjustment; do not assume that the console changes the coverage angle during a cue.

Specifications

Technical specifications

Model	RG-321
Public product power	200W COB source / 280W fixture power
Light source	1 × 200W white and warm-white COB LED; adjustable 3200–6500K
Rated fixture power	280W
Voltage	AC 100–240V, 50–60Hz
DMX channels	6CH
Net weight	8.8kg
Control modes	DMX512 / Master-Slave / Auto / Sound Activated
LED configuration	1 × 200W white and warm-white COB LED
Color system	White + warm white; adjustable CCT 3200–6500K
Zoom range	15–50° manual zoom

OPTICAL FACE

Review the front lighting assembly.

The supplied close-up shows the fixture operating with the front barn doors visible.

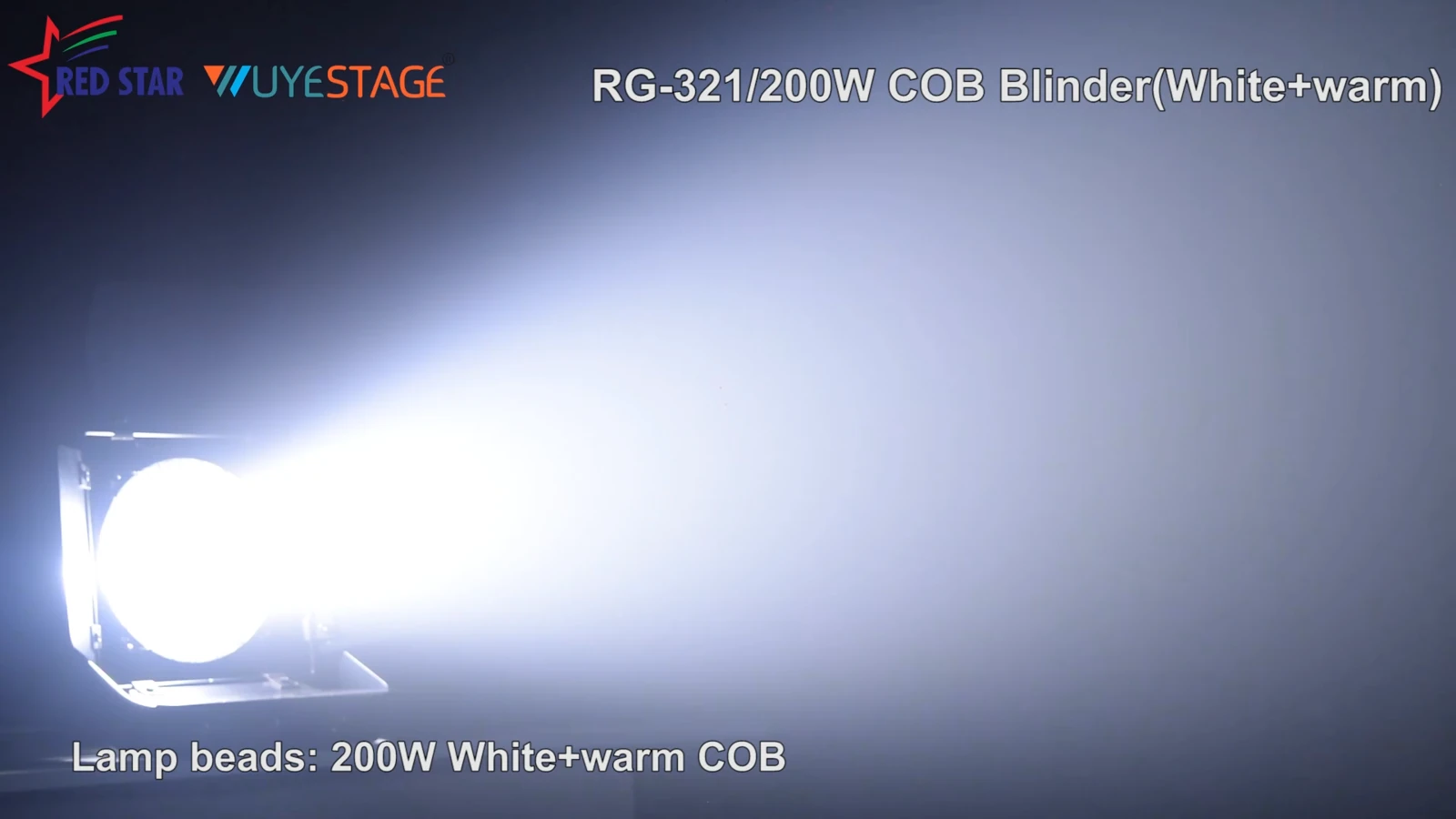

RG-321 white-light demonstration close-up with barn doors

MANUAL SETUP AND PLAYBACK

Set coverage by hand and choose the control workflow.

Manual zoom is specified at 15–50°. DMX512, Master-Slave, Auto and Sound Activated operating modes are listed.

Coverage setupSet the manual angle for the target area and throw distance before programming the scene.

Color-temperature cuesPlan white-light scenes within the confirmed adjustable 3200–6500K range.

Console profileUse 6CH and request the channel chart for the supported control functions.

APPLICATION FIT

Specify front-light coverage and white appearance.

Choose this manual-zoom COB stage light for fixed white-light positions where the coverage angle can be set before the show. Adjust 15–50° by hand for the target area, then use the same fixture’s 3200–6500K range to match the desired white tone. Ra ≥ 90 is listed; test the selected white and intensity cues with the actual cameras when needed. This is a white-light coverage fixture, not a gobo projector.

Stage front lightingProvide performer positions, lighting distance and the area to illuminate.

Event white-light scenesState the intended warm or cool appearance within the listed CCT range.

Manual coverage planningChoose the 15–50° angle during setup for the required scene coverage.

Rig and supply briefUse the 8.8kg net weight and 280W fixture rating when specifying mounting and electrical supply.

Review the LED wash light range for other white-light and coverage configurations.

B2B ORDER FLOW

Request the selected fixture configuration.

Identify 200W COB LED Stage Light with Manual Zoom and the source configuration in your inquiry so the offer addresses the required lighting and control setup. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.

01 · LIGHTING

Describe the required lighting cues.

Send the target lighting area, mounting distance, required white tones and whether the manually set angle will stay fixed throughout the show.

02 · CONTROL

Specify the console and operating profile.

Include the selected channel mode, console, power connections and accessory requirements.

03 · DELIVERY

Complete the supply brief.

State quantity, destination, schedule, mounting accessories and packing configuration for this model.

PRODUCT FAQ

Questions Before You Order.

Sources, optical functions, control and order configuration.

Is 3200–6500K adjustable on the same fixture?

Yes. The current configuration adjusts from 3200K to 6500K on the same white and warm-white fixture.

Does 200W describe complete-fixture power?

200W is the COB LED source rating. Complete-fixture power is separately specified at 280W.

Is the 15–50° zoom motorized?

The supplied specification lists manual zoom from 15° to 50°. Set the angle by hand during fixture setup.

What CRI is specified?

The listed color rendering index is Ra ≥ 90.

Which profiles and operating modes are listed?

The profile is 6CH, with DMX512, Master-Slave, Auto and Sound Activated operation. Request the matching channel chart for console setup.

What input and net weight are listed?

Input is AC 100–240V at 50–60Hz, and fixture net weight is 8.8kg.

What do the white and warm photographs show?

They show two fixtures illuminating a floor area in the supplied demonstration. These are visual examples of white and warm looks rather than measured photometric results.

What should I include in a manual-zoom COB inquiry?

Provide quantity, target lighting area and distance, required white-light color temperatures, manual zoom setup, console and 6CH profile, power connections, mounting accessories, packing requirements, destination and schedule.
