CONFIGURABLE INDOOR PAR
20/27-LED RGBW PAR Light overview
20/27-LED RGBW PAR Light (RG-411C) covers 20-position and 27-position front layouts. Specify the LED count, nominal LED rating and 4-in-1, 5-in-1 or 6-in-1 color package together so the quotation and production unit match the required stage palette.
20 or 27 LEDs
Select the front layout around the required fixture format and output plan.
10W / 12W / 15W
Confirm one nominal LED rating together with the selected lens count.
4/5/6-in-1 options
RGBW is confirmed for 4-in-1; additional colors require quotation confirmation.
7CH control
Use the listed DMX mode or Sound, Auto and Master-slave operation.
CONFIGURATION & OUTPUT VIEWS
Compare the supplied 20-position and 27-position references.

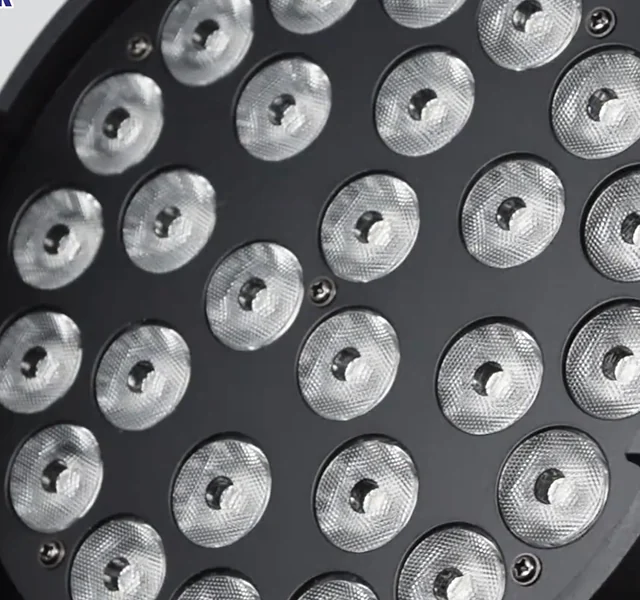

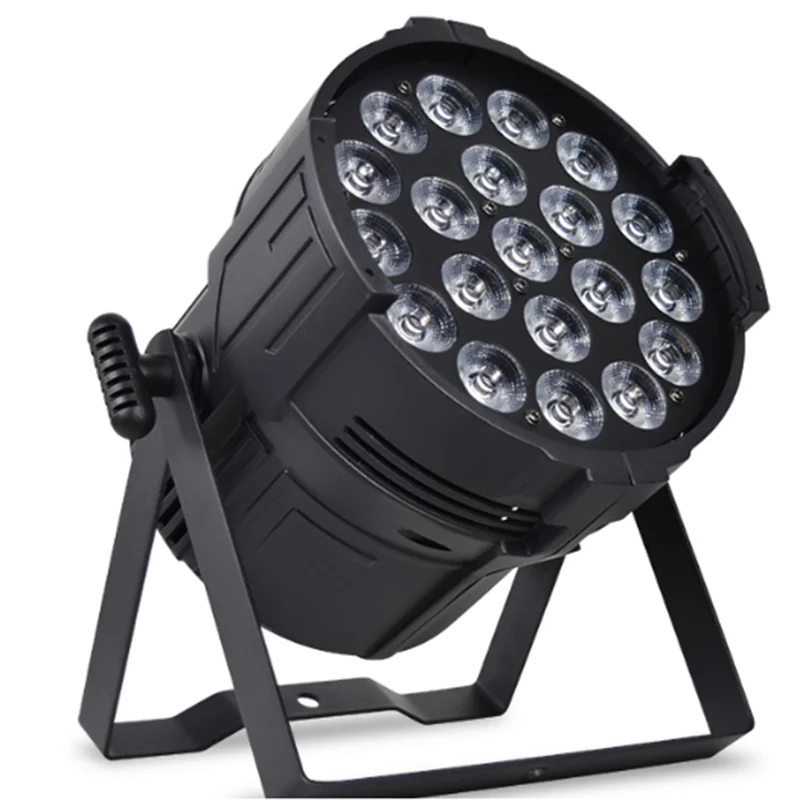

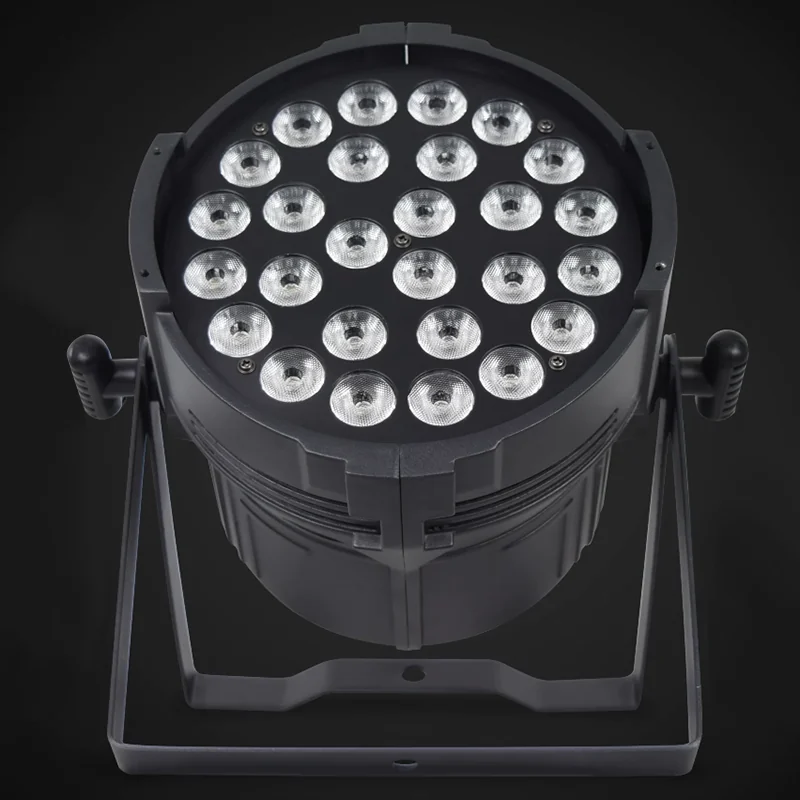

The product views show both available front layouts. The close-up and color-output image document the supplied 27 × 12W RGBW 4-in-1 reference; they do not claim identical output for every optional package.
Specifications
Technical specifications
| Model | RG-411C |
|---|---|
| Public product power | 200W |
| Light source | 20 or 27 × 10W / 12W / 15W LEDs; 4-in-1, 5-in-1 or 6-in-1 options |
| Voltage | AC 90–240V, 50/60Hz |
| DMX channels | 7CH |
| IP rating | IP20 |
| Product dimensions | 280 × 180 × 240mm |
| Net weight | 3kg |
| Control modes | DMX512 / Sound / Auto / Master-slave |
| Color system | RGBW 4-in-1 / 5-in-1 / 6-in-1 options |
APPLICATION FIT
Plan a fixed indoor color wash around the selected configuration.
For 20/27-LED RGBW PAR Light projects, use the 25° beam for indoor stages, event venues and rental systems that need a fixed-position color wash. IP20 means the fixture requires a dry indoor or protected location; final quantity and placement depend on throw distance, target area and required illuminance. Compare related LED PAR lights when planning your lighting rig.
B2B ORDER FLOW
Lock the configuration before production.
For your 20/27-LED RGBW PAR Light order, send the quantity, destination, application and selected 20- or 27-position configuration. The quotation can then confirm the LED rating, color package, voltage, mounting, packing and documentation. For DMX network planning, consult ESTA’s DMX512-A guide and request this fixture’s current channel chart.
PRODUCT FAQ
Questions Before You Order.
Direct answers about configurations, control, installation and quotation.
Does RG-411C use 20 or 27 LEDs?
Both front layouts are available. Specify 20 or 27 LED positions in the quotation.
Which LED ratings are available?
The supplied options are 10W, 12W and 15W per LED; confirm the selected rating with the LED count.
Which color packages can I order?
Choose 4-in-1, 5-in-1 or 6-in-1. RGBW is confirmed for 4-in-1; confirm the additional colors for 5-in-1 and 6-in-1.
What does the 200W value describe?
It is the listed complete-fixture power and is kept separate from the nominal LED source ratings.
Which control modes are available?
The supplied modes are 7CH DMX512, Sound, Auto and Master-slave.
What beam angle is listed?
The supplied fixed beam angle is 25 degrees.
Can RG-411C be used outdoors?
It is rated IP20, so use it indoors or in a properly protected dry position rather than exposed outdoor conditions.
What should I include in an inquiry?
Send quantity, destination, 20- or 27-LED layout, LED rating, color package, voltage, mounting and accessories.
