18 RGBW SOURCES · 200W · IP65

200W IP65 RGBW LED Wall Wash Light, 18×10W

A 200W IP65 wall wash fixture with eighteen 10W RGBW four-in-one LEDs, DMX512 and Auto/master-slave operation. Net fixture weight is 6.9kg; the listed carton contains two fixtures.

18 × 10W RGBW four-in-one
200W · IP65
DMX512 / Auto / master-slave

Get a Quote

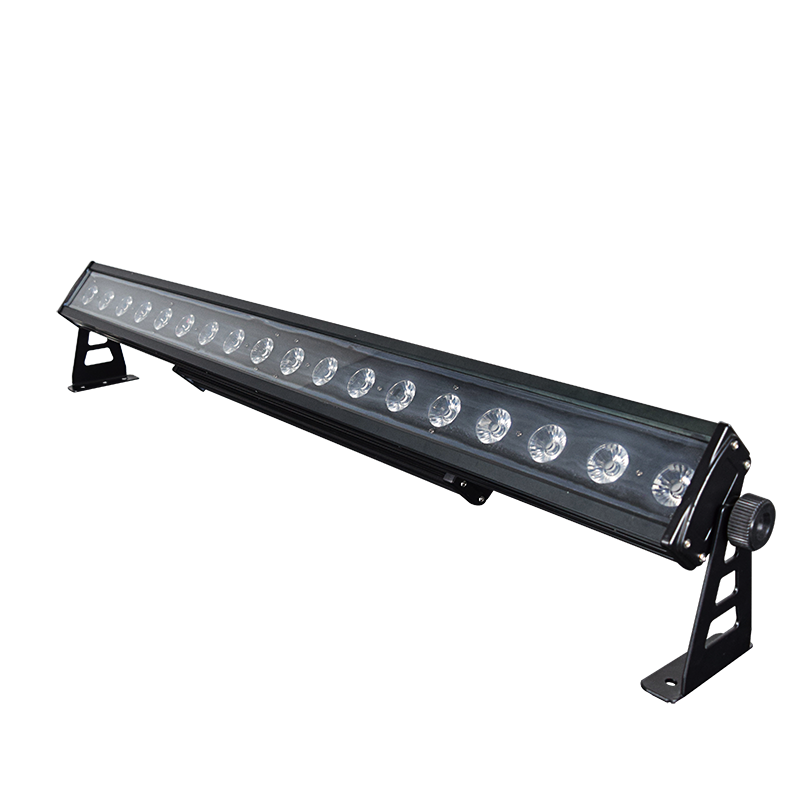

200W IP65 RGBW LED Wall Wash Light angled front view of the RGBW wall wash light with mounting brackets

18 RGBW SOURCES · 200W FIXTURE

200W IP65 RGBW LED Wall Wash Light — plan RGBW wash across the lighting surface.

200W IP65 RGBW LED Wall Wash Light combines eighteen 10W RGBW four-in-one LEDs in a 200W IP65 wall wash fixture. DMX512, Auto and master-slave provide the listed control options. The stated net weight is 6.9kg.

18 RGBW sources

Eighteen 10W four-in-one LEDs combine red, green, blue and white for the main wash source.

200W fixture power

The fixture is specified at 200W, with AC90–240V input at 50/60Hz.

IP65 fixture

The IP65 rating supports outdoor fixture selection and site planning.

DMX and standalone

DMX512, Auto and master-slave are listed for console and linked standalone operation.

PRODUCT VIDEO

See the model-matched RGBW lighting demonstration.

The RG-654 video provides a short view of the fixture in operation. Refer to the listed source, power and installation specifications when preparing the order.

Specifications

Technical specifications

Model	RG-654
Public product power	200W
Light source	18 × 10W RGBW four-in-one LEDs
Rated fixture power	200W
Voltage	AC90–240V, 50/60Hz
IP rating	IP65
Net weight	6.9kg
Control modes	DMX512 / Auto / master-slave
LED configuration	18 × 10W RGBW four-in-one LEDs
Color system	RGBW

PRODUCT VIEWS

Inspect the rear housing and fixture arrangement.

Rear views show the display panel, attached cables and mounting brackets; the paired front/rear image shows the source layout and housing.

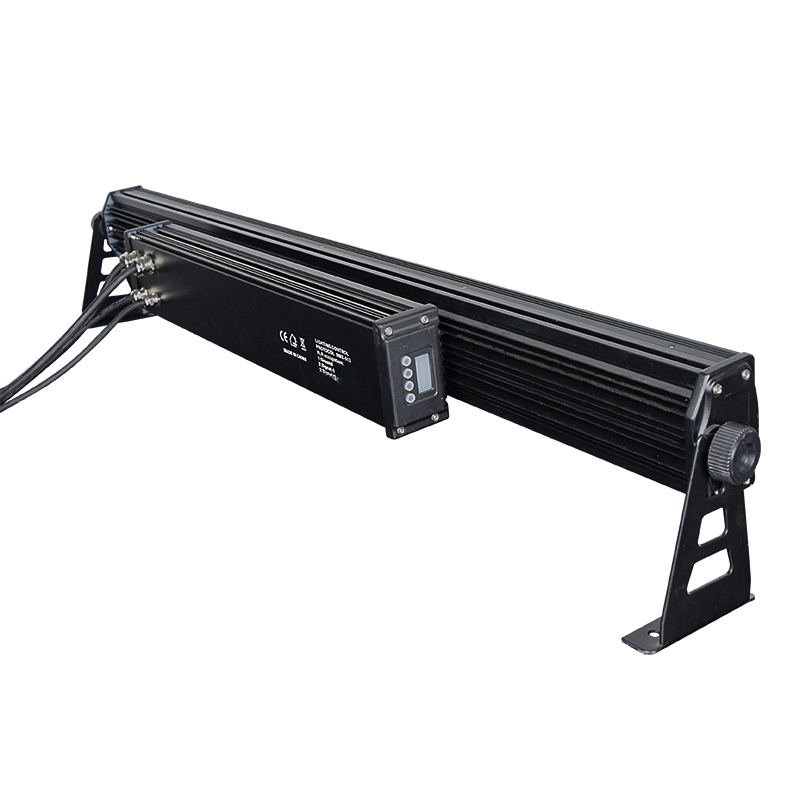

RG-654 rear housing and display control panel

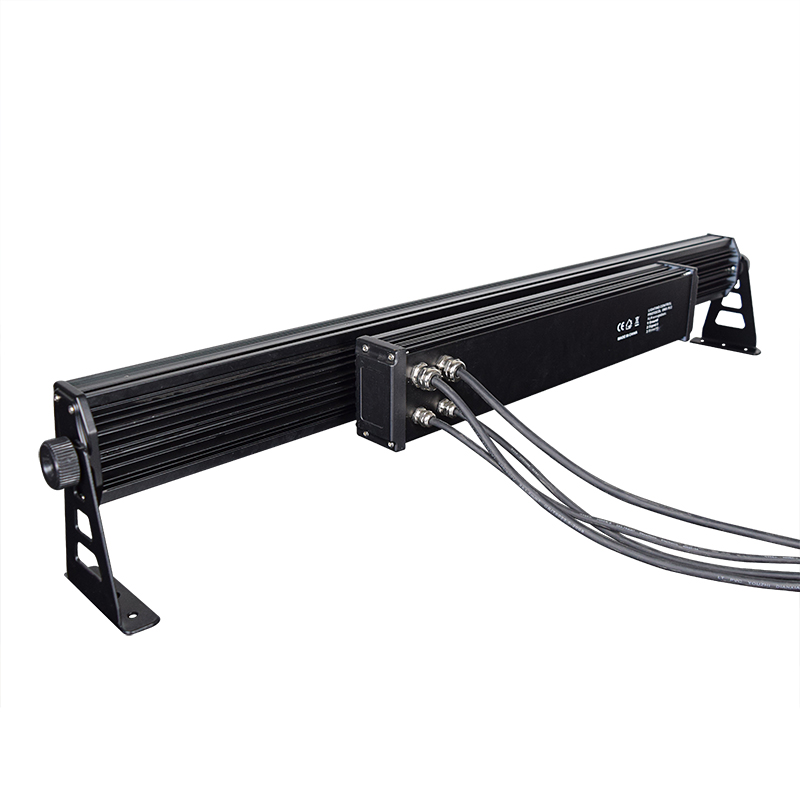

RG-654 rear housing with attached cables and mounting brackets

CONNECTION AND CONTROL DETAIL

Review the cable and display arrangement.

The close-up shows the attached connectors and local display. Specify the required plugs, connector compatibility and cable arrangement with the installation brief.

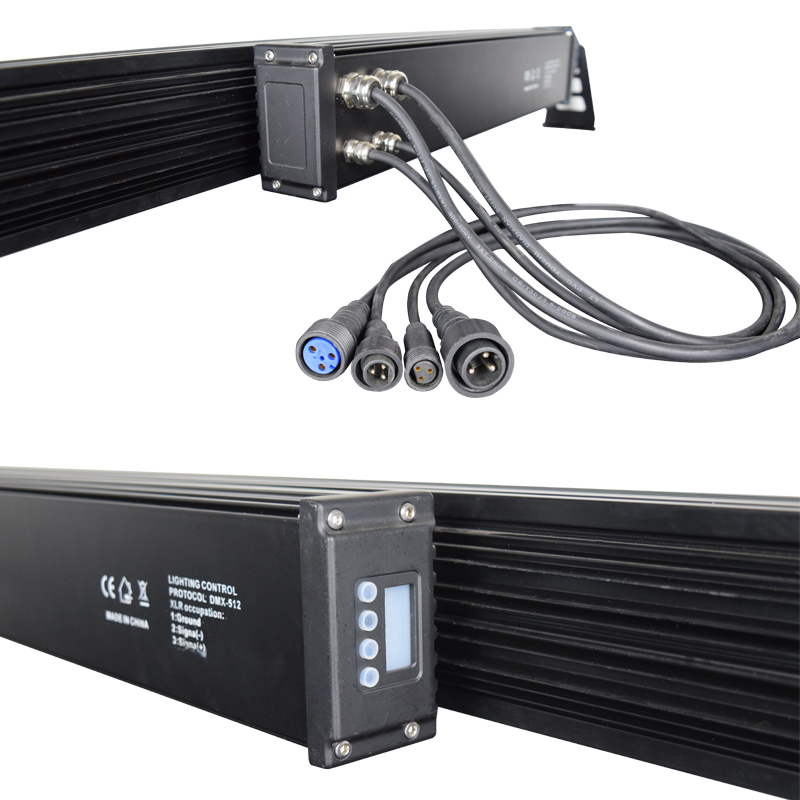

RG-654 cable connectors and display panel close-up

SUPPLY AND HANDLING

Plan power, mounting and shipping.

Input is AC90–240V at 50/60Hz. The stated working temperature is −40°C to 60°C, and net fixture weight is 6.9kg. Packing dimensions are 105 × 28.5 × 39cm for two fixtures.

Supply200W fixture; AC90–240V, 50/60Hz.

Handling6.9kg net fixture weight; working range −40°C to 60°C.

Packing105 × 28.5 × 39cm carton for two fixtures.

APPLICATION FIT

Describe the surface and installation conditions.

For event backdrops, stage scenery and outdoor lighting briefs, provide the surface dimensions, throw distance, fixture spacing and required RGBW colors. The IP65 rating applies to the fixture; match the installation and connectors to the actual site.

Surface washSpecify target width, height, throw distance and fixture positions.

Outdoor event rigsProvide exposure, mounting and connector requirements with the IP65 fixture brief.

Control workflowSpecify DMX512 console use or Auto/master-slave and request the operating chart.

Compare other LED wash lights by source arrangement and installation requirements.

B2B ORDER FLOW

Prepare a quotation for the 200W wash fixture.

For your 200W IP65 RGBW LED Wall Wash Light order, include the source and power configuration, installation brief and shipping requirements so the offer can cover the fixtures, accessories and packing. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.

01 · TARGET

Define the RGBW wash brief.

Send quantity, surface dimensions, throw distance, fixture spacing and required color looks.

02 · INSTALLATION

Specify the control and connections.

Provide console or Auto/master-slave workflow, mounting, supply, destination plug, connector requirements and site conditions. Request the DMX chart and installation instructions.

03 · SHIPPING

Confirm the two-fixture carton.

Provide destination and delivery date. Confirm accessories and gross carton weight for the listed 105 × 28.5 × 39cm two-fixture package.

PRODUCT FAQ

Questions Before You Order.

RGBW sources, IP65 fixture selection, control and two-fixture packing.

What light source and power are specified?

The fixture uses 18 × 10W RGBW four-in-one LEDs. Fixture power is specified as 200W.

What does RGBW four-in-one mean?

Each listed LED source combines red, green, blue and white.

Which control modes are listed?

DMX512, Auto and master-slave are listed. Request the matching channel chart for console integration.

What is the input voltage?

Input is AC90–240V at 50/60Hz.

What is the waterproof rating?

The fixture is rated IP65. Provide exposure and connector requirements when specifying the complete outdoor installation.

What are the net weight and working temperature?

Net fixture weight is 6.9kg. The stated working temperature range is −40°C to 60°C.

What packing dimensions are listed?

105 × 28.5 × 39cm is the package size for two fixtures. It is not a product-dimension specification.

What should I include in a quotation request?

Send quantity, surface dimensions, throw distance, fixture spacing, RGBW colors, control workflow, mounting, supply/plug, connector requirements, destination and delivery date. Confirm accessories and carton gross weight.
