THREE IP65 PAR CONFIGURATIONS
RG-401B IP65 PAR Light overview
RG-401B IP65 PAR Light (RG-401B) is supplied in three distinct source layouts: 18 × 12W RGBW, 24 × 10W RGBW or 54 × 3W RGB. Confirm the LED count and color system together because the 54-LED version is RGB, while the 18- and 24-LED versions are RGBW.

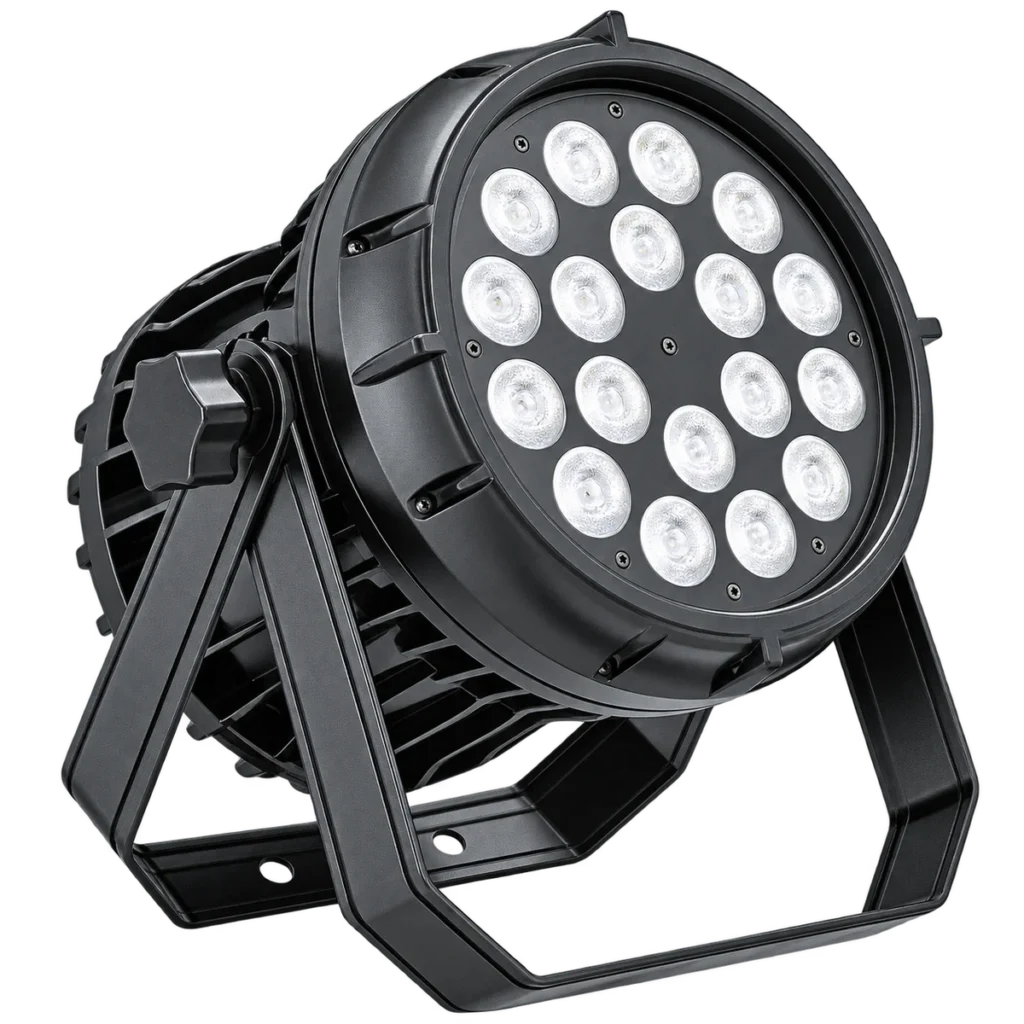

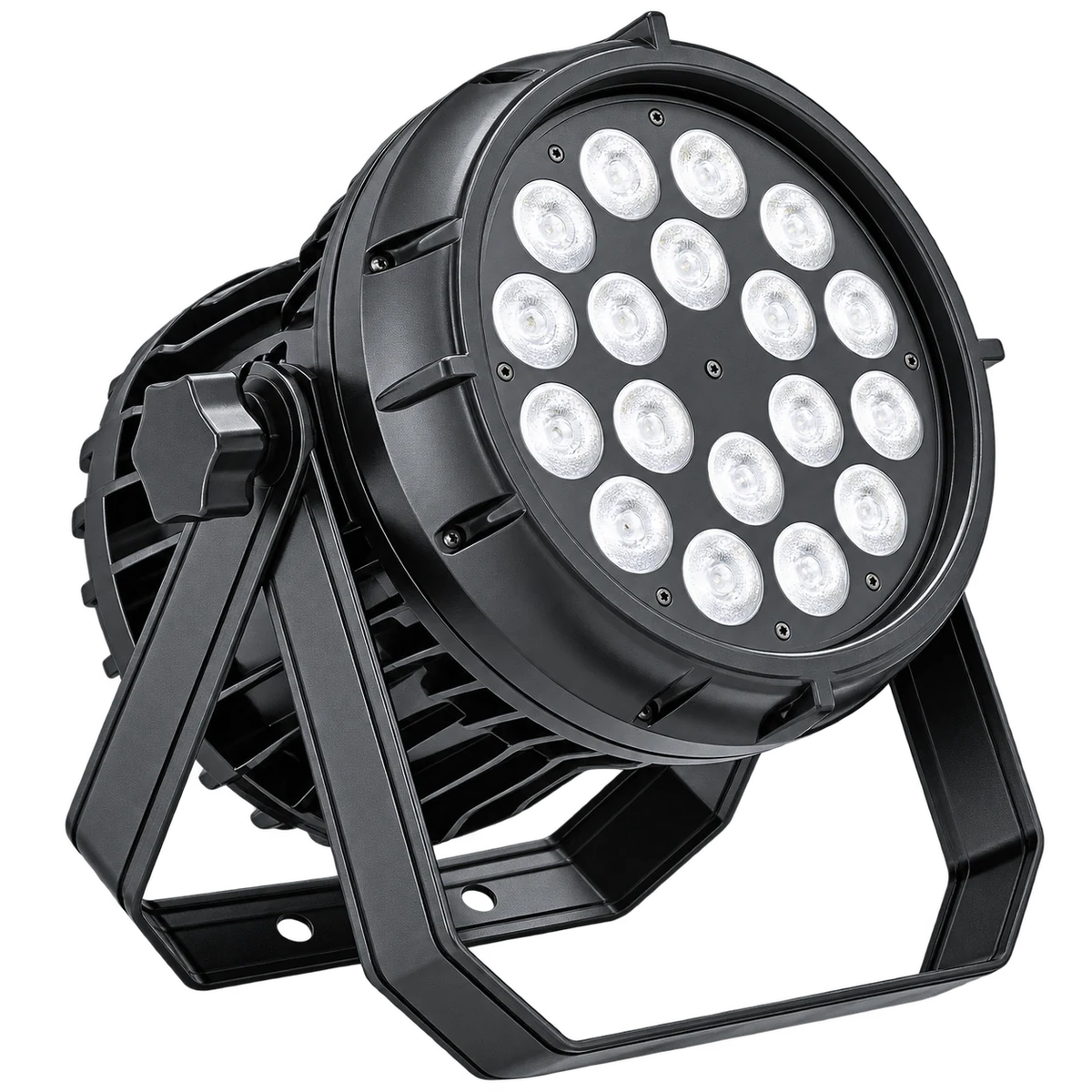

18 × 12W RGBW
A larger-emitter RGBW option with a dedicated 18-position front layout.

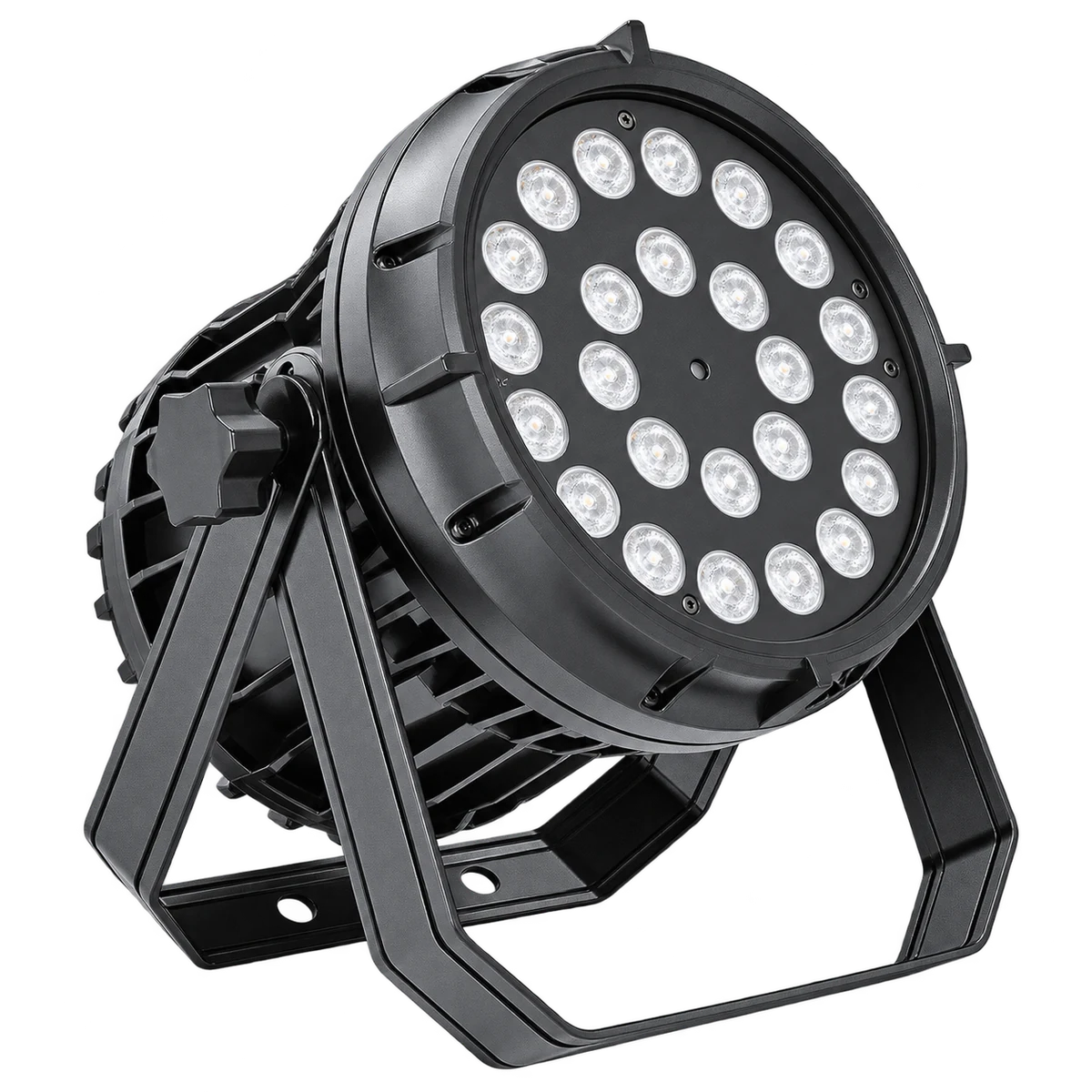

24 × 10W RGBW
A separate 24-position RGBW configuration for project quotation.

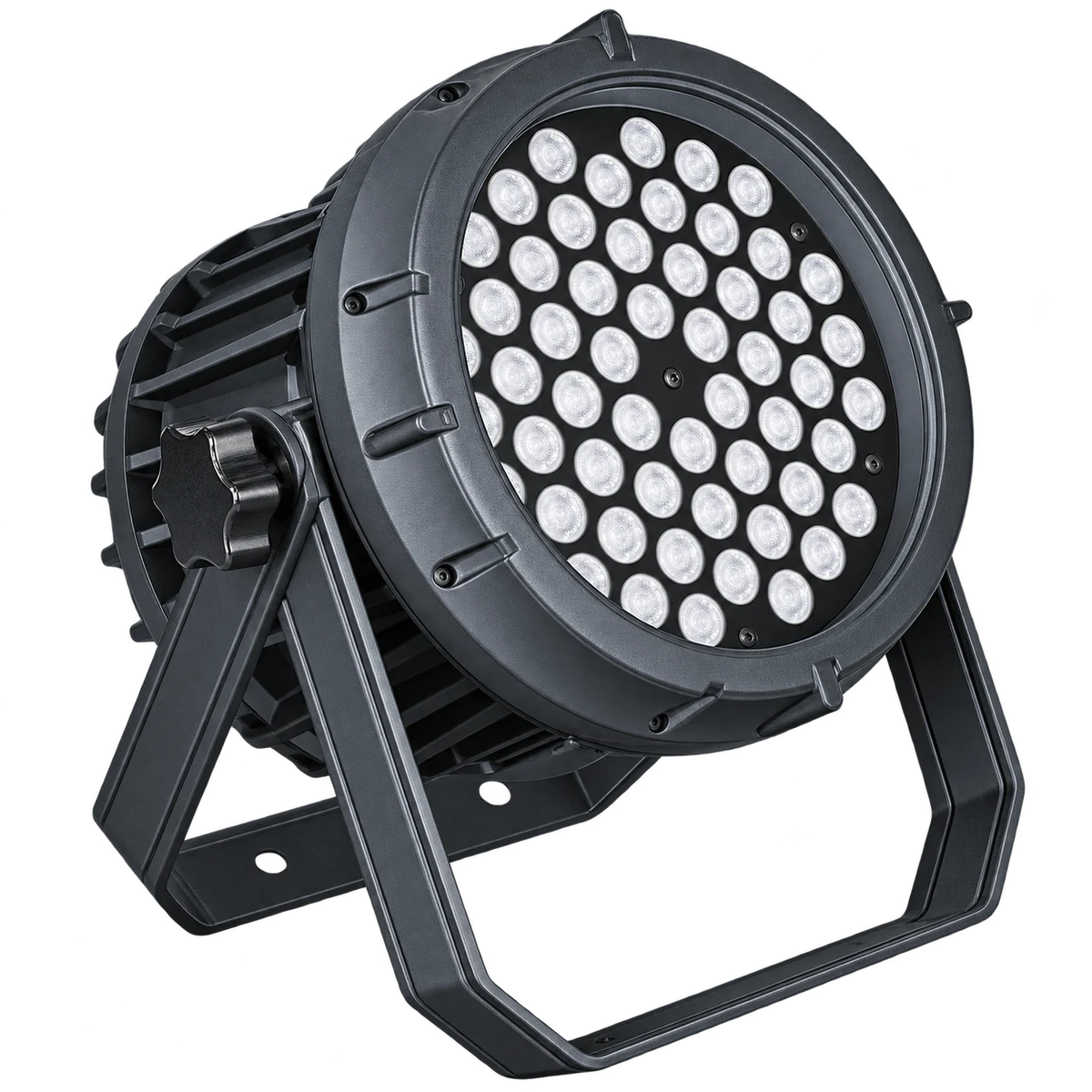

54 × 3W RGB
A higher-count RGB arrangement with its own confirmed product view.
Weather-resistant fixture
The supplied fixture rating is IP65; project connections still need suitable protection.
CONFIGURATION VIEWS
Compare all three supplied front layouts.
Each product image corresponds to one stated LED count. Use the 18-, 24- and 54-position views to identify the required version before quotation.
SUPPLIED TEST REFERENCES
Review the wash output and IP65 spray-test evidence.

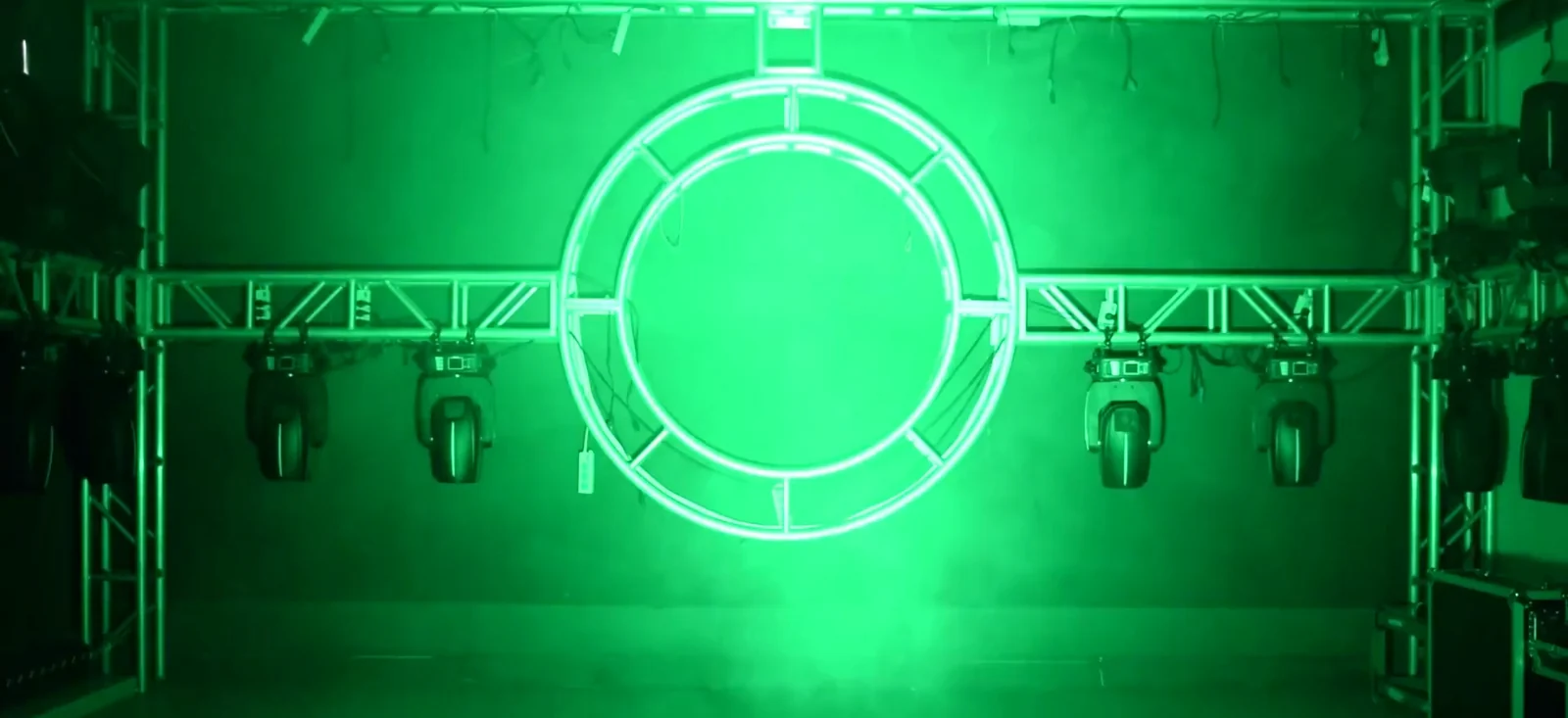

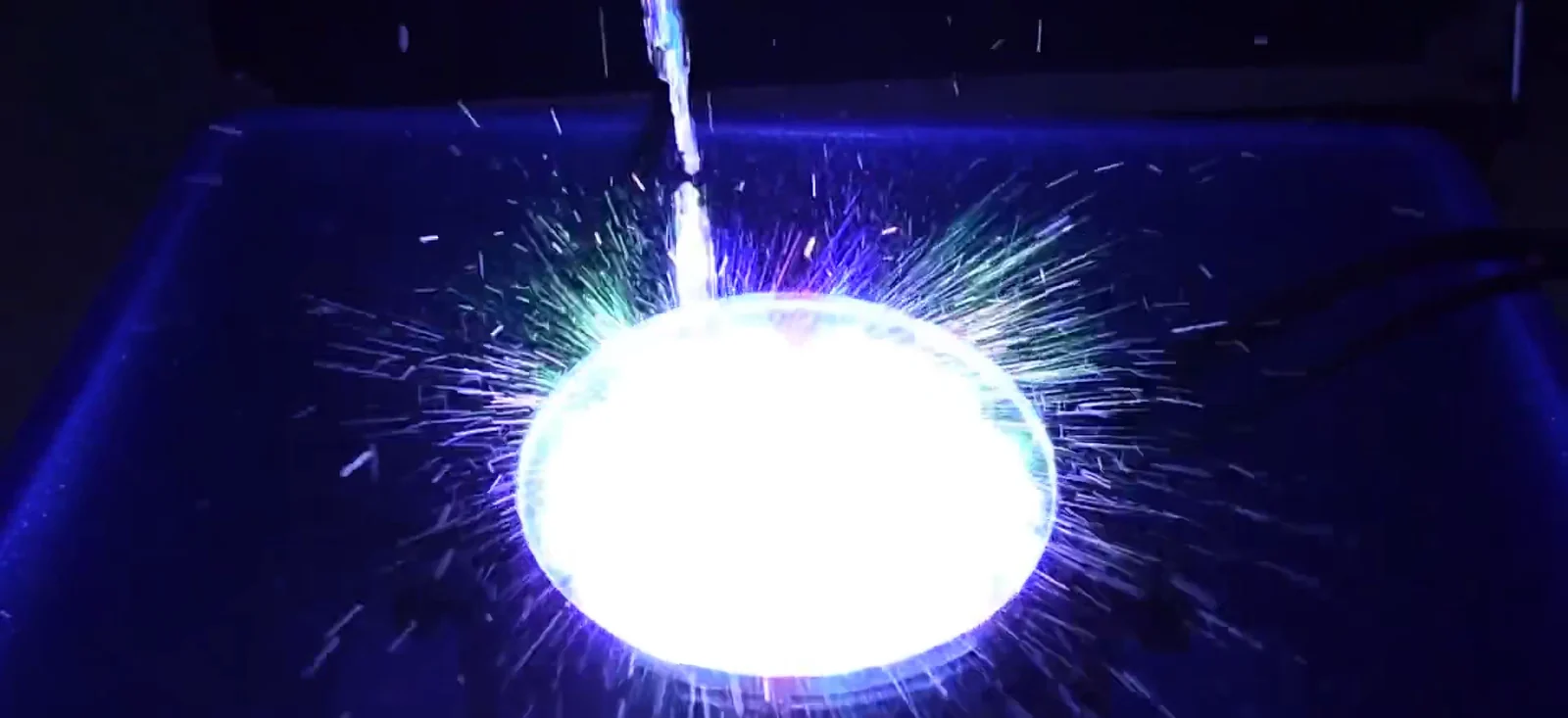

The green wash image documents an operating color-wash example. The water-test image records a supplied spray-test reference for the fixture; it does not replace project-level protection for plugs, cables, power distribution, mounting or drainage.
Specifications
Technical specifications
| Model | RG-401B |
|---|---|
| Public product power | 180W |
| Light source | 18 × 12W RGBW / 24 × 10W RGBW / 54 × 3W RGB |
| Voltage | AC 110–240V, 50/60Hz |
| DMX channels | 6CH / 8CH |
| IP rating | IP65 |
| Product dimensions | 240 × 240 × 280mm |
| Net weight | 6.5kg |
| Control modes | DMX512 / Auto / Master-slave / Sound |
| Color system | RGBW on 18/24-LED versions; RGB on 54-LED version |
APPLICATION FIT
Build a consistent wash system around one confirmed configuration.
For RG-401B IP65 PAR Light projects, use RG-401B for stage, event, rental and architectural color-wash positions where the supplied IP65 fixture rating matches the exposure plan. Coverage and fixture quantity depend on the selected source layout, throw distance, target area and required illuminance. Compare related LED PAR lights when planning your lighting rig.
B2B ORDER FLOW
Lock the LED count and control profile before production.
For your RG-401B IP65 PAR Light order, send the quantity, destination, selected 18/24/54 layout, voltage, required channel mode, exposure, mounting, accessories and documentation needs. For DMX network planning, consult ESTA’s DMX512-A guide and request this fixture’s current channel chart.
PRODUCT FAQ
Questions Before You Order.
RG-401B IP65 PAR Light: specifications, control and order planning.
Which LED counts are available for RG-401B?
The supplied configurations use 18, 24 or 54 LED positions.
Which source layout belongs to each version?
The listed layouts are 18 × 12W RGBW, 24 × 10W RGBW and 54 × 3W RGB.
Do all three versions use the same color system?
No. The 18- and 24-LED versions are listed as RGBW, while the 54-LED version is listed as RGB.
What does the 180W rating describe?
It is the listed complete-fixture power and is kept separate from the nominal LED source ratings.
Which channel modes are listed?
The supplied data lists 6CH and 8CH without assigning one channel chart to every configuration; request the current chart for the ordered version.
How is the RG-401B IP65 PAR Light controlled?
The listed modes are DMX512, Auto, Master-slave and Sound.
Does IP65 make the complete installation weatherproof?
No. Cable connections, plugs, power distribution, mounting and drainage still need project-appropriate protection.
What should I send for a quotation?
Send quantity, destination, LED count, voltage, channel mode, exposure, mounting, accessories, schedule and documentation needs.
