RGBW WASH + RGB PIXEL RING
18-LED RGBW Mute PAR overview
18-LED RGBW Mute PAR (RG-317B) uses 18 × 8W RGBW main LEDs for the wash and 34 × 0.3W RGB pixels around the front edge. Choose a compact 7CH or 10CH workflow, or use 106CH for detailed point control of the strip.
RGBW main wash
Four-color main LEDs provide color mixing and a listed 6500–7500K white output.
RGB edge strip
Individually addressable points add chases, accents and ring-style effects.
Scalable DMX control
Select a compact profile or the extended point-control mode for programming detail.
Listed actual draw
The supplied data separates the 80W actual value from the 100W rated power.
FIXTURE & CONTROL DETAILS
Inspect the RGBW face, pixel ring, cooling body and connection panel.

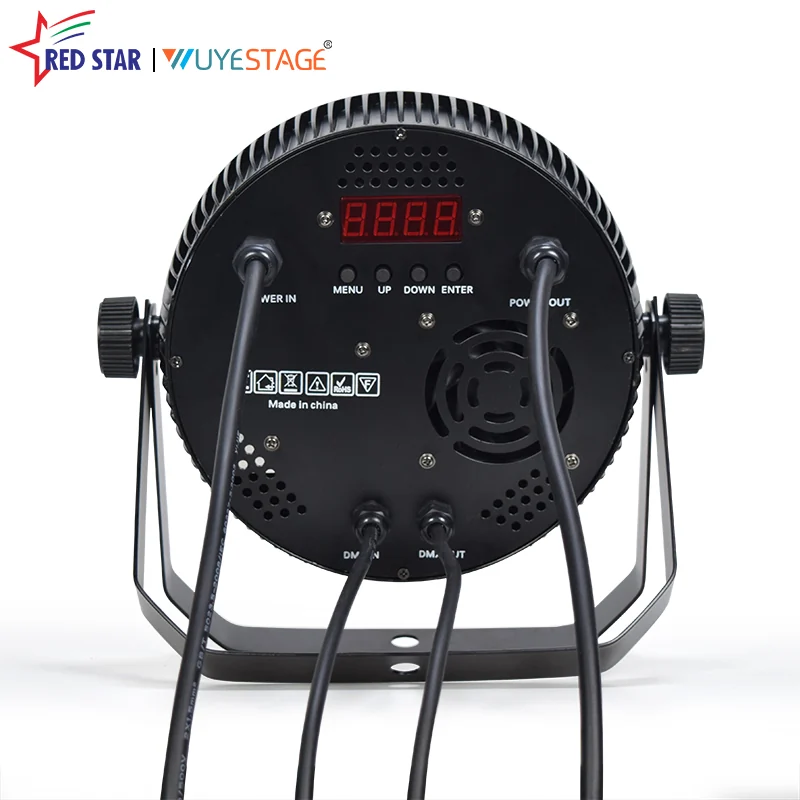

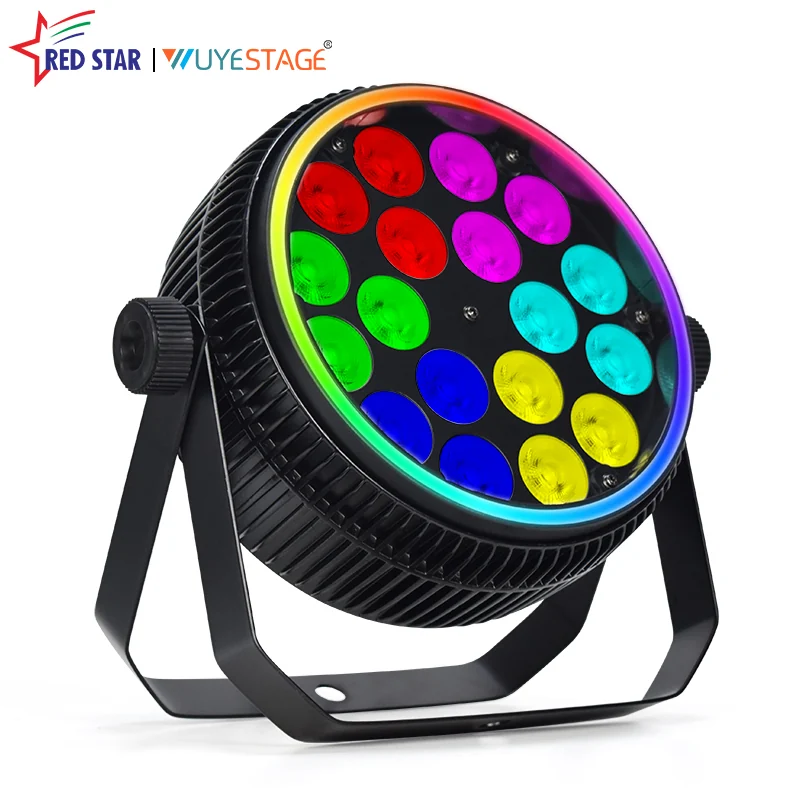

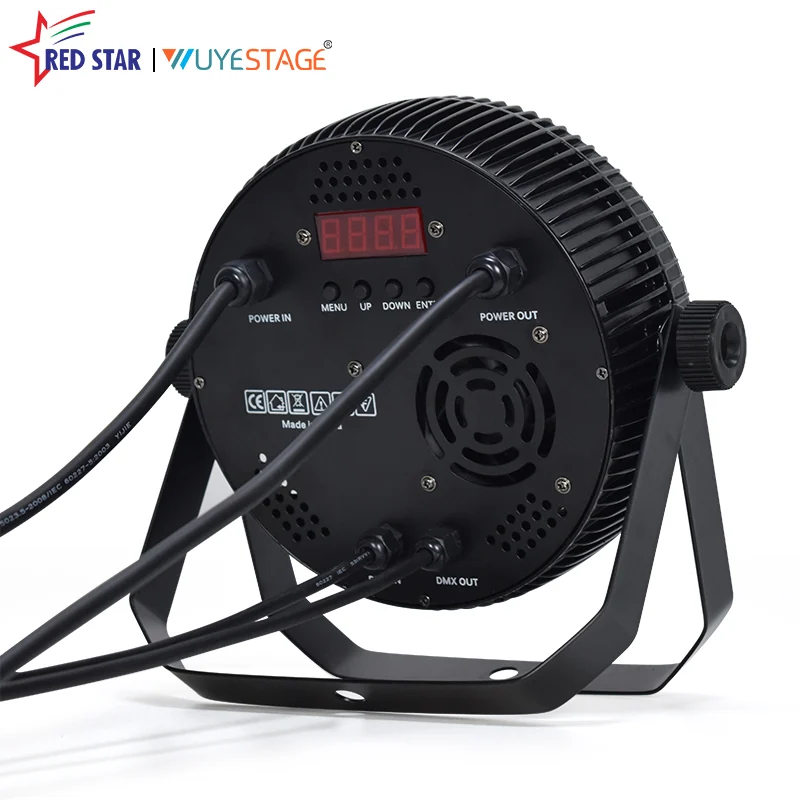

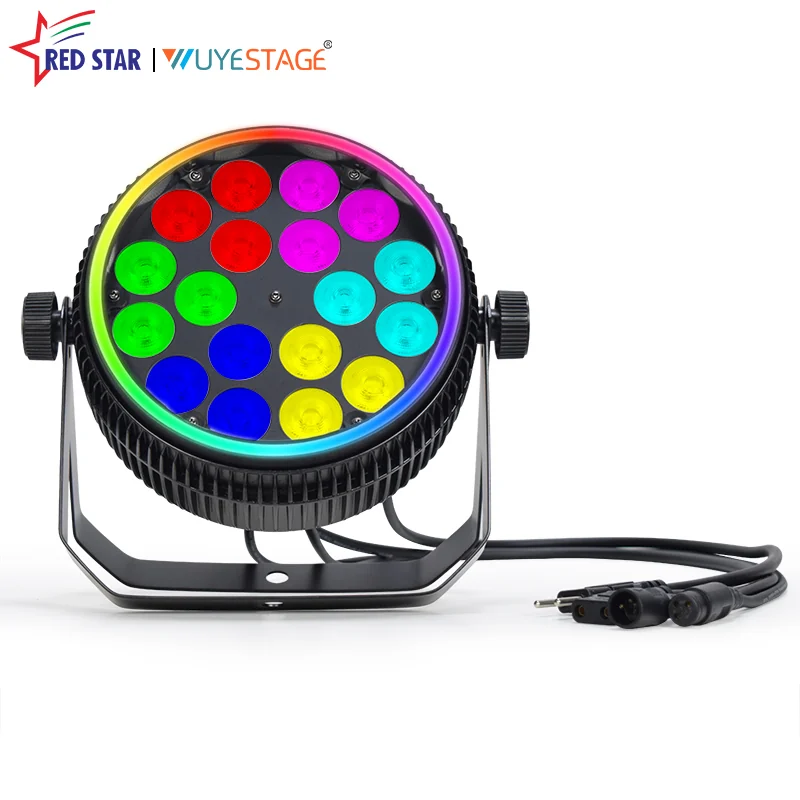

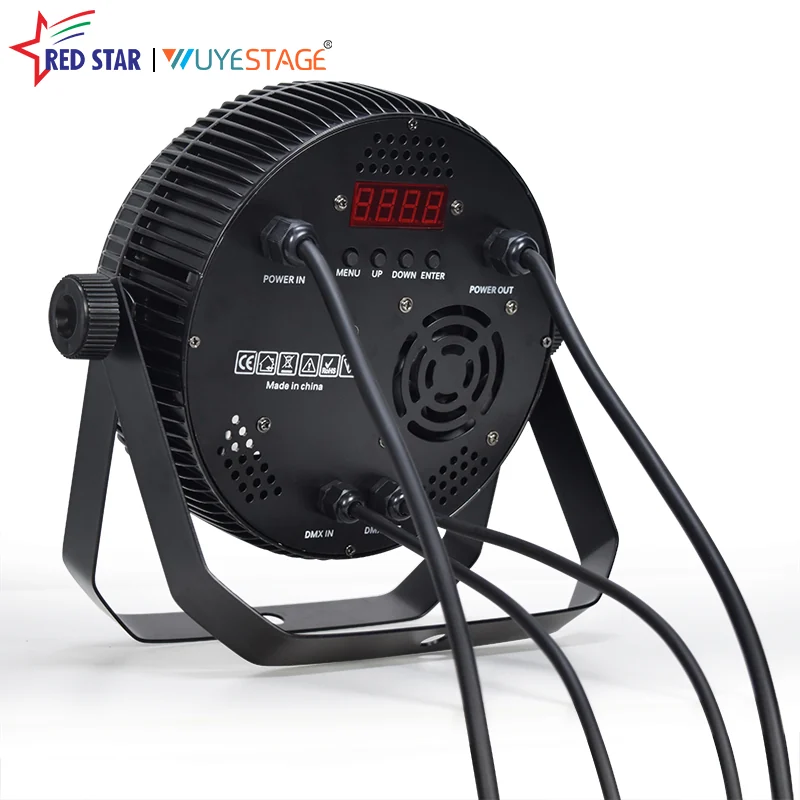

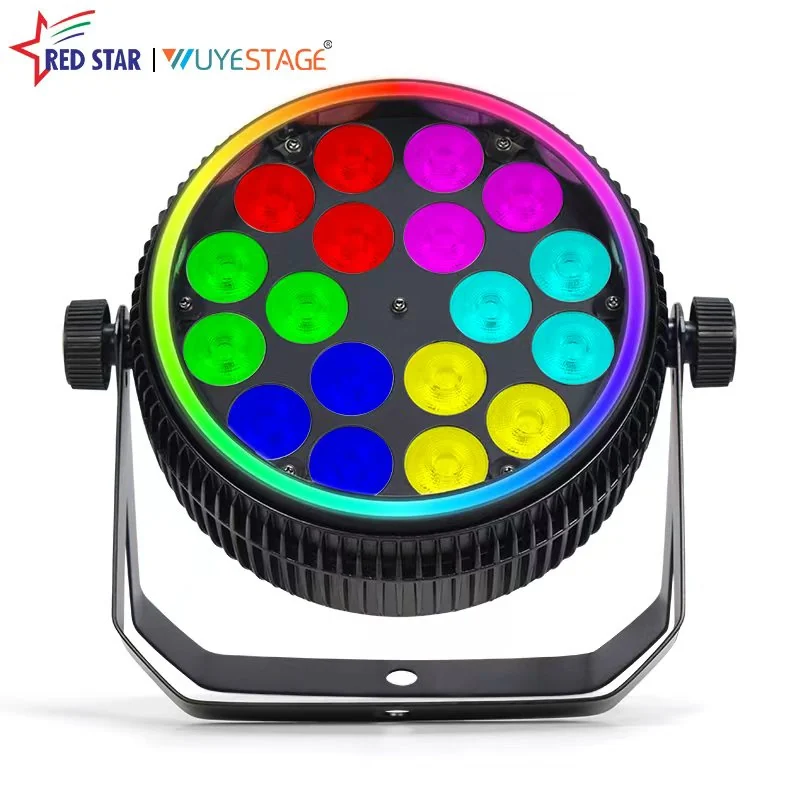

The supplied views document the 18-lens face, illuminated edge strip, double bracket, rear fan, display and hard-wired power and DMX connections. The product name describes a mute-positioned PAR, but final acoustic behavior should be checked on the production sample.
SUPPLIED OUTPUT REFERENCES
Review wash colors with the pixel effect layer.

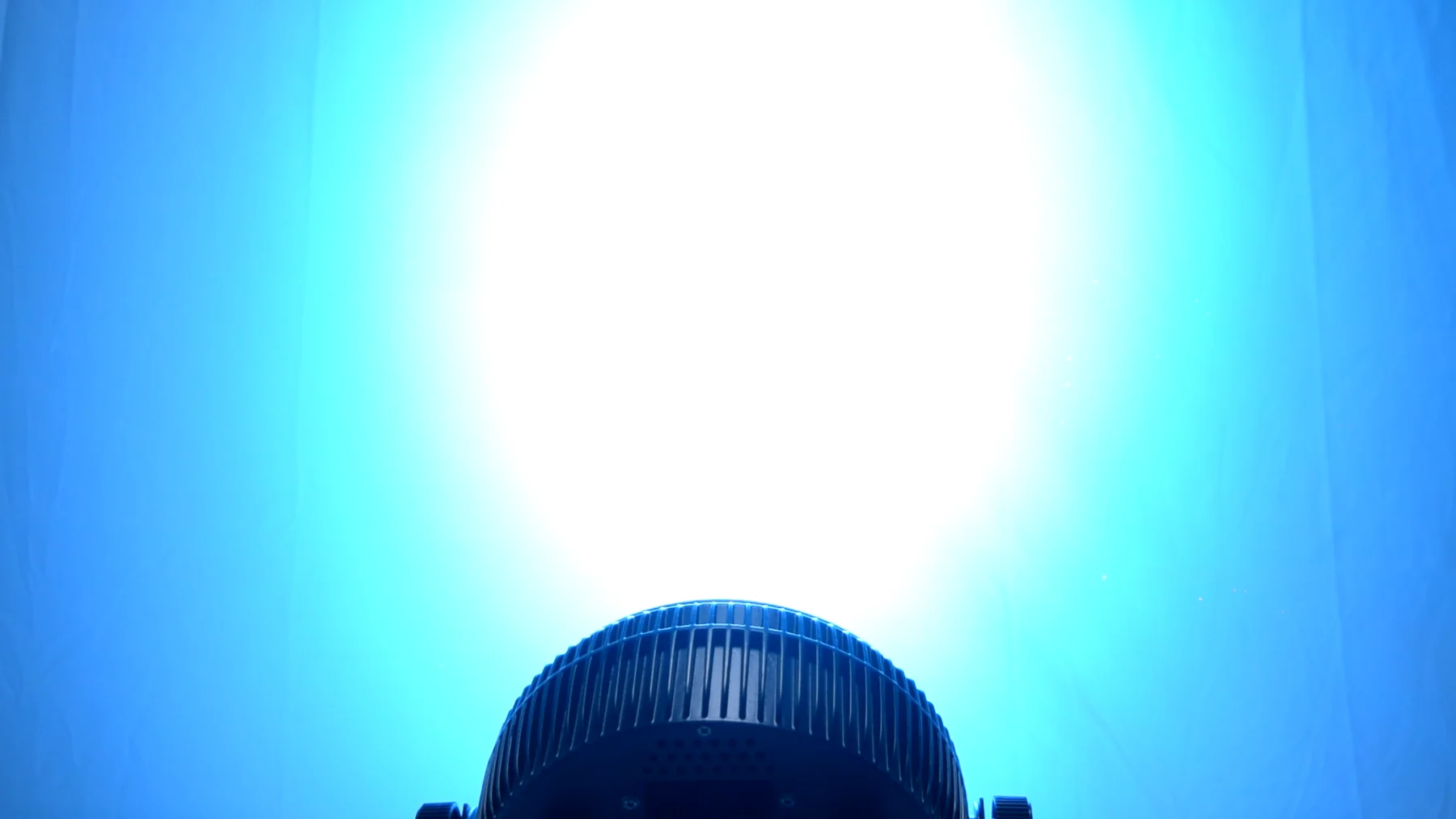

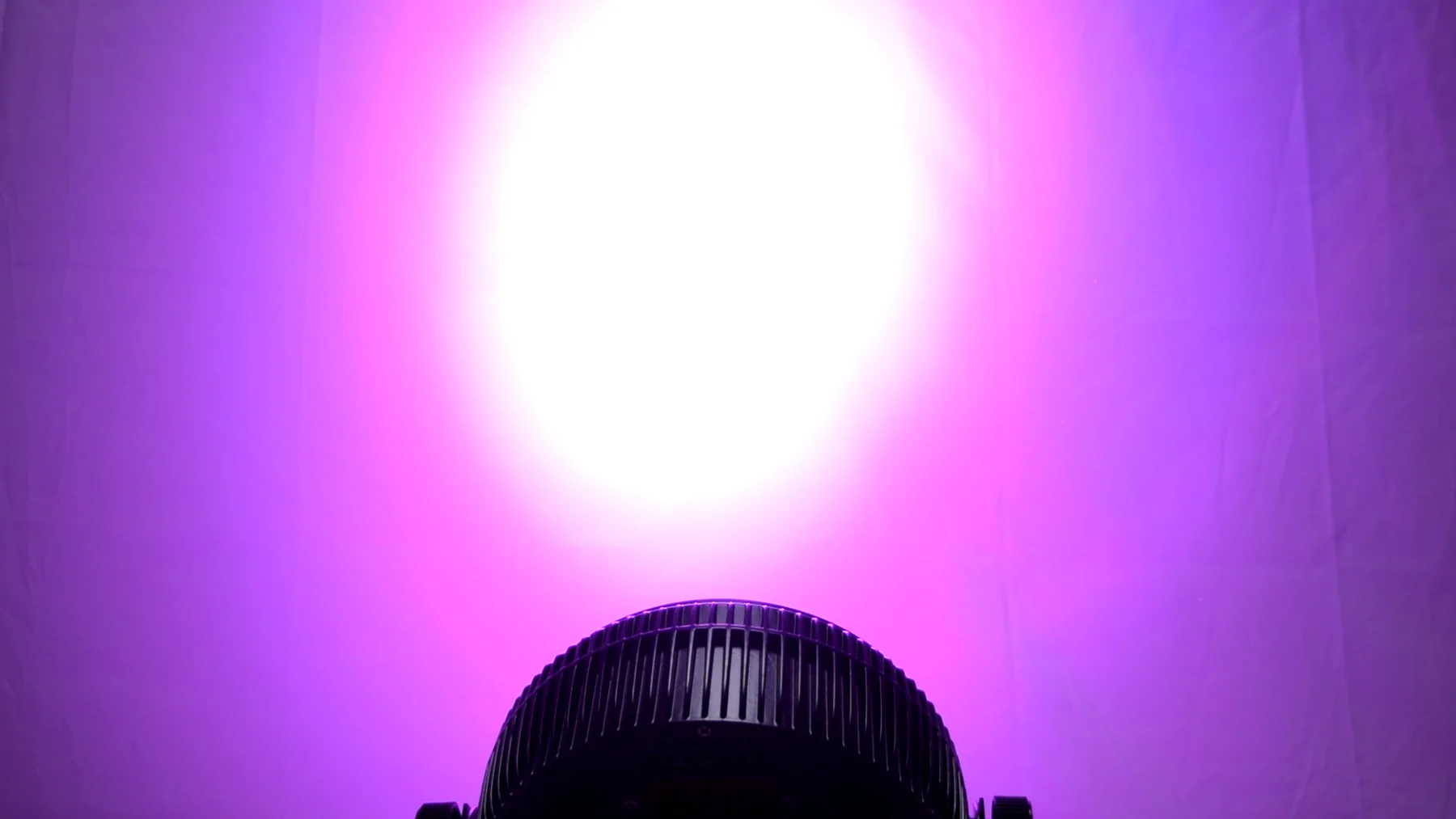

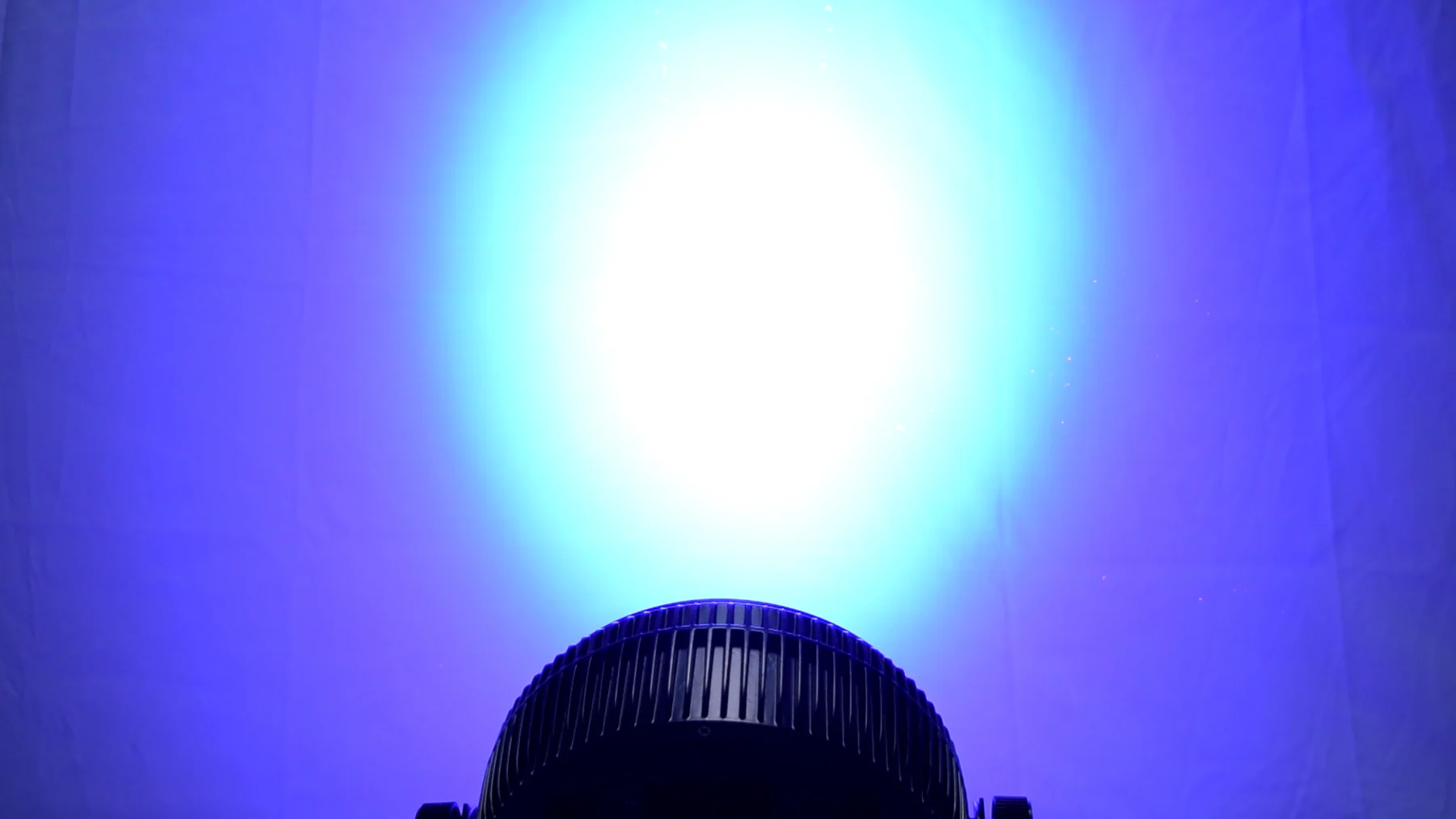

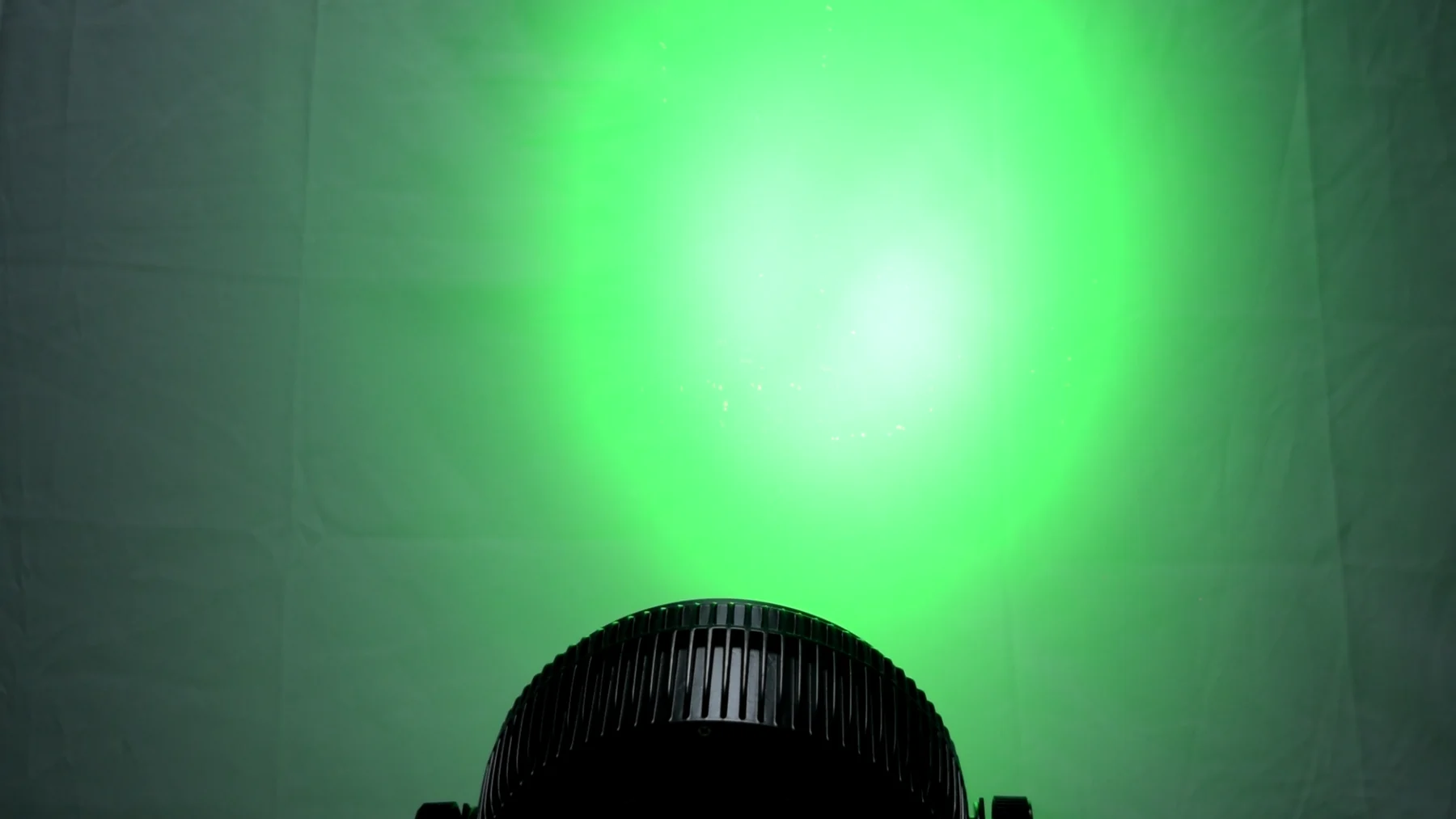

These images show representative cyan, violet, green, magenta and white combinations. They are visual references rather than photometric or flicker measurements.
Specifications
Technical specifications
| Model | RG-317B |
|---|---|
| Public product power | 100W rated; 80W listed actual |
| Light source | 18 × 8W RGBW main LEDs + 34 × 0.3W RGB strip pixels |
| Voltage | AC 110–240V ±10%, 50/60Hz |
| DMX channels | 7CH / 10CH / 106CH |
| Control modes | DMX512 / Master-slave / Auto |
CONTROL DEPTH
Match the DMX footprint to the show workflow.
Use 7CH or 10CH where console space and fast setup matter. Select 106CH when the programmer needs detailed control over the 34 RGB edge pixels. Request the current channel chart before building a fixture profile.
APPLICATION FIT
Add a wash-and-pixel layer to indoor stages and camera-sensitive venues.
18-LED RGBW Mute PAR (RG-317B) fits theatres, studios, worship spaces, weddings and multi-purpose halls that want one fixture to combine broad RGBW color with a programmable decorative edge. No IP rating is supplied, so use it indoors or in a properly protected position. Compare related LED PAR lights when planning your lighting rig.
B2B ORDER FLOW
Confirm power, channel mode and acoustic expectations.
For your 18-LED RGBW Mute PAR order, send quantity, destination, voltage, DMX mode, programming requirement, venue, camera use, acoustic target, mounting, plug and packing needs. For DMX network planning, consult ESTA’s DMX512-A guide and request this fixture’s current channel chart.
PRODUCT FAQ
Questions Before You Order.
Direct answers about RG-317B sources, power, pixel control and installation.
Which light sources does RG-317B use?
It combines 18 × 8W RGBW main LEDs with 34 × 0.3W RGB pixels in the front edge strip.
What is the difference between 100W and 80W?
The supplied data lists 100W as rated power and 80W as actual power. Confirm the measurement condition and production-batch value in the quotation.
What white color temperature is listed?
The supplied RGBW main source lists white output at 6500–7500K.
Which DMX mode should I choose?
Use 7CH or 10CH for a smaller footprint, or 106CH for detailed point control of the 34 RGB strip pixels.
What dimming and strobe ranges are listed?
The supplied specification lists 0–100% linear dimming and conventional strobe from 1–30Hz.
Does mute mean the fixture is fanless?
No. The supplied rear images show a fan, so verify actual acoustic performance and thermal behavior on a production sample.
Is RG-317B suitable for outdoor use?
No IP rating is supplied, so use it indoors or in a properly protected position.
Is there a verified RG-317B product video?
No traceable RG-317B YouTube ID is currently recorded, so this page uses the supplied product and output images.
