18-LED RG-312 PLUS
18-LED IP68 Waterproof PAR Light overview
The 18-LED IP68 Waterproof PAR Light. This page covers only the 18-position front layout. The housing, rear panel and supplied effect references are shared with the RG-312 PLUS series; confirm the 4-in-1, 5-in-1 or 6-in-1 package and exact extra colors before production.
18 LEDs
A dedicated 18-position front arrangement for this series variant.
4/5/6-in-1 options
Select one source package; the exact additional colors require confirmation.

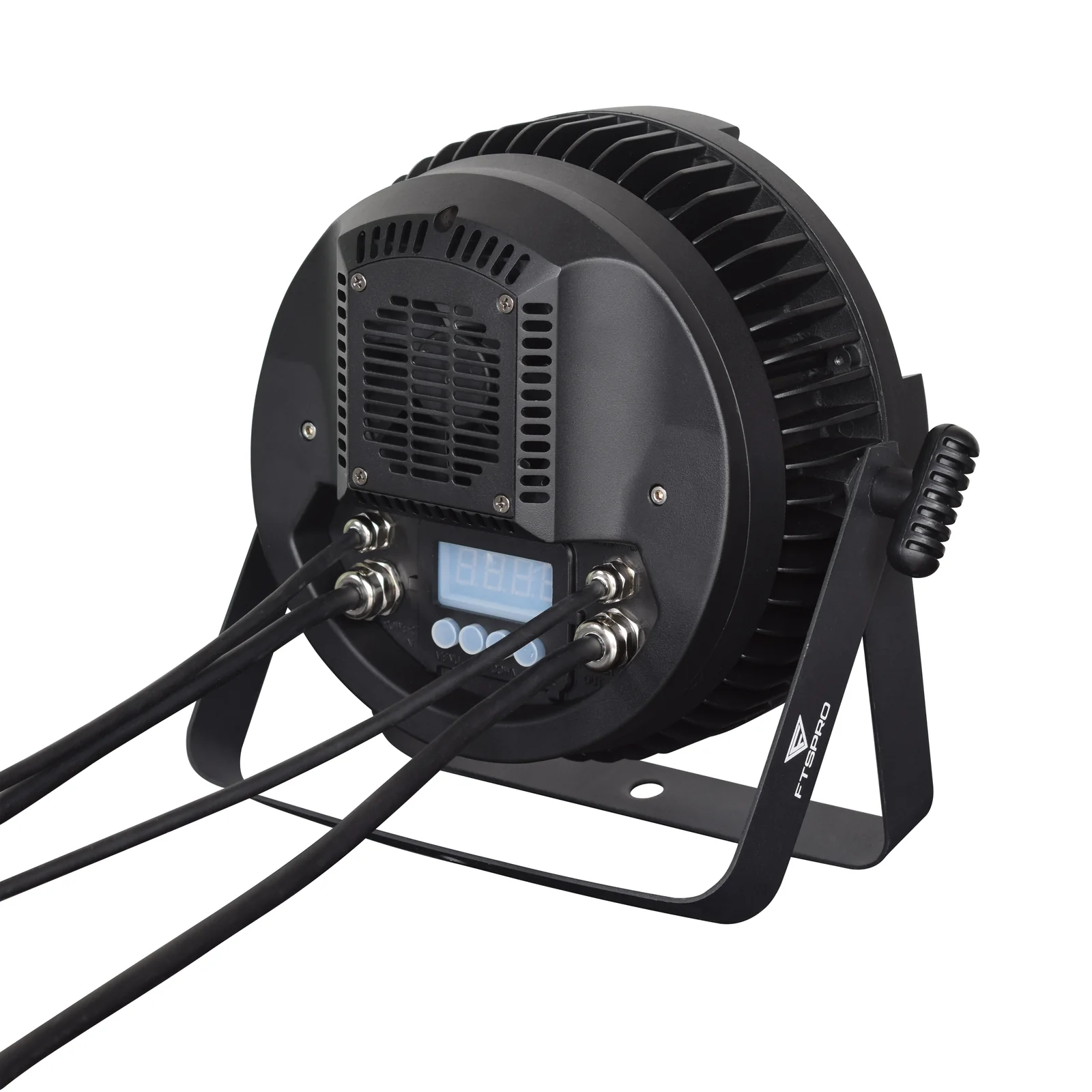

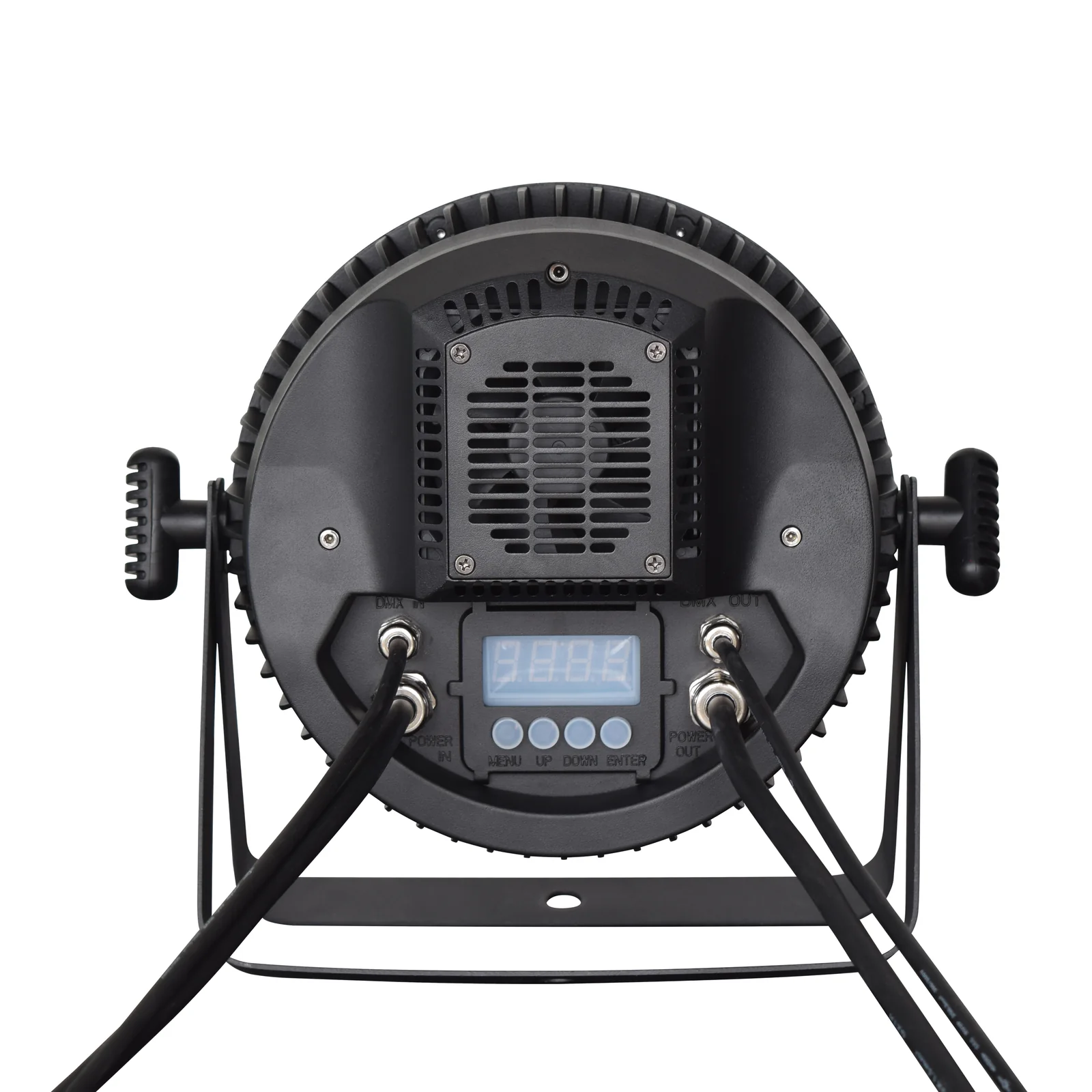

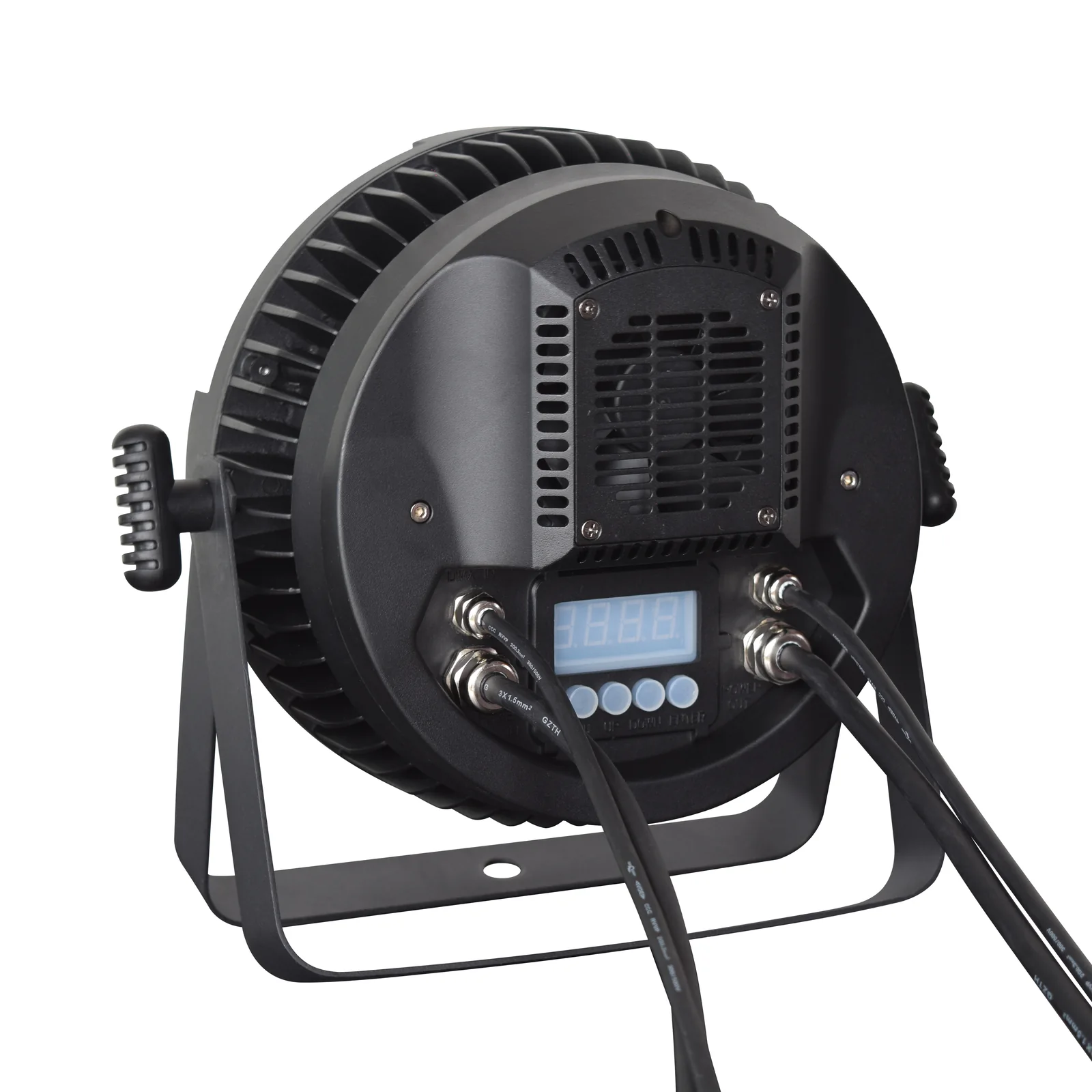

Fan cooling
The shared rear housing shows a built-in cooling fan.
DMX + standalone
DMX512, Master-slave, Sound and Auto modes are listed.

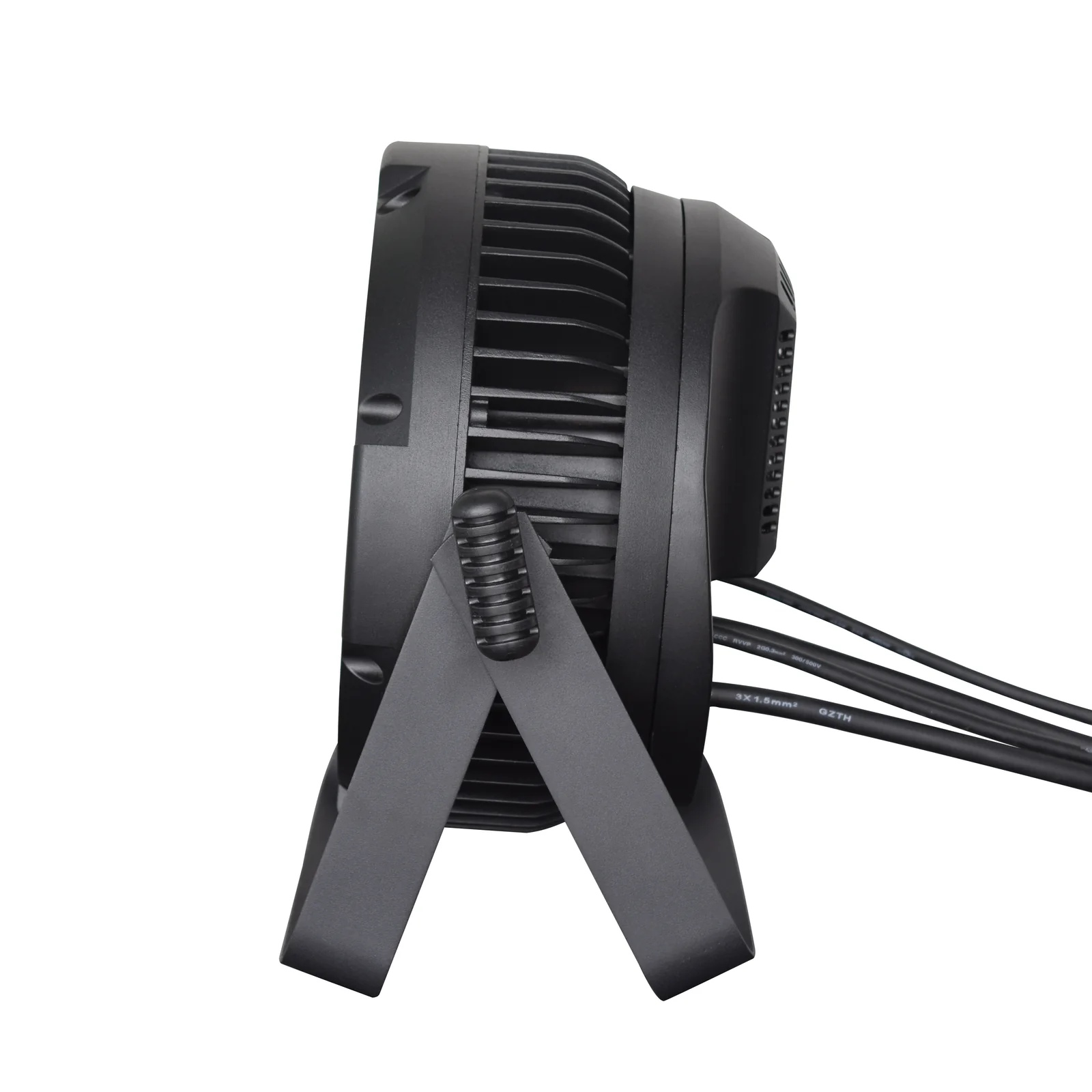

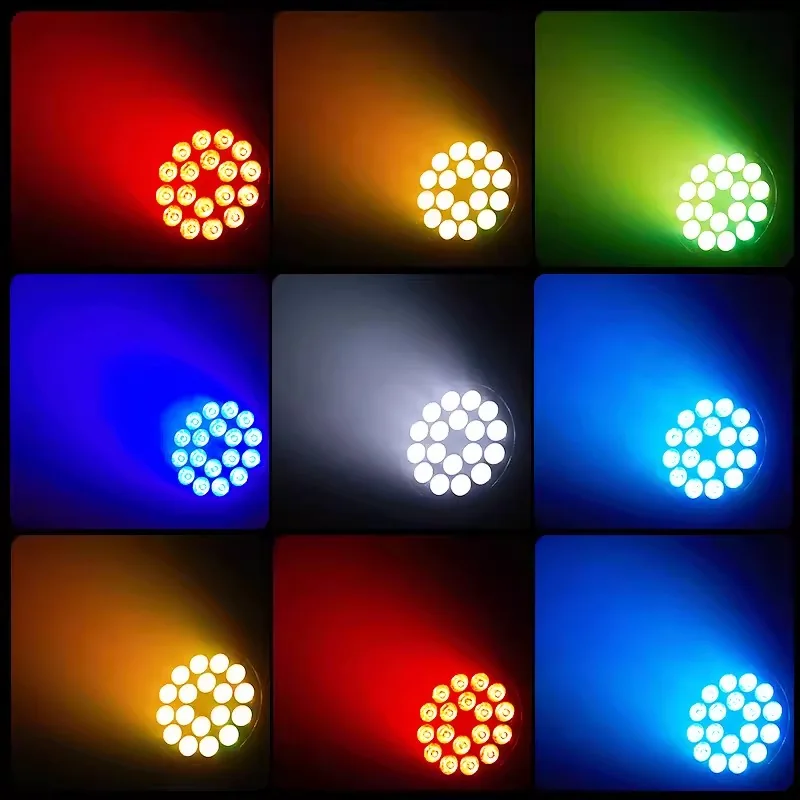

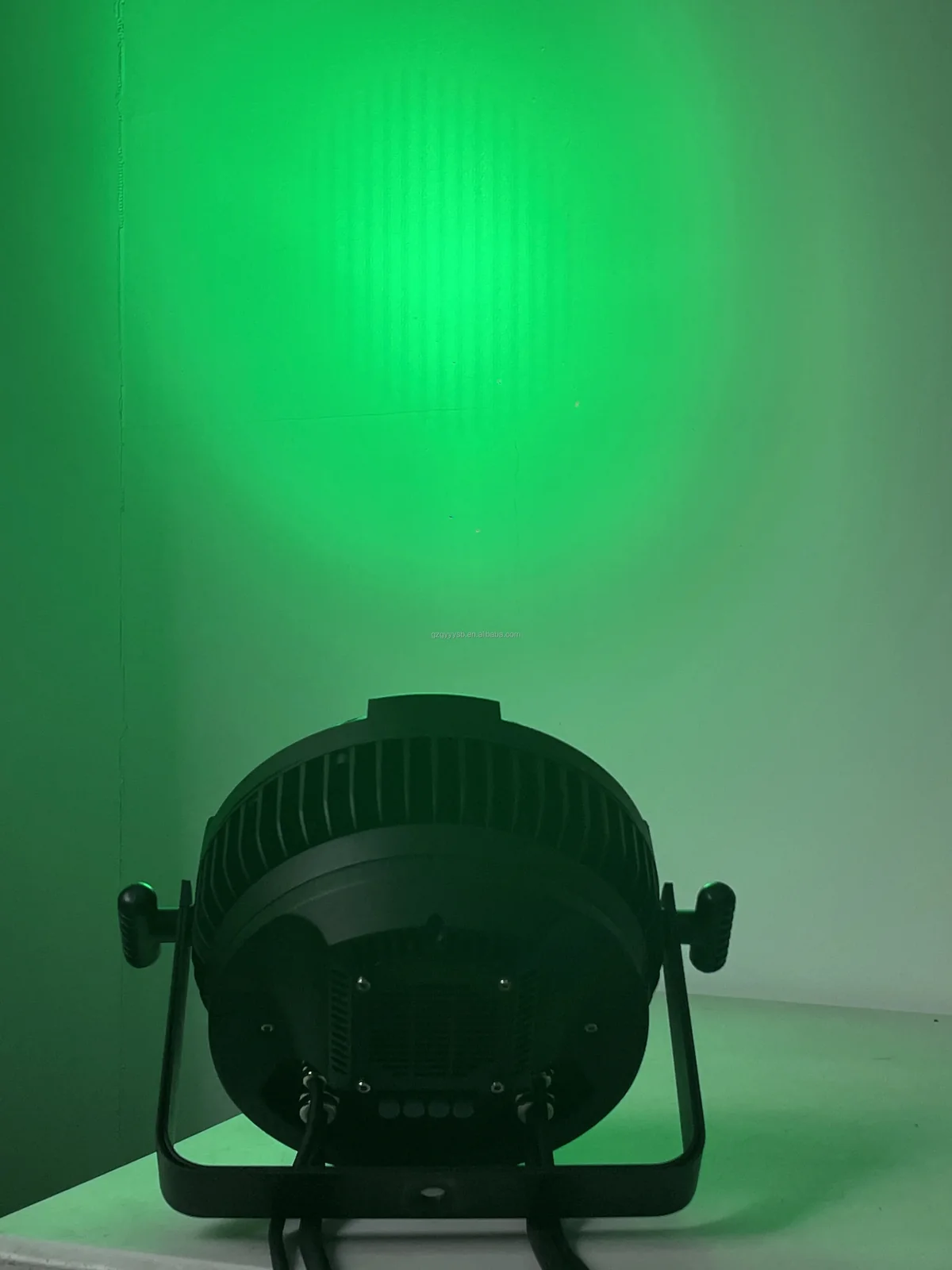

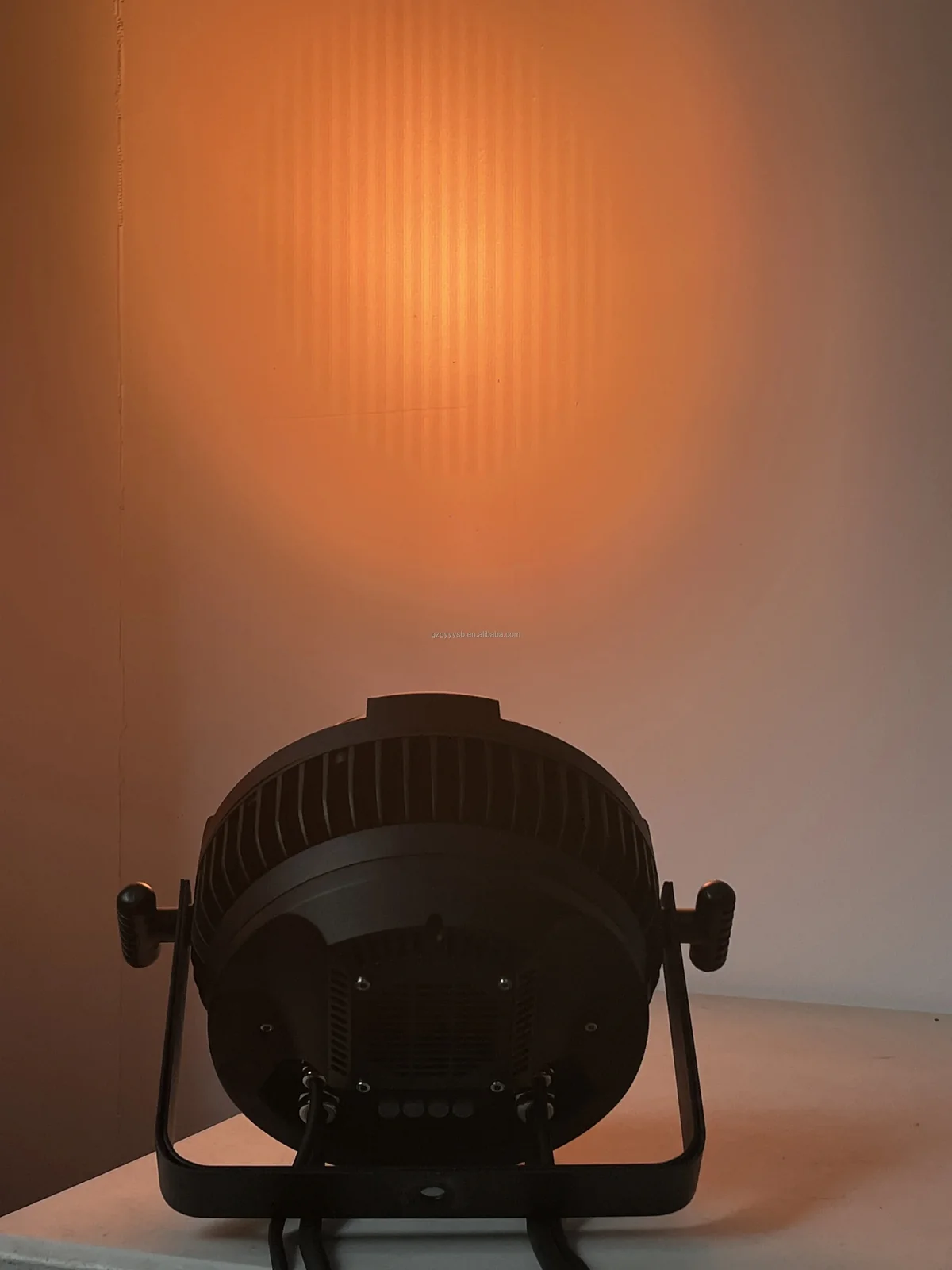

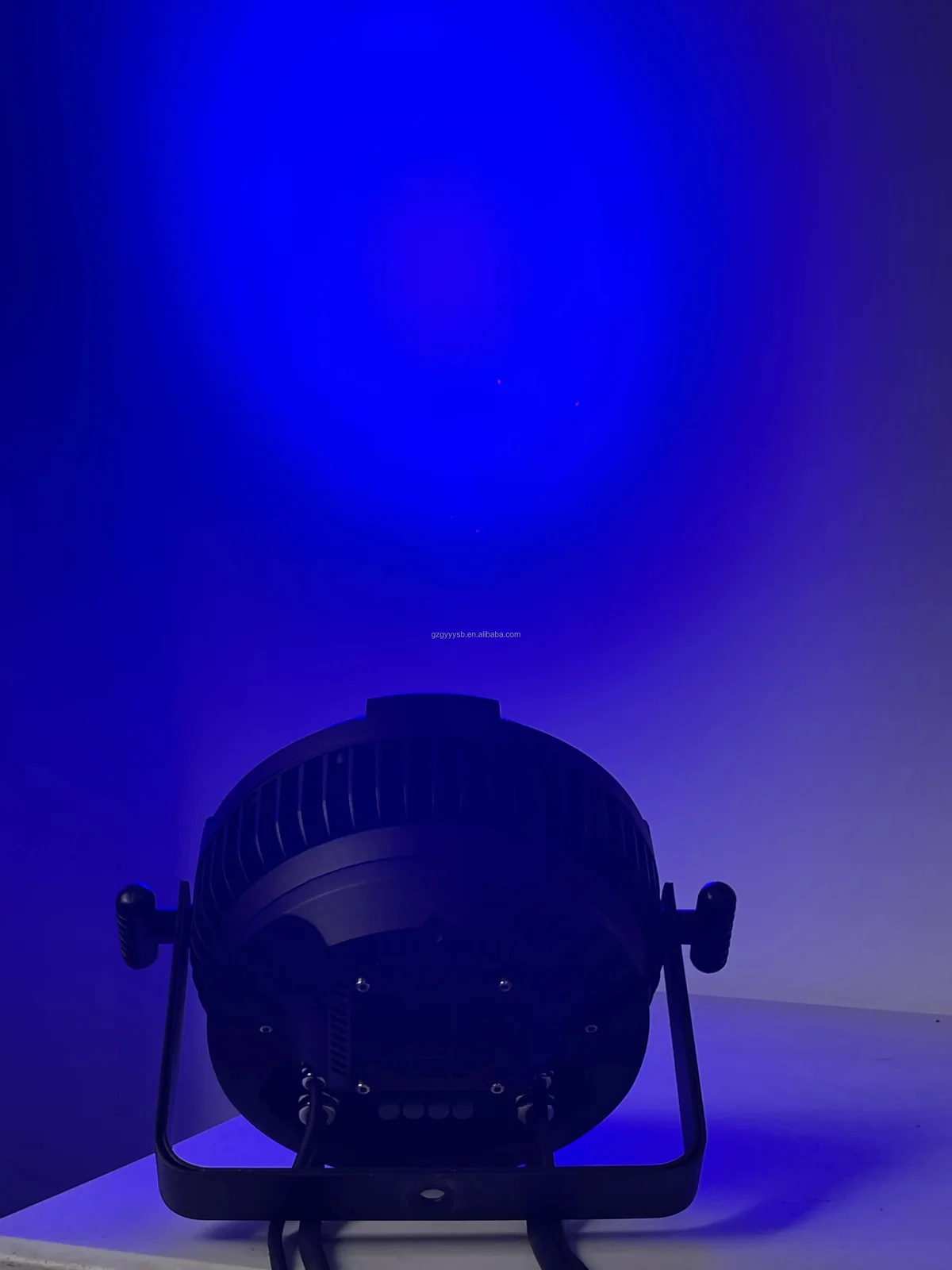

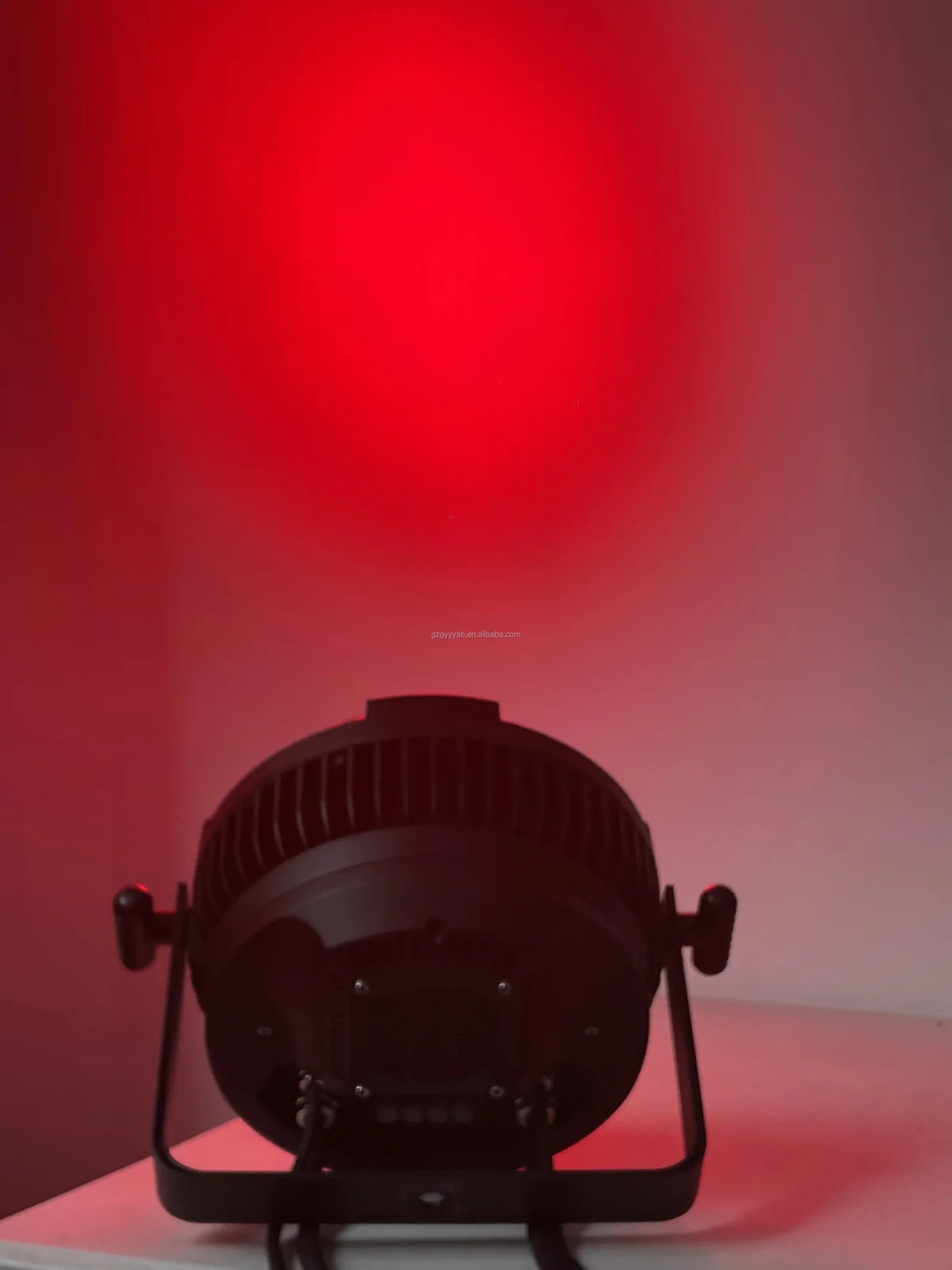

PRODUCT & EFFECT VIEWS
Review the shared housing, rear controls and color output.

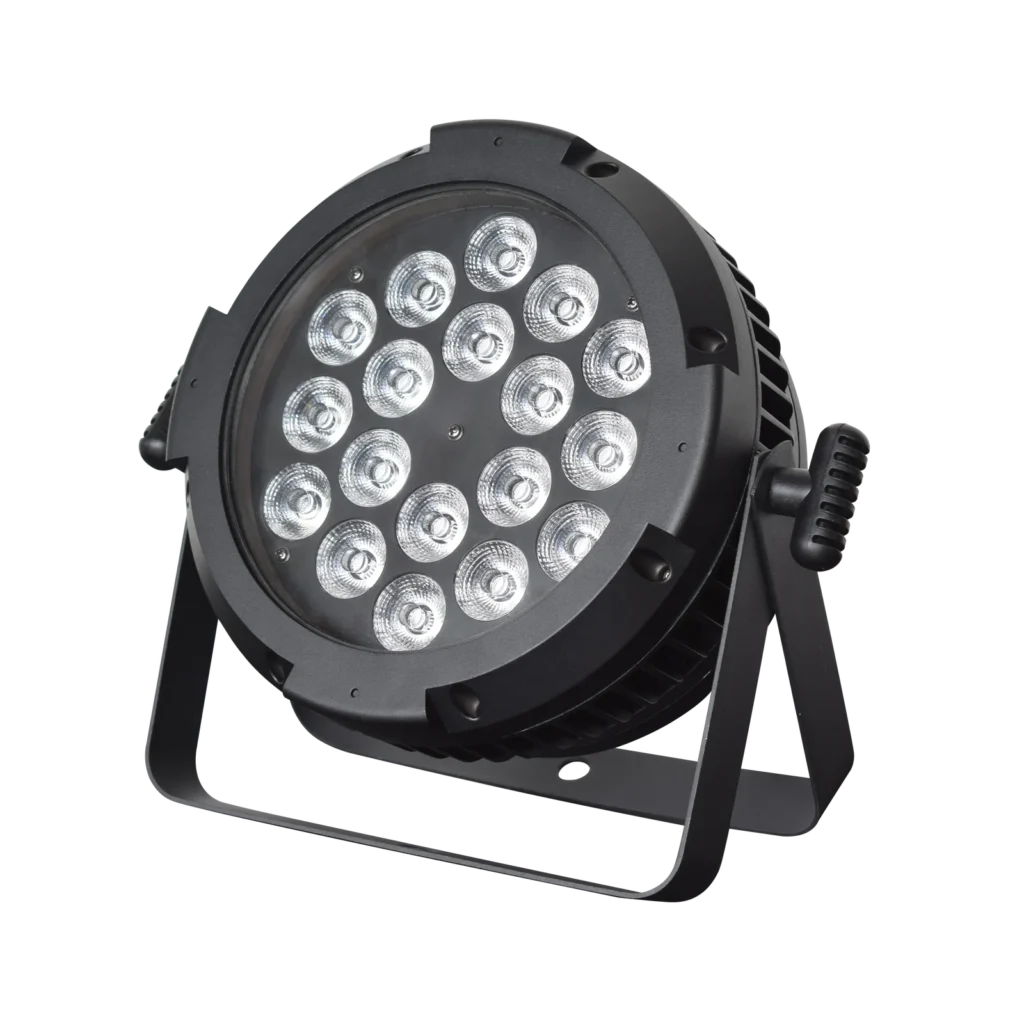

These housing and effect references apply to the RG-312 PLUS series. The 18-LED hero image is specific to this variant.
Specifications
Technical specifications
| Model | RG-312 PLUS 18PCS |
|---|---|
| Public product power | 200W |
| Light source | 18 high-brightness LEDs; 4-in-1, 5-in-1 or 6-in-1 options |
| Voltage | AC 90–245V, 50/60Hz |
| DMX channels | 4-in-1: 8CH; 6-in-1: 6 / 10CH |
| IP rating | IP68 (supplier-provided specification) |
| Product dimensions | 320 × 205 × 240mm |
| Net weight | 4.5kg |
| Control modes | DMX512 / Master-slave / Sound / Auto |
APPLICATION FIT
Match the fixture to the real venue role.
For 18-LED IP68 Waterproof PAR Light projects, use the confirmed source, control, optical and protection facts to plan the fixture position. Final coverage, output and camera performance depend on the selected configuration and real venue. Compare related LED PAR lights before finalizing the rig or screen configuration.
B2B ORDER FLOW
Prepare a complete quotation brief.
For your 18-LED IP68 Waterproof PAR Light order, send the quantity, destination, selected source configuration, voltage, control workflow, venue conditions, mounting and accessory needs. For DMX network planning, consult ESTA’s DMX512-A guide and request this fixture’s current channel chart.
PRODUCT FAQ
Questions Before You Order.
Direct answers about configuration, control, installation and quotation.
Which front layout does this page cover?
This page covers the 18-LED RG-312 PLUS variant.
Which LED packages can be ordered?
The supplied options are 4-in-1, 5-in-1 and 6-in-1; confirm the exact extra colors.
What is the fixture power?
The listed complete-fixture power is 200W.
Which control modes are available?
DMX512, Master-slave, Sound and Auto modes are listed.
Which channel modes are listed?
4-in-1 uses 8CH; the 6-in-1 option lists 6CH or 10CH.
What protection rating is supplied?
IP68 is the supplier-provided fixture rating; request supporting evidence for engineering or tender use.
Does IP68 cover the complete installation?
No. Cable connections, power distribution, mounting and drainage need project-level protection.
What should I include in an inquiry?
Quantity, destination, selected source package, exact colors, voltage, control, venue exposure and accessories.
