18-LED IP65 FLAT PAR
18-LED IP65 Waterproof Flat PAR Light overview
RG-312 combines an 18-position flat housing, 180W fixture power and IP65 protection. Select 18 × 10W RGBW 4-in-1 or 18 × 15W 5-in-1 LEDs; the additional fifth color in the 5-in-1 package should be confirmed for each order.
Flat 18-LED face
A shallow round housing supports floor, truss and compact venue placement.
Two source options
Choose RGBW 4-in-1 or a 15W 5-in-1 package confirmed for the order.
Weather-rated fixture
The supplied rating supports outdoor use within a correctly protected installation.
DMX and standalone modes
Operate by DMX512, Auto, Master-slave or Sound mode.
FIXTURE DETAILS
Inspect the flat housing, brackets and sealed cable connections.

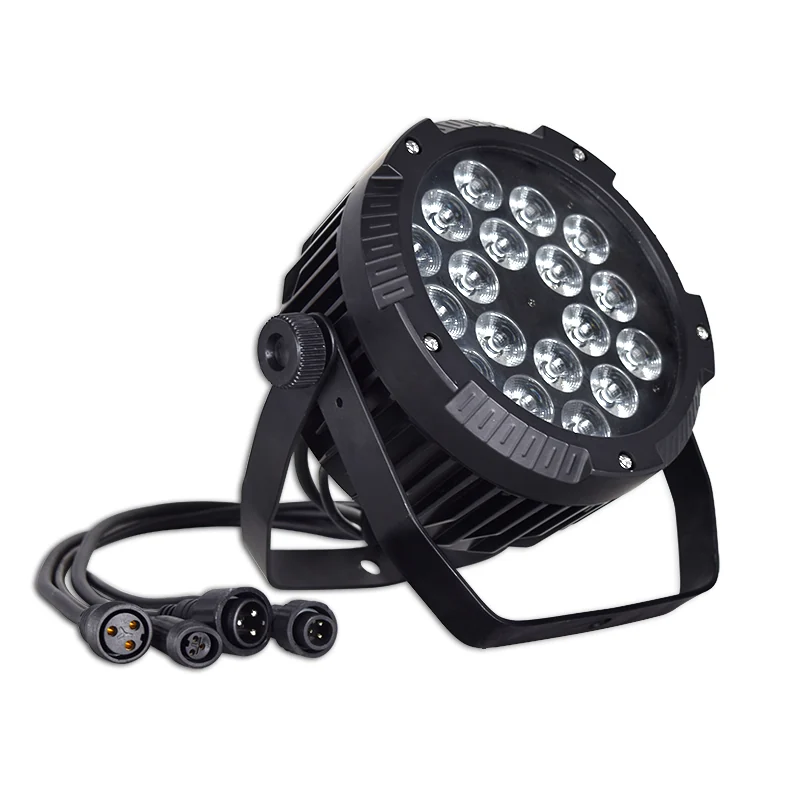

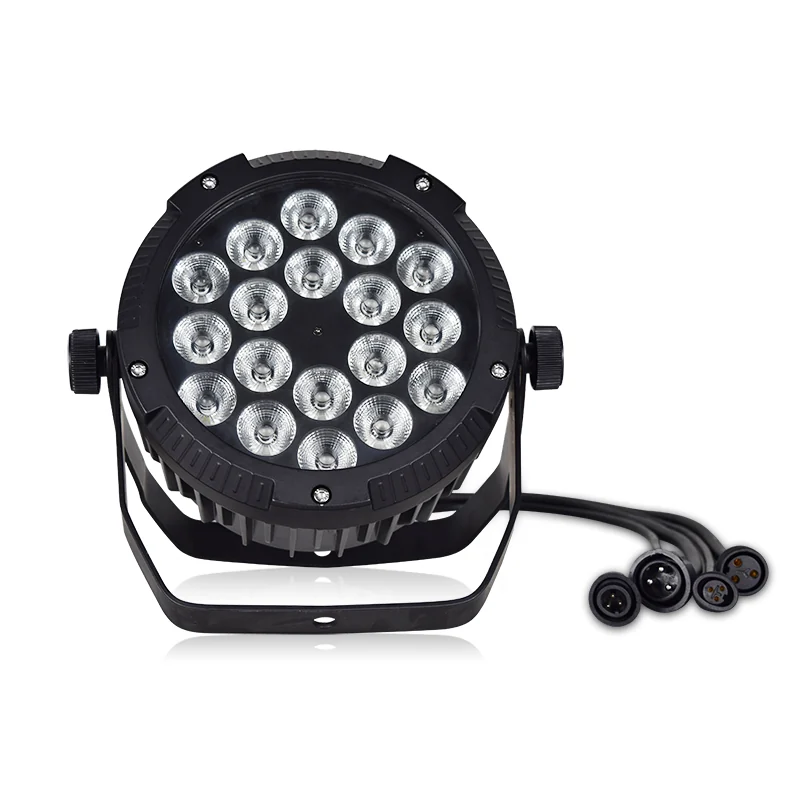

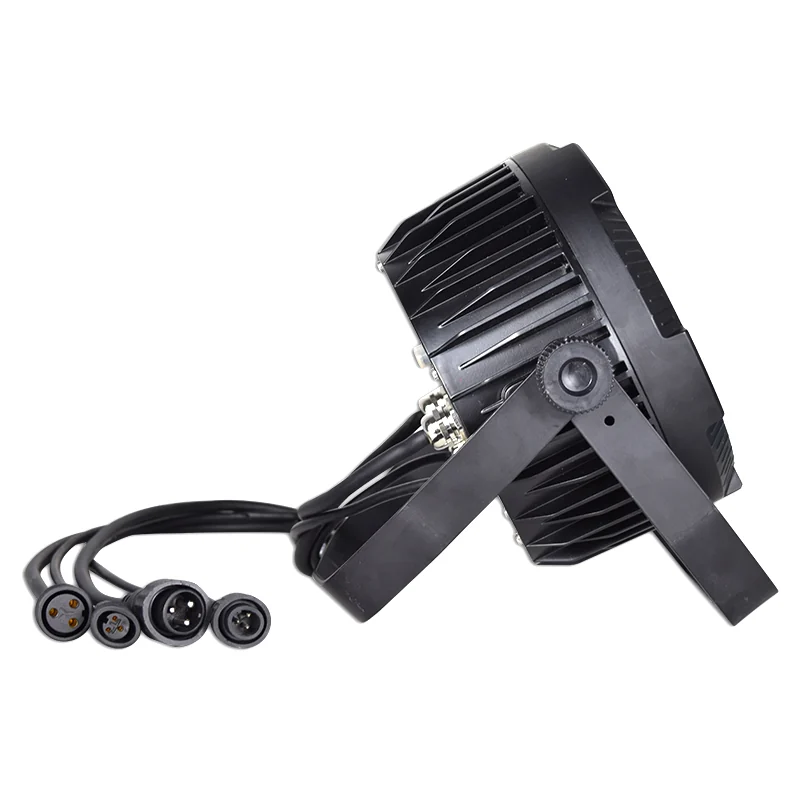

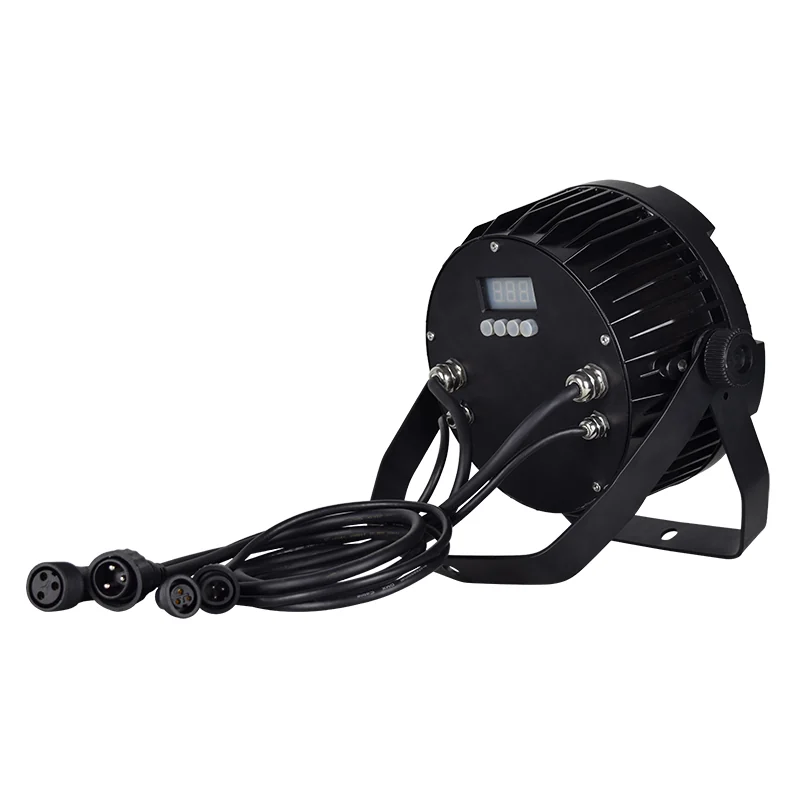

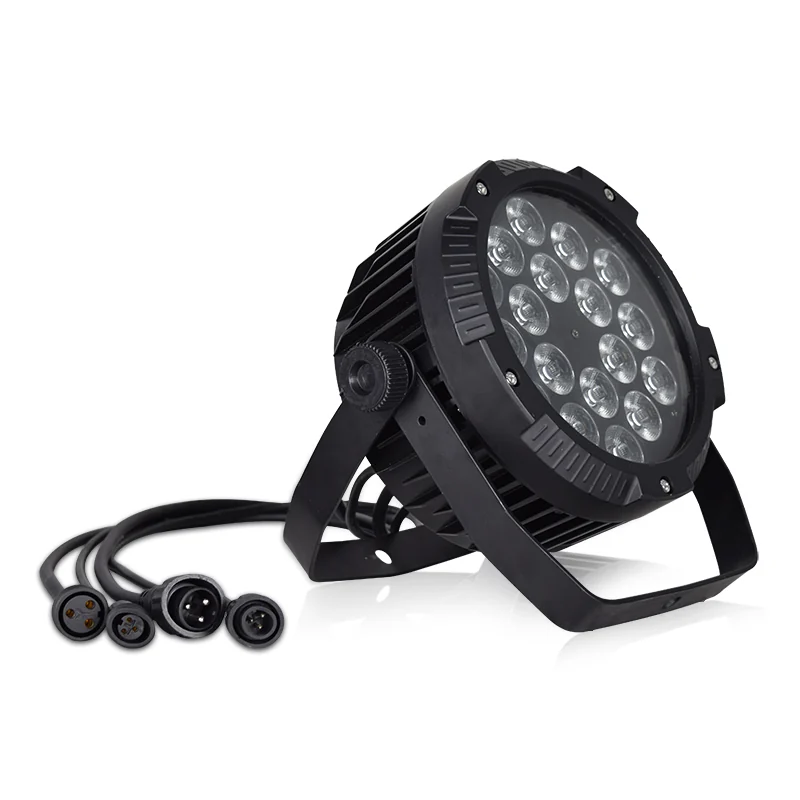

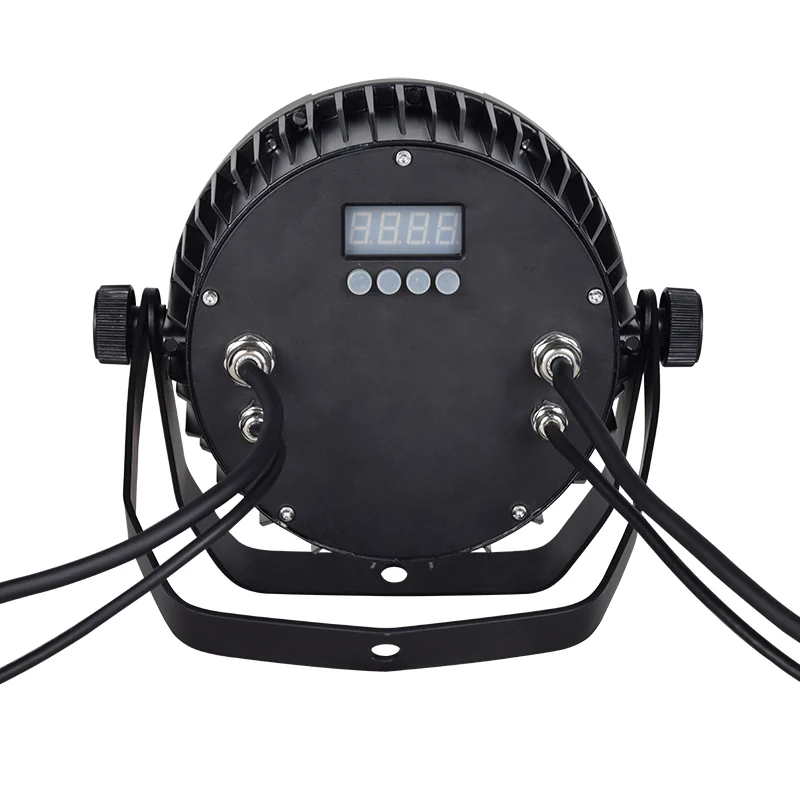

The supplied views document the 18-lens front, rear control panel, cooling fins, dual brackets and attached power and signal leads.
SUPPLIED COLOR REFERENCES
Review single colors and mixed-color output.

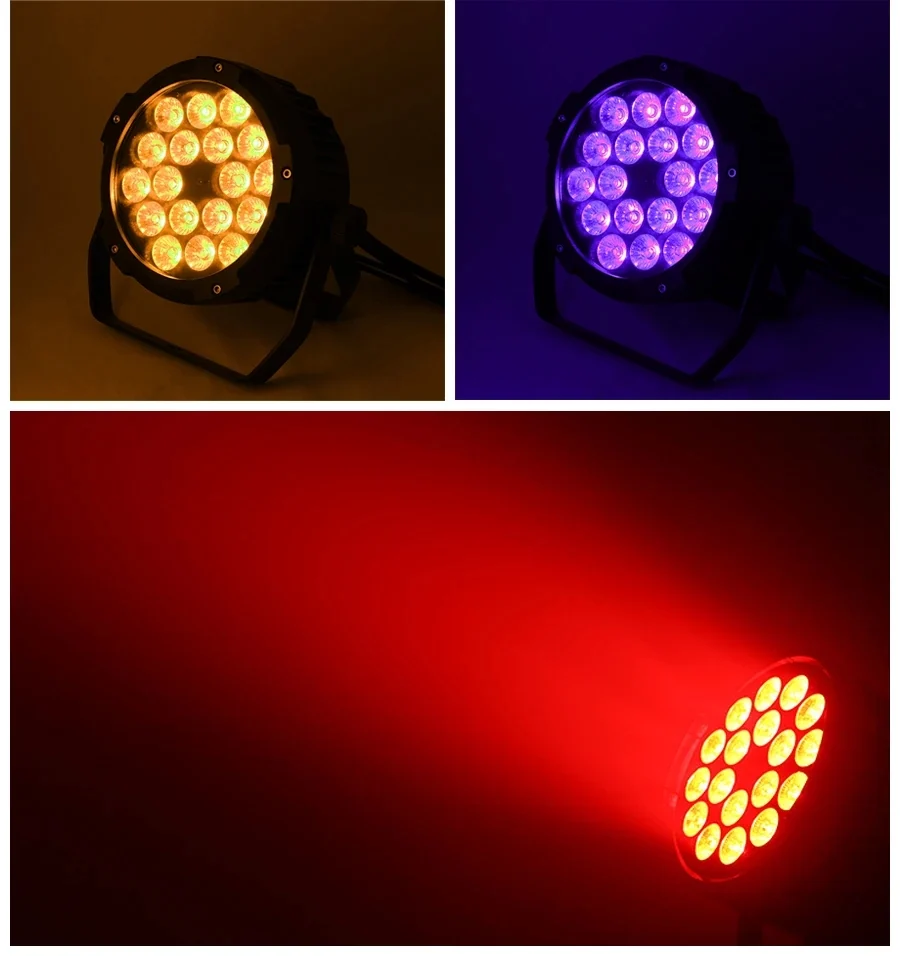

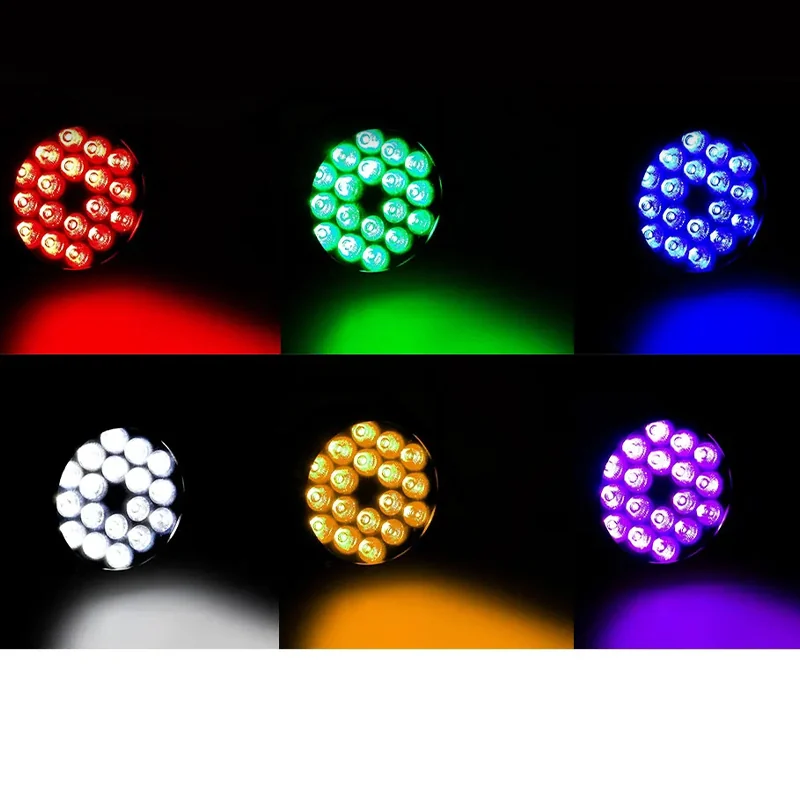

These supplied images show representative RGBW and mixed-color operation. They are visual references, not photometric measurements; no verified RG-312 YouTube video is currently recorded.
Specifications
Technical specifications
| Model | RG-312 |
|---|---|
| Public product power | 180W |
| Light source | 18 × 10W RGBW 4-in-1 or 18 × 15W 5-in-1; confirm the fifth color |
| Voltage | AC 90–220V, 50/60Hz |
| DMX channels | 7CH |
| IP rating | IP65 |
| Product dimensions | 300 × 150 × 250mm |
| Net weight | 3.8kg |
| Control modes | DMX512 / Auto / Master-slave / Sound |
APPLICATION FIT
Plan a compact wash for outdoor events and fixed venues.
RG-312 fits stages, architectural accents, event tents and rental systems that need a flat IP65 color-wash fixture. Final quantity depends on throw distance, target area, ambient light, mounting position and the selected LED package. Compare related LED PAR lights when planning your lighting rig.
B2B ORDER FLOW
Confirm the LED package before production.
For the order, send quantity, destination, source option, voltage, venue exposure, mounting, plug, cable and packing requirements. For DMX network planning, consult ESTA’s DMX512-A guide and request this fixture’s current channel chart.
PRODUCT FAQ
Questions Before You Order.
Direct answers about RG-312 source options, control, IP rating and quotation.
Which LED source options are listed for RG-312?
Choose 18 × 10W RGBW 4-in-1 or 18 × 15W 5-in-1 LEDs.
What is the fifth color in the 5-in-1 option?
The supplied data does not identify it, so confirm the exact five-color package in the quotation.
What does the 180W rating describe?
It is the listed complete-fixture power and is separate from the nominal LED-package ratings.
Which control modes are available?
The listed modes are 7CH DMX512, Auto, Master-slave and Sound.
Is RG-312 the same as RG-312 PLUS?
No. This page covers the 180W IP65 flat PAR; RG-312 PLUS IP68 fan-cooled versions are separate products.
Does IP65 cover the complete installation?
No. Power distribution, mating connections, mounting and drainage still need suitable project-level protection.
Is there a verified RG-312 YouTube video?
No traceable video for this non-PLUS RG-312 is currently recorded, so the page uses supplied effect images.
What should I include in an inquiry?
Send quantity, destination, LED package, voltage, venue exposure, mounting, plug, cable, schedule and packing needs.
