18-LED ALUMINUM PAR

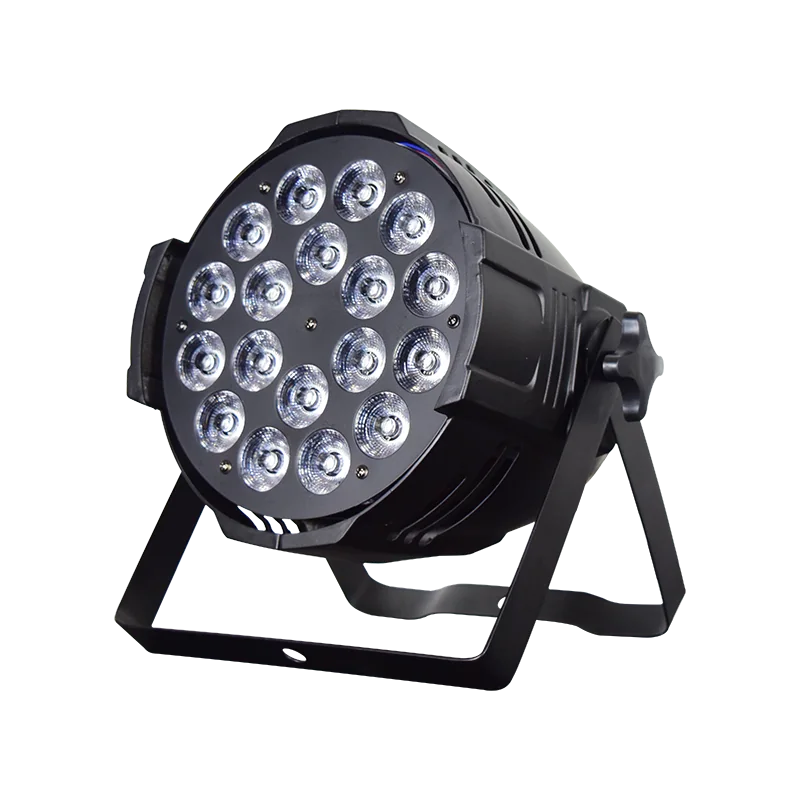

18-LED Aluminum Full-Color PAR Light overview
The supplied data lists 10W, 12W and 15W LED ratings together with 4-in-1, 5-in-1 and 6-in-1 options, but it does not map every wattage to a specific color package. Confirm the exact source configuration before production.

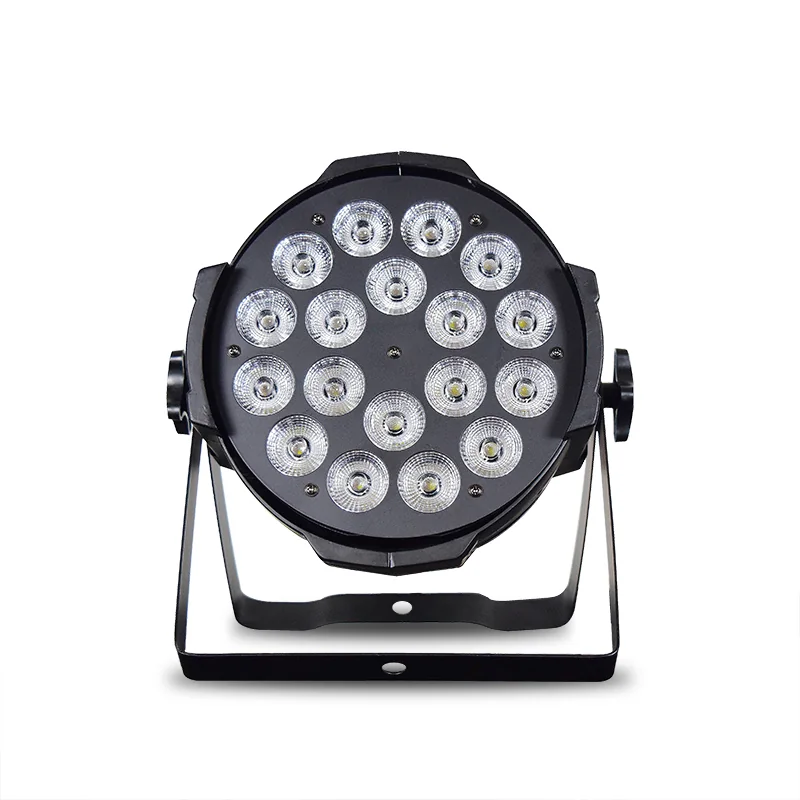

18-position face
A dedicated 18-lens front layout in an aluminum housing.
4/5/6-in-1 options
Select one color package and confirm the additional colors.
7CH DMX
One listed DMX mode plus Sound, Auto and Master-slave.
IP20
For indoor or properly protected installations.

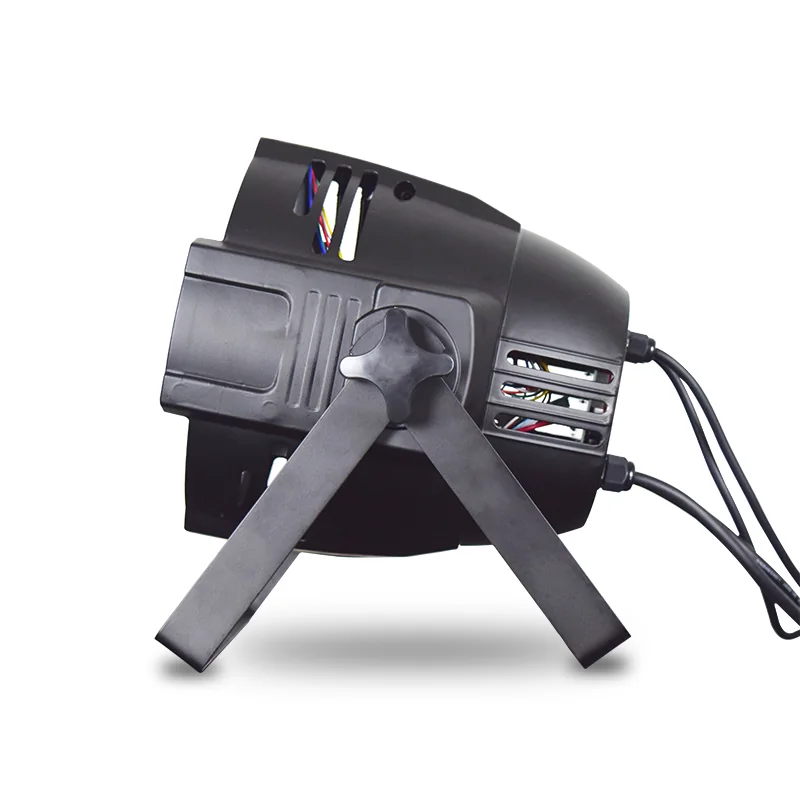

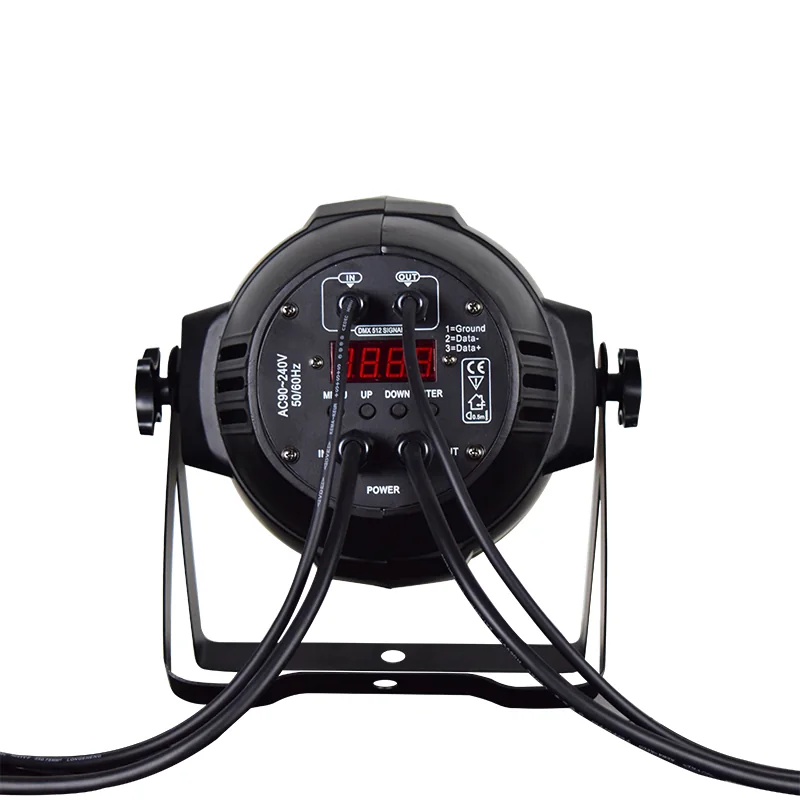

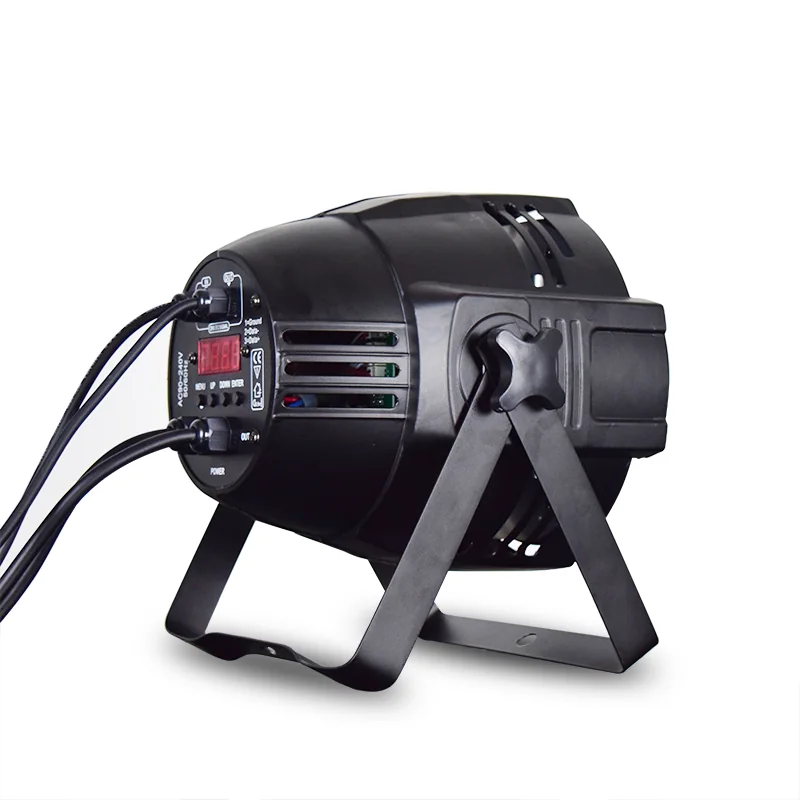

PRODUCT & EFFECT VIEWS
Review the housing, controls and supplied color-output examples.

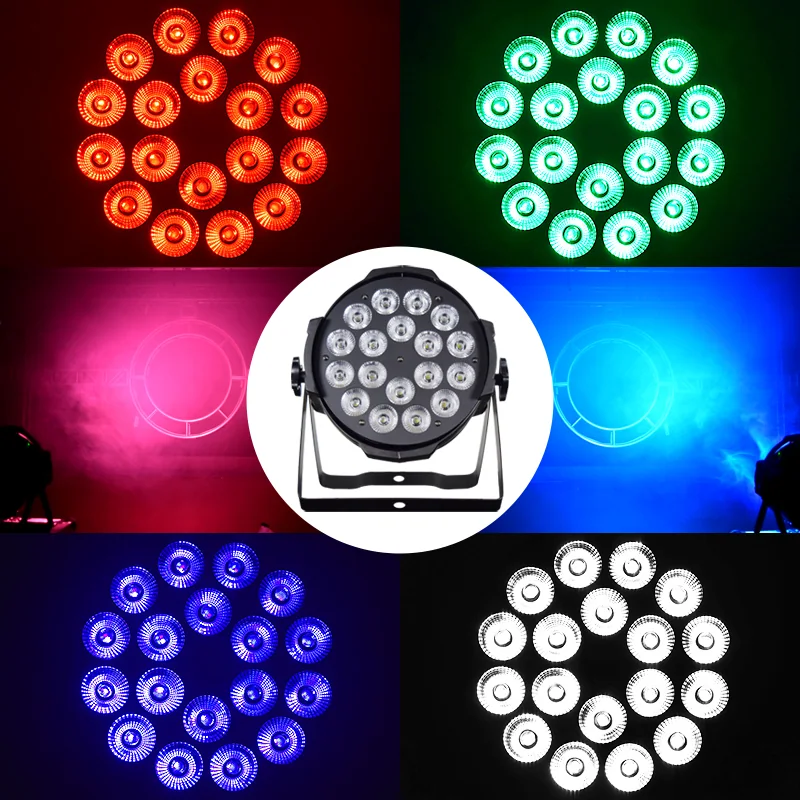

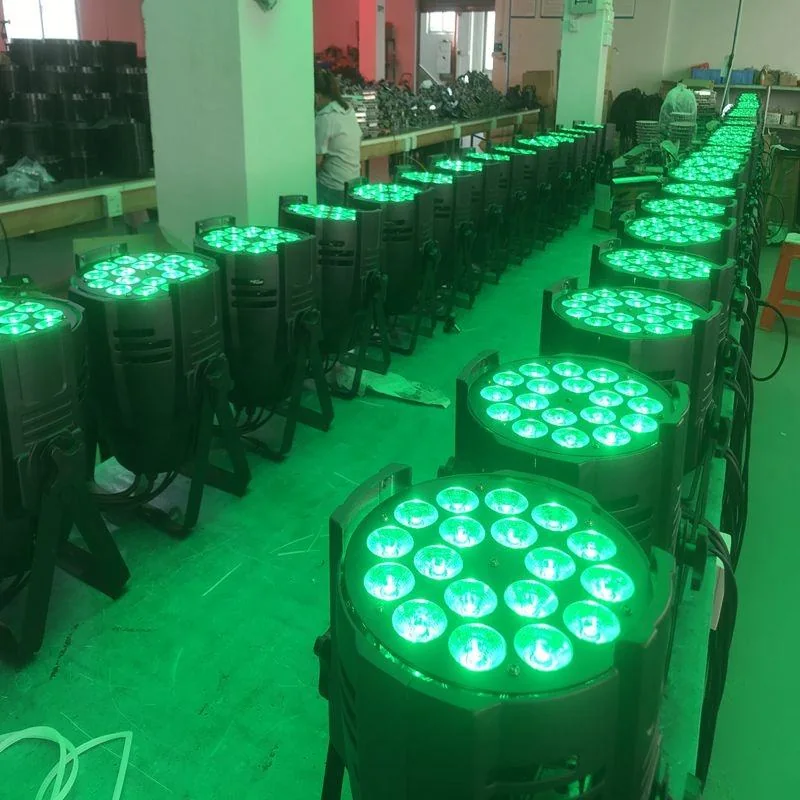

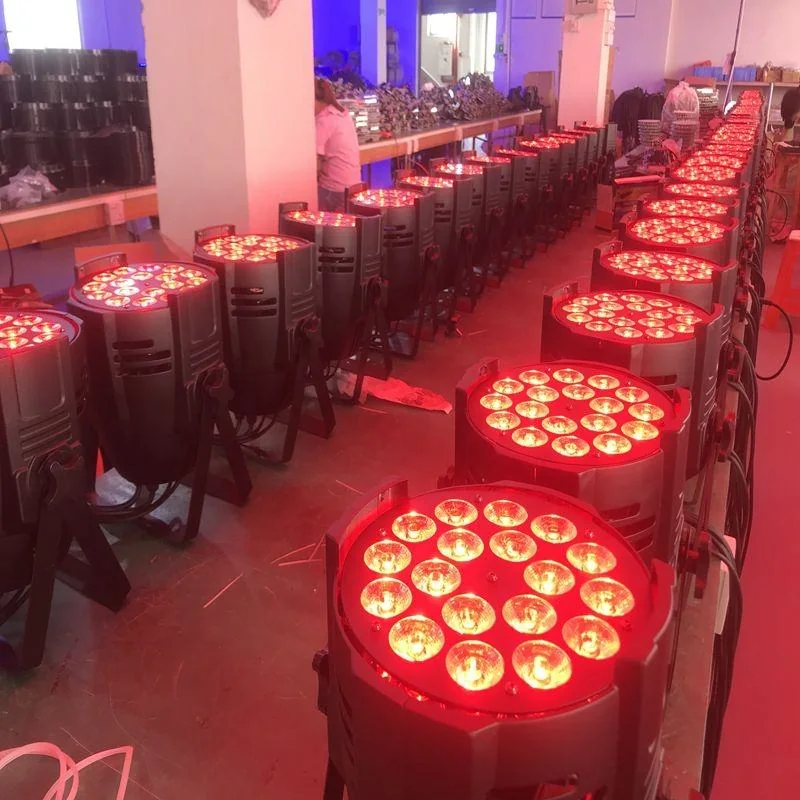

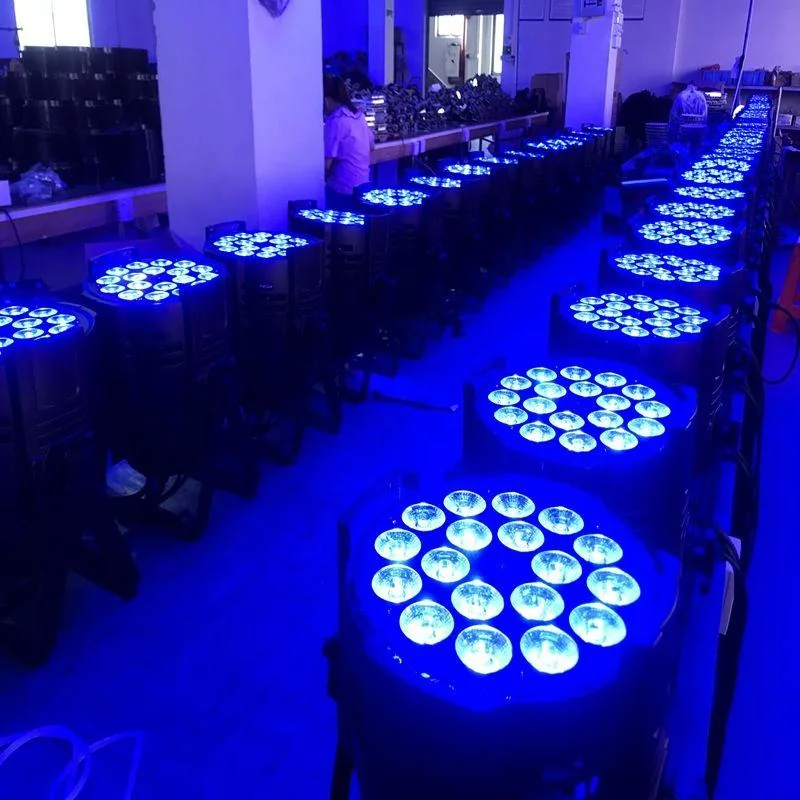

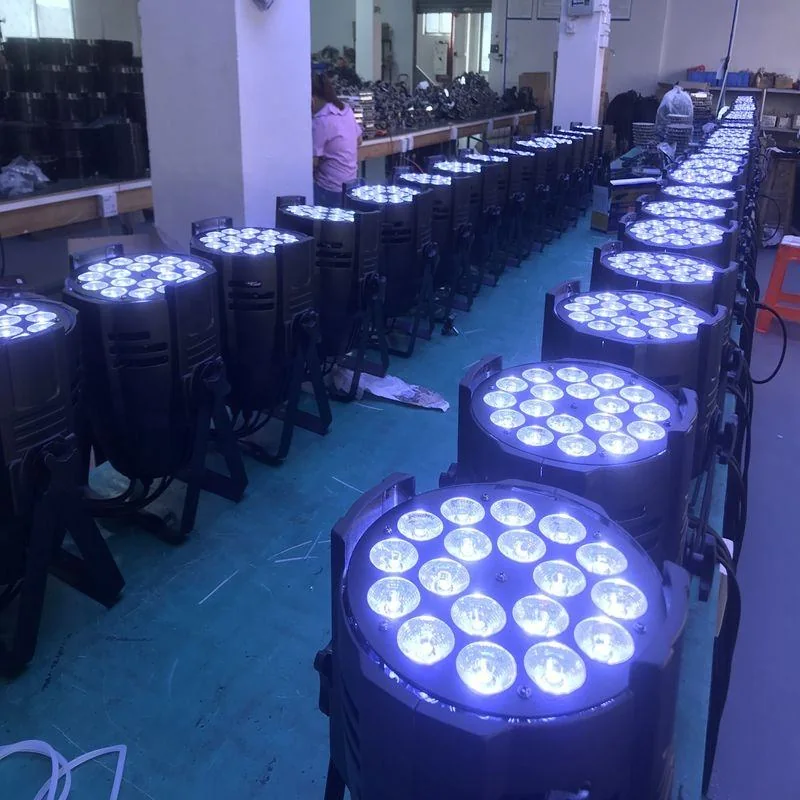

The gallery combines product angles with real batch-lighting and color references. Output images are visual references, not photometric measurements.
PRODUCT VIDEO
Watch the PAR light demonstration.
Use the verified product video to review visible operation, then confirm the exact source configuration and control requirements for the order.
Specifications
Technical specifications
| Model | RG-411 18PCS |
|---|---|
| Public product power | 200W |
| Light source | 18 × 10W / 12W / 15W LEDs; 4-in-1, 5-in-1 or 6-in-1 options |
| Voltage | AC 90–240V, 50/60Hz |
| DMX channels | 7CH |
| IP rating | IP20 |
| Product dimensions | 280 × 180 × 240mm |
| Net weight | 3kg |
| Control modes | DMX512 / Sound / Auto / Master-slave |
APPLICATION FIT
Match the fixture to the real venue role.
For the planned installation, use the confirmed source, control, optical and protection facts to plan the fixture position. Final coverage, output and camera performance depend on the selected configuration and real venue. Compare related LED PAR lights when planning your lighting rig.
B2B ORDER FLOW
Prepare a complete quotation brief.
For the order, send the quantity, destination, selected source configuration, voltage, control workflow, venue conditions, mounting and accessory needs. For DMX network planning, consult ESTA’s DMX512-A guide and request this fixture’s current channel chart.
PRODUCT FAQ
Questions Before You Order.
Source configuration, control, installation and order planning.
How many LED positions does this version use?
This page covers the 18-LED RG-411 variant.
Which source options are listed?
10W, 12W and 15W LED ratings with 4-in-1, 5-in-1 or 6-in-1 package options.
Are wattage and color package matched one-to-one?
No mapping is supplied; confirm the exact source configuration in the quotation.
What is the fixture power?
The listed complete-fixture power is 200W.
Which control modes are listed?
7CH DMX512, Sound, Auto and Master-slave.
What beam angle is listed?
The supplied fixed beam angle is 25°.
Is it waterproof?
No. The listed protection class is IP20 for indoor or protected use.
What should I include in an inquiry?
Quantity, destination, LED wattage, color package, voltage, control and accessories.
