TWO RGBW SOURCE OPTIONS
18/24-LED IP65 RGBW Waterproof PAR Light overview
Both configurations use the same 180W fixture rating and control platform. Nominal LED package wattage does not establish which option is brighter; request comparable photometric testing for the real throw distance.
18 × 10W RGBW

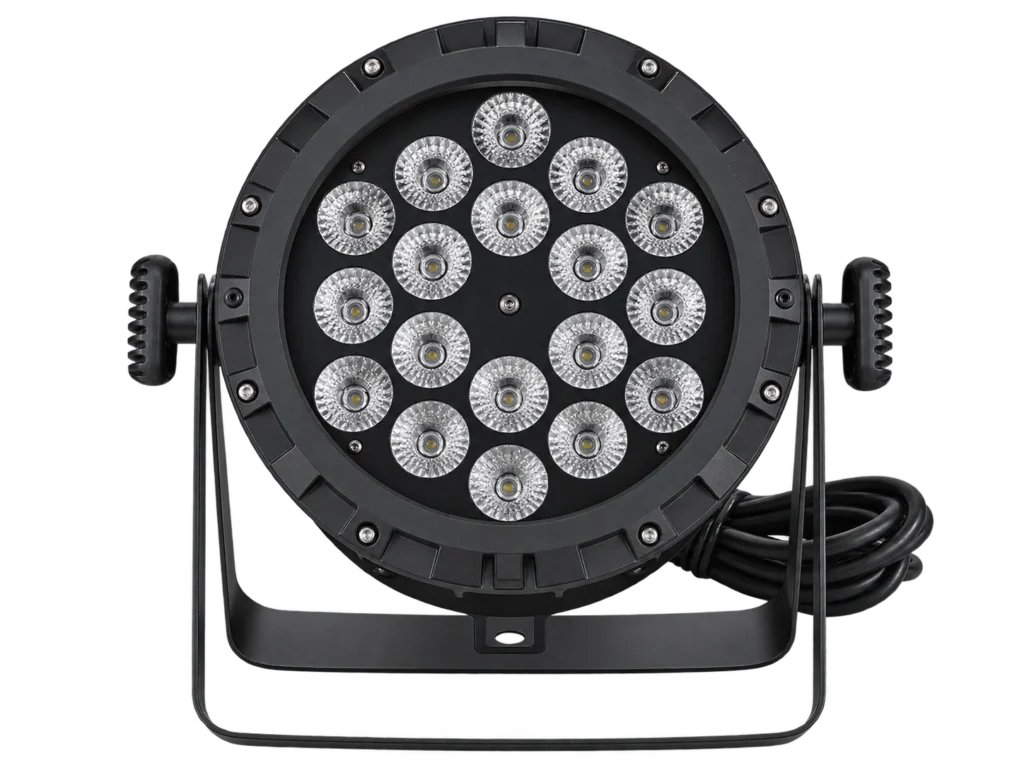

The supplied product photo represents this 18-LED configuration.
24 × 8W RGBW
An alternative source layout on the same RG-402 platform.
9CH DMX
One listed control profile plus Auto, Master-slave and Sound.
32-bit dimming
Listed 0–100% linear dimming with a 1–30Hz strobe range.
Specifications
Technical specifications
| Model | RG-402 |
|---|---|
| Public product power | 180W |
| Light source | 18 × 10W RGBW / 24 × 8W RGBW options |
| Voltage | AC 100–240V, 50/60Hz |
| DMX channels | 9CH |
| IP rating | IP65 |
| Product dimensions | 31 × 24 × 24cm |
| Net weight | 4kg |
| Control modes | DMX512 / Auto / Master-slave / Sound |
APPLICATION FIT
Match the fixture to the real venue role.
Choose 18×10W or 24×8W RGBW for the fixed source layout, then assess the color coverage required at the working distance. Both options use the listed 180W fixture rating and 9-channel platform; more LEDs or higher nominal source wattage does not establish a brighter result. Compare related LED PAR lights when a different optical or control role is needed. Plan outdoor connections separately from the IP65 fixture body.
B2B ORDER FLOW
Prepare a complete quotation brief.
For the order, send the quantity, destination, selected source configuration, voltage, control workflow, venue conditions, mounting and accessory needs. For DMX network planning, consult ESTA’s DMX512-A guide and request this fixture’s current channel chart.
PRODUCT FAQ
Questions Before You Order.
Source configuration, control, installation and order planning.
Which LED configurations can I order?
Choose either 18 × 10W RGBW LEDs or 24 × 8W RGBW LEDs on the same platform.
Which version is brighter?
Comparable lumen or lux data is not supplied; request project or sample testing.
What does the 180W specification describe?
It is the listed complete-fixture power, separate from nominal source-package ratings.
Which control modes are listed?
DMX512, Auto, Master-slave and Sound.
How many DMX channels are listed?
One 9-channel mode is supplied; request the current channel chart.
What dimming and strobe specifications are listed?
32-bit 0–100% linear dimming and a 1–30Hz strobe range.
Is the complete installation IP65?
IP65 applies to the fixture; connections and mounting need suitable project-level protection.
What should I include in an inquiry?
Quantity, destination, voltage, selected source layout, control workflow, venue exposure and accessories.
