SELECTABLE IP65 LED PAR
18/24/54-LED IP65 Waterproof PAR Light overview
RG-410C uses one cast-aluminum waterproof PAR platform with three supplied source layouts: 18 × 12W RGBW, 24 × 10W RGBW or 54 × 3W RGB. The exact 4-in-1, 5-in-1 or 6-in-1 color package and its channel mode must be confirmed for the ordered version.
18 × 12W RGBW
The supplied 18-position configuration is represented by the current product image.
24 × 10W RGBW
A separate 24-position source option is available for quotation confirmation.
54 × 3W RGB
The 54-position option uses the listed lower-wattage RGB source layout.
Cast-aluminum housing
The fixture carries a supplied IP65 rating in a cast-aluminum enclosure.

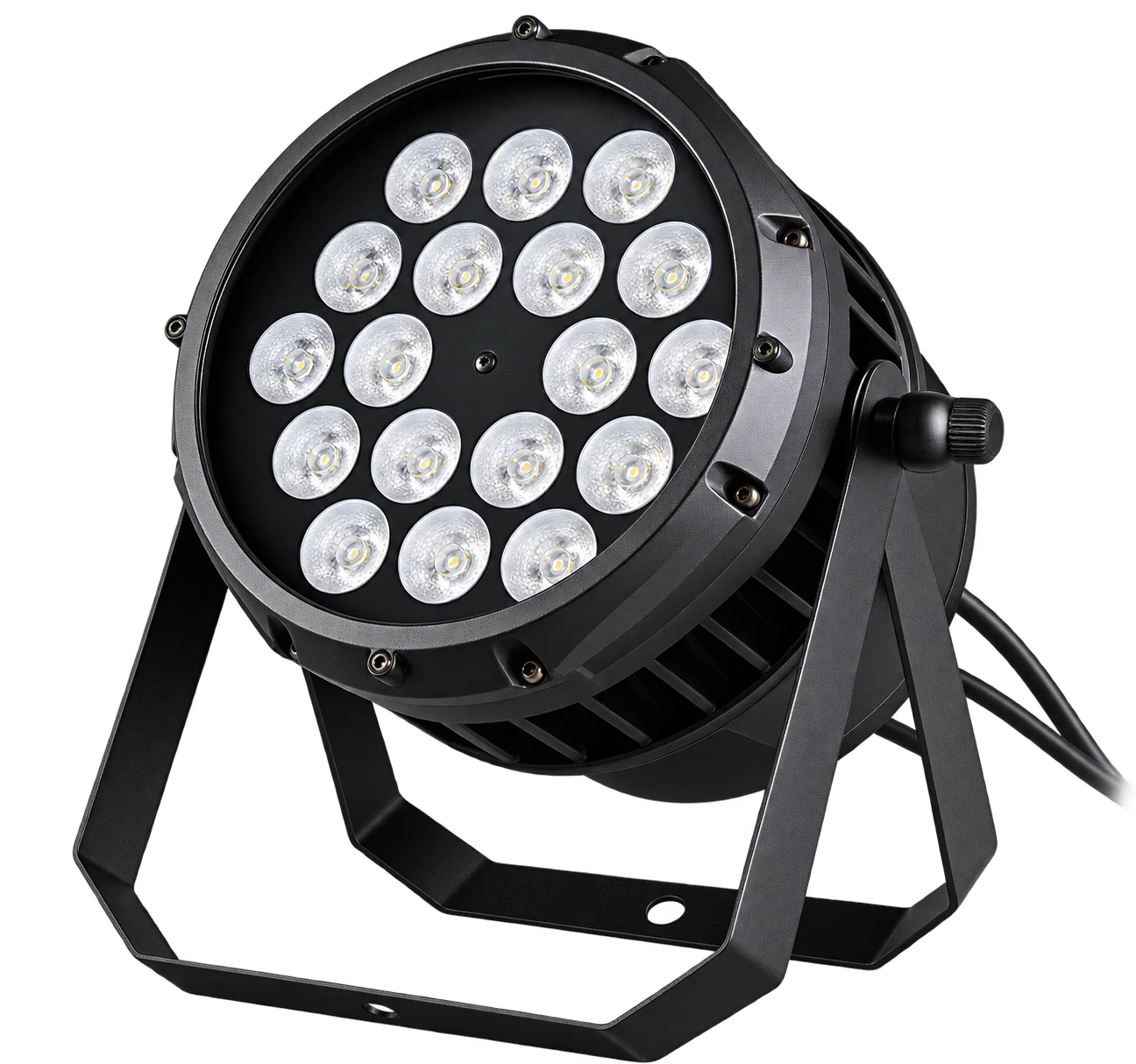

18-LED CONFIGURATION
Inspect the confirmed 18-position RG-410C housing.
The current image documents the 18-LED configuration only. It does not represent the front arrangement of the 24- or 54-LED options.
Specifications
Technical specifications
| Model | RG-410C |
|---|---|
| Public product power | 180W |
| Light source | 18 × 12W RGBW / 24 × 10W RGBW / 54 × 3W RGB; 4-in-1, 5-in-1 or 6-in-1 packages by order confirmation |
| Voltage | AC 110–240V, 50/60Hz |
| DMX channels | 6CH / 8CH |
| IP rating | IP65 |
| Control modes | DMX512 / Auto / Master-slave / Sound |
APPLICATION FIT
Select the source layout before planning fixture quantities.
For the planned installation, use RG-410C for stage, event and architectural color-wash positions where the supplied IP65 fixture rating matches the exposure plan. Output, coverage and camera behavior depend on the selected source package and the real venue. Compare related LED PAR lights when planning your lighting rig.
B2B ORDER FLOW
Lock the LED count, color package and control profile in the quotation.
For the order, send the quantity, destination, selected 18/24/54 layout, required 4-in-1/5-in-1/6-in-1 colors, voltage, channel mode, installation exposure, mounting and accessories. For DMX network planning, consult ESTA’s DMX512-A guide and request this fixture’s current channel chart.
PRODUCT FAQ
Questions Before You Order.
Source configuration, control, installation and order planning.
Which LED counts are available for RG-410C?
The supplied options are 18, 24 and 54 LED positions.
Which source layouts are listed?
18 × 12W RGBW, 24 × 10W RGBW and 54 × 3W RGB are the supplied standard layouts.
Can I order 4-in-1, 5-in-1 or 6-in-1 LEDs?
Those package types are offered, but the exact added colors and their mapping to each LED count must be confirmed in the quotation.
What does the 180W rating describe?
It is the listed complete-fixture power; the nominal LED package totals describe the source configuration separately.
Which channel modes are listed?
The supplied data lists 6CH and 8CH without assigning one mode to every source option; request the current channel chart.
Which standalone modes are available?
The listed modes are Auto, Master-slave and Sound in addition to DMX512.
Does IP65 cover the complete installation?
No. Power distribution, cable connections, mounting and drainage still require suitable project-level protection.
What should I send for a quotation?
Send quantity, destination, LED count, exact color package, voltage, channel mode, exposure, mounting and accessories.
