THREE EFFECT SYSTEMS

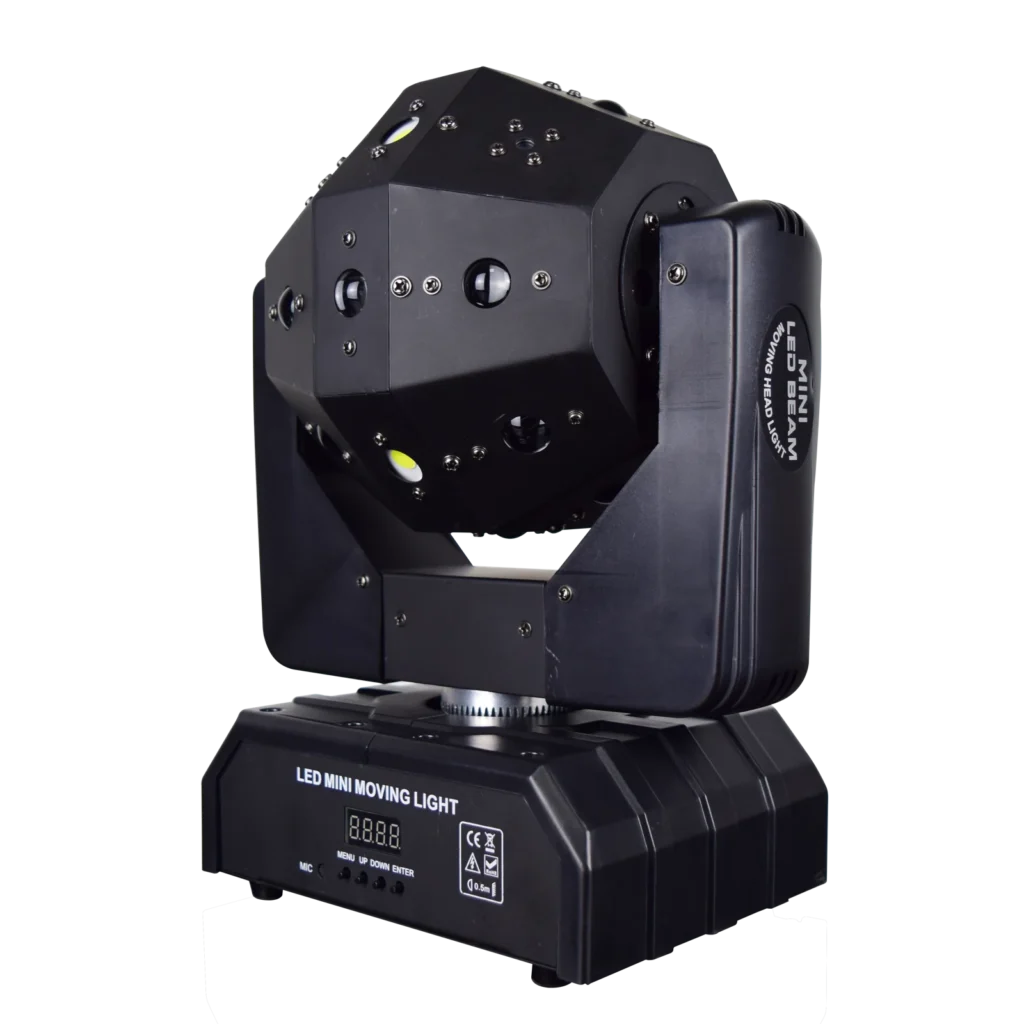

16x3W LED Moving Head Effect Light — combine colored beams, lasers and strobe accents.
16x3W LED Moving Head Effect Light combines sixteen separate red, green, blue and white LEDs, red and green lasers, and four strobe sources in a multifaceted moving head.
Sixteen 3W LEDs
Four red, four green, four blue and four white LEDs provide the color sources.
Four laser sources
Two 100mW red lasers and two 50mW green lasers add laser effects.
Four 15W strobes
Four strobe sources add flash accents to the lighting cues.
Movement and DMX
600° pan, continuous tilt rotation and 16CH / 18CH profiles support console programming.
FRONT AND REAR
Review the optics and connection panel.

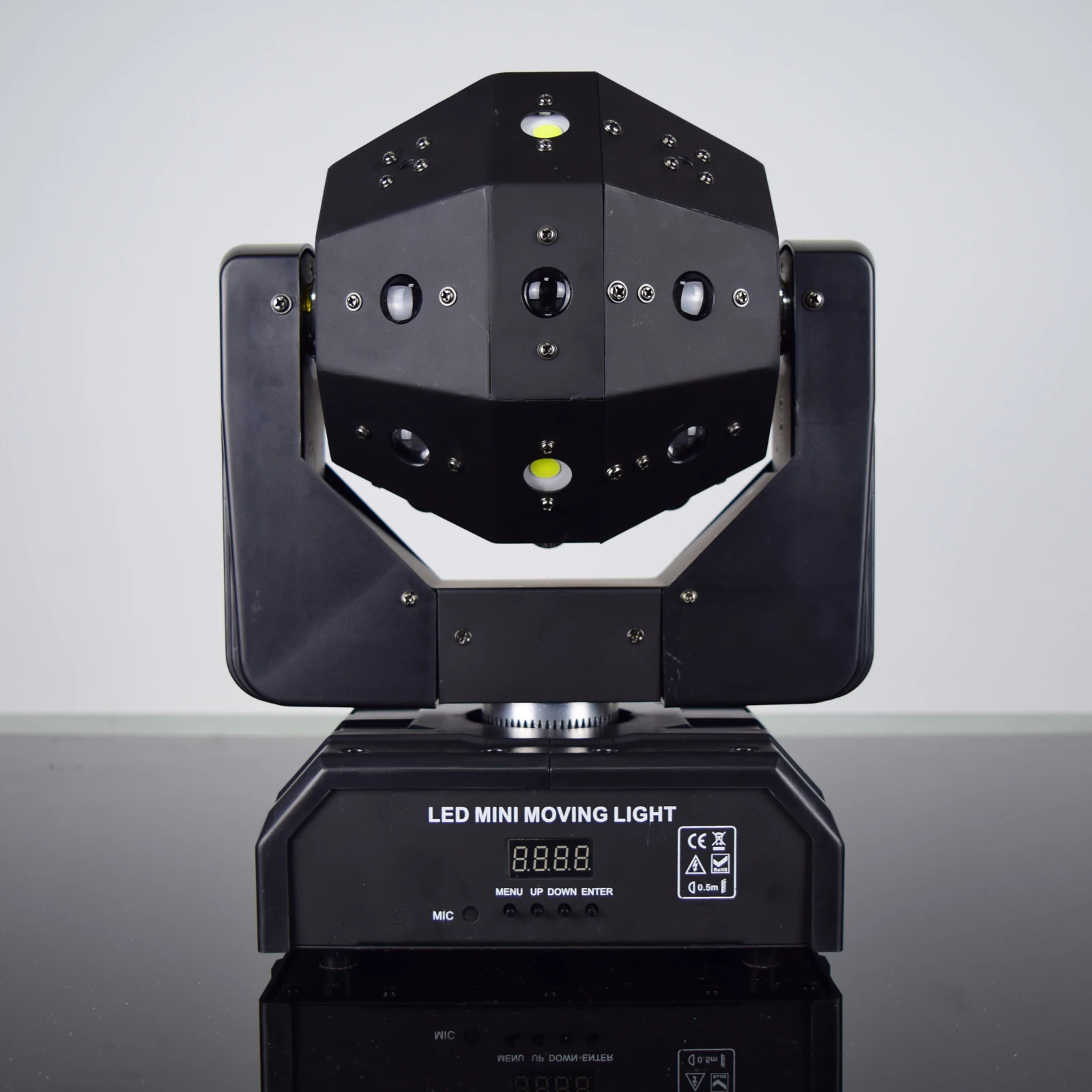

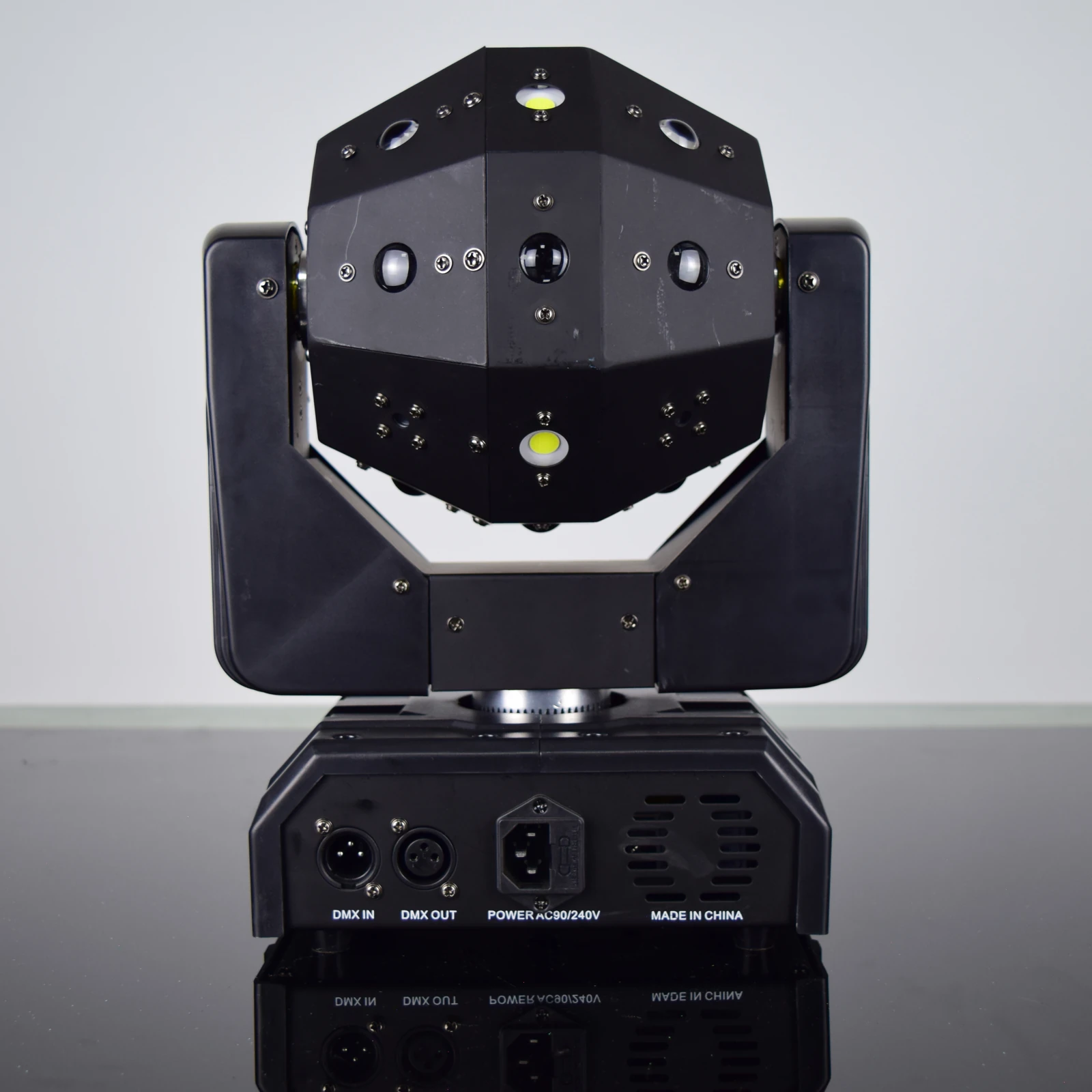

The front and rear views show the optical housing, display, DMX sockets and power inlet.
SIDE VIEWS
Review the support arm and head orientation.

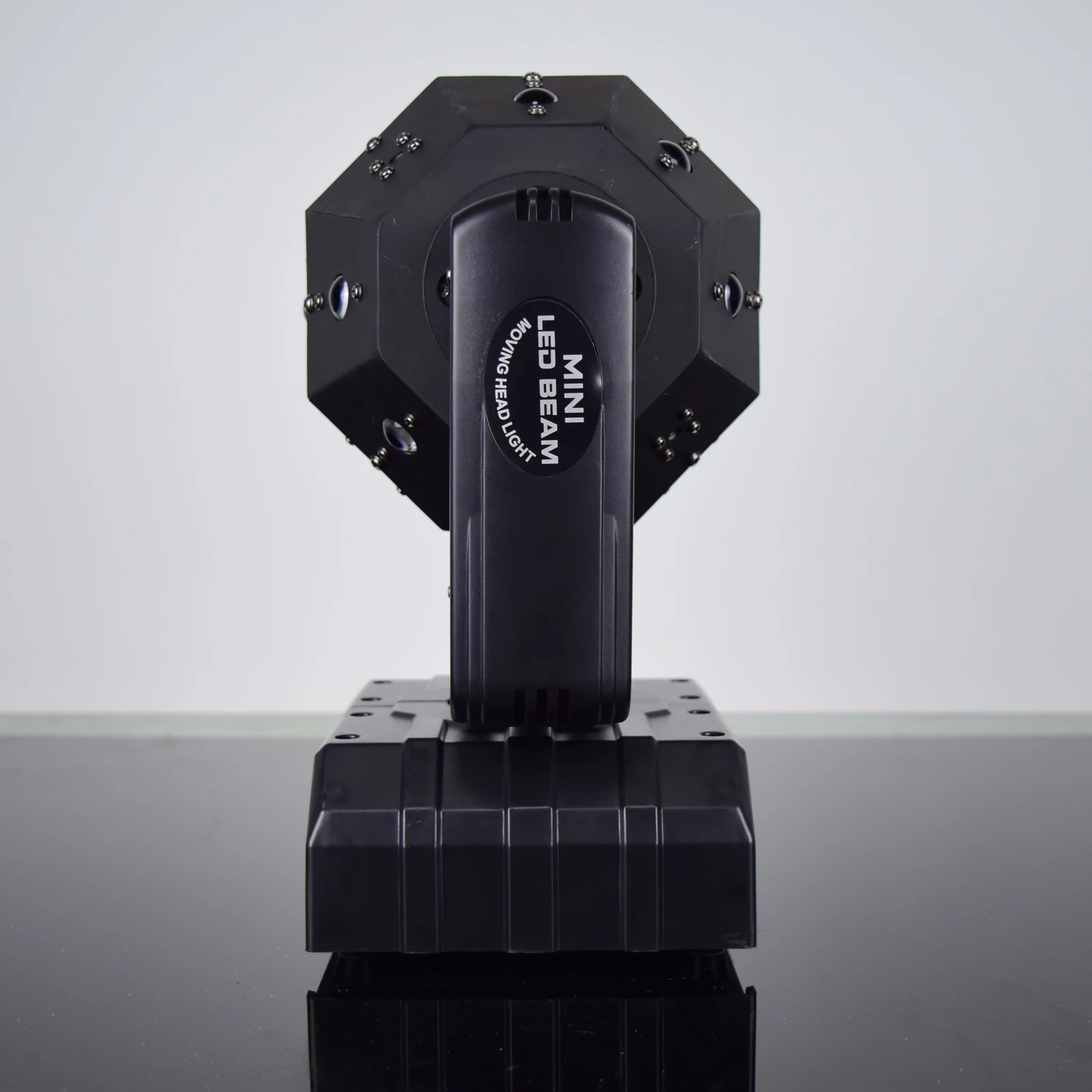

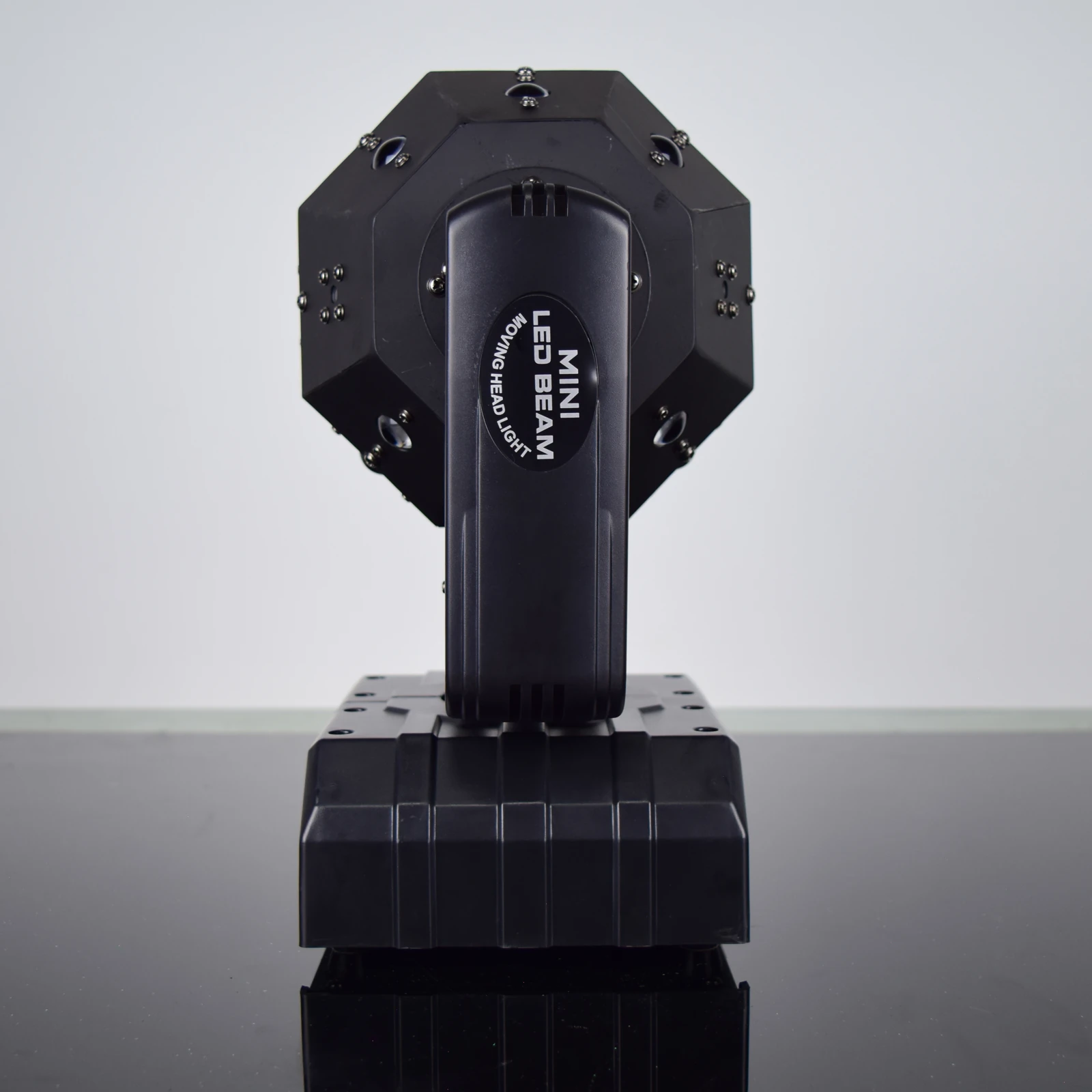

These side views show the multifaceted head, support arms and base.

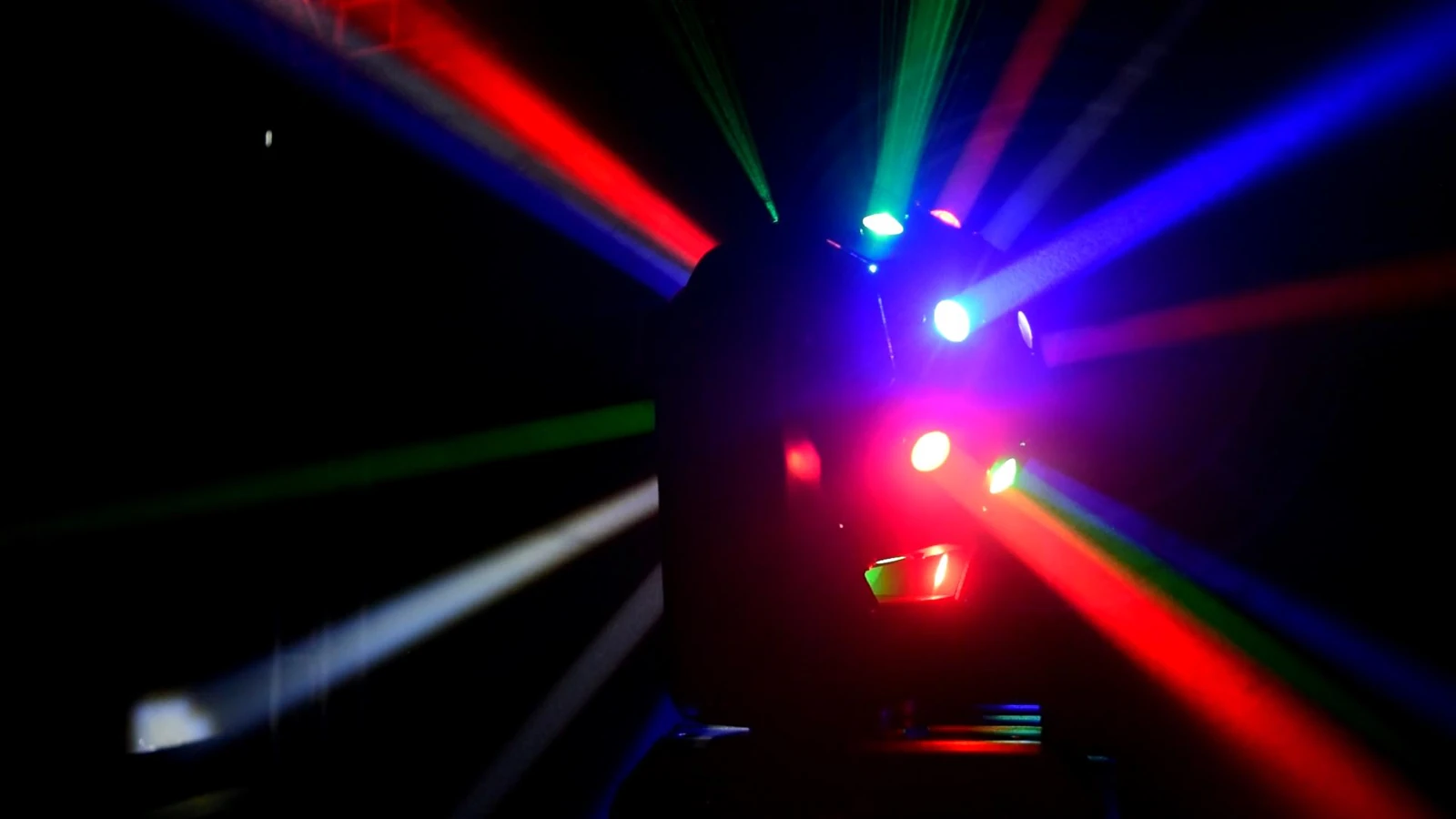

LED AND LASER DEMONSTRATION
Compare a combined scene and a close beam view.
The supplied demonstrations show mixed LED beams and green laser paths. Beam visibility depends on the scene and atmospheric conditions.

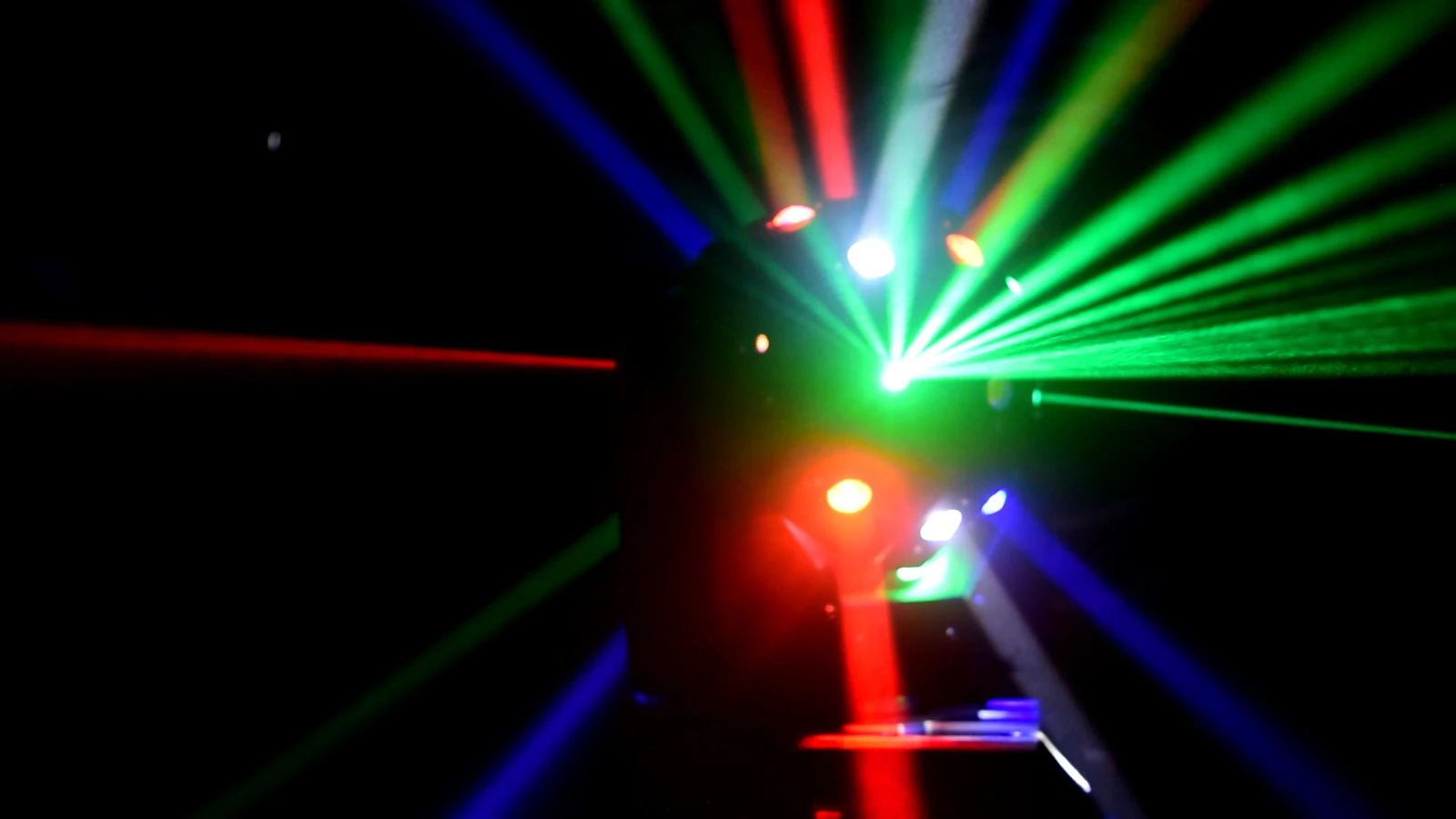

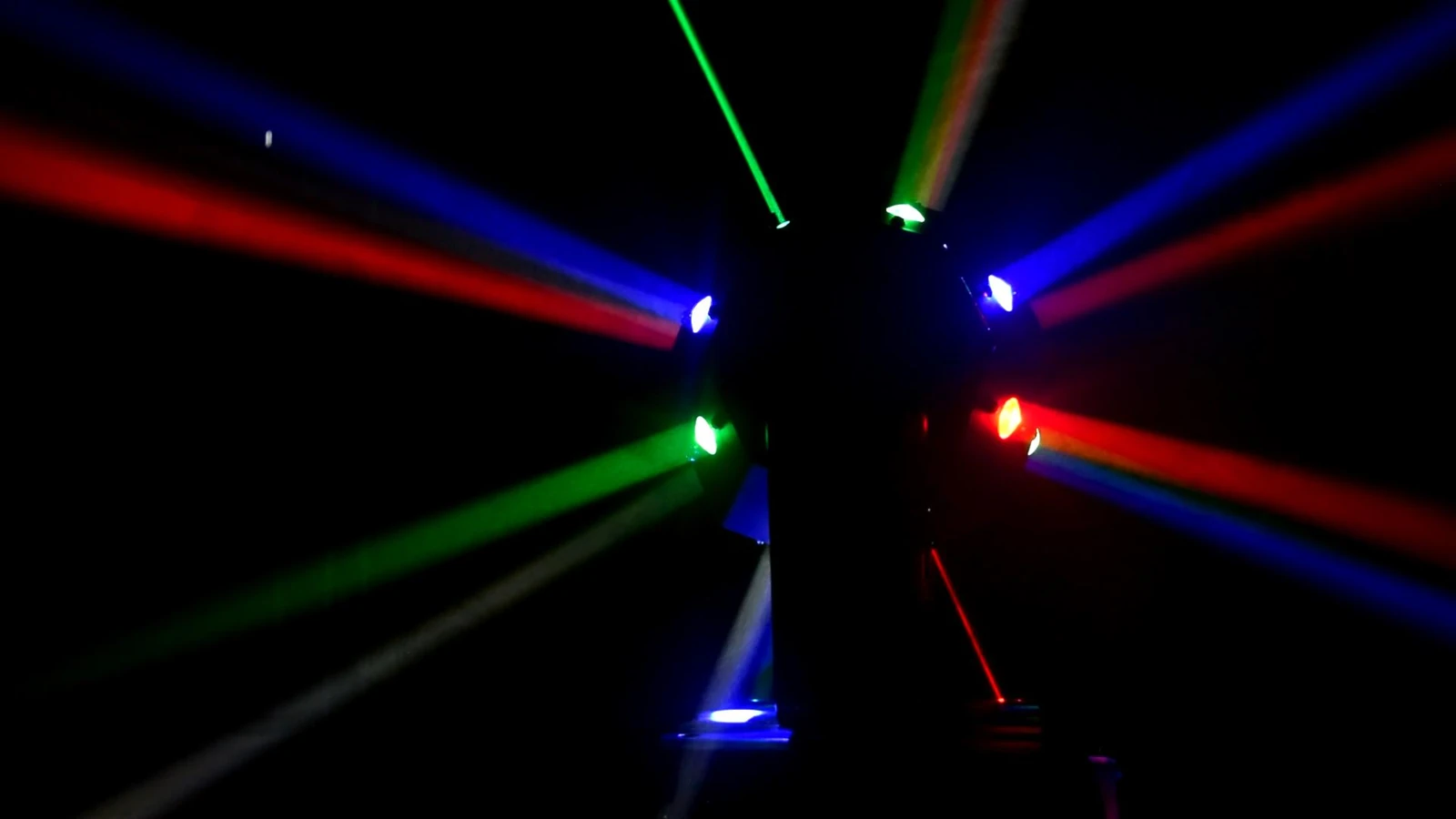

RADIAL EFFECTS
See a laser fan and colored radial beams.
These two demonstration views illustrate the laser and LED source arrangements.

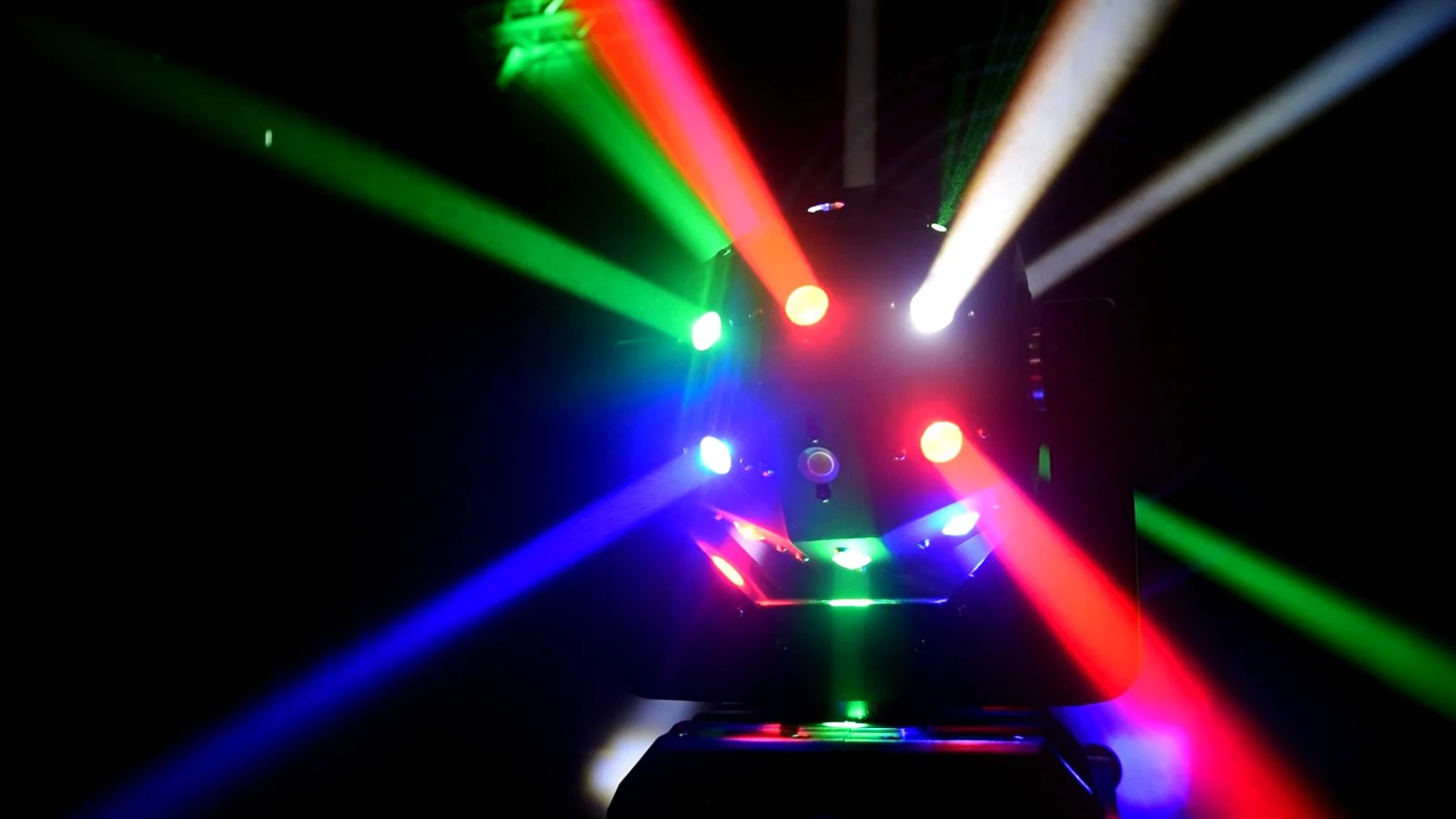

FRONT COLOR EFFECTS
See mixed-color beams from the optical face.
The supplied front demonstrations show the colored beam arrangement at two moments.

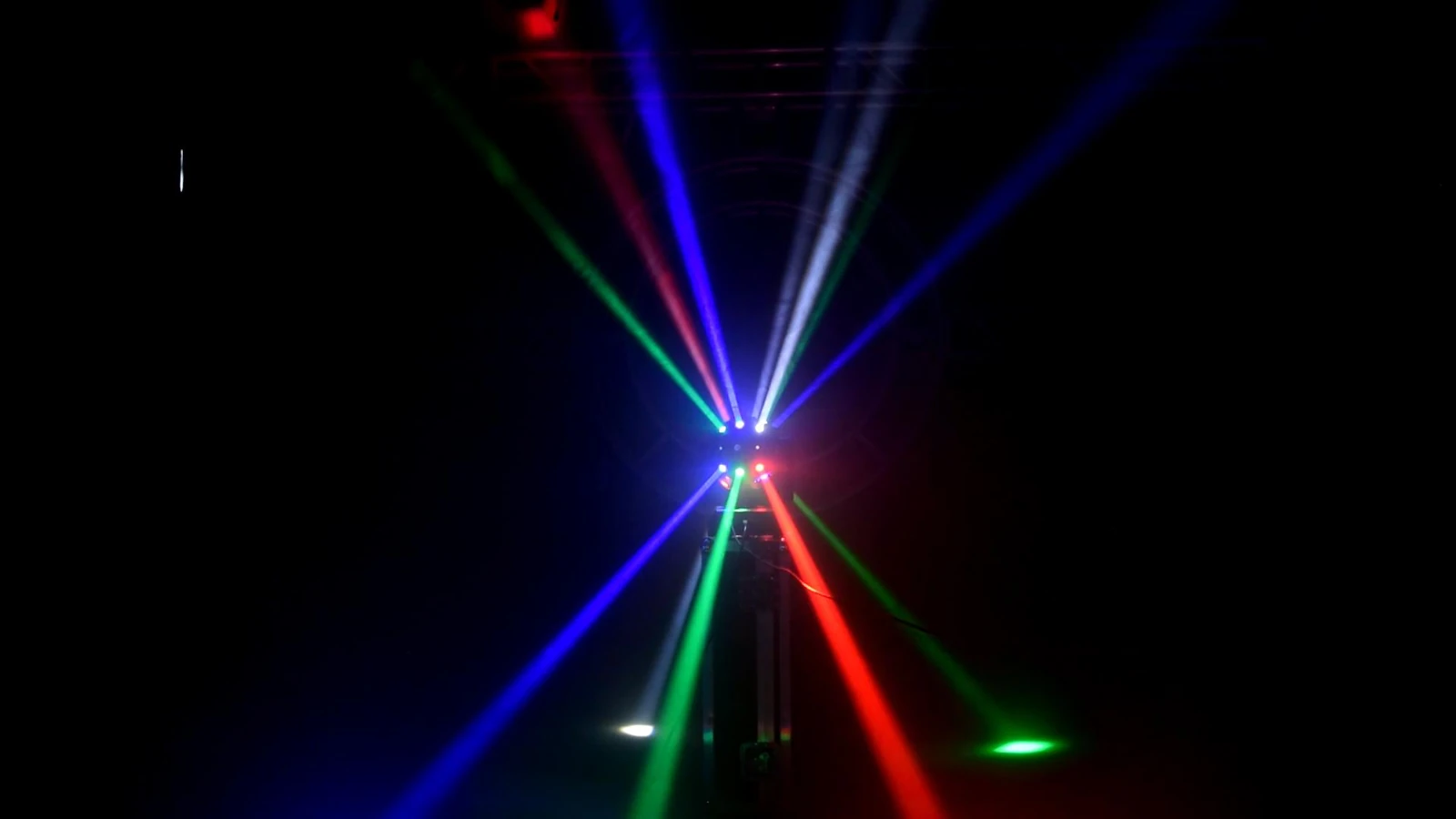

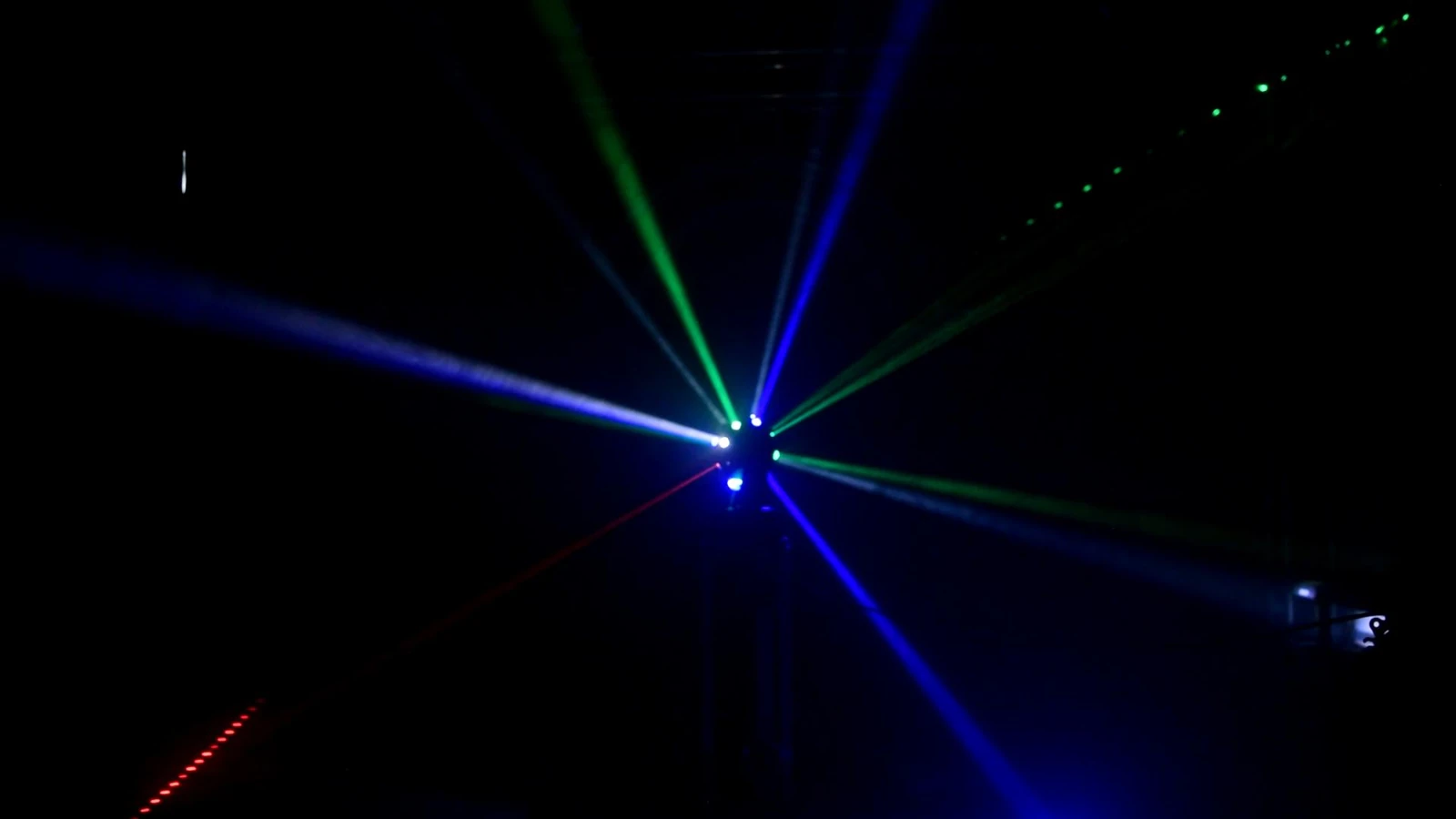

WIDE DEMONSTRATION
Review the beam paths across the scene.
The wider views show colored beams alongside laser effects.
OPTICAL DETAIL
Review the lenses and source apertures.

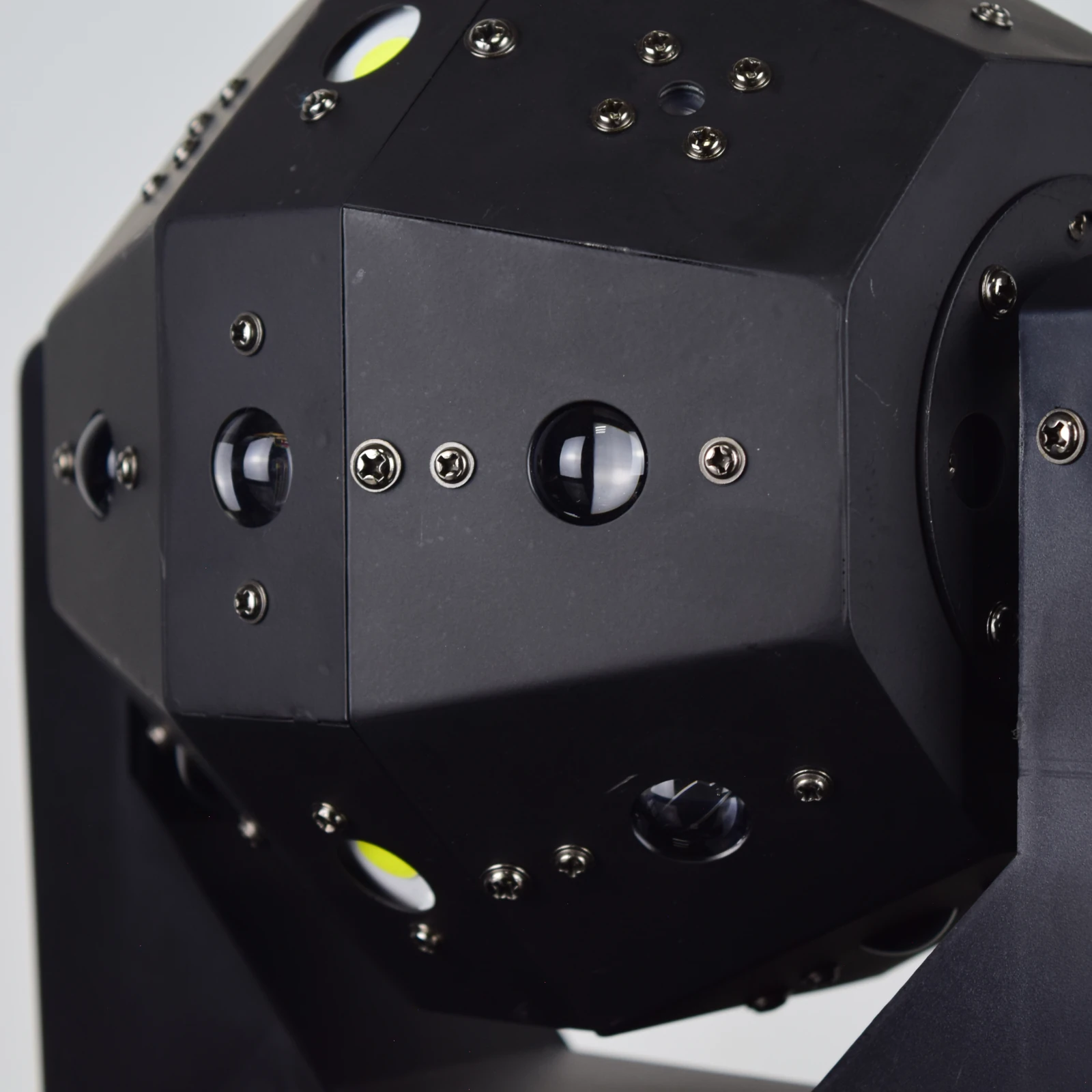

The close photograph shows the LED lenses, laser apertures and strobe faces.
RED, BLUE AND WHITE
See another radial beam cue.
The final demonstration shows red, blue and white beams distributed around the moving head.
PRODUCT VIDEO
Watch the three effect systems in operation.
The model-matched video demonstrates the beam, laser and strobe configuration.
Specifications
Technical specifications
| Model | RG-274 |
|---|---|
| Public product power | 120W fixture power |
| Light source | 16 × 3W LEDs: 4 red / 4 green / 4 blue / 4 white; 2 × 100mW red lasers; 2 × 50mW green lasers; 4 × 15W strobes |
| Rated fixture power | 120W |
| Voltage | AC 110V / 220V, 50–60Hz |
| DMX channels | 16CH / 18CH |
| Control modes | Auto / Sound Activated / DMX512 / Master |
| Pan / tilt | Pan 600° / continuous tilt rotation |
| Strobe | 4 × 15W strobe sources |
APPLICATION FIT
Plan beams, laser paths and flash cues together.
Choose this fixture for distributed colored LED beams, separate laser looks and strobe accents with continuous tilt motion. Its sixteen LEDs are separate red, green, blue and white sources, not sixteen RGBW four-in-one LEDs. Compare 16CH and 18CH by the required functions, and include the 600° pan travel and tilt clearance in the mounting plan.
Compare the beam moving head light range for different source arrangements.
B2B ORDER FLOW
Request the selected fixture configuration.
Identify 16x3W LED Moving Head Effect Light and the source configuration in your inquiry so the offer addresses the required lighting and control setup. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.
PRODUCT FAQ
Questions Before You Order.
Sources, optical functions, control and order configuration.
Are the sixteen LEDs four-in-one RGBW LEDs?
The specified arrangement is sixteen 3W LEDs: four red, four green, four blue and four white.
Which lasers are included?
Two red lasers rated at 100mW each and two green lasers rated at 50mW each are listed.
What strobe sources are specified?
Four 15W strobe sources are listed.
What is the complete-fixture power and input?
The fixture is rated at 120W. Input is specified as AC 110V / 220V at 50–60Hz. Include the required supply configuration in the order.
What movement ranges are listed?
Pan is 600°, with continuous tilt rotation.
Which DMX channel profiles are listed?
The listed profiles are 16CH and 18CH. Request the matching chart for your console.
Which operating modes are available?
Auto, Sound Activated, DMX512 and Master are listed.
What should I include in an inquiry?
Provide quantity, fixture positions, LED/laser/strobe cues, selected channel profile, console and playback mode, required voltage configuration, plug, mounting accessories, packing, destination and schedule.
