RGBW LIGHTING, LASERS, WHITE STROBES AND RGB PANELS

150W Three-Head RGBW Effect Light with Laser & Strobe

Three-head effect fixture combining 15 CREE 10W RGBW LEDs, red and green lasers, three 10W white strobes and 192 RGB surface-mounted LEDs. The 150W fixture has a 24-channel DMX512 profile and 0–100% smooth dimming.

15 × 10W CREE RGBW LEDs
3 × 10W white strobes / 192 RGB LEDs
150W fixture / 24CH DMX512

Get a Quote

150W Three-Head RGBW Effect Light with Laser & Strobe three-head fixture face with central lens cluster, RGB panels and strobe apertures

FOUR LIGHTING ELEMENTS

150W Three-Head RGBW Effect Light with Laser & Strobe — combine RGBW lighting, lasers and surface effects.

150W Three-Head RGBW Effect Light with Laser & Strobe combines RGBW LED lighting, 120mW red and 120mW green lasers, white strobe sources and RGB surface-mounted LEDs in a three-head fixture.

CREE RGBW sources

Fifteen CREE LEDs are listed at 10W each with RGBW color output.

120mW red and 120mW green lasers

Two laser colors complement the LED lighting configuration.

White strobe sources

Three white strobe sources are listed at 10W each.

RGB surface lighting

192 RGB surface-mounted LEDs provide the listed panel source configuration.

Specifications

Technical specifications

Model	RG-290
Public product power	150W fixture power
Light source	15 × 10W CREE RGBW LEDs; 120mW red laser and 120mW green laser; 3 × 10W white strobes; 192 RGB surface-mounted LEDs
Rated fixture power	150W
Voltage	AC 100–240V, 50/60Hz
DMX channels	24CH
Control modes	DMX512
Dimming	0–100% smooth dimming

PRODUCT VIEWS

Review the fixture profile and connections.

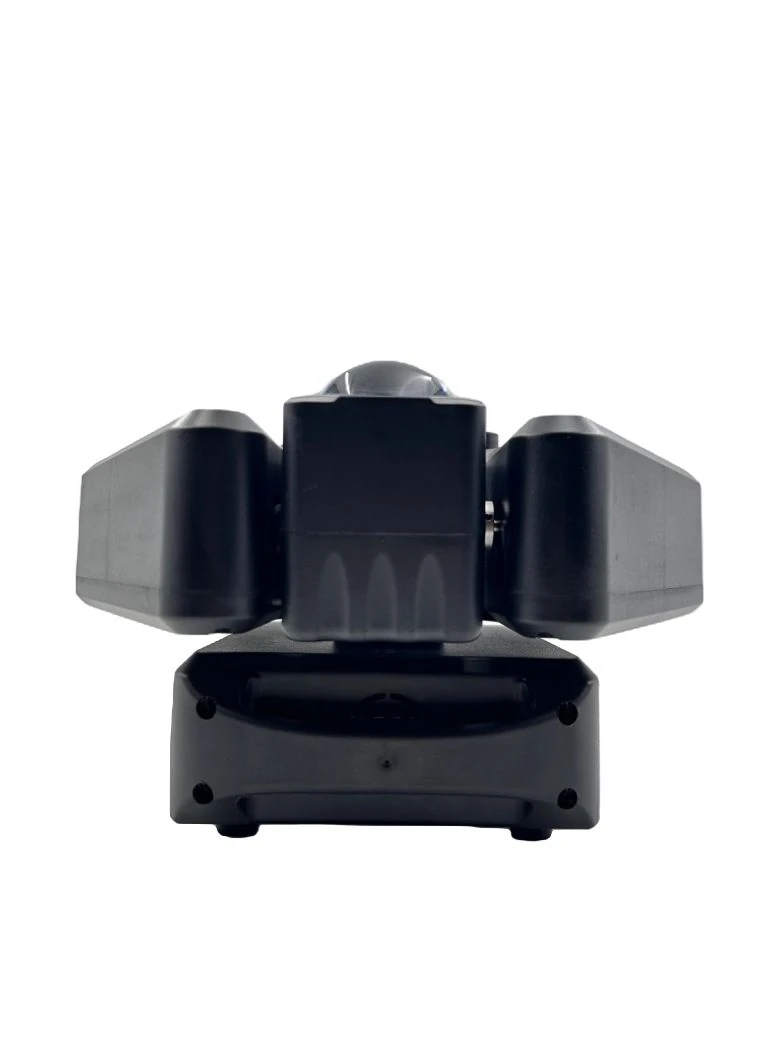

These supplied views show the housing, raised lens assemblies, control display and labeled rear connections.

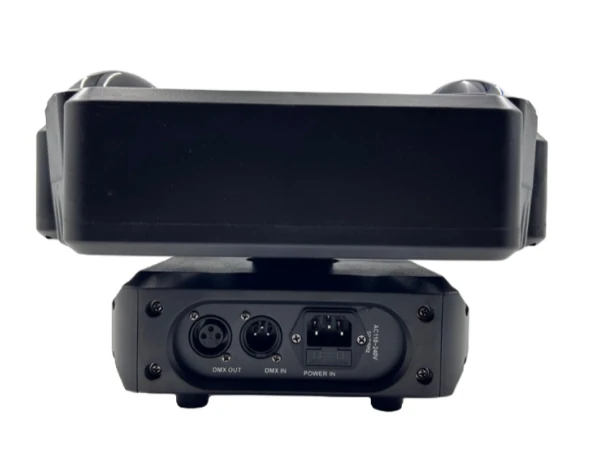

Rear connections of RG-290 showing labeled DMX in, DMX out and power inlet

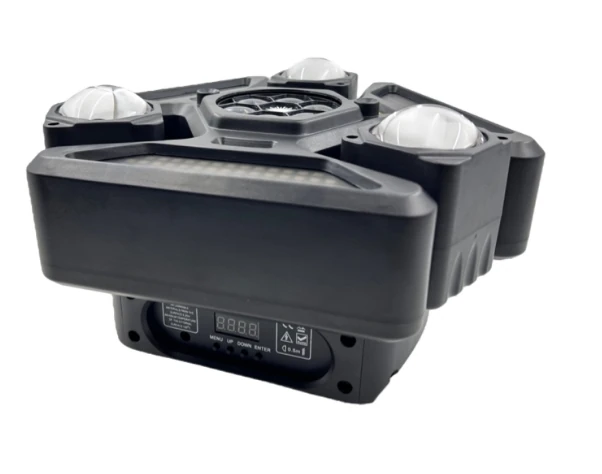

Angled RG-290 view showing raised lenses, RGB panel and control display

RGB PANEL SCENES

See the surface lighting patterns.

The supplied demonstrations show colored RGB panel looks. The 192-LED count describes the source configuration; request the control chart for programming details.

Supplied demonstration of colored RGB panel patterns

Supplied collage of RGB panel lighting scenes

AERIAL LIGHTING

Review the supplied colored beam scenes.

These scenes show colored aerial lighting in the demonstration environment. Haze, fixture positions and camera exposure affect the visible result.

Supplied RG-290 demonstration showing red, green, blue and white aerial lighting scenes

Supplied RG-290 demonstration showing pink and white aerial light

CONTROL AND INTENSITY

Patch the 24-channel DMX profile.

DMX512 with 24 channels and 0–100% smooth dimming are specified.

24-channel profileRequest the matching DMX chart and select the profile in your console.

Smooth dimmingThe listed dimming range is 0–100%.

Power planningUse the 150W complete-fixture rating and AC 100–240V, 50/60Hz input specification.

APPLICATION FIT

Define the RGBW, panel and strobe cues.

For 150W Three-Head RGBW Effect Light with Laser & Strobe applications, include the required lighting roles and fixture positions in the venue or event brief.

Event cue designDescribe the desired RGBW colors, white flashes and RGB panel patterns.

Venue integrationProvide the venue layout, control console and intended fixture positions.

Console programmingRequest the 24-channel chart to assess the available effect controls.

Distributor packingPlan quantities around the listed four-fixture master carton.

Compare the beam moving head light range for other source configurations.

FOUR-FIXTURE MASTER CARTON

Use carton data for the shipping brief.

The specified packing is four fixtures per master carton, measuring 79 × 40 × 46cm with a gross weight of 16.6kg.

4 fixtures per cartonThis is the listed master-carton packing quantity.

79 × 40 × 46cmThese dimensions describe the master carton.

16.6kg gross weightThis figure covers the complete four-fixture carton and packing.

B2B ORDER FLOW

Request the selected fixture configuration.

Identify 150W Three-Head RGBW Effect Light with Laser & Strobe and the source configuration in your inquiry so the offer addresses the required lighting and control setup. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.

01 · LIGHTING

Describe the required lighting cues.

Provide fixture positions, venue layout and the color or pattern roles required from RG-290.

02 · CONTROL

Specify the console and operating profile.

Include the selected channel mode, console, power connections and accessory requirements.

03 · DELIVERY

Complete the supply brief.

State quantity, destination, schedule, mounting accessories and packing configuration for this model.

PRODUCT FAQ

Questions Before You Order.

Sources, optical functions, control and order configuration.

What LED sources are specified?

Fifteen CREE 10W RGBW LEDs, three 10W white strobe sources and 192 RGB surface-mounted LEDs are listed.

Which laser colors are included?

Red and green laser sources are specified.

What is the complete-fixture power rating?

Rated fixture power is 150W. Individual LED and strobe source ratings are listed separately.

What input voltage is specified?

AC 100–240V at 50/60Hz is listed.

What DMX channel profile does it use?

DMX512 with 24 channels is specified. Request the matching channel chart for programming.

What dimming function is available?

The stated function is 0–100% smooth dimming.

Does 16.6kg refer to one fixture?

No. It is the gross weight of the four-fixture master carton. Carton dimensions are 79 × 40 × 46cm.

What should I include in an inquiry?

Provide quantity, destination, RGBW colors, RGB panel and strobe cues, laser requirements, fixture positions, console details, voltage and plug requirements, mounting accessories, packing and schedule.
