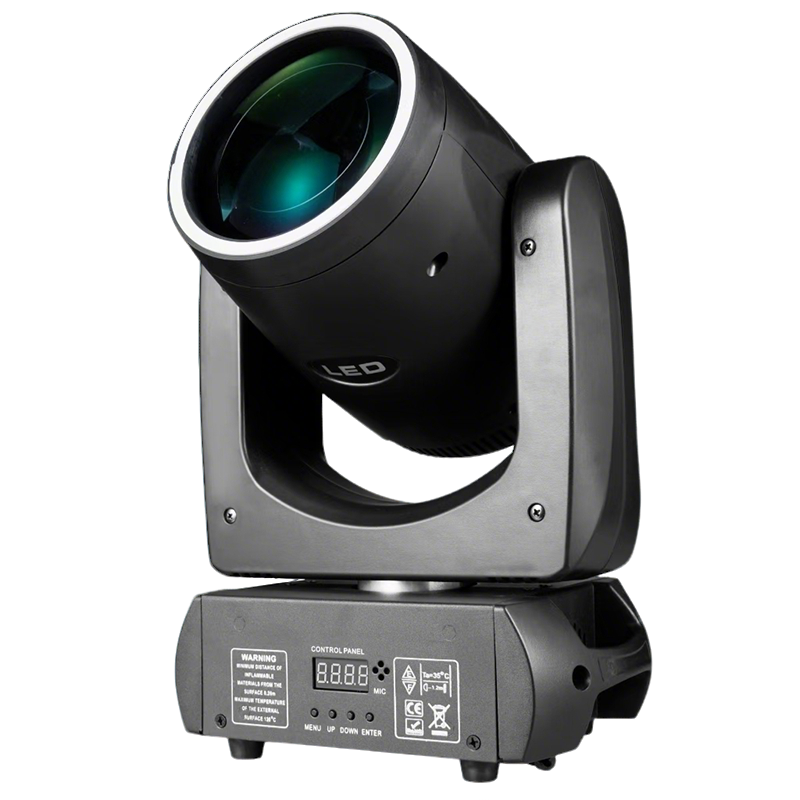

LED BEAM WITH RGB RING
150W LED Beam Moving Head Light with RGB Ring — combine moving beam cues with a visible RGB accent.
This 150W LED beam moving head light with RGB ring combines one white LED source, 24 RGB SMD LEDs, 15 patterns and 12 colors. It is suited to buyers planning beam accents and visible fixture color for DJ, club and event lighting systems.
150W white LED
The main source is one 150W white LED, with the supplied fixture power also stated as 150W.
24 RGB SMD LEDs
The RGB LED system adds a visible front-ring accent alongside the main projected beam.
15 patterns, 12 colors
Select the listed pattern and color looks for changing beam and projection cues.
14-channel DMX
Use console control or Sound Activated, Master/Slave and Auto playback for the lighting setup.
BEAM DEMONSTRATION
Compare white and colored beam looks.
The supplied frames show multicolor beam fans, crossing white beams and combined beam patterns. They demonstrate visual effects rather than measured brightness or coverage; appearance depends on fixture positions, haze and ambient lighting.

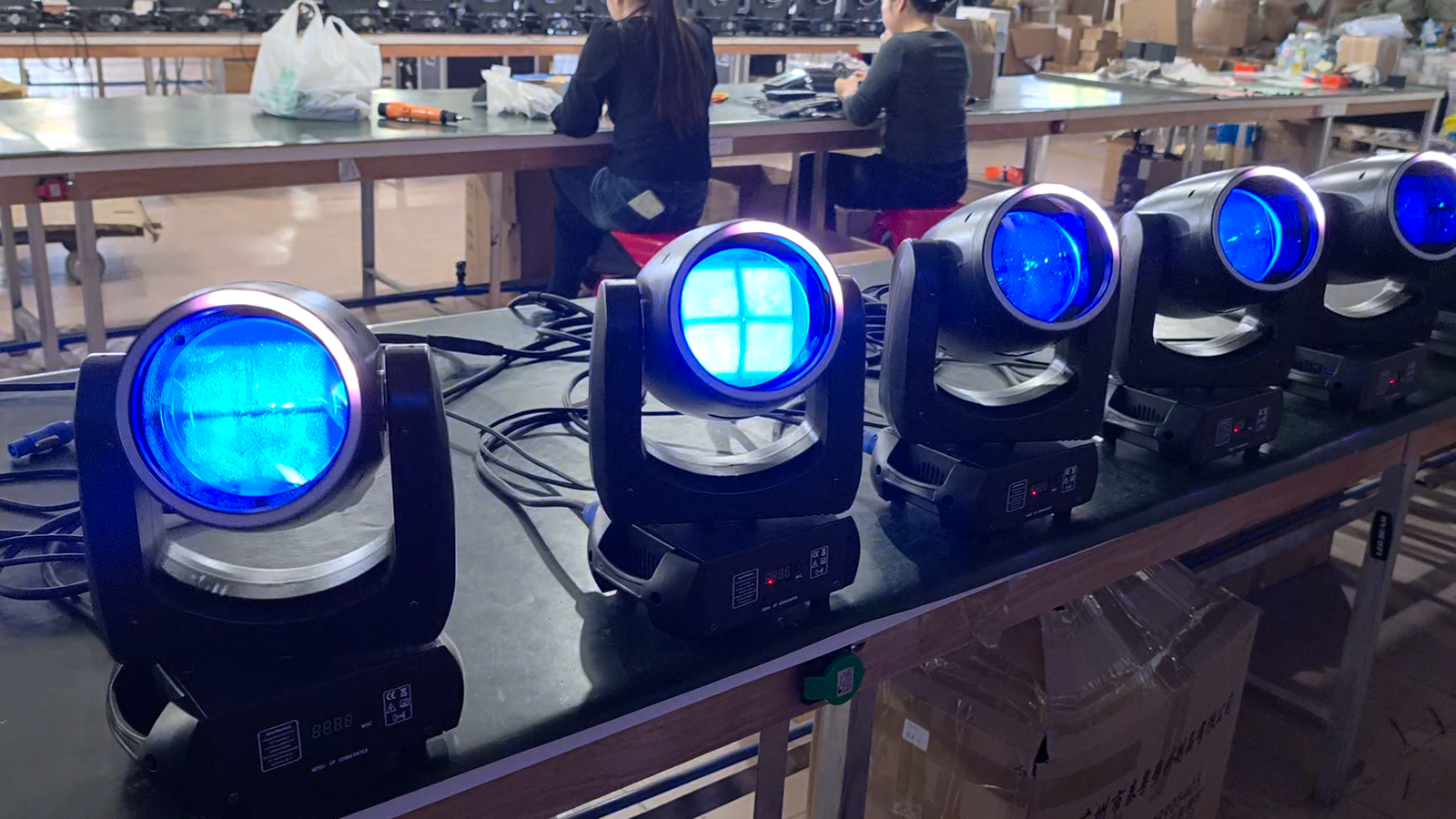

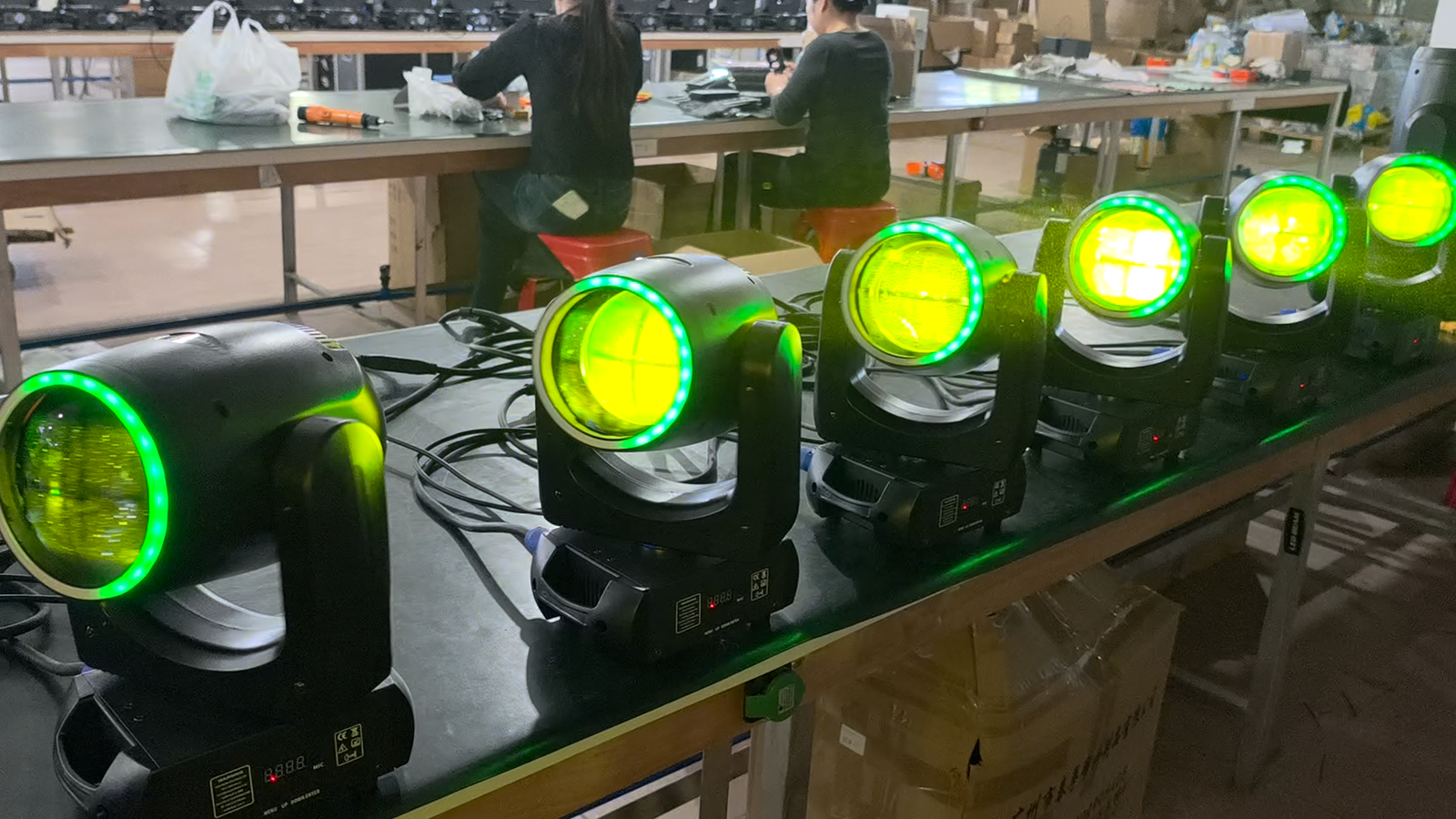

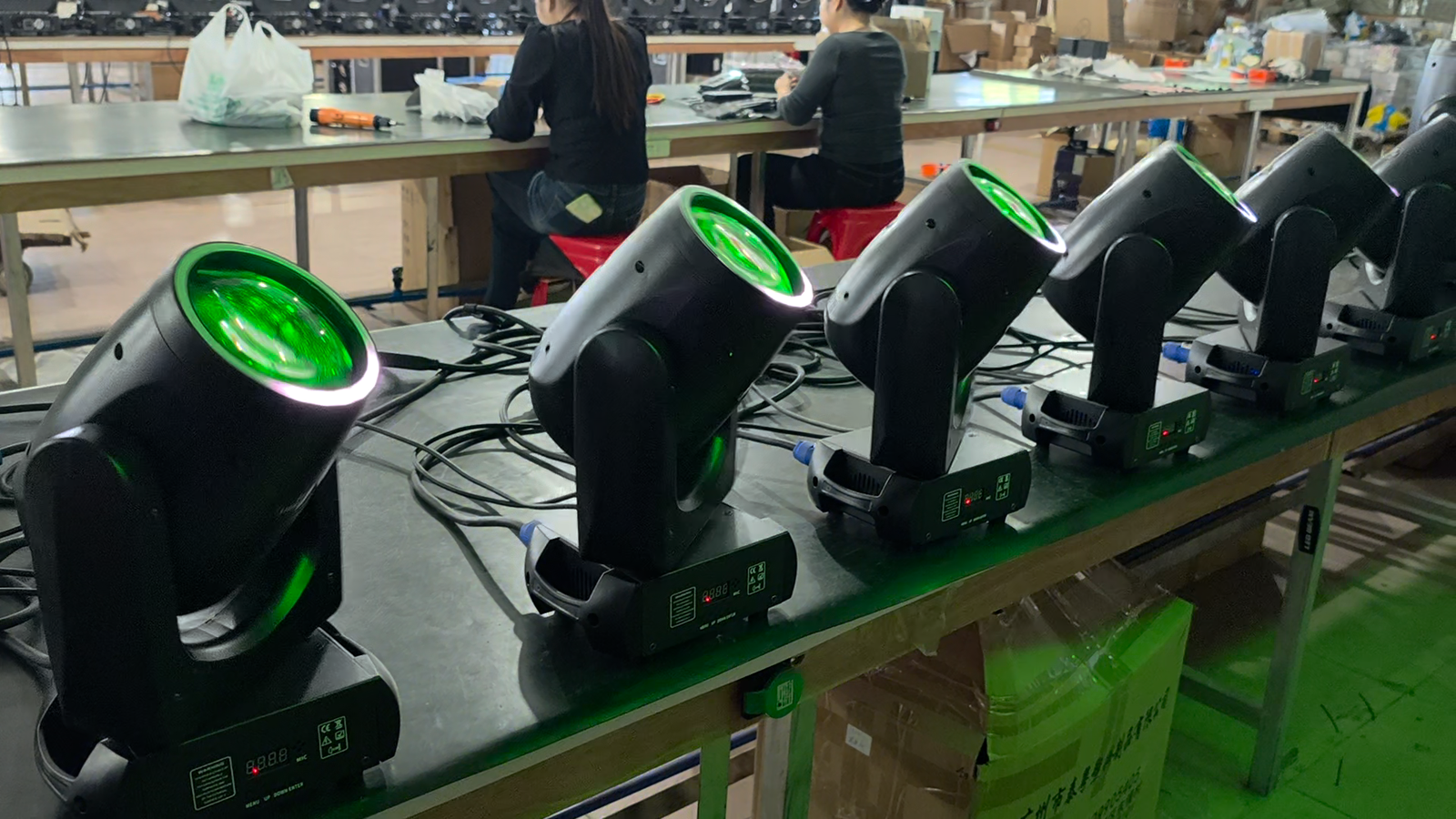

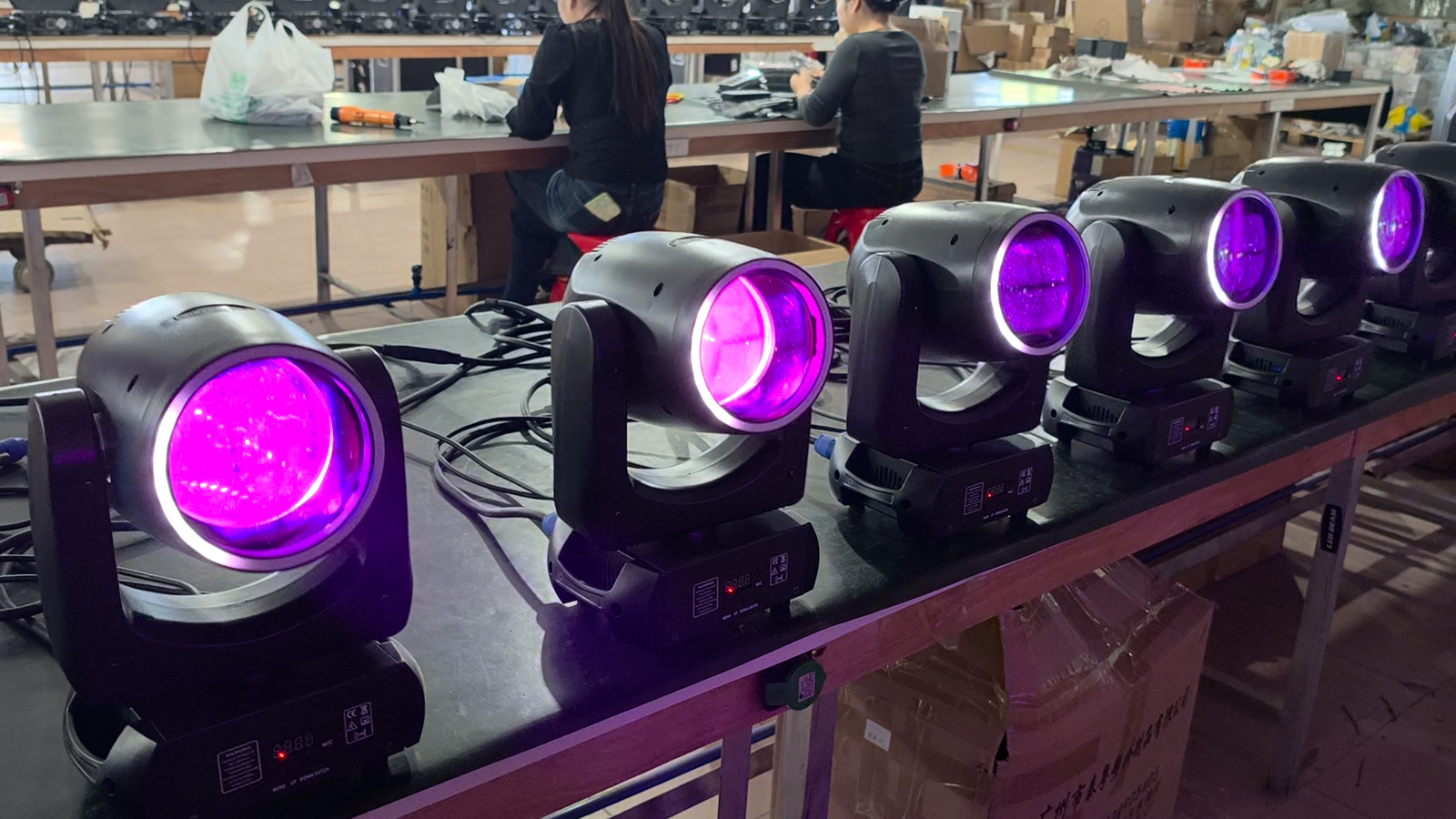

WORKSHOP VIEWS
See the fixtures and RGB rings powered on.
These supplied workshop frames show a row of fixtures with blue, purple and green lenses, changing head positions and illuminated front rings. They document the visible fixture appearance at the workbench without implying a measured test result or production capacity.
PRODUCT VIDEO
Watch the beam and halo-ring demonstration.
See the product in operation, including moving beam looks, color changes and the visible RGB halo ring.
Specifications
Technical specifications
| Model | RG-217 |
|---|---|
| Public product power | 150W |
| Light source | 1 × 150W white LED; 24 × RGB SMD LEDs |
| Rated fixture power | 150W |
| Voltage | AC 110–220V / 50–60Hz |
| DMX channels | 14CH |
| Control modes | Sound Activated, Master/Slave, Auto, DMX |
| RGB front ring | 24 RGB SMD LEDs; front halo-ring accent |
| Color wheel | 12 colors |
| Fixed gobo wheel | 15 patterns |
| Pan / tilt | Pan: 540°; tilt: 180° |
MOVEMENT AND CONTROL
Plan fixture positions and a 14-channel DMX patch.
The stated movement ranges are 540° on the pan axis and 180° on the tilt axis. Use the channel chart to prepare the console profile and check each function before programming show cues.
APPLICATION FIT
Select it as a beam and decorative fixture layer.
For DJ, club and event lighting, use moving beam looks, pattern changes and the RGB front ring as part of the show design. Plan indoor or protected use, and select dedicated wash or performer lighting separately.
Compare other beam moving head lights by source, movement range and intended optical role.
B2B ORDER FLOW
Send the fixture count and control brief for a quotation.
For your 150W LED Beam Moving Head Light with RGB Ring order, describe how the fixtures will be positioned and operated so the quotation can cover the lighting units and installation requirements. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.
PRODUCT FAQ
Questions Before You Order.
LED sources, optical looks, motion, control and purchasing.
What light sources are included?
The supplied specification lists one 150W white LED and 24 RGB SMD LEDs. Fixture power is stated as 150W.
What does the RGB ring add?
The RGB LEDs provide a visible color accent around the front lens, alongside the main beam and pattern projection. The supplied workshop frames show several illuminated ring looks.
How many patterns and colors are listed?
The specification lists 15 patterns and 12 colors for the projected effect system.
What movement ranges does it provide?
The listed pan range is 540° and the tilt range is 180°. Request the channel chart to prepare the movement functions on your controller.
How many DMX channels does it use?
The listed DMX mode uses 14 channels. Check the channel chart against the console or controller before programming.
Can it operate without a live DMX console?
Yes. Sound Activated and Auto modes are listed, with Master/Slave available for linked operation.
What supply voltage does it accept?
The stated input is AC 110–220V, 50–60Hz. Specify the supply voltage and destination plug in the quotation request.
What should I include in an inquiry?
Send quantity, destination, venue, fixture positions, beam and ring requirements, supply voltage, plug and control mode. Ask for channel documentation, mounting options, dimensions, weights and packing details.
