TWO-EYE RETRO LIGHT
150W 2-Eye Matrix Retro Light — combine golden output with colored matrix accents.
150W 2-Eye Matrix Retro Light places two circular lighting faces in one housing. Two 50W golden main sources are combined with RGB matrix LEDs and flexible light strips.
Golden main output
Two 50W golden sources provide the listed main-light configuration.
RGB matrix accents
Include colored matrix looks in the lighting brief.
Light-strip accents
The supplied product image shows illuminated rings around both lighting faces.
150W fixture power
Use the listed complete-fixture rating for electrical planning.
Specifications
Technical specifications
| Model | RG-256 |
|---|---|
| Public product power | 150W fixture power |
| Light source | 2 × 50W golden main lights + RGB matrix LEDs + flexible light strips |
| Rated fixture power | 150W |
| Voltage | AC 100–240V, 50/60Hz |
| DMX channels | 23CH / 15CH |
| Product dimensions | 38 × 19 × 18cm |
| Control modes | DMX512 / Auto / Master-Slave / Sound Activated |
| Color system | Golden main output / RGB matrix / light-strip accents |
| Effect type | Two-eye matrix retro light |
MAIN AND ACCENT LIGHT
Specify the three lighting roles.
Describe the golden main output, RGB matrix colors and strip-accent looks separately in the scene brief.
CONTROL AND DIMMING
Choose the DMX profile and intensity cues.
Channel modes are 23CH and 15CH. Dimming is specified as 8-bit, 0–100% linear dimming.
APPLICATION FIT
Plan a two-eye retro lighting scene.
Choose the two-eye retro fixture when the audience should see golden main light with RGB matrix and ring accents in the same stage picture. Plan the golden cue separately from the colored background, then choose 15CH or 23CH from the matching function chart. The main sources are golden; colored accents do not make them RGBW wash sources.
Explore the stage effect light range for other source layouts and effect configurations.
B2B ORDER FLOW
Request the selected fixture configuration.
Identify 150W 2-Eye Matrix Retro Light and the source configuration in your inquiry so the offer addresses the required lighting and control setup. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.
PRODUCT FAQ
Questions Before You Order.
Sources, optical functions, control and order configuration.
What is the complete-fixture power?
RG-256 is specified at 150W fixture power.
What lighting elements are listed?
Two 50W golden main lights are listed, together with RGB matrix LEDs and flexible light strips.

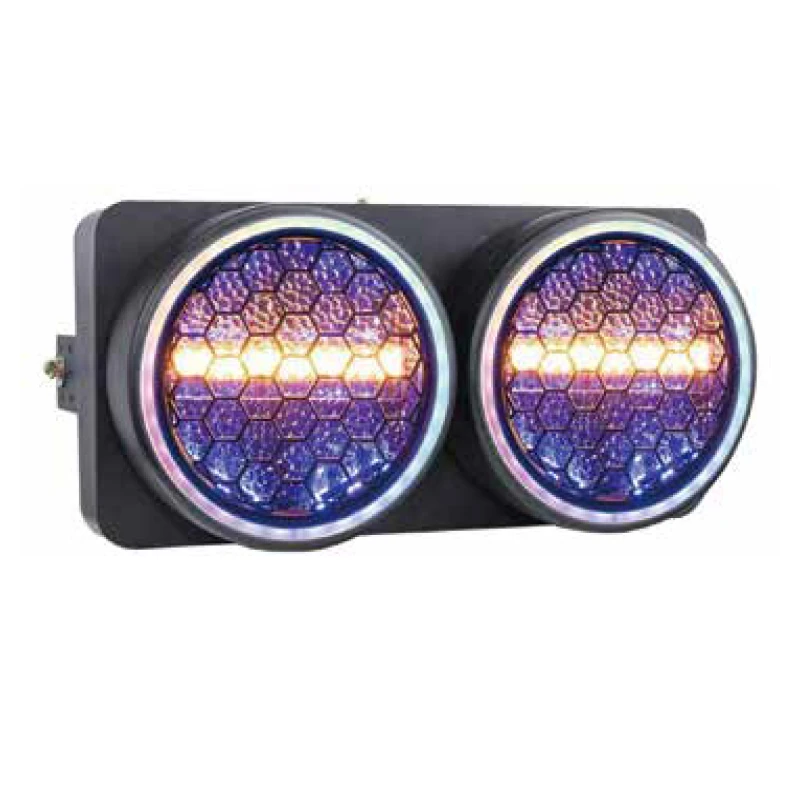

What does the product image show?
The supplied image shows two circular lighting faces, golden central output, colored matrix elements and illuminated outer rings.
Which DMX channel profiles are listed?
23CH and 15CH modes are listed. Request the matching channel chart for console programming.
What dimming specification is provided?
8-bit 0–100% linear dimming is specified.
Which playback modes are available?
DMX512, Auto, Master-Slave and Sound Activated operation are listed.
What input voltage and dimensions are specified?
Input is AC 100–240V at 50/60Hz. Fixture dimensions are 38 × 19 × 18cm.
What should I include in a matrix retro light inquiry?
Identify RG-256, quantity, intended golden-light and RGB accent looks, fixture positions, dimming cues, console and 23CH/15CH chart, power and signal connections, mounting and packing requirements, destination and schedule.
