CAST-ALUMINUM FLAT PAR

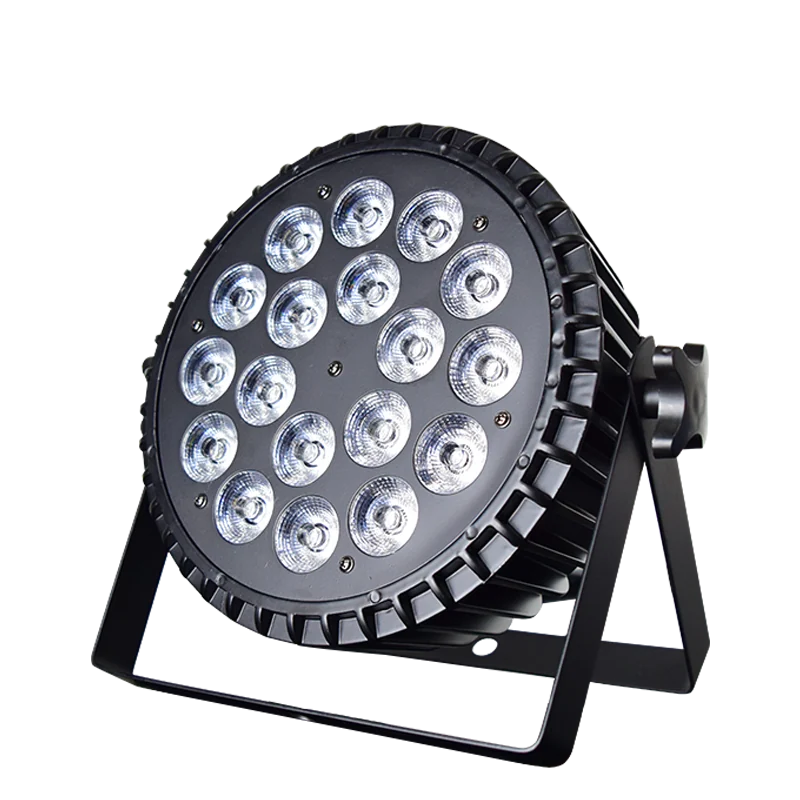

14/18/54-LED Cast-Aluminum Flat PAR Light overview
RG-314 is offered with 14-, 18- or 54-position fronts in a flat cast-aluminum housing. The current order brief specifies a 14 × 10W or 12W 4-in-1 / 5-in-1 source; source power, color package and channel map for the 18- and 54-position versions must be confirmed in the quotation.
Selectable front layouts
Match the LED count to the required product configuration and project brief.
Listed fixture power
The complete-fixture rating remains separate from each nominal LED package.
DMX and standalone control
Use the ordered DMX profile or Master-slave, Sound and Auto modes.
Cast-aluminum flat body
A double bracket supports floor placement or suitable installed mounting.

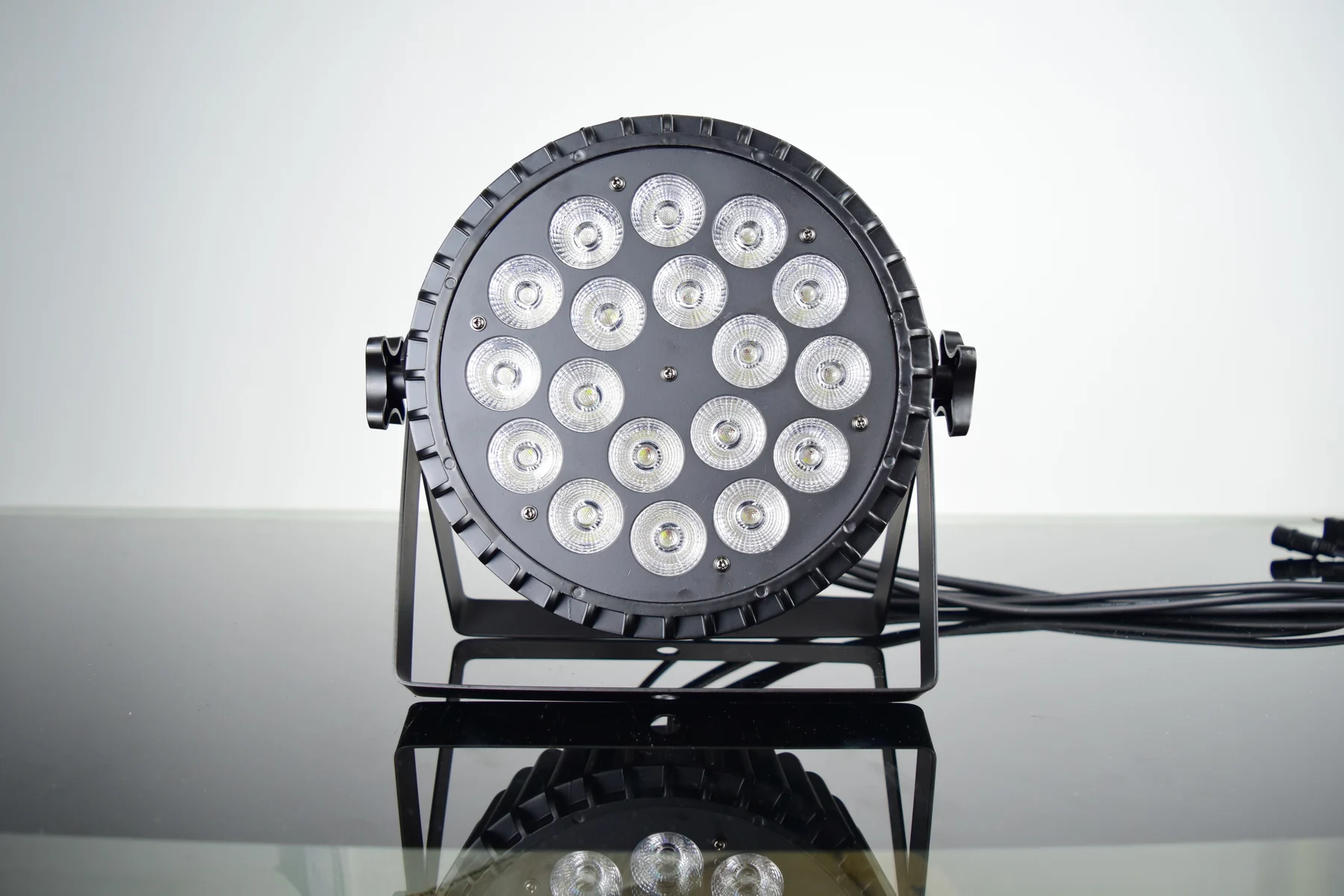

18-LED REFERENCE HOUSING
Inspect the supplied front, profile and rear control panel.

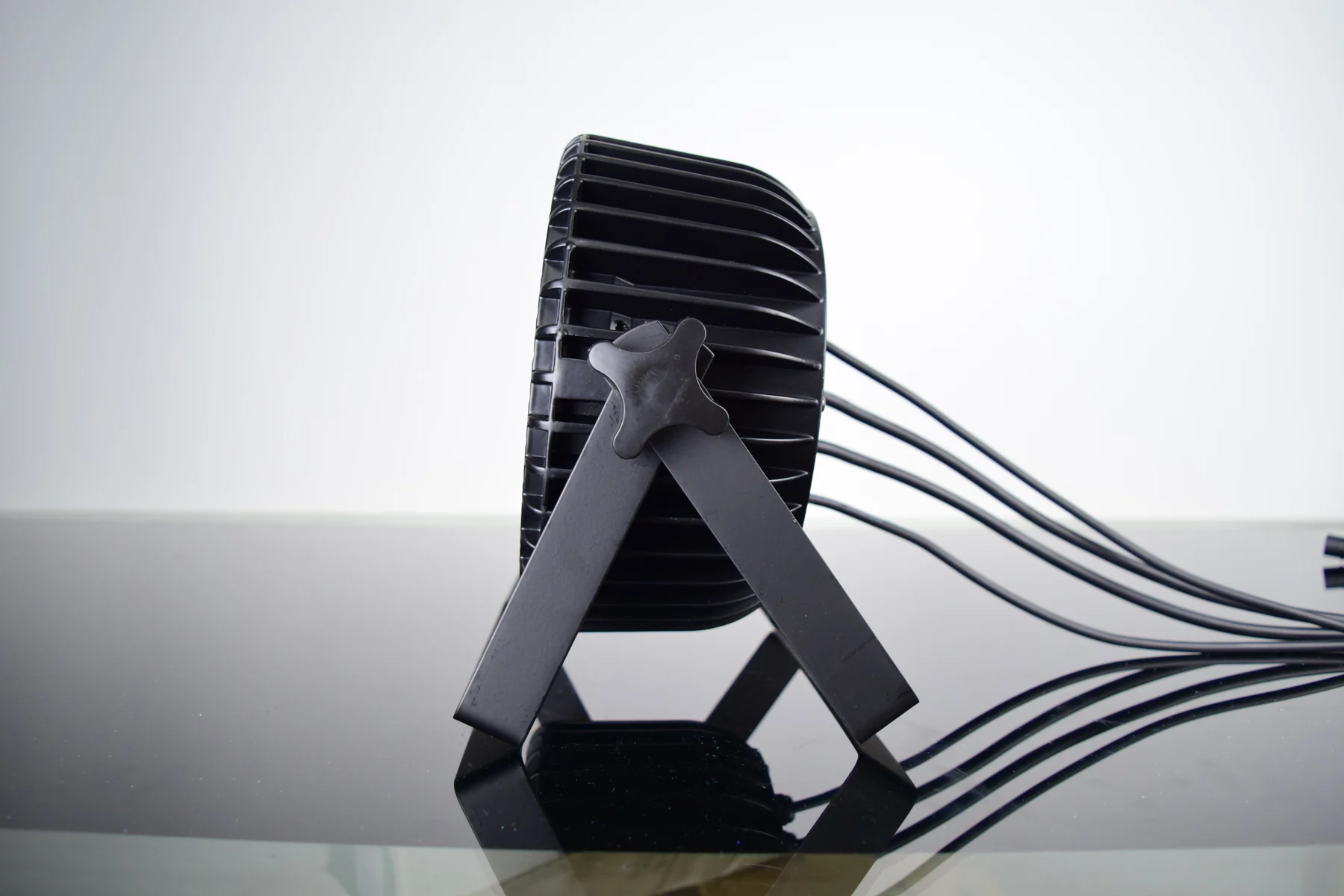

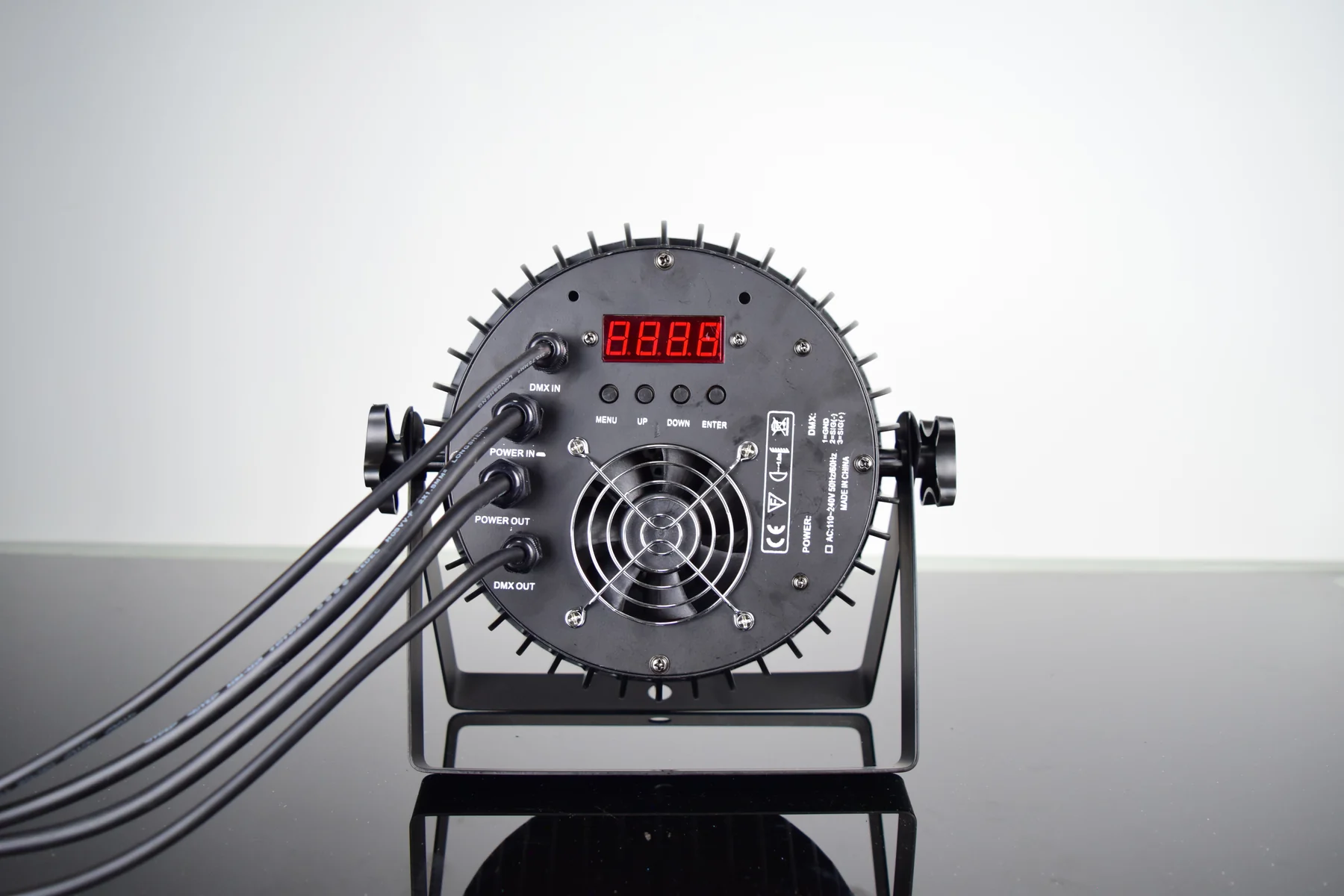

The current image set documents the 18-position RG-314 housing, cooling fins, double bracket, fan, display and hard-wired power and DMX connections. It does not prove the appearance or source package of the 14- or 54-position versions.
SUPPLIED COLOR REFERENCES
Review red, green, blue and white operation.

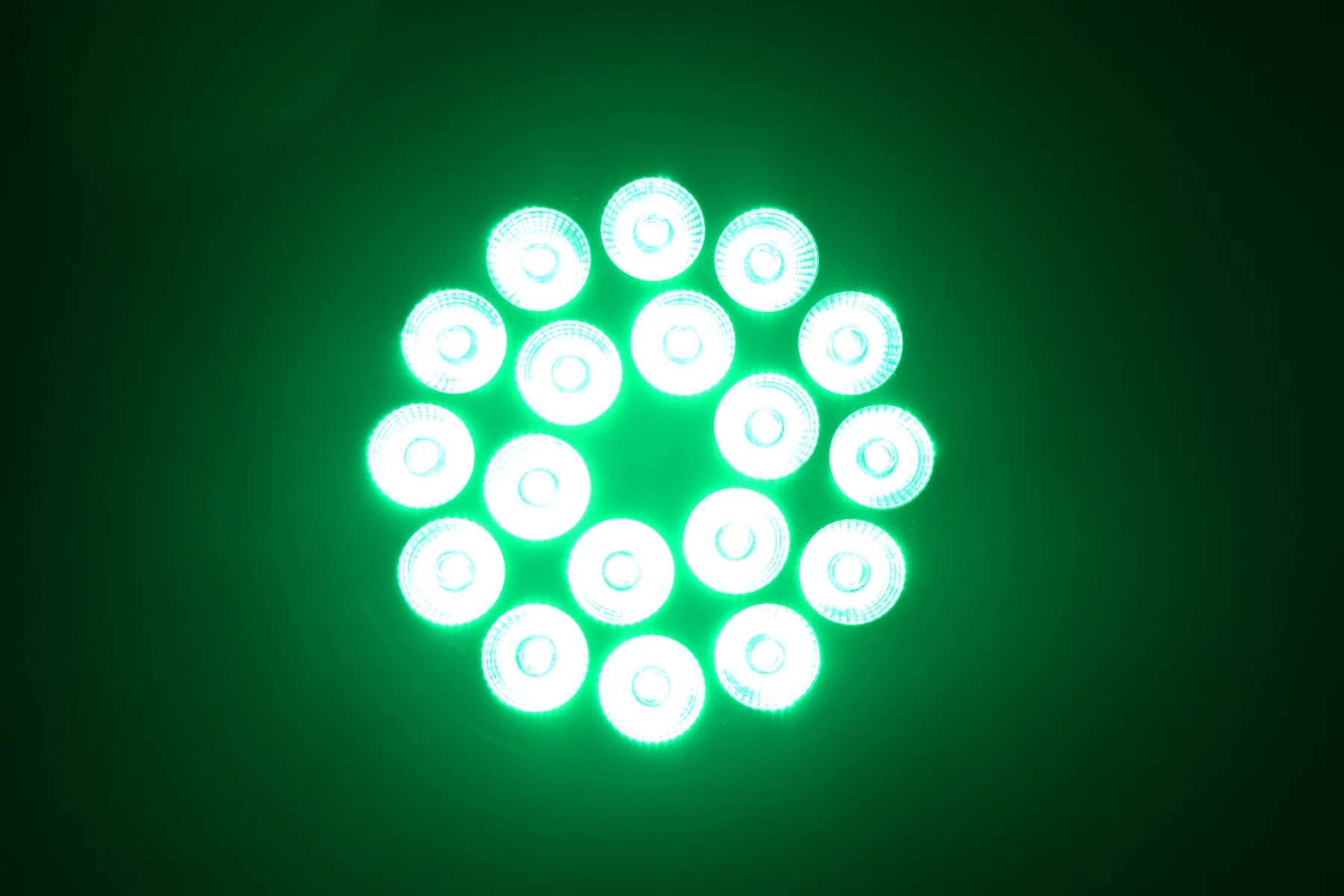

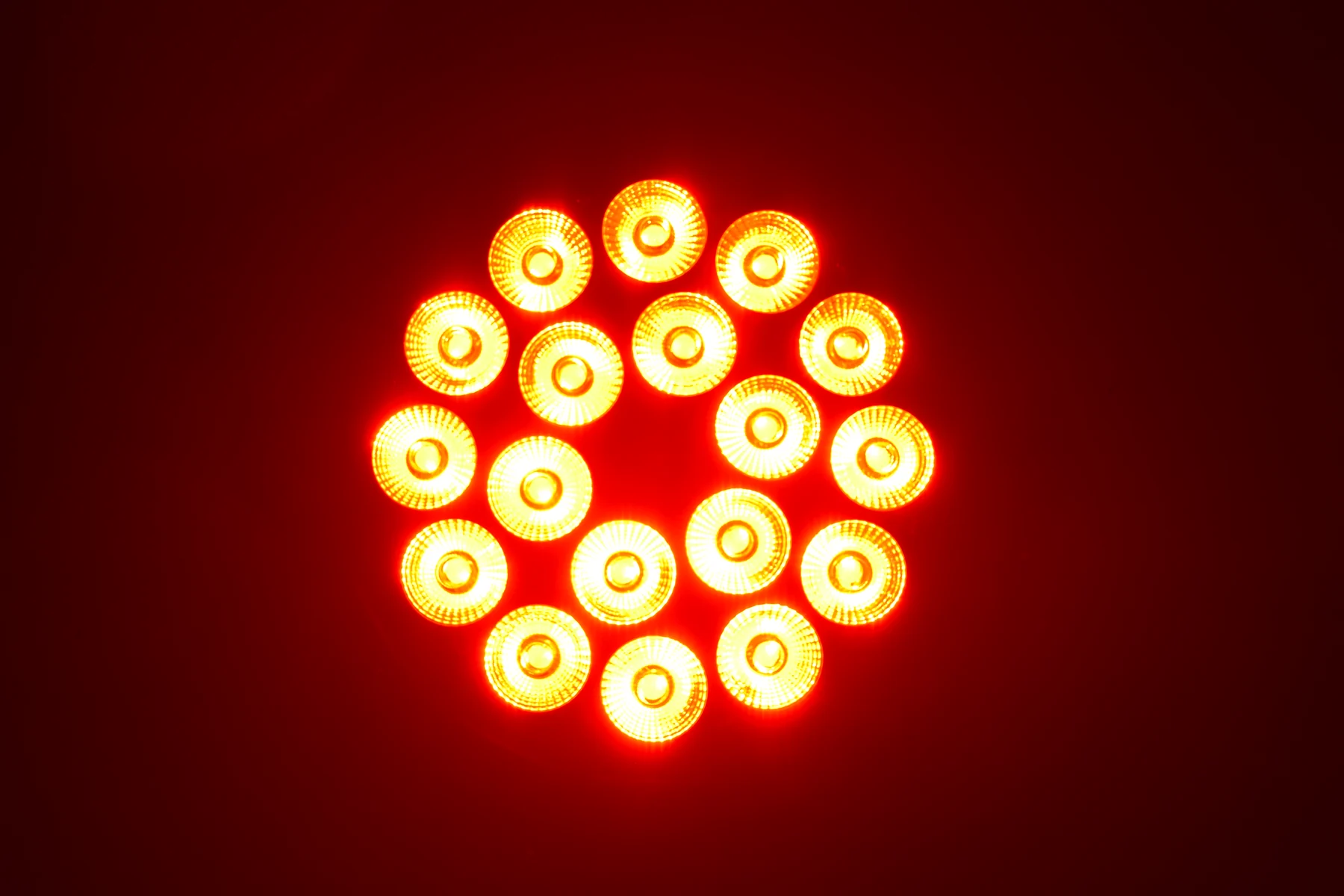

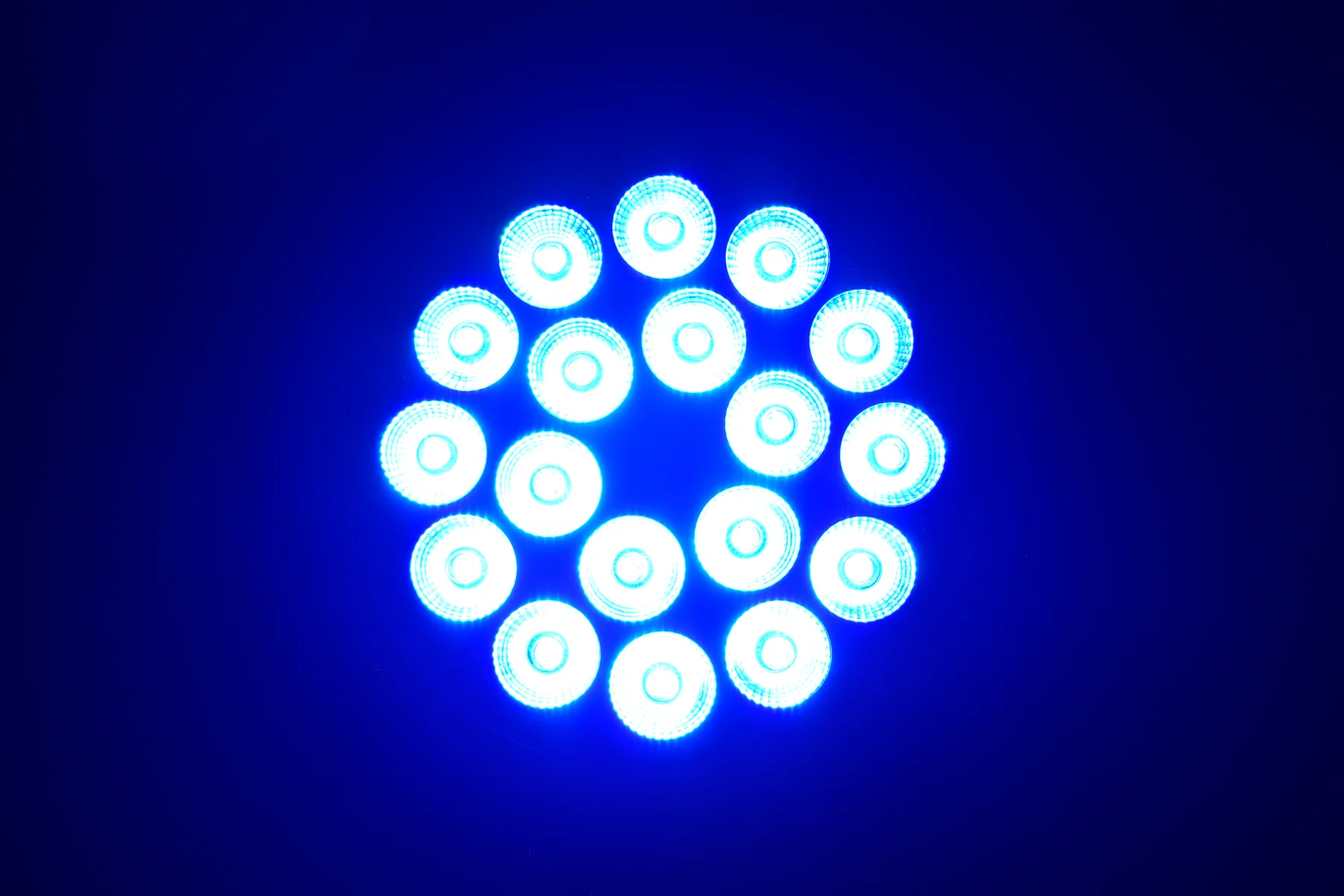

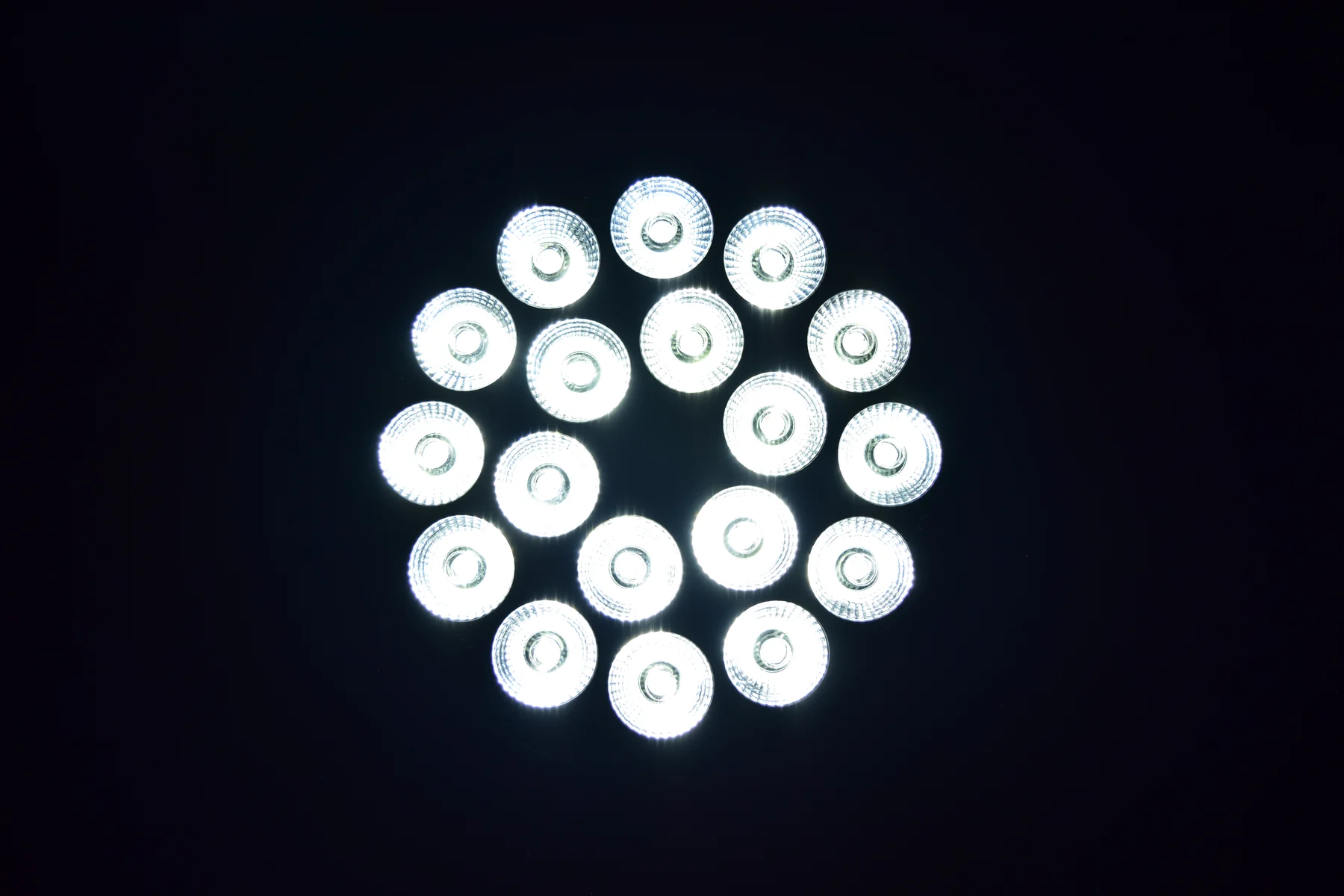

These 18-position photographs show representative single-color output. They are visual references rather than photometric measurements, and final color channels depend on the ordered 4-in-1 or 5-in-1 source package.
PRODUCT VIDEO
Watch the verified RG-314 demonstration.
Use the video to review the demonstrated 18-position fixture and visible stage wash. Confirm the ordered LED count, source package and channel map separately.

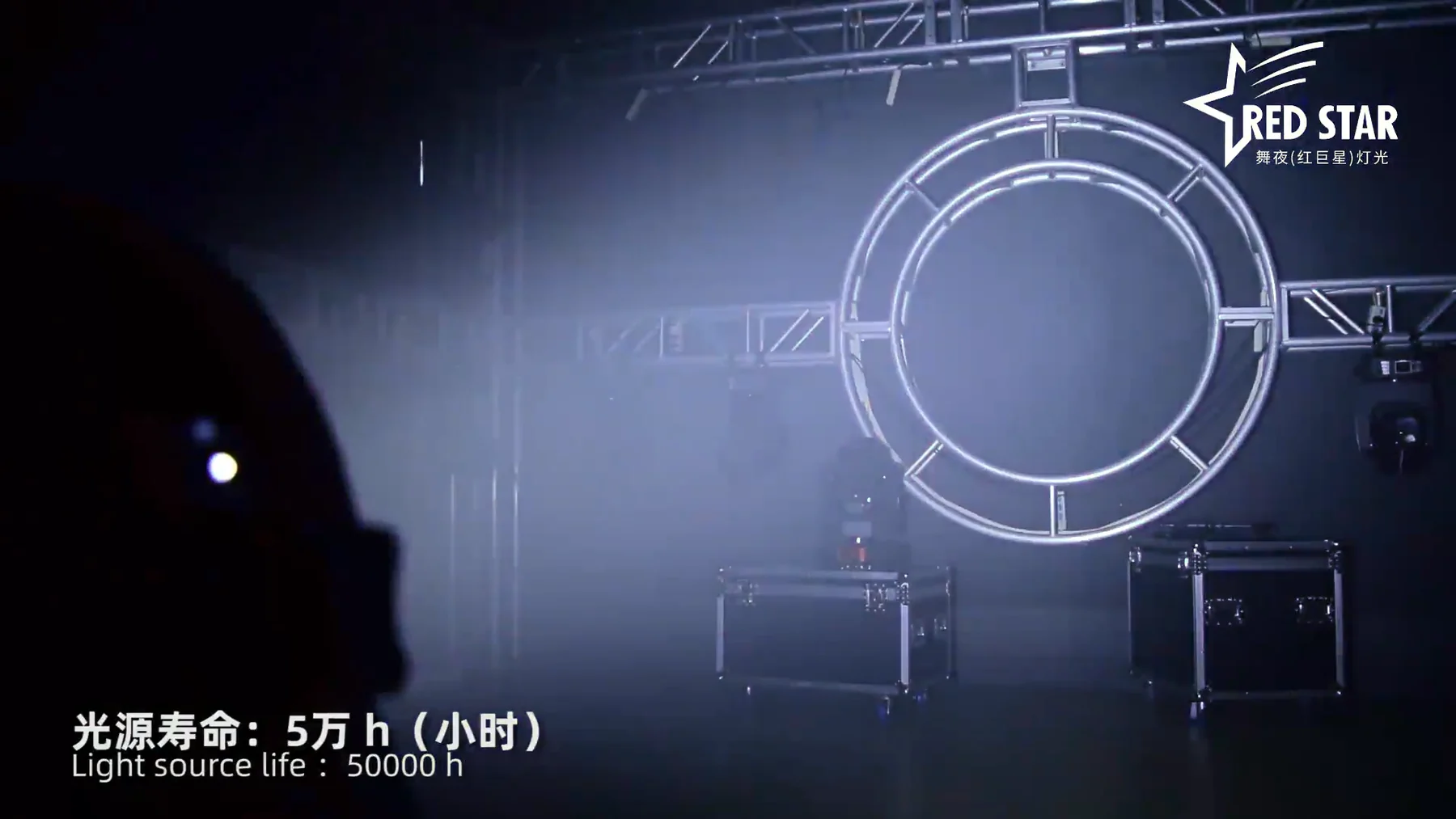

STAGE-WASH REFERENCES
Review the supplied green and white wash frames.

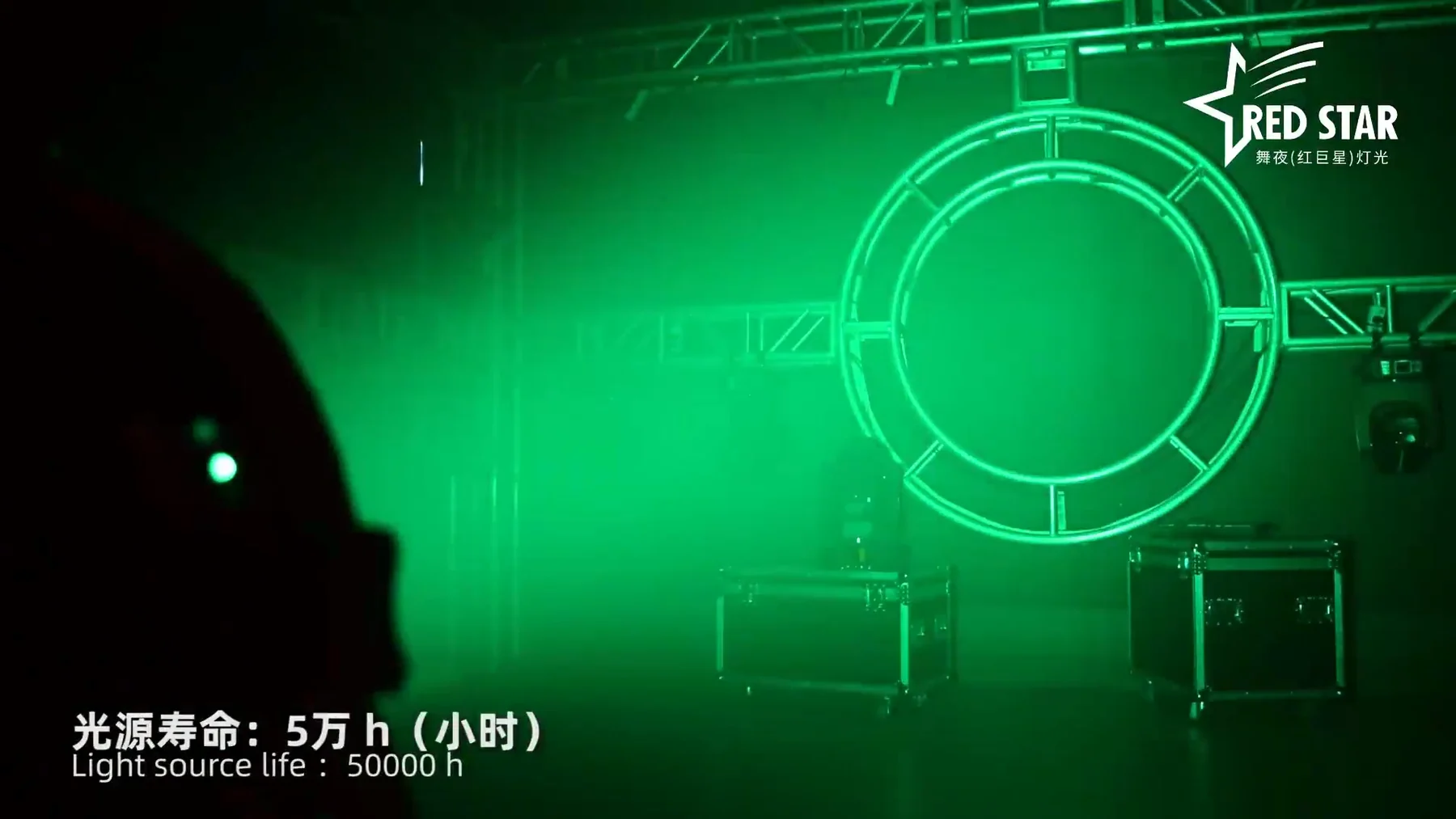

The demo frames show visible output through haze and display the supplied 50,000-hour source-life statement. This is a nominal component-life figure, not a fixture warranty or guaranteed operating duration.
Specifications
Technical specifications
| Model | RG-314 |
|---|---|
| Public product power | 200W |
| Light source | 14 × 10W / 12W 4-in-1 or 5-in-1 specified; confirm 18- and 54-position sources |
| Voltage | AC 90–240V, 50/60Hz |
| DMX channels | 4CH / 8CH; confirm for ordered configuration |
| Net weight | 3.5kg |
| Control modes | DMX512 / Master-slave / Sound / Auto |
APPLICATION FIT
Build an indoor wash layer for stages and event venues.
RG-314 fits stages, weddings, studios and multi-purpose performance halls that need a compact static wash. No weather-protection rating is supplied, so use it indoors or in a properly protected position. Compare related LED PAR lights when planning your lighting rig.
B2B ORDER FLOW
Lock one exact configuration before production.
For the order, send quantity, destination, LED count, LED wattage, color package, channel map, voltage, venue, mounting, plug and packing requirements. For DMX network planning, consult ESTA’s DMX512-A guide and request this fixture’s current channel chart.
PRODUCT FAQ
Questions Before You Order.
Direct answers about RG-314 configurations, control, environment and quotation.
Which RG-314 LED counts are listed?
The current product brief lists 14-, 18- and 54-position versions. The supplied images and verified video show the 18-position housing.
Which source options are currently specified?
The supplied brief specifies 14 × 10W or 12W LEDs in a 4-in-1 or 5-in-1 package. Confirm the exact source for 18- and 54-position orders.
What colors are included in the 5-in-1 option?
The supplied data does not identify every channel, so confirm the complete five-color package in the quotation.
Which control modes are available?
The listed modes are 4CH or 8CH DMX512, Master-slave, Sound and Auto; request the current map for the ordered version.
What does the 50,000-hour figure mean?
It is the listed nominal LED source-life figure. Actual service life depends on temperature, duty cycle, maintenance and operating conditions.
Is RG-314 rated for outdoor use?
No IP rating is supplied, so plan it for indoor use or a properly protected position.
What size and weight are listed?
The net weight is 3.5kg and the supplied packing size is 19 × 14 × 19cm.
What should I include in an inquiry?
Send quantity, destination, LED count, LED wattage, color package, channel map, voltage, venue, mounting, plug and packing needs.
