1296 RGBW LEDS · 16-ZONE CONTROL

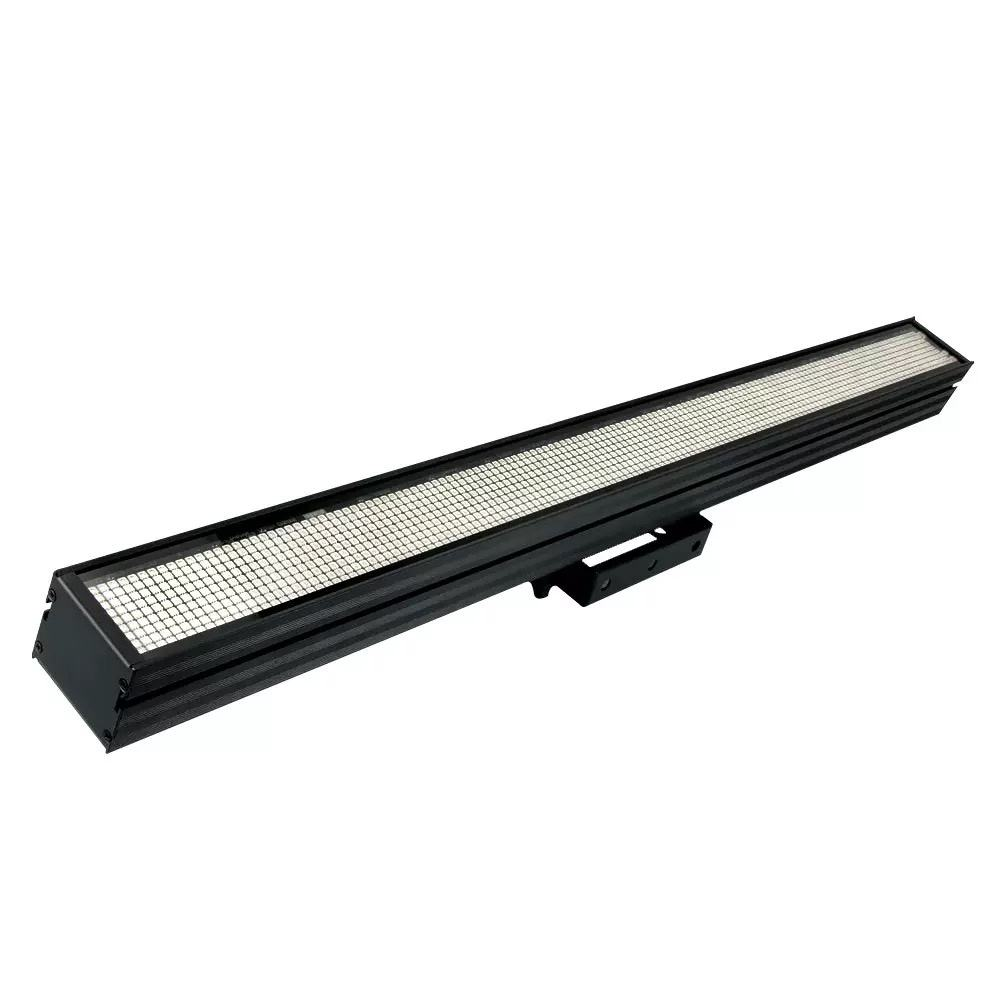

1296-LED RGBW 16-Zone Strobe Bar — plan the strobe bar within the lighting rig.
This 650W RGBW strobe bar uses 1296 half-watt LEDs arranged across sixteen control regions. Choose among 6CH, 33CH and 64CH using the required functions in the chart. Auto and Sound are also listed. The IP20 fixture is intended for suitable indoor positions; physical LED quantity and control-region count describe different features.
1296 RGBW sources
1296 half-watt RGBW LEDs form the main source array.
Sixteen control regions
The listed sixteen-region format supports segmented strobe and chase cue planning.
Three DMX profiles
6CH, 33CH and 64CH are listed with DMX512, Auto and Sound.
Indoor IP20 fixture
The fixture is rated IP20, with a listed lighting angle of 120°.
Specifications
Technical specifications
| Model | RG-702 |
|---|---|
| Public product power | 650W |
| Light source | 1296 × 0.5W RGBW LEDs |
| Rated fixture power | 650W |
| Voltage | AC220V, 50/60Hz |
| DMX channels | 6CH / 33CH / 64CH |
| IP rating | IP20 |
| Product dimensions | 1000 × 95 × 137.5mm |
| Control modes | DMX512 / Auto / Sound |
| Zone control | 16 control regions |
SEGMENTED EFFECTS
Specify strobe, chase and supplementary cues.
The supplied effects include sixteen-region control, segmented surface-light strobe, chase sequences, backlight and supplementary lighting.
PRODUCT VIEWS
Inspect the source array and multicolor regions.

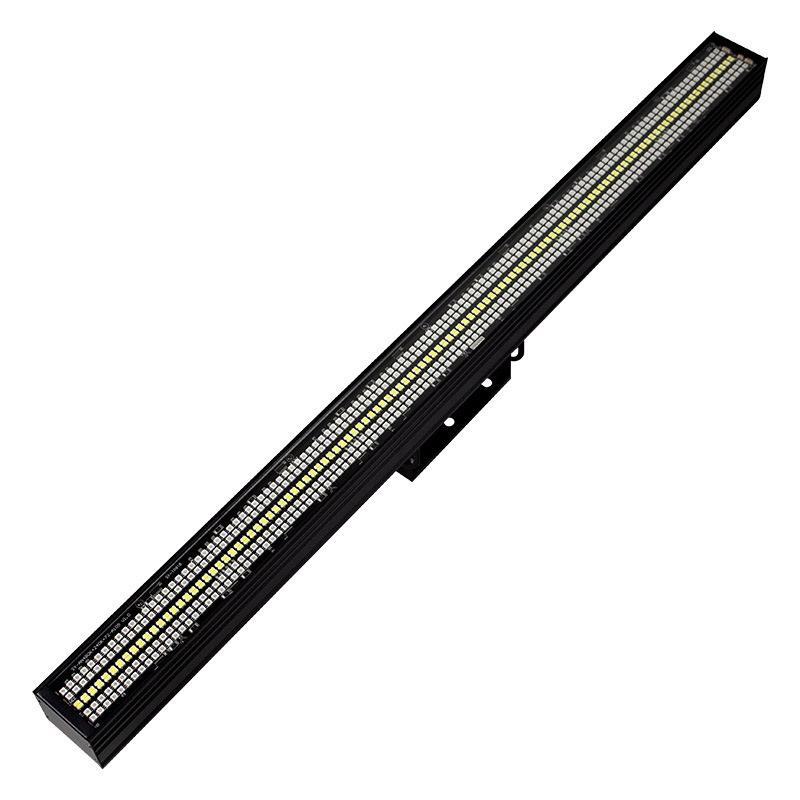

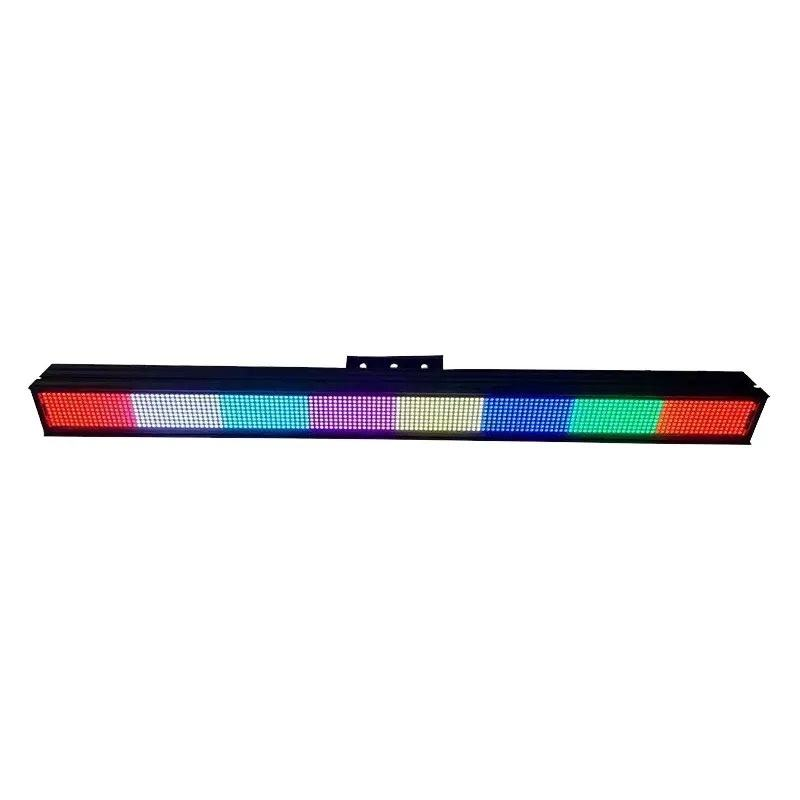

The front and diagonal views show the LED arrangement and housing. Use the listed sixteen-region specification and matching channel chart to plan the cues.
CONTROL AND INSTALLATION
Plan the profile, angle and fixture positions.
Input is AC220V at 50/60Hz, with 650W fixture power. The listed lighting angle is 120°. Dimensions are 1000 × 95 × 137.5mm, with total weight listed as 4kg.
APPLICATION FIT
Define the flash and chase role in the rig.
For indoor stage, DJ and event lighting briefs, provide fixture positions, spacing and the desired flash or chase cues. Match the operating instructions, mounting and electrical connections to the installation.
Explore other LED strobe lights for different source and control requirements.
B2B ORDER FLOW
Prepare the strobe bar quotation.
For your 1296-LED RGBW 16-Zone Strobe Bar order, identify the source configuration and fixture load, then send the cue, mounting and delivery requirements needed for the offer. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.
PRODUCT FAQ
1296-LED RGBW 16-Zone Strobe Bar — Buyer Questions
Source groups, fixture power, control and strobe rig planning.
What source array and fixture power are listed?
1296 × 0.5W RGBW LEDs are specified, with 650W fixture power.
How many control regions are specified?
Sixteen control regions are listed. Request the matching channel chart for the selected profile.
Which DMX profiles are listed?
6CH, 33CH and 64CH are listed. Auto and Sound are also supplied control options.
Which effects are specified?
Segmented surface-light strobe, chase sequences, backlight and supplementary lighting effects are listed.
What supply and lighting angle are specified?
Input is AC220V at 50/60Hz. The listed lighting angle is 120°.
Is the bar suitable for an outdoor waterproof rig?
The fixture is rated IP20. Specify an indoor installation appropriate to this protection level.
What are the dimensions and listed weight?
Product dimensions are 1000 × 95 × 137.5mm. The supplied specification lists total weight as 4kg.
What should I send for a quotation?
Send quantity, indoor mounting positions, intended regions and strobe/chase/backlight cues, console/profile or Auto/Sound workflow, AC220V supply/plug, connectors, destination and delivery date. Confirm packing and net/gross weights.
