LINEAR RGBW SOURCES
10x40W RGBW LED Moving Beam Bar — create beam sequences across ten LED positions.
10x40W RGBW LED Moving Beam Bar uses ten 40W CREE RGBW 4-in-1 LEDs in a linear moving bar. A 3° optical angle, individual LED control and built-in chase effects are specified.
Ten RGBW LEDs
Ten CREE LED sources are specified at 40W each, with RGBW four-in-one output.
3° optical angle
The stated optical angle is 3° for the beam configuration.
Individual LED control
Individual LED control is listed. Request the current DMX chart to establish the available programming functions.
Y-axis movement
Y-axis movement works with the built-in chase effects for the listed dynamic lighting functions.
Specifications
Technical specifications
| Model | RG-763 |
|---|---|
| Public product power | 150W fixture power |
| Light source | 10 × 40W CREE RGBW 4-in-1 LEDs |
| Rated fixture power | 150W |
| Voltage | AC 95–245V, 50Hz |
| DMX channels | 5CH / 14CH |
| Product dimensions | 112 × 31 × 35cm |
| Net weight | 10kg |
| Rated lamp lifespan | 50,000 hours (stated average LED source life) |
| Control modes | DMX512 / Master-Slave / Auto / Sound Activated |
| Beam angle | 3° optical angle |
| Pan / tilt | Y-axis movement |
| Strobe | 20 flashes per second |
PRODUCT VIEWS
Review the linear housing and moving lens row.

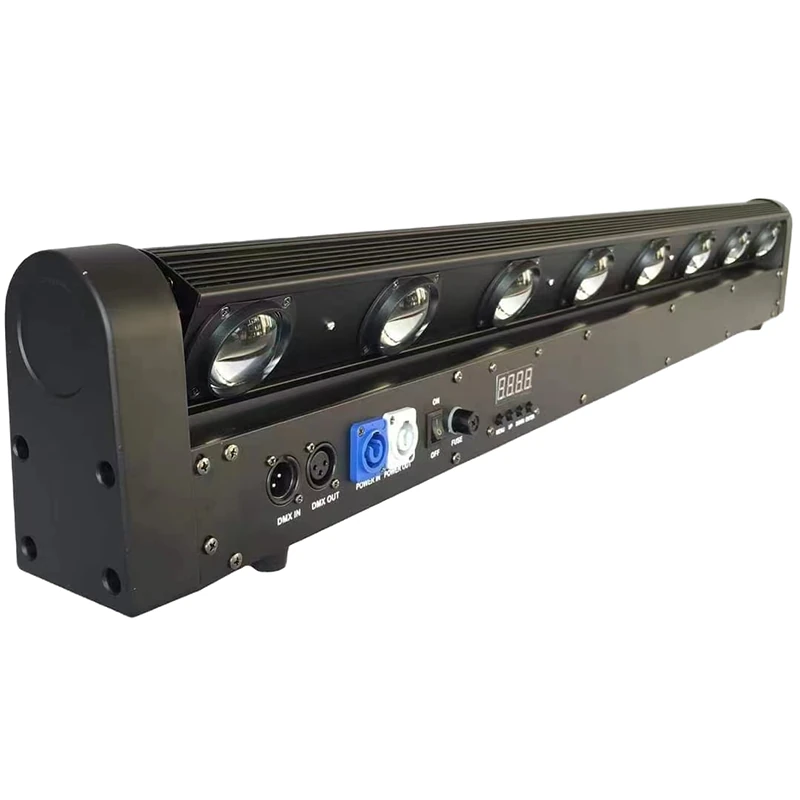

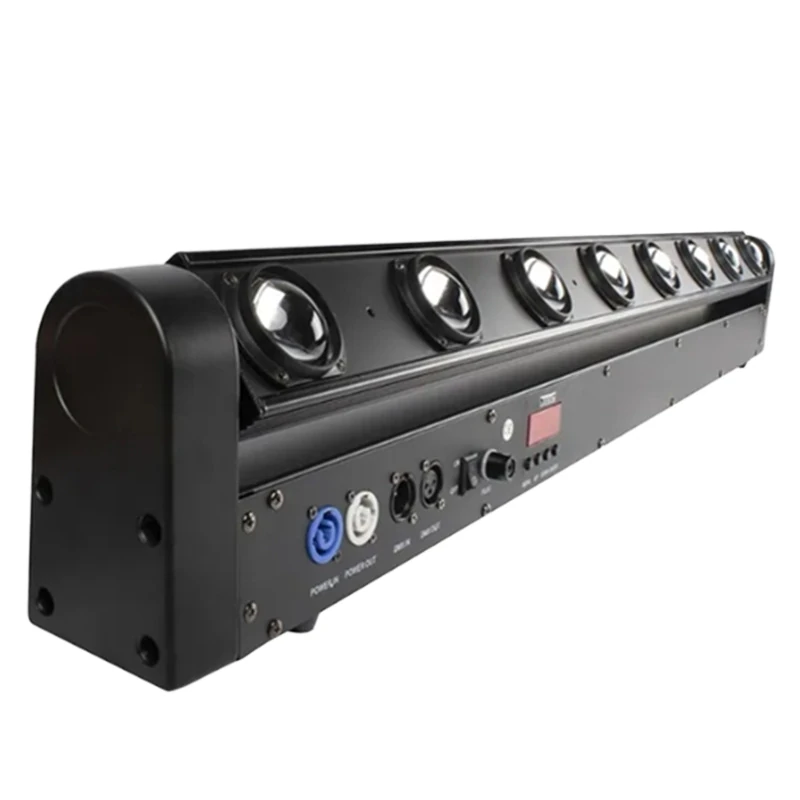

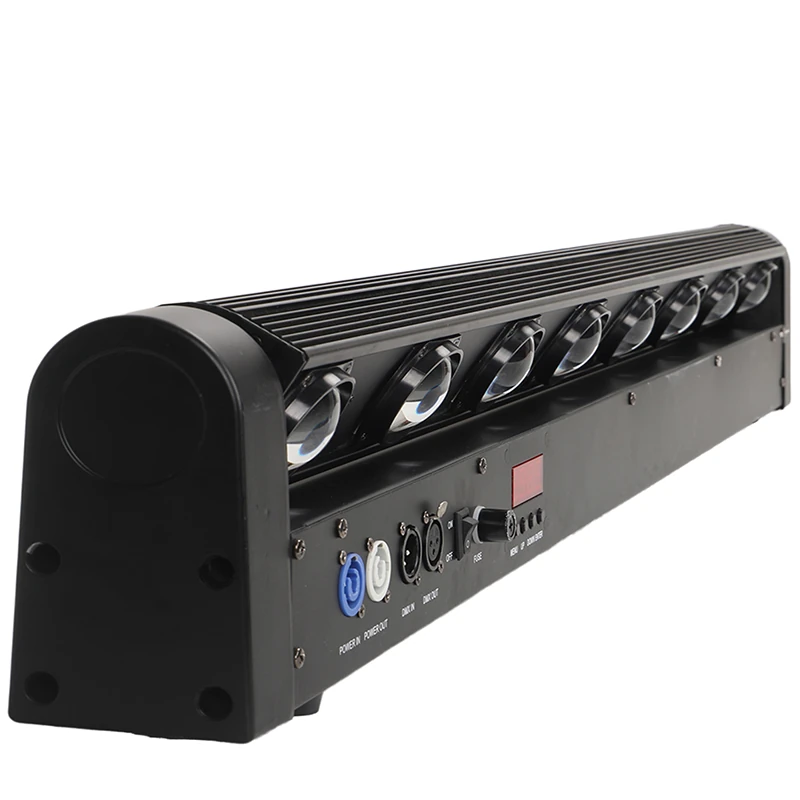

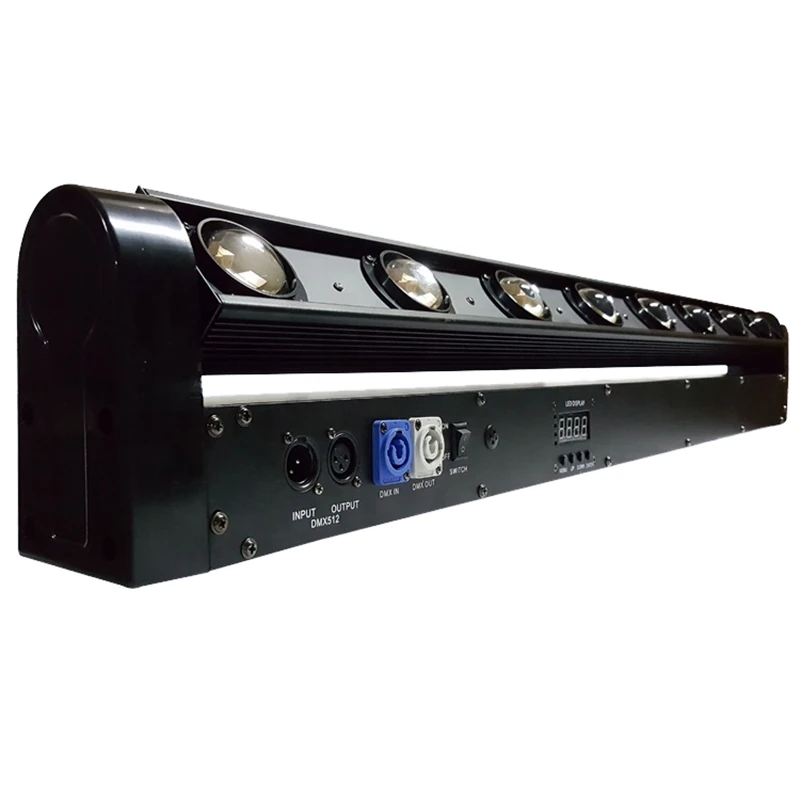

The supplied views show the lens bar in different positions, the support ends, display and marked DMX and power connections.
CHASE AND MOVEMENT
Plan sequences and Y-axis direction changes.
Built-in chase effects and Y-axis movement are listed alongside individual LED control.
CONTROL AND SOURCE LIFE
Select console, linked or standalone playback.
DMX512, Master-Slave, Auto and Sound Activated operation are listed. Average LED source life is stated as 50,000 hours; this is a source-life specification rather than a warranty term.
APPLICATION FIT
Define linear beam and chase roles for the rig.
Use the ten-source bar for narrow 3° RGBW beam sequences and Y-axis movement across the rig. Choose fixture spacing and viewing direction around the intended line or curtain pattern. Individual LED control is listed, but its channel chart is needed to plan the actual chase cues; select separate wash lighting when broad coverage is required.
Compare the beam moving head light range for other source and housing configurations.
WORKSHOP VIEWS
See the beam bars powered on at the benches.

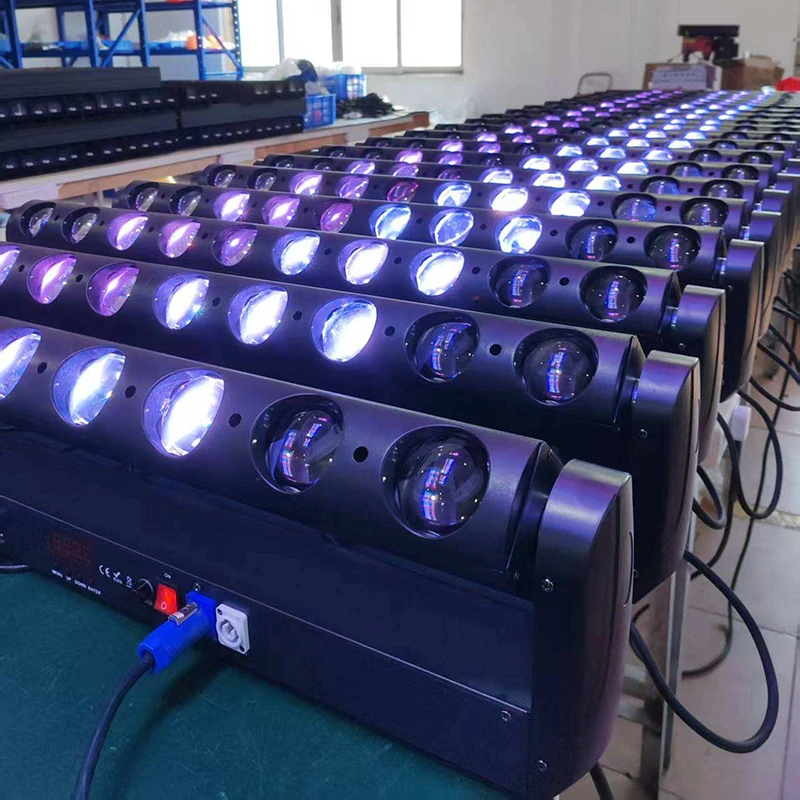

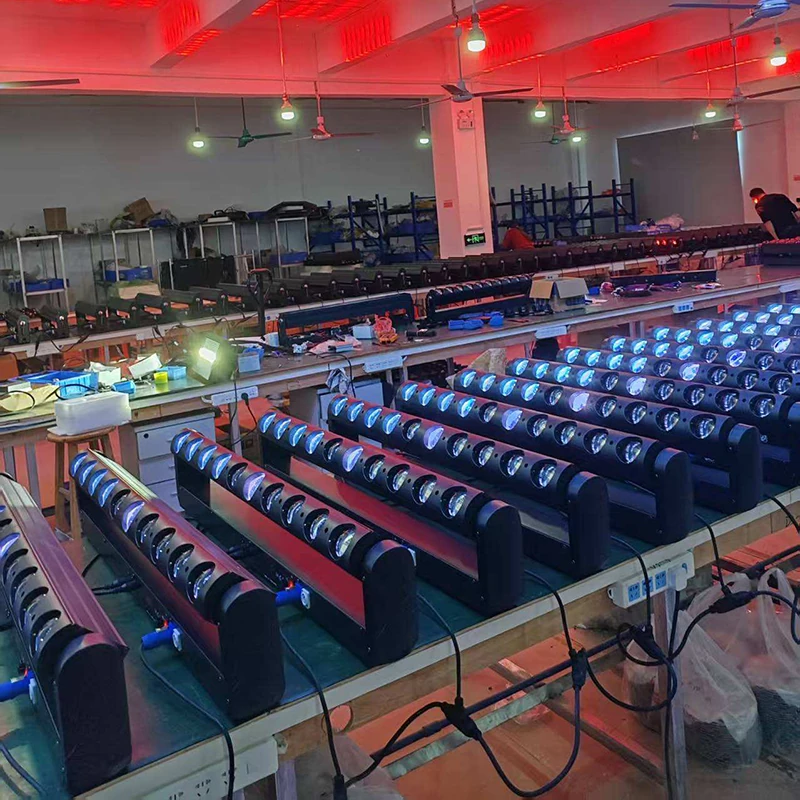

These supplied workshop photographs show rows of linear fixtures powered on with blue and purple light. The close and wide views show the lens rows, support ends and connected cables.
B2B ORDER FLOW
Request the selected fixture configuration.
Identify 10x40W RGBW LED Moving Beam Bar and the source configuration in your inquiry so the offer addresses the required lighting and control setup. For network planning, use ESTA’s DMX512-A guide alongside the fixture’s channel chart.
PRODUCT FAQ
Questions Before You Order.
Sources, optical functions, control and order configuration.
What LED sources are specified?
Ten 40W CREE RGBW 4-in-1 LEDs are listed.
What optical angle and source life are stated?
The stated optical angle is 3°. Average LED source life is listed as 50,000 hours; it is a source-life specification rather than a warranty term.
Can the LEDs be controlled individually?
Individual LED control is specified. Request the current DMX chart for the available individual-source controls and profile configuration.
What chase and movement functions are listed?
A variety of built-in chase effects and Y-axis movement are specified. No exact movement range is supplied.
What strobe function is specified?
The stated rate is 20 flashes per second, equivalent to 20Hz.
Which channel profiles and operating modes are listed?
5CH and 14CH profiles are specified, with DMX512, Master-Slave, Auto and Sound Activated modes. Request the current channel chart for the available source-control functions.
What fixture power, voltage, size and net weight are listed?
The current fixture power is listed as 150W, with AC 95–245V at 50Hz input. Dimensions are 112 × 31 × 35cm and net weight is 10kg. LED source ratings are specified separately from complete-fixture power.
What should I include in an inquiry?
Provide quantity, destination, RGBW chase and individual-LED cues, Y-axis movement needs, fixture positions, console details, voltage and plugs, mounting accessories, packing and schedule. Request the current DMX chart with the offer.
