CONFIGURABLE COB STAGE PAR

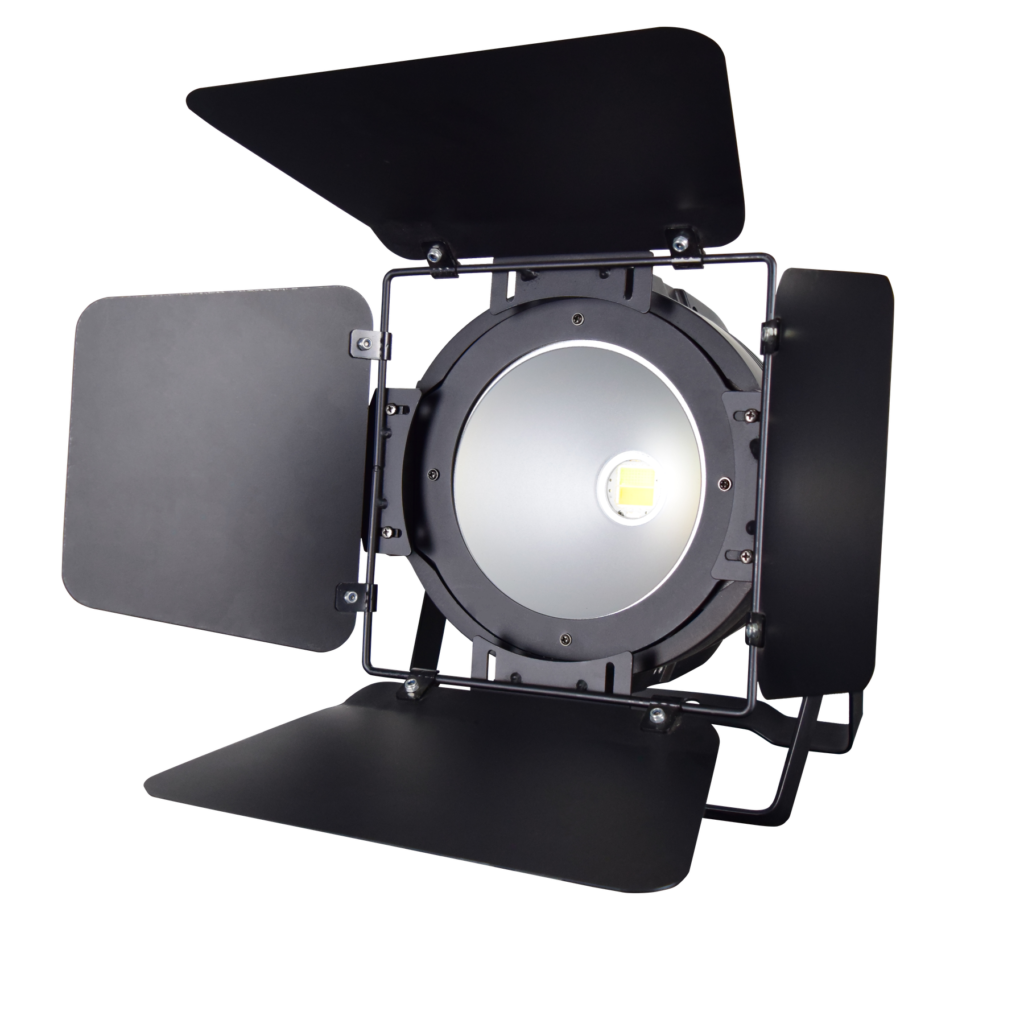

100W / 200W COB LED PAR Light overview
The product family lists 100W and 200W versions. The COB source can be ordered as a monochrome, 2-in-1, 4-in-1 or 6-in-1 high-brightness configuration. Available colors and channel functions must be confirmed for the selected combination.
100W or 200W
Select the rated version before allocating power and comparing the fixture specification.
Four COB configuration types
Specify monochrome, 2-in-1, 4-in-1 or 6-in-1; confirm the selected colors and channel functions.
0–100% linear dimming
Plan intensity changes for the cue; test camera behavior with the actual show settings.
VERIFIED PRODUCT DETAIL

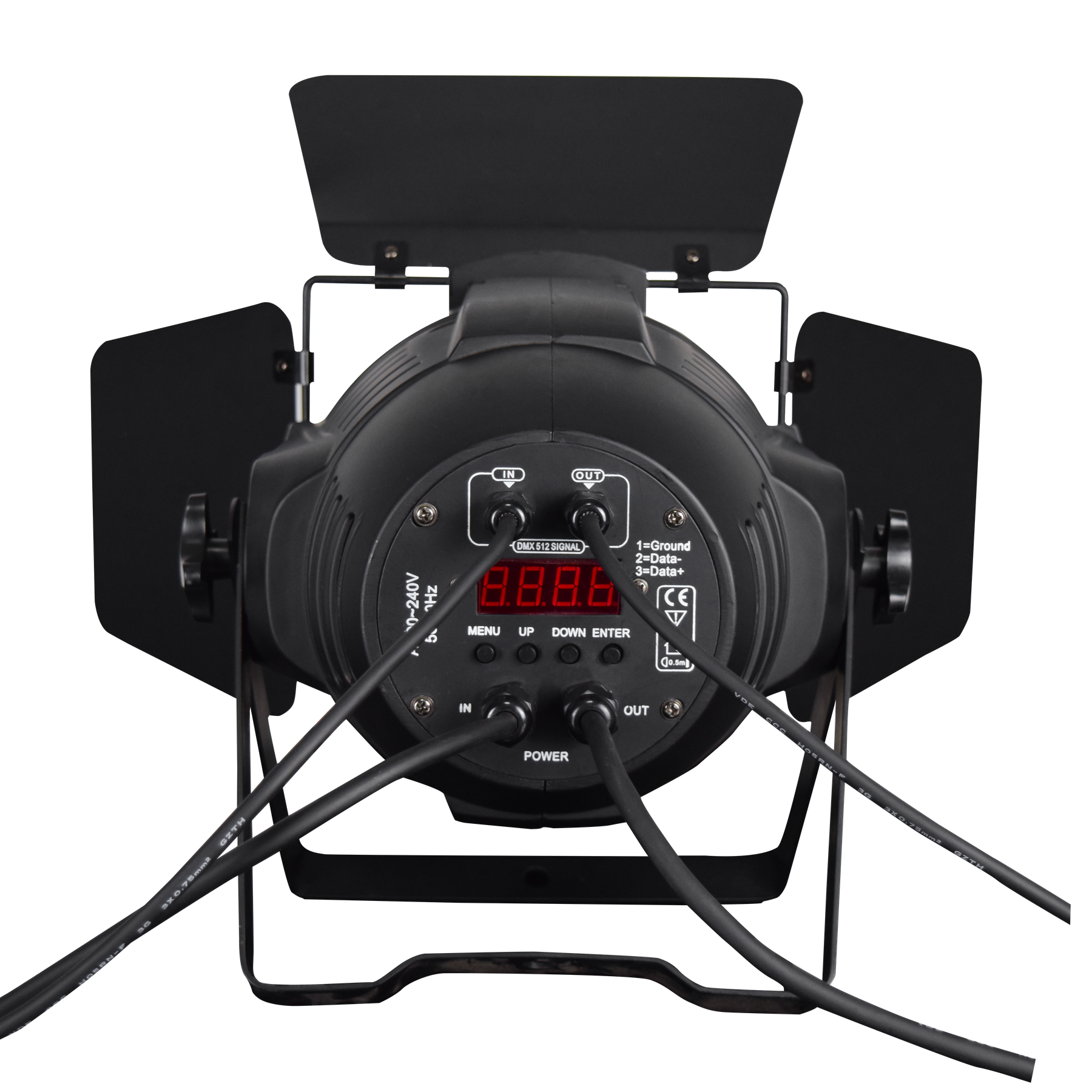

Inspect the reflector, barn-door assembly and rear controls.

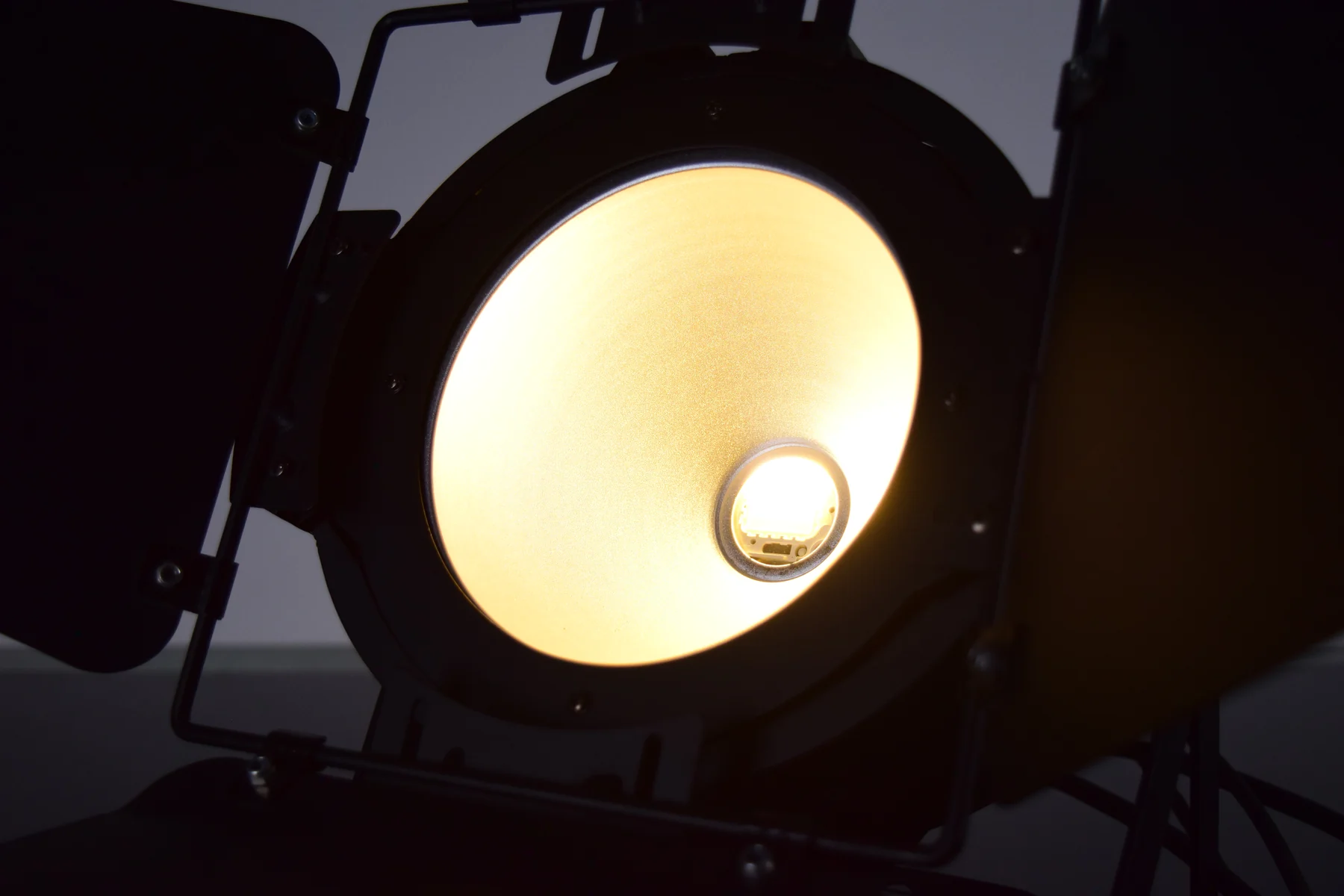

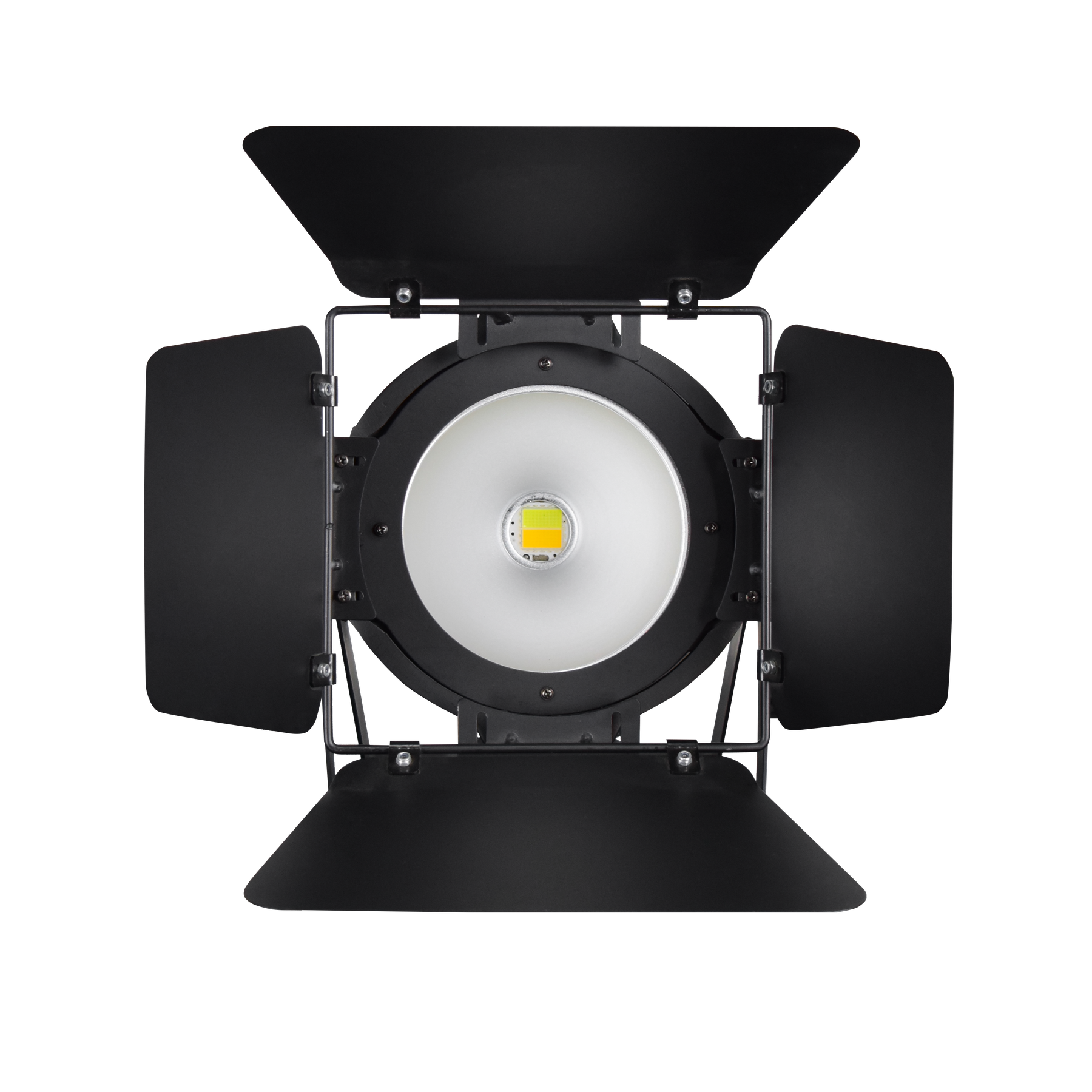

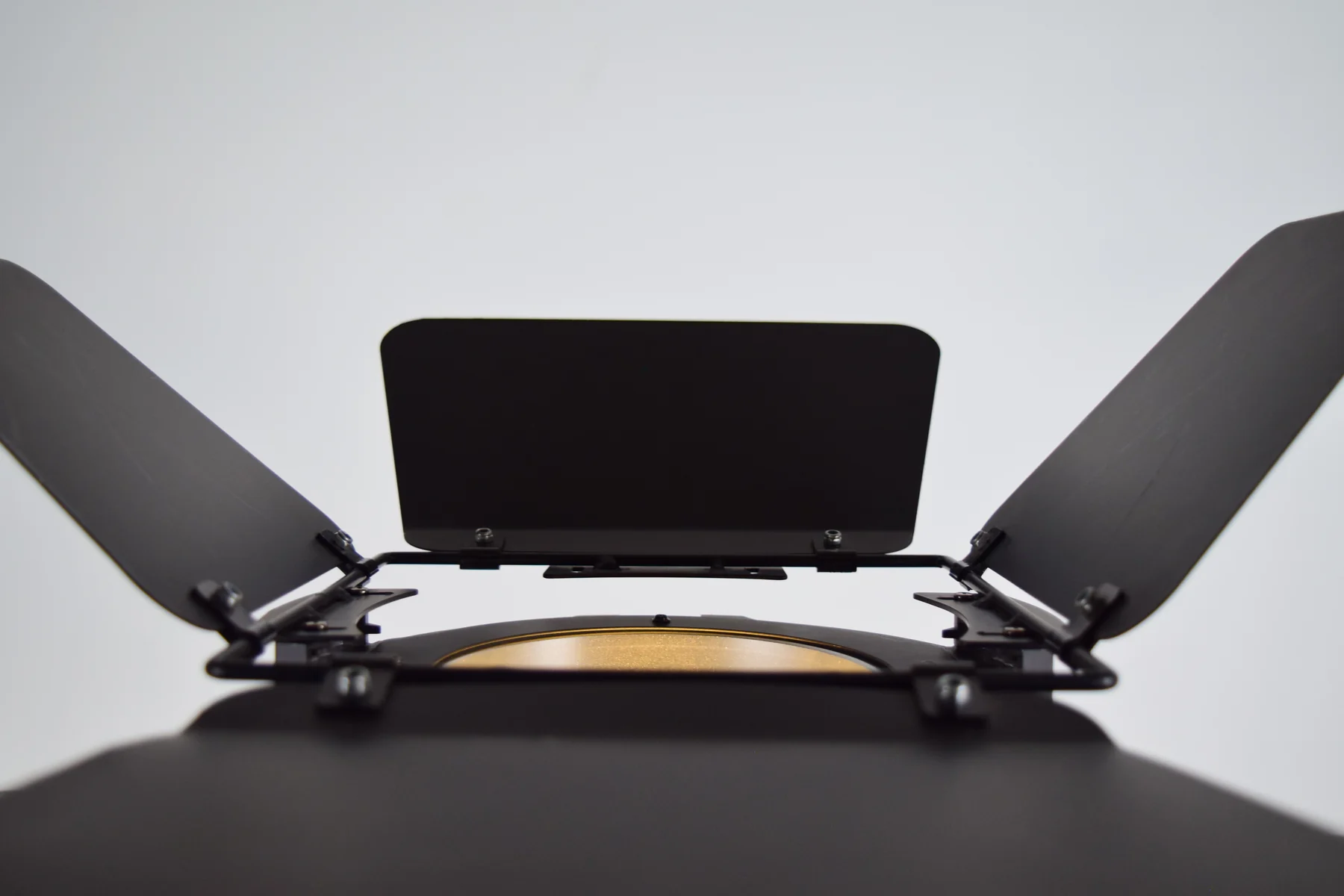

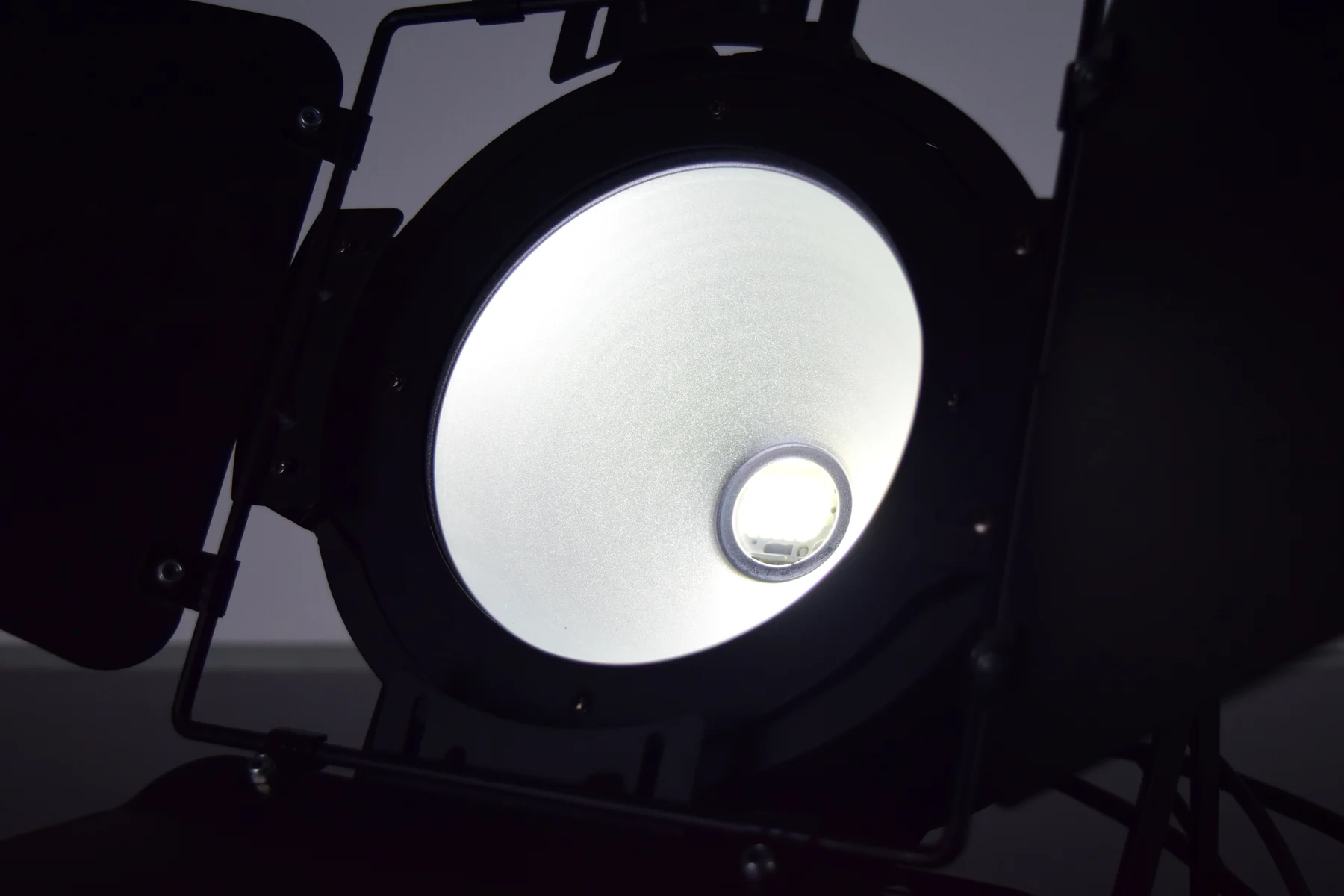

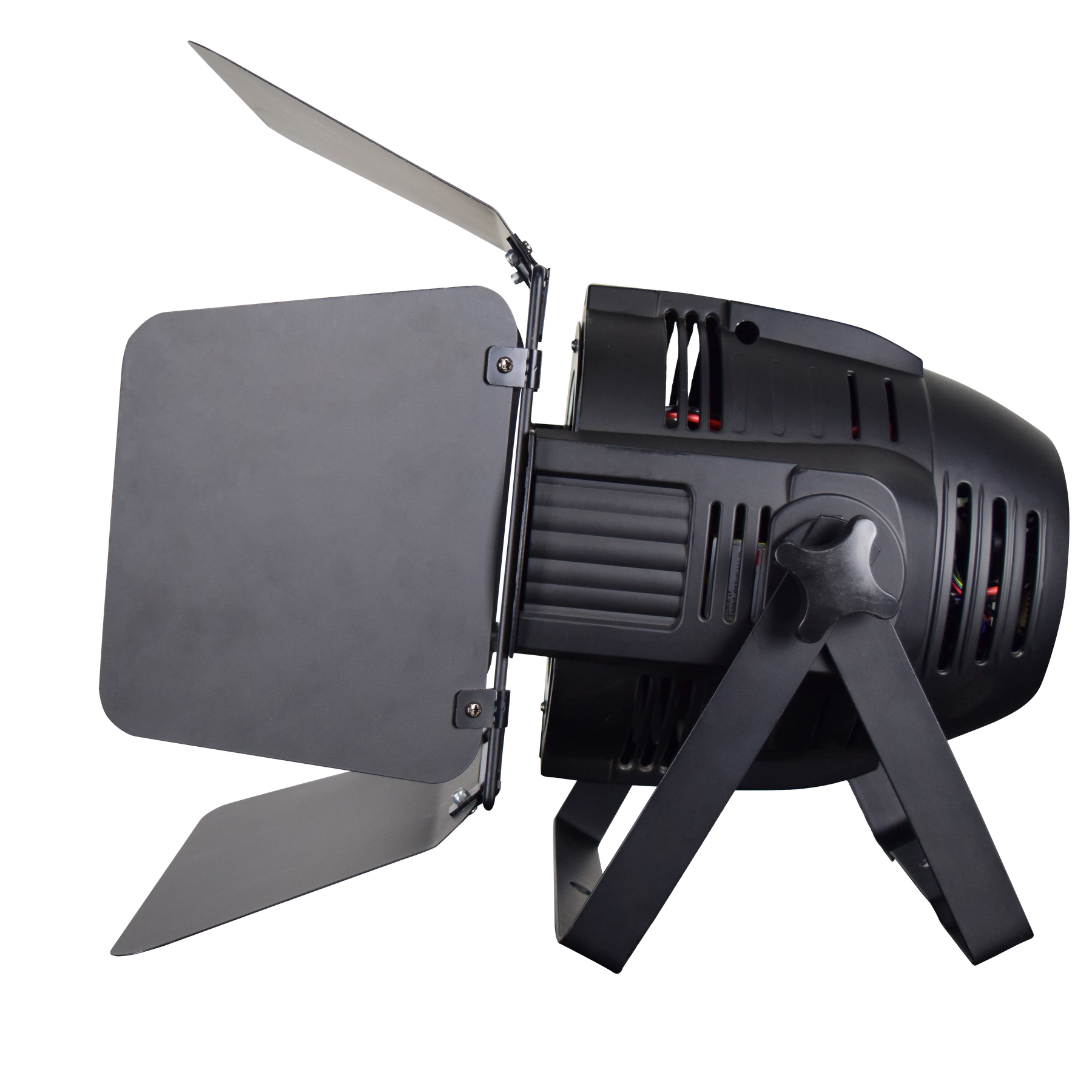

The supplied photographs show the single COB reflector, adjustable four-leaf barn doors, cast-aluminum body, bracket and rear control area. Confirm whether the order includes the barn-door set because packing size and net weight differ.
PRODUCT & EFFECT VIEWS
Inspect the COB PAR, barn doors and light output.

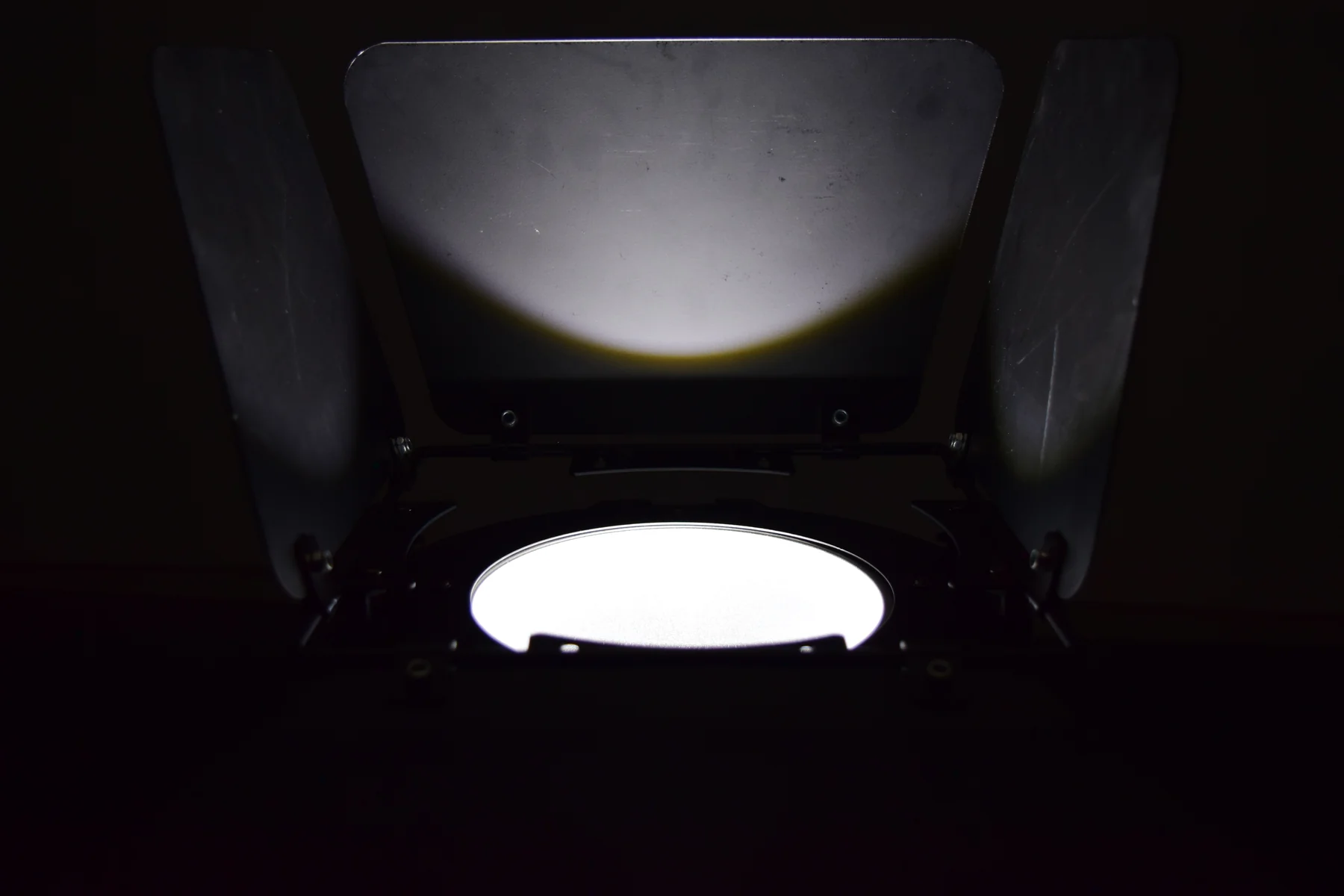

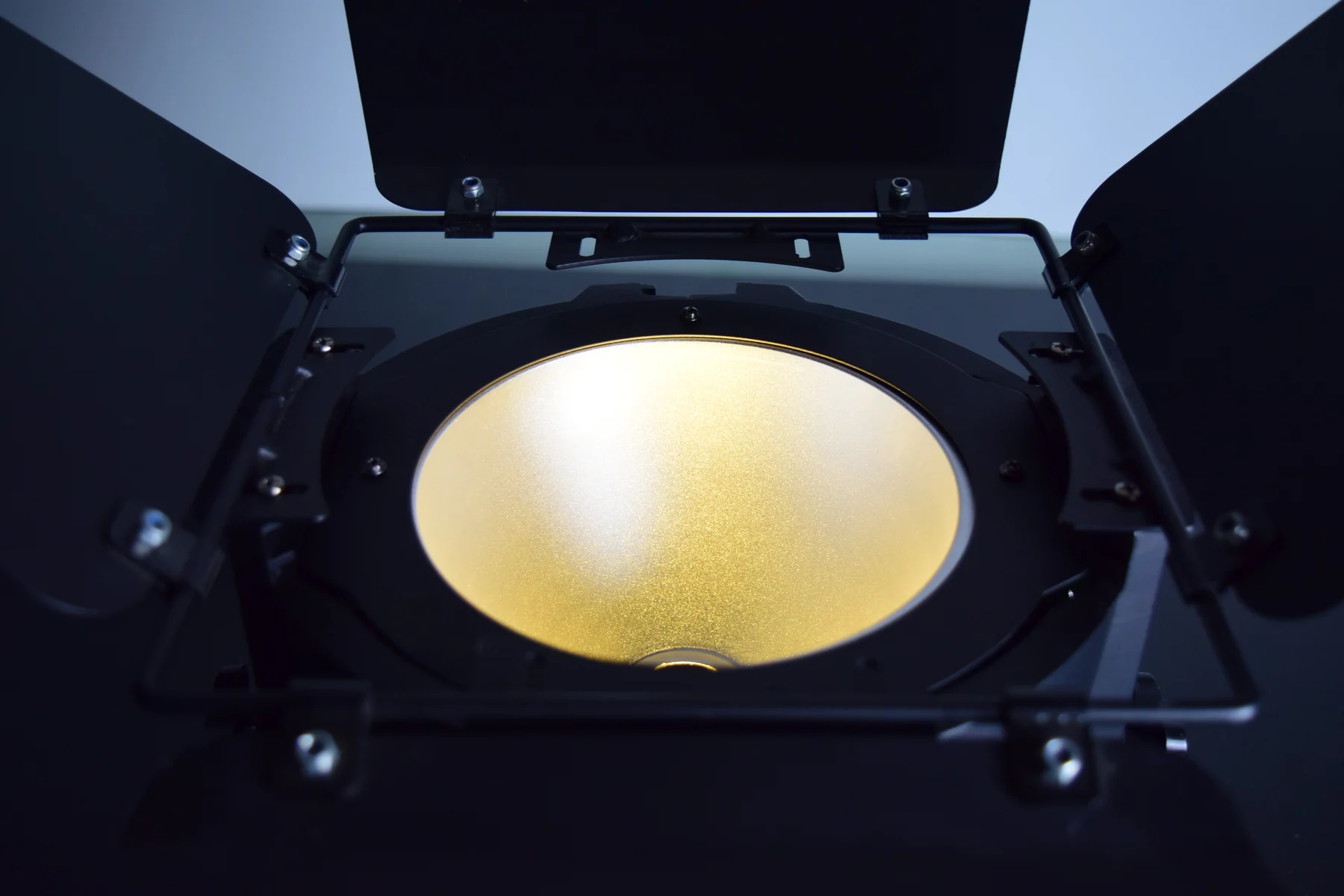

Review the fixture body, connections, adjustable barn doors and supplied warm- and cool-white output views in one consolidated gallery. The illuminated photographs are visual references rather than measured color-temperature, CRI or photometric evidence.
CONTROL & PERFORMANCE
Move from continuous dimming to controlled strobe cues.
The listed functions include 0–100% linear dimming, 0–13 flashes per second and DMX512 with 2, 4, 6 or 8-channel modes. Master-slave, Auto and Sound modes support operation without a console.
Specifications
Technical specifications
| Model | RG-320 |
|---|---|
| Public product power | 100W / 200W |
| Light source | Monochrome / 2-in-1 / 4-in-1 / 6-in-1 COB options |
| Rated fixture power | 100W / 200W versions |
| Voltage | AC 100–220V, 50/60Hz |
| DMX channels | 2 / 4 / 6 / 8CH |
| IP rating | IP20 |
| Net weight | 3.5kg without barn doors; 3.8kg with barn doors |
| Rated lamp lifespan | 80,000 hours listed |
| Control modes | DMX512 / Master-slave / Auto / Sound |
| LED configuration | Monochrome / 2-in-1 / 4-in-1 / 6-in-1 |
| Color system | Ordered COB configuration |
APPLICATION FIT
Choose the COB version around the required white or color output.
Select 100W or 200W, the COB color configuration and barn-door requirements for the lighting plot. Check coverage at the intended throw distance and use the selected channel chart for programming. Compare related LED PAR lights when planning your lighting rig.
B2B ORDER FLOW
Confirm the selected source, control profile and shipment.
For your 100W / 200W COB LED PAR Light order, specify the required looks and operating setup so the ordered version can be confirmed. For DMX network planning, consult ESTA’s DMX512-A guide and request this fixture’s current channel chart.
PRODUCT FAQ
Questions Before You Order.
Direct answers about configuration, control, installation and quotation.
Which power versions are listed?
100W and 200W.
Which COB configurations can be ordered?
Monochrome, 2-in-1, 4-in-1 or 6-in-1 high-brightness COB.
Are all colors available in every version?
The exact color combination must be confirmed for the selected power and COB configuration.
What dimming and strobe ranges are listed?
0–100% linear dimming and 0–13 flashes per second.
Which DMX modes are available?
2, 4, 6 and 8 channels.
Are barn doors included?
Confirm the ordered set. Separate packing and net-weight figures are supplied for versions without and with barn doors.
Is RG-317 a different product?
Yes. RG-317 is a separate multi-LED mute PAR; RG-320 is this COB PAR platform.
Is the fixture waterproof?
It is listed IP20 for indoor or protected use.
