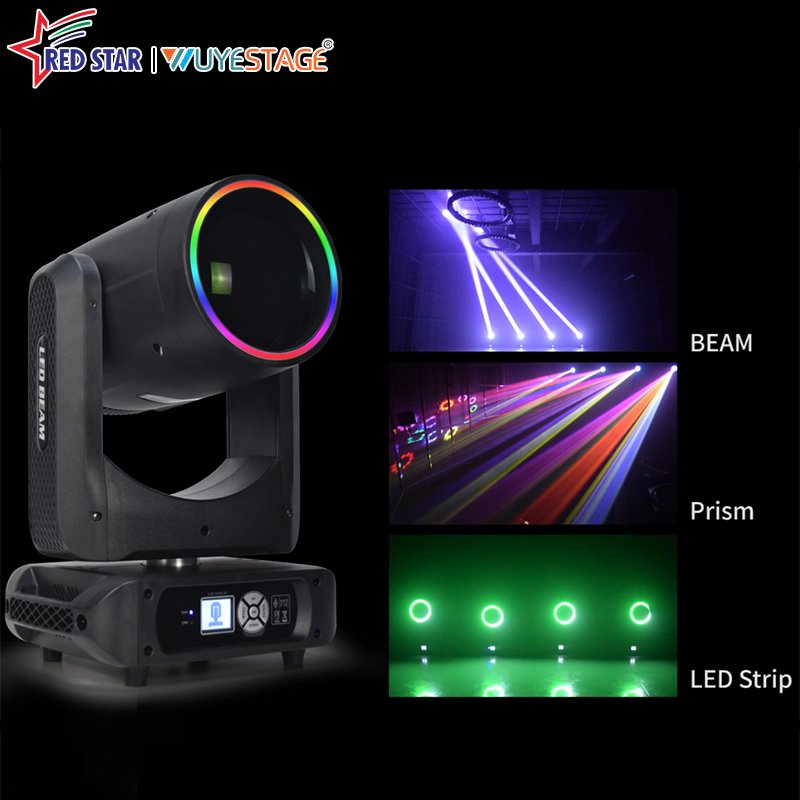

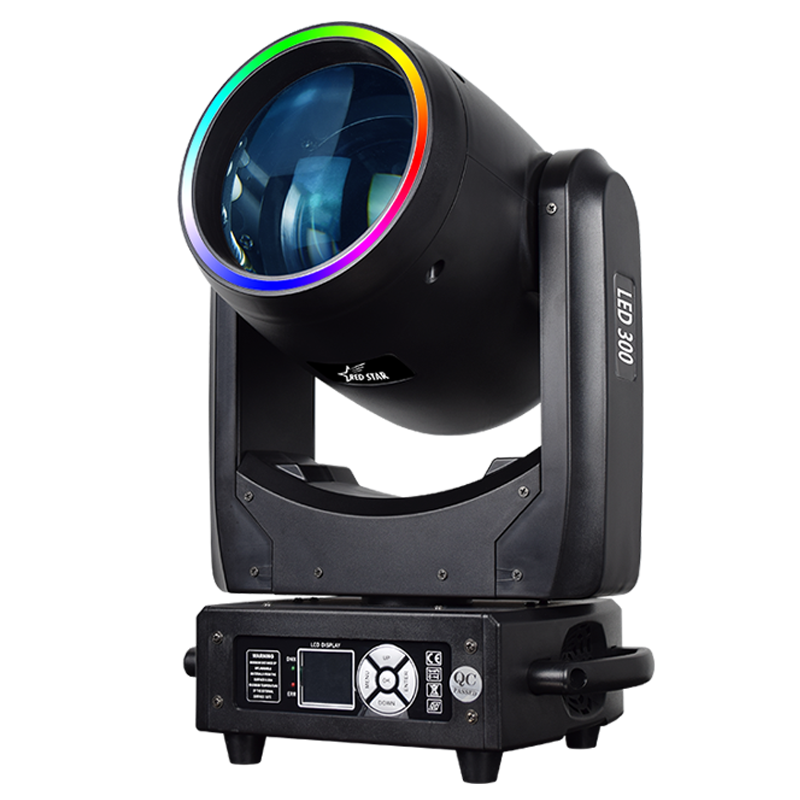

300W LED Beam Moving Head Light with RGB Effects and Dual Prism

300W LED Beam Moving Head for Dynamic Stage Effects

The LED beam moving head RG-330 is a professional stage lighting fixture designed for concerts, nightclubs, theaters, festivals, DJ shows and rental productions. It combines RGB color effects, fixed patterns, rainbow effects and rotating prisms in one compact unit.

The fixture uses 36 × 5050 RGB full-color LED beads and has a rated power of 300W. As a result, it produces vivid colored beams and layered aerial effects without requiring several separate effect lights. Lighting designers can use it to create energetic beam chases, rotating patterns and colorful stage backgrounds.

Moreover, the RG-330 supports DMX512, automatic, sound-activated and master-slave operation. Therefore, it works equally well in programmed professional systems and smaller venues that need simple standalone control.

RGB LED Effects and Color Options

The RGB LED system gives operators flexible color output for different performances. Its color wheel provides 10 colors plus white, while the integrated seven-rainbow effect disc adds flowing multicolor effects.

Because the fixture combines full-color LEDs with a dedicated color system, it can produce both focused single-color beams and more active RGB effects. This makes the light suitable for live music, dance floors, touring productions and themed entertainment events.

The RGB effects also help rental companies cover a wider range of projects with one fixture. Operators can create clean white beam looks, saturated colors or fast-changing multicolor sequences according to the event design.

Fixed Patterns and Rainbow Effects

The RG-330 includes one fixed pattern disc with 19 patterns. These patterns add shape and movement to the beam, helping designers create more varied aerial effects above stages, audiences and dance floors.

In addition, the seven-rainbow effect disc produces multicolor visual sequences. When operators combine it with the fixed patterns, they can build layered effects for concerts, clubs, DJ performances and festival stages.

The integrated atomizer further softens and spreads the projected effect when a wider visual texture is required. Therefore, the fixture can move between sharp beam effects and more diffused stage looks during the same show.

8+24 Dual Prism System

An 8+24 dual prism system is one of the main features of this LED beam moving head. The rotating prisms divide the original beam into multiple beams, creating larger aerial patterns and stronger visual coverage.

Operators can use the prism effects during musical peaks, dance sequences and stage transitions. Combined with RGB colors and fixed patterns, the dual prism produces layered effects that remain visually active in haze or stage fog.

This effect combination makes the RG-330 especially useful for nightclubs, concert stages and rental companies that need a versatile effects fixture.

Electronic Strobe and Effect Control

The electronic strobe operates from 0 to 25Hz. It supports slow pulsing effects as well as faster flashes for energetic music and performance scenes.

Lighting operators can combine the strobe with color changes, gobos, rainbow effects and prism rotation. Consequently, the fixture can produce coordinated visual sequences instead of relying on a single repetitive beam effect.

For programmed shows, the 17-channel DMX mode gives lighting designers direct access to the main functions. Meanwhile, automatic and sound-activated modes provide practical operation when a full DMX console is unavailable.

Control Modes for Different Installations

The RG-330 supports the following control modes:

• DMX512 control
• Automatic programs
• Sound-activated operation
• Master-slave synchronization
• 17 DMX channels

DMX512 control suits theaters, concerts, festivals and professional touring systems. Sound activation works well for bars, clubs and mobile DJ applications. Master-slave mode also allows several fixtures to run synchronized effects without programming each light separately.

Therefore, distributors and rental companies can offer the same fixture to customers with different technical requirements.

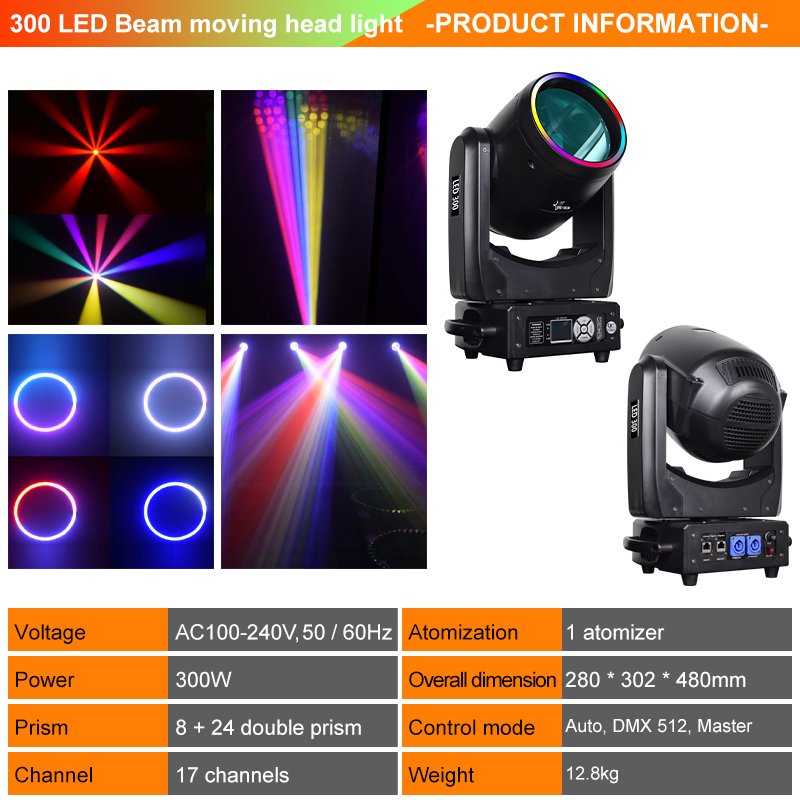

Technical Specifications

• Model: RG-330
• Product type: LED beam moving head light
• Input voltage: AC 100–240V, 50/60Hz
• Rated power: 300W
• LED source: 36 × 5050 RGB full-color LED beads
• Color system: 10 colors plus white
• Fixed pattern disc: 19 patterns
• Prism system: 8+24 dual prism
• Rainbow effect: One seven-rainbow effect disc
• Atomizer: One integrated atomizer
• Electronic strobe: 0–25Hz
• Control modes: DMX512, automatic, sound and master-slave
• DMX channels: 17
• Product dimensions: 280 × 302 × 480mm
• Net weight: 12.8kg
• Protection rating: IP20
• Recommended environment: Indoor or protected stage applications

Recommended Applications

This 300W LED beam moving head light is suitable for:

• Concert and touring stages
• Nightclubs, bars and entertainment venues
• Theaters and performing arts centers
• DJ shows and music festivals
• Television and event productions
• Wedding and corporate event lighting
• Stage lighting rental companies
• Professional lighting installation projects

Its combination of RGB LEDs, fixed patterns, dual prisms and multiple control modes allows it to support both permanent installations and mobile event systems.

Designed for Professional Buyers

The RG-330 gives stage lighting distributors, wholesalers and rental companies a flexible LED effects fixture for commercial projects. Its universal AC 100–240V input supports use in different markets, while the compact 280 × 302 × 480mm housing simplifies transport and installation.

Furthermore, the 12.8kg net weight makes the fixture manageable for touring and rental crews. The IP20 rating means operators should use it indoors or in properly protected environments.

For project orders, buyers can contact WUYESTAGE for product availability, wholesale quotations, production information and shipping details.

Frequently Asked Questions

What light source does the RG-330 use?

It uses 36 × 5050 RGB full-color LED beads and has a rated power of 300W.

How many patterns does this fixture provide?

The fixture includes one fixed pattern disc with 19 patterns. It also includes a seven-rainbow effect disc.

What prism system does the light use?

It uses an 8+24 dual prism system for multi-beam aerial effects.

Can the RG-330 connect to a DMX lighting console?

Yes. It supports DMX512 control through 17 channels. It also supports automatic, sound-activated and master-slave modes.

Is this moving head suitable for outdoor events?

The fixture has an IP20 protection rating. Therefore, use it indoors or place it in a properly protected installation for outdoor events.

Who is this product suitable for?

It is suitable for stage lighting distributors, rental companies, clubs, theaters, event contractors, touring productions and professional entertainment venues.
