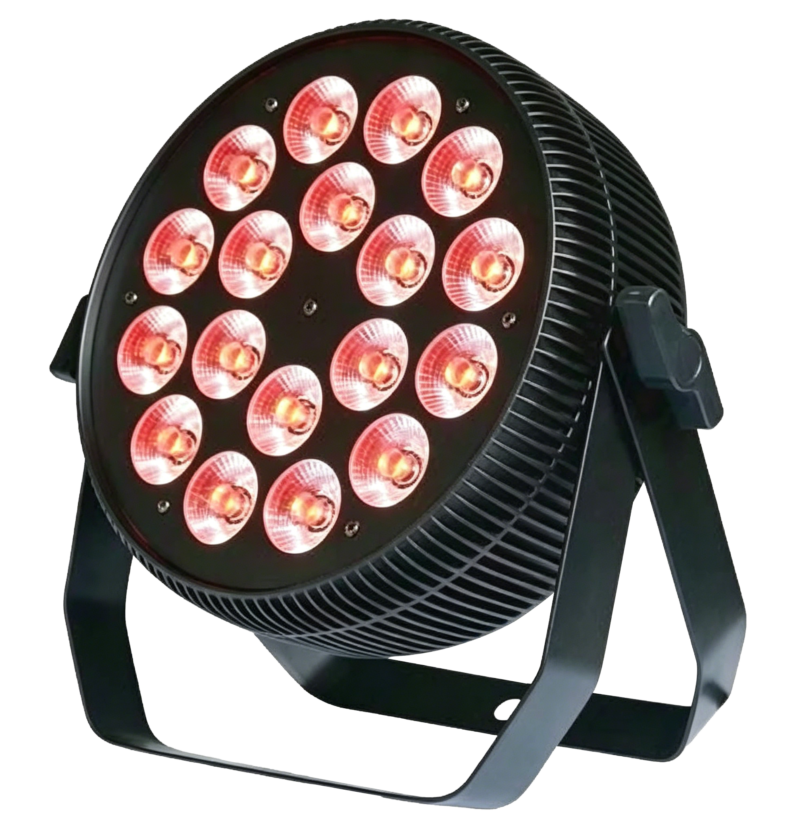

Mute LED PAR Light with LED Strip for Indoor Stage Lighting

Mute LED PAR Light for Noise-Sensitive Venues

This mute LED PAR light combines 18 RGBW LEDs with a 34-pixel RGB light strip. It creates a main color wash and animated edge effects from one compact fixture. Therefore, theaters, clubs, studios and indoor event venues can add more visual variety without filling the rig with separate effect lights.

The fixture has a rated power of 100W and an actual operating power of 80W. Its 18 RGBW LEDs handle the primary wash, while the 34 RGB pixel LEDs add chase and pixel effects around the housing. Moreover, the 106-channel mode gives programmers detailed pixel control when the show requires more complex animation.

RGBW Wash and Pixel Strip Effects

The RGBW source produces mixed colors and white illumination for stage wash. Meanwhile, the surrounding RGB strip adds a second visual layer. Designers can use it for flowing colors, rhythmic chases and decorative outlines. As a result, the fixture works well for music stages, DJ booths and productions that need both wash and eye-catching effects.

• 18 RGBW four-color control LEDs
• 34 RGB pixel-control LEDs in the surrounding strip
• 100W rated power and 80W actual power
• 0-100% linear dimming
• 1-30Hz conventional strobe
• 7CH, 10CH and 106CH DMX modes

Flexible DMX Modes for Simple or Detailed Programming

The 7-channel and 10-channel modes support efficient programming for ordinary stage wash. However, the 106-channel mode provides individual pixel control for the LED strip. This choice lets operators match the channel footprint to the show. In addition, automatic and master-slave modes support quick setups without a complex console session.

Designed for Indoor Stage Applications

Low-noise operation makes the fixture suitable for environments where fan sound can disturb performers, recordings or audiences. For example, it can serve theaters, broadcast rooms, conference stages and smaller live venues. The 6500-7500K white-light range also supports crisp highlights when a cooler white tone is required.

This low-noise design can also support church stage lighting setups where microphones, livestreaming, and quiet speaking sections make fan noise more noticeable. See our church stage lighting guide for fixture roles, camera considerations, and venue-size planning.

Technical Specifications

Applications

• Theaters and performance halls
• Clubs, bars and DJ stages
• Broadcast studios and conference events
• Indoor concerts and rental productions
• Wedding stages and entertainment venues

Factory Supply and Project Support

We supply the RG-317B for distributors, rental companies and stage-lighting projects. Furthermore, our team can support product configuration, order planning and OEM requirements. View more fixtures in our professional LED PAR light collection, or contact us for a project quotation.

“`
