Four Eye RGB Laser with ILDA and DMX512

Four Eye RGB Laser for Stage and Club Shows

Four eye RGB laser uses four full-color output heads to create layered beams for stages, clubs and DJ performances. The compact multi-eye layout increases visual coverage while keeping the fixture practical for rental and touring work.

The unit supports PC, ILDA and DMX512 control. Therefore, operators can use professional laser programming or integrate the fixture into a standard stage lighting system.

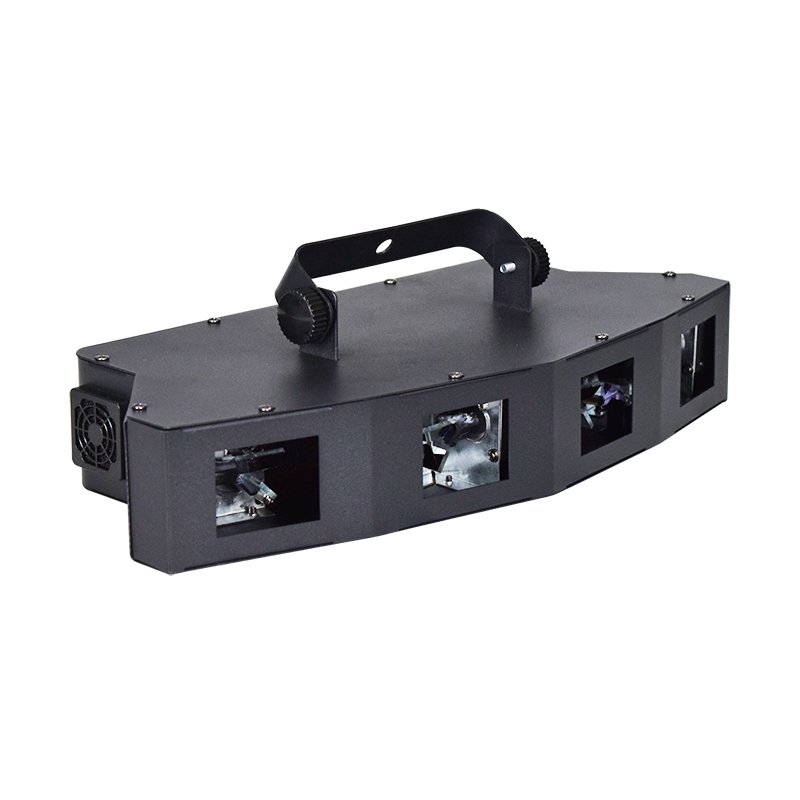

Four Full-Color RGB Outputs

Four RGB output heads create multiple beams from one fixture. As a result, designers can build symmetrical effects, changing color scenes and layered visual patterns.

The full-color system supports varied RGB combinations for different show sections. Moreover, the four-eye layout provides a clear visual identity that separates this product from single-output and six-eye laser fixtures.

Haze can make the projected beams more visible in a controlled venue. However, operators must follow professional laser safety procedures and local regulations during every show.

100W Fixture Power

The complete fixture has a listed power consumption of 100W. This value covers the laser system, control electronics, cooling and other internal components.

The 100W specification describes total machine power rather than optical laser output. Therefore, it should not be presented as 100W of laser power.

The current website does not specify the optical output of each RGB module. Buyers should confirm the laser power and required safety classification before ordering for a specific project.

ILDA and PC Programming

ILDA connectivity allows the fixture to work with compatible computer-based laser control systems. This option supports advanced programming for synchronized stage and entertainment productions.

PC control gives professional operators more flexibility than standalone programs. For example, they can prepare show sequences that coordinate laser effects with music and other visual elements.

However, the current product data does not identify a scanning speed or compatible software package. These requirements should be confirmed before the fixture is added to an existing ILDA system.

DMX512 with Multiple Channel Modes

DMX512 allows the laser to operate alongside moving heads, PAR lights, strobes and other stage fixtures. Therefore, lighting designers can coordinate it with a larger programmed show.

The fixture provides 10CH, 13CH and 33CH modes. A smaller mode supports simpler operation, while the expanded mode provides more detailed programming options.

These channel modes control different laser functions, including colors, patterns and effect movement. However, operators should obtain the final DMX chart before preparing advanced console programming.

Sound and Automatic Modes

The fixture also supports sound activation and automatic operation. Sound mode follows music for clubs, parties and DJ shows.

Automatic mode runs built-in effects without requiring a lighting console or computer. Consequently, smaller venues can operate the laser with a simpler setup.

These modes also help technicians test the fixture during installation. Meanwhile, ILDA and DMX512 remain available for productions that require more detailed control.

Compact Black Housing

The black housing fits naturally into stage, truss and entertainment venue installations. Its compact format also makes the fixture easier to transport between events.

The net weight is 5.95kg. Therefore, rental technicians can handle and install the unit without adding excessive weight to a lighting system.

The product is packed four units per carton. This arrangement suits wholesale orders, multi-fixture club installations and rental inventories.

Flexible Multi-Fixture Installation

Several units can work together to create wider and more symmetrical visual scenes. For example, operators can position matching fixtures on both sides of a stage or DJ booth.

DMX512 can synchronize the laser effects with conventional stage lighting. Alternatively, ILDA control can support more detailed computer-based programming.

The four-eye layout also offers a compact choice for venues that want multi-beam effects without using a larger six-eye fixture.

Technical Specifications

Model: RG-728

Product type: Four-eye full-color RGB laser light

Input voltage: AC100-240V, 50/60Hz

Machine power: 100W

Number of outputs: Four

Beam color: Full-color RGB

Control modes: PC, ILDA, DMX512, sound and auto

DMX channel modes: 10CH, 13CH and 33CH

Housing color: Black

Net weight: 5.95kg

Packing quantity: Four units per carton

Optical laser power: Not specified on the current product page

RGB wavelengths: Not specified on the current product page

Scanning speed: Not specified on the current product page

Protection rating: Not specified on the current product page

Applications

This four eye RGB laser suits stages, concerts, nightclubs, DJ booths, indoor laser shows and entertainment events. It also works well in rental and touring lighting systems.

Small venues can use sound or automatic programs for quick operation. In contrast, professional productions can use DMX512 or ILDA for more detailed show programming.

Compact Full-Color Multi-Beam Laser

The four-eye configuration creates layered RGB effects from a compact fixture. Furthermore, multiple control options make it suitable for both standalone and programmed productions.

Overall, the four eye RGB laser provides flexible control, multi-beam output and practical handling for indoor stage and club applications.
