Product Overview

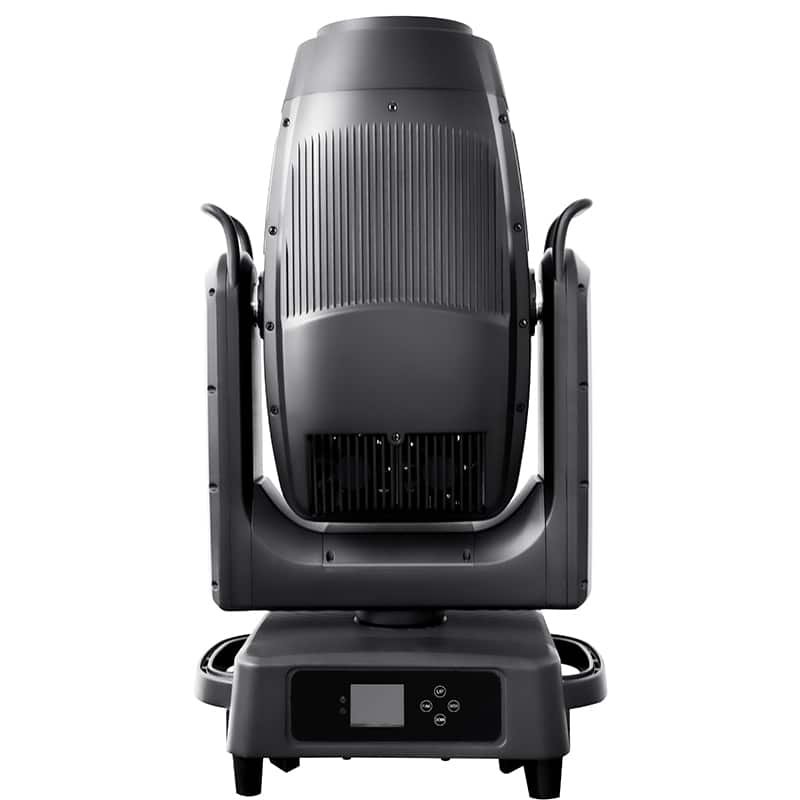

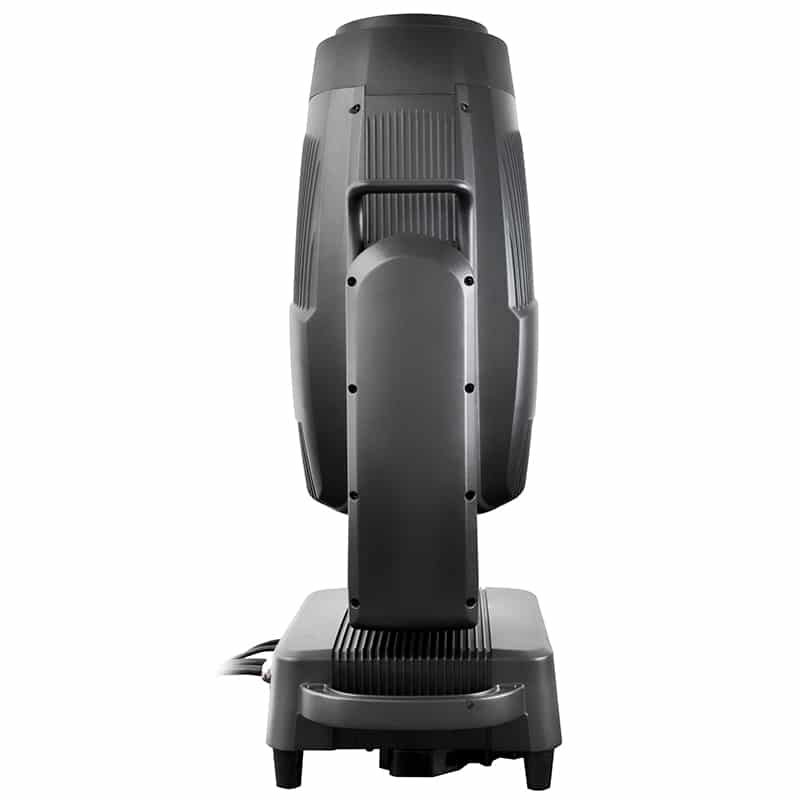

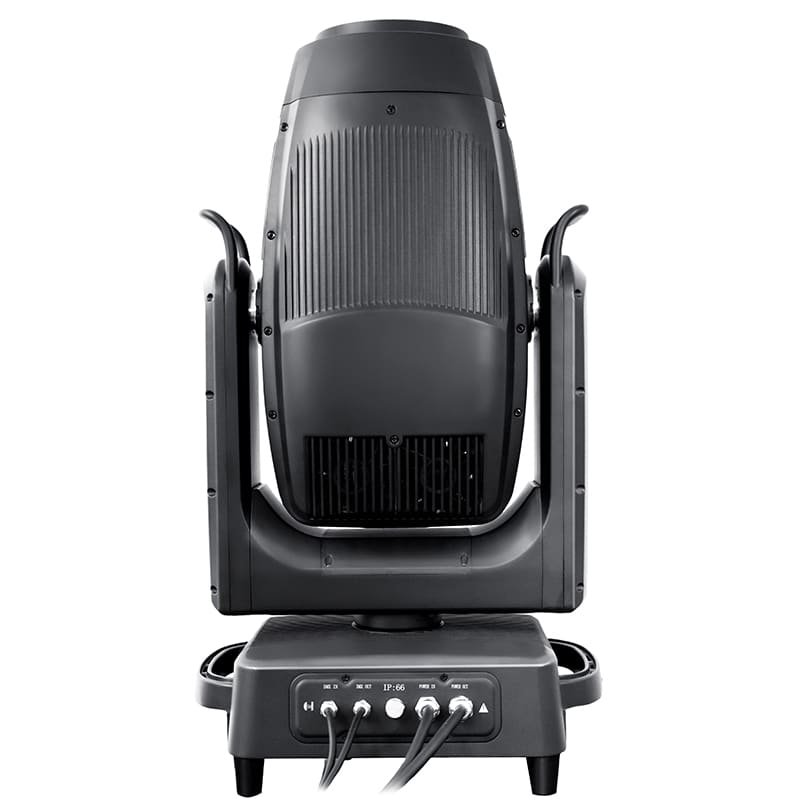

The 1000W IP66 Waterproof LED Profile Moving Head Light is a high-performance outdoor stage lighting fixture engineered for professional concerts, large-scale events, touring productions, stage rentals, TV studios, and architectural performance applications. Built with an 850W LED module and a durable IP66 waterproof housing, this fixture delivers powerful brightness, sharp projection, precise framing, and reliable performance in demanding indoor and outdoor environments.

Featuring an advanced CMY color mixing system, linear CTO adjustment, 4.8°–50° motorized zoom, 4-blade framing shutter system, and replaceable gobos, this professional profile moving head light offers excellent flexibility for beam shaping, image projection, stage highlighting, and creative lighting design. It is ideal for users who need both powerful output and refined optical control in one fixture.

With high CRI mode, precise dimming, frost, iris, prism, and fast pan/tilt movement, this model is suitable for lighting designers, rental companies, event suppliers, distributors, and project contractors who require a powerful and dependable outdoor profile moving head solution.

---

Key Features

• 850W LED module with strong output and stable performance
• IP66 waterproof protection for outdoor stages, festivals, and all-weather events
• Independent CMY color mixing system for rich and smooth color effects
• Linear CTO adjustment from 2500K to 6500K
• 4.8°–50° linear zoom for narrow projection and wide coverage
• 4 independent framing shutters, each with individual closing and 90° rotation
• 7 replaceable gobos + white for projection and pattern effects
• Rotating 5-facet prism for layered beam effects
• 0–100% linear frost for soft wash transitions
• 6%–100% iris adjustment for precise beam control
• 0–100% linear dimming with smooth fading performance
• Strobe up to 25Hz, with random strobe and pulse strobe effects
• High CRI mode Ra > 90 for applications requiring better color rendering
• 2.8-inch touch LCD display with Chinese/English interface and 180° reversible screen
• Supports DMX512, RDM, Auto, and Master-Slave control modes

---

Technical Highlights

This fixture combines the advantages of a powerful LED profile light and a weather-resistant moving head system. The 130mm aperture helps deliver strong and concentrated light output, while the framing system makes it easier to create sharp-edged cuts, highlight performers, shape scenic areas, and achieve more professional stage compositions.

The wide zoom range from 4.8° to 50° allows the fixture to work effectively as both a concentrated effect light and a broader coverage fixture. With 16-bit precision pan and tilt movement, the light ensures smooth and accurate positioning for demanding live show environments.

Its IP66 protection rating makes it especially suitable for outdoor concerts, open-air performances, cultural tourism shows, and permanent installation projects where weather resistance and stable operation are essential.

---

Applications

This IP66 LED Profile Moving Head Light is widely used for:

• Outdoor concerts
• Touring productions
• Stage performances
• Music festivals
• Theater and TV studios
• Rental companies
• Event production projects
• Large-scale live shows
• Architectural entertainment lighting
• Permanent outdoor installations

---

Why Choose This Model

For customers looking for a high-power waterproof framing moving head light, this model offers a strong combination of brightness, precision, and versatility. Compared with standard beam or wash fixtures, it provides more advanced beam shaping and image control, making it suitable for high-end professional lighting applications.

It is an excellent choice for:

• Stage lighting distributors
• Rental companies
• Engineering contractors
• Event suppliers
• Professional project buyers

If your projects require a durable outdoor fixture with strong projection, framing, zoom, color mixing, and reliable waterproof performance, this model is a practical and competitive solution.

---

OEM / ODM Support

We support:

• Logo customization
• Packaging customization
• Product labeling customization
• Bulk order supply
• Factory direct cooperation for distributors, wholesalers, rental companies, and project buyers
