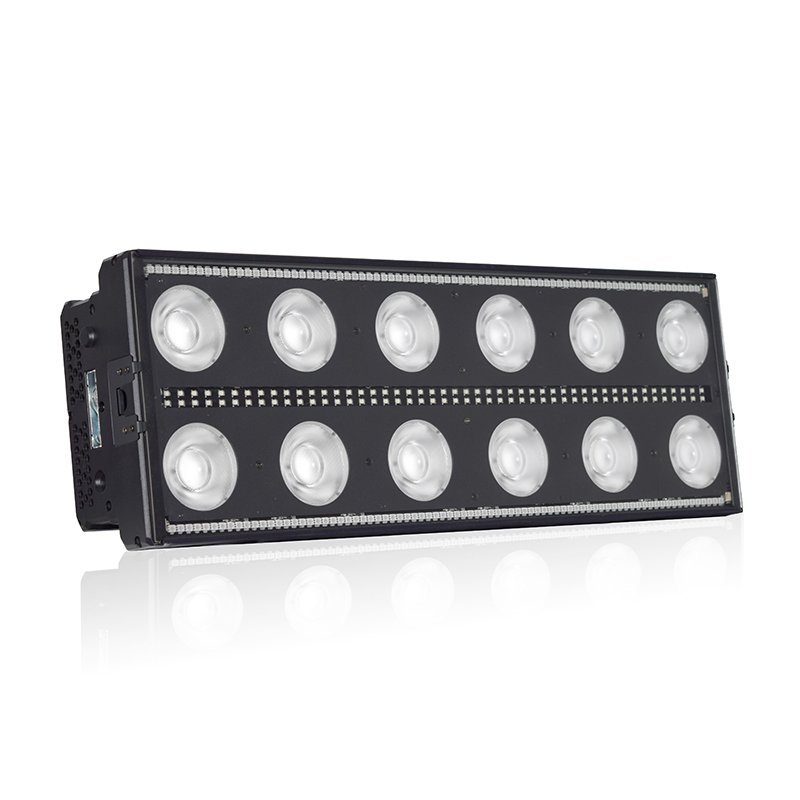

RGBW Stage Effect Light with Pixel and Strobe Functions

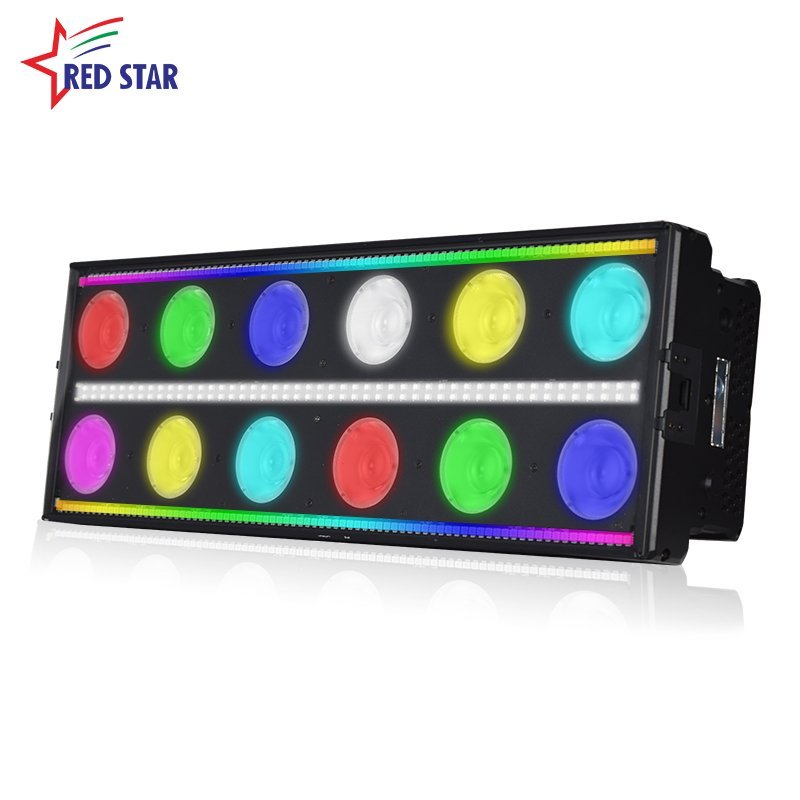

The RGBW stage effect light RG-907 combines high-output RGBW LEDs, a segmented white strobe and an RGBW pixel bar in one professional fixture. It is designed for concerts, festivals, clubs, theaters, touring shows and rental productions.

The main lighting section uses 12 × 60W RGBW LEDs for color mixing and stage effects. In addition, a 600W pure-white strobe provides eight independently arranged flowing segments.

A 32 × 3W RGBW auxiliary pixel bar adds chases, gradients and point-controlled effects. Therefore, the RG-907 can produce several visual layers without requiring separate wash, strobe and pixel fixtures.

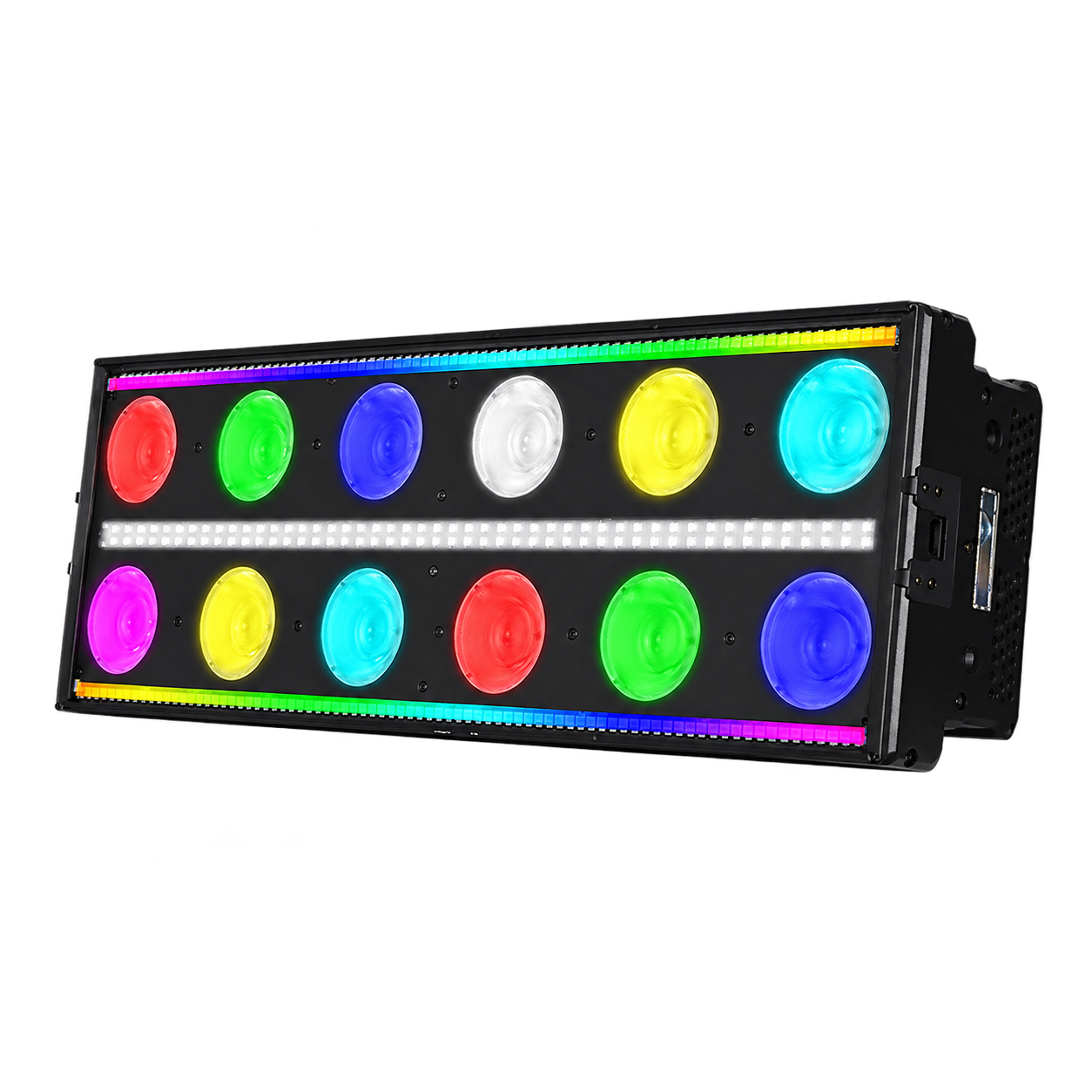

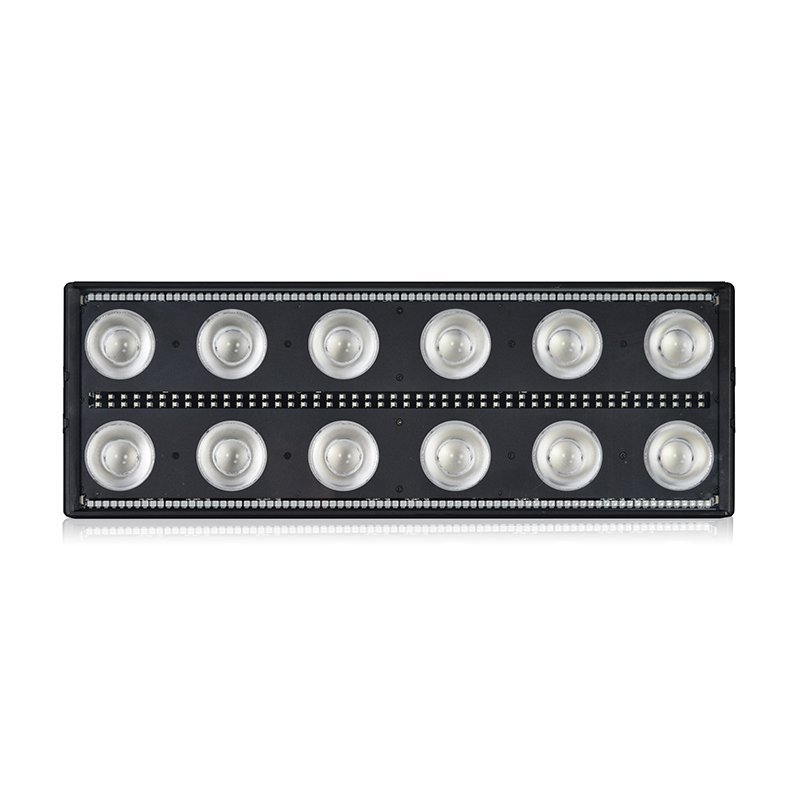

12 × 60W RGBW Main LEDs

The main light section consists of 12 high-output 60W RGBW LEDs. Each source combines red, green, blue and white output for saturated colors, mixed shades and white effects.

The RGBW system supports:

• Full-color stage effects
• White-light accents
• Color chases
• Music-synchronized sequences
• Individual point control
• Flowing color transitions
• Stage wash effects

The listed output angle is approximately 15°. This creates concentrated color effects that remain visible in stage haze while still providing useful coverage across a performance area.

600W Eight-Segment White Strobe

The fixture includes a dedicated 600W pure-white strobe section. Its eight-segment arrangement supports flowing patterns instead of producing only a single full-fixture flash.

Lighting designers can create:

• Full-output white flashes
• Left-to-right flowing effects
• Alternating strobe segments
• Music-synchronized sequences
• Chase patterns
• Performance transitions
• High-energy show accents

The dedicated white section allows the strobe effect to remain bright and visually distinct from the RGBW color output.

RGBW Auxiliary Pixel Bar

The auxiliary pixel bar uses 32 × 3W RGBW LEDs divided into eight segments. Operators can program different sections to create chases, gradients and individual pixel-style effects.

The pixel bar supports visual effects such as:

• RGBW color gradients
• Segment chases
• Running-light effects
• Alternating colors
• Point-controlled sequences
• Flowing stage backgrounds
• Layered color and strobe combinations

Because the pixel section operates alongside the main LEDs and white strobe, the fixture can produce more complex effects from one DMX address group.

The catalog also contains a nearby reference to amber LEDs. However, the confirmed structured specification identifies the auxiliary bar as RGBW. Buyers should confirm any amber configuration separately before ordering.

Multiple DMX Channel Modes

The RG-907 provides three DMX channel configurations:

• 10CH mode
• 46CH mode
• 119CH mode

The 10-channel mode supports simpler programming and uses fewer console channels. It suits installations that need coordinated fixture-level control.

The 46-channel mode provides more detailed access to the main lights, strobe and segmented effects.

The 119-channel mode is intended for advanced pixel and point control. It gives programmers greater flexibility for individual segments and complex visual sequences.

This range allows the same fixture to work in compact club systems and large professional productions.

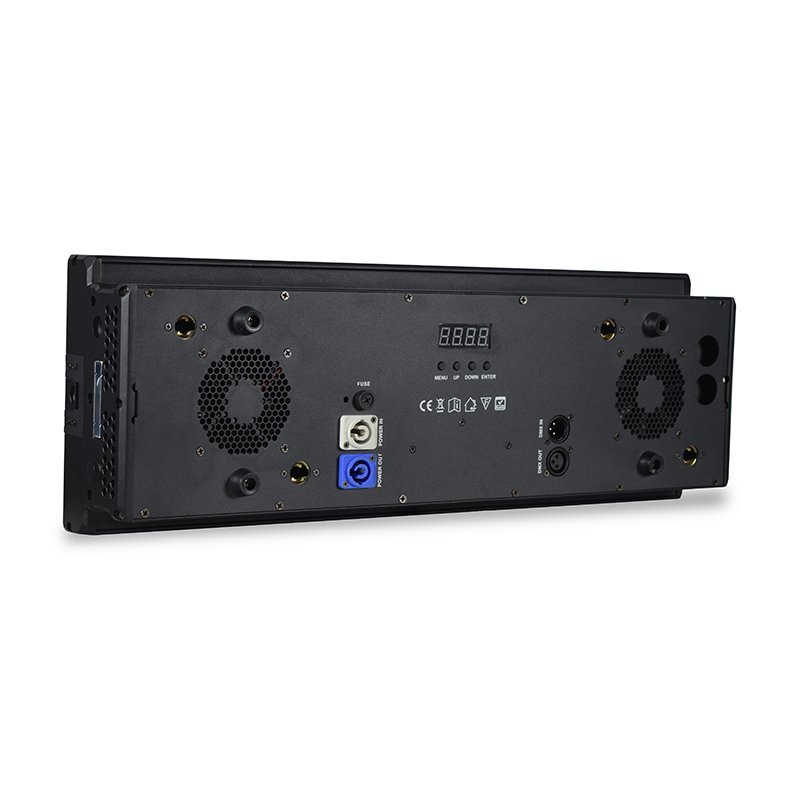

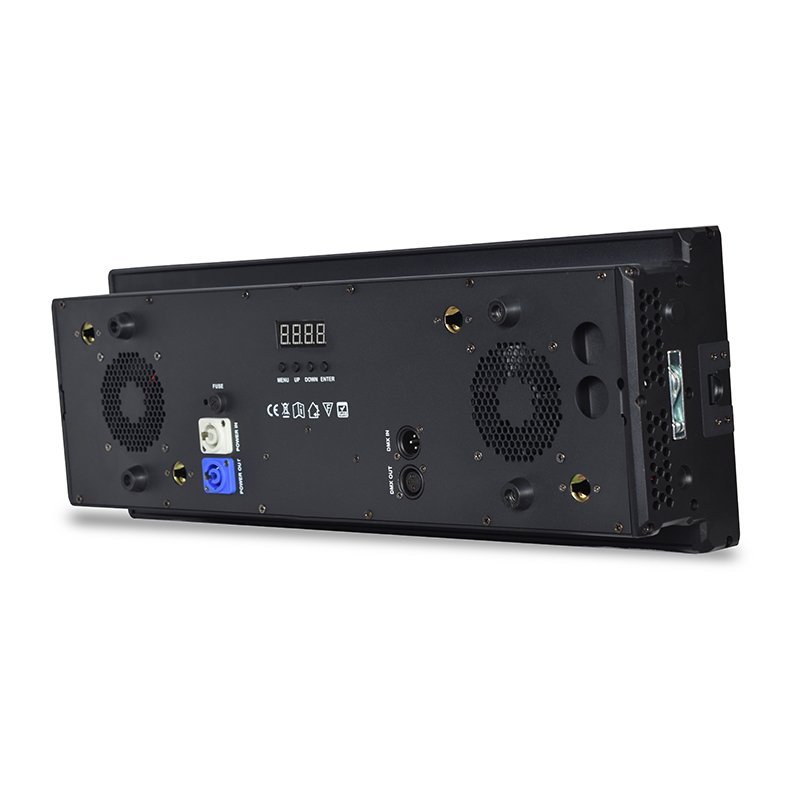

DMX and Standalone Operation

Available control modes include:

• DMX512
• Automatic programs
• Sound-activated operation
• Master-slave synchronization

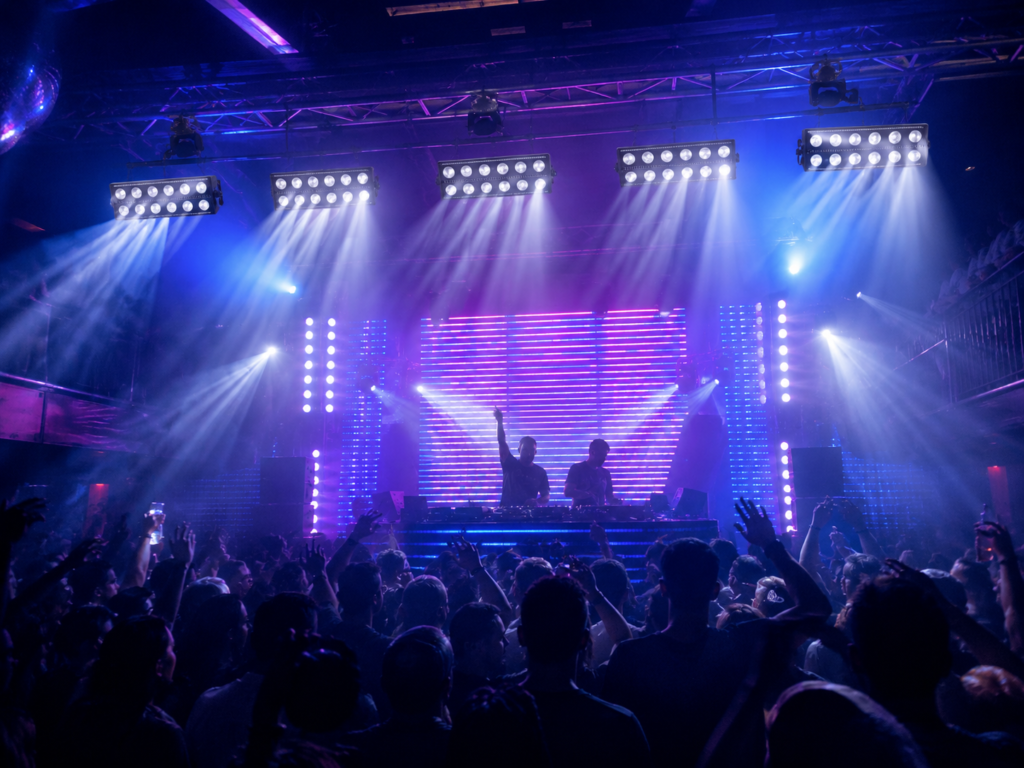

DMX512 provides the most detailed control for concerts, festivals and touring productions. Sound mode responds to music for clubs, bars and mobile entertainment events.

Automatic mode runs built-in effects when a console is unavailable. Meanwhile, master-slave mode allows several fixtures to produce synchronized effects from one primary unit.

Seamless Multi-Fixture Splicing

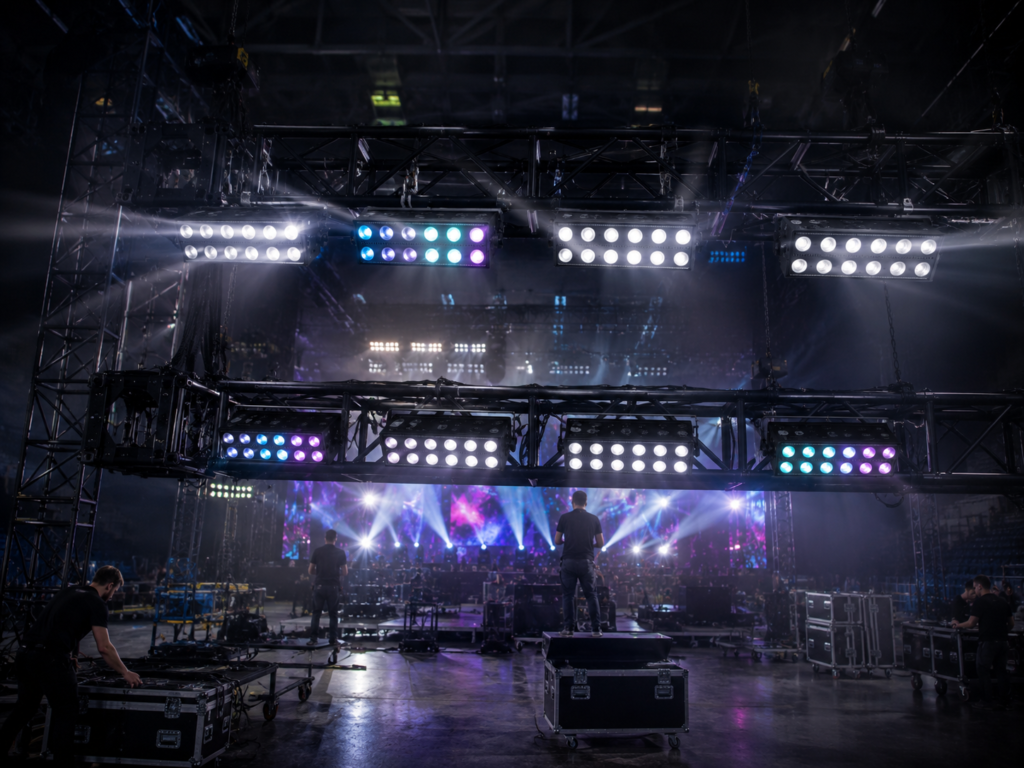

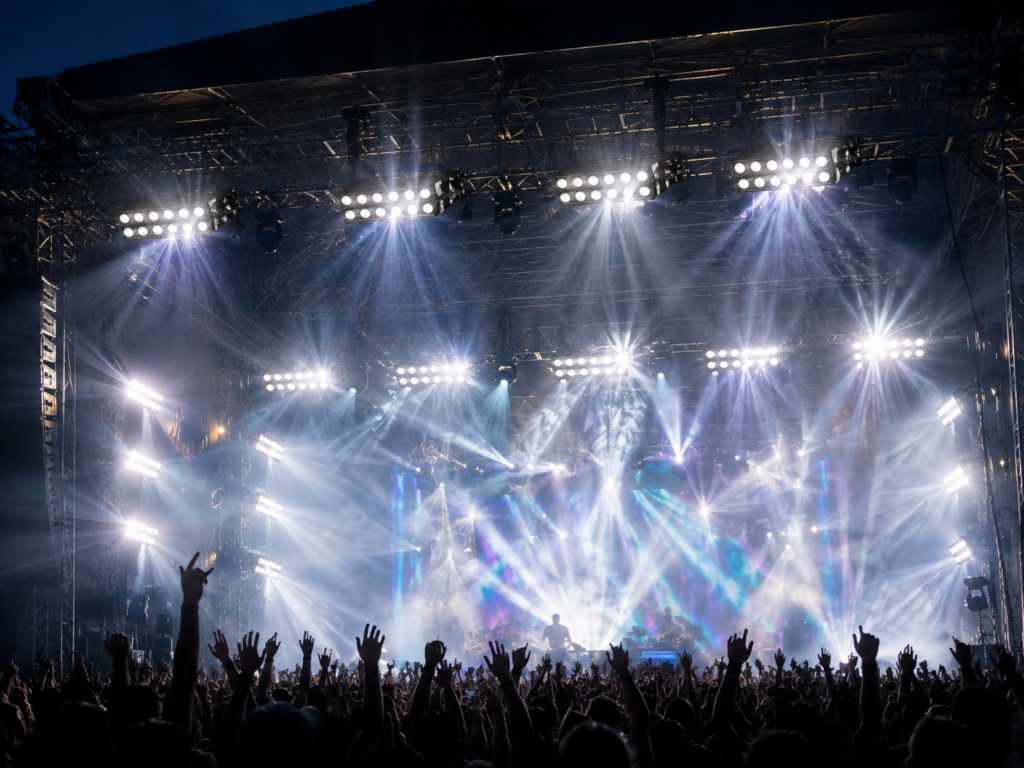

The RG-907 supports seamless fixture splicing. Several units can be positioned side by side to create a longer visual line across a stage, truss or scenic structure.

This arrangement is useful for:

• Large concert stages
• Festival LED structures
• DJ booth backgrounds
• Stage borders
• Club installations
• Television performances
• Touring productions

When several fixtures operate together in an advanced DMX mode, designers can extend pixel chases and flowing effects across the complete installation.

Technical Specifications

• Model: RG-907
• Product type: RGBW pixel and strobe stage effect light
• Input voltage: AC 100–240V, 50/60Hz
• Main light source: 12 × 60W RGBW LEDs
• Main output angle: Approximately 15°
• White strobe: 600W
• Strobe segmentation: Eight segments
• Auxiliary pixel bar: 32 × 3W RGBW LEDs
• Pixel-bar segmentation: Eight segments
• DMX channel modes: 10CH, 46CH and 119CH
• Control modes: DMX512, automatic, sound and master-slave
• Listed fixture dimensions: 620 × 220.4mm
• Installation feature: Seamless multi-fixture splicing
• Recommended environment: Indoor or protected stage applications

Recommended Applications

The RG-907 is suitable for:

• Concert and touring stages
• Music festivals
• Nightclubs and bars
• DJ and electronic music events
• Theater productions
• Television performances
• Live-streaming stages
• Event rental inventories
• Stage background effects
• Performance halls
• Entertainment venues
• Large pixel-effect installations

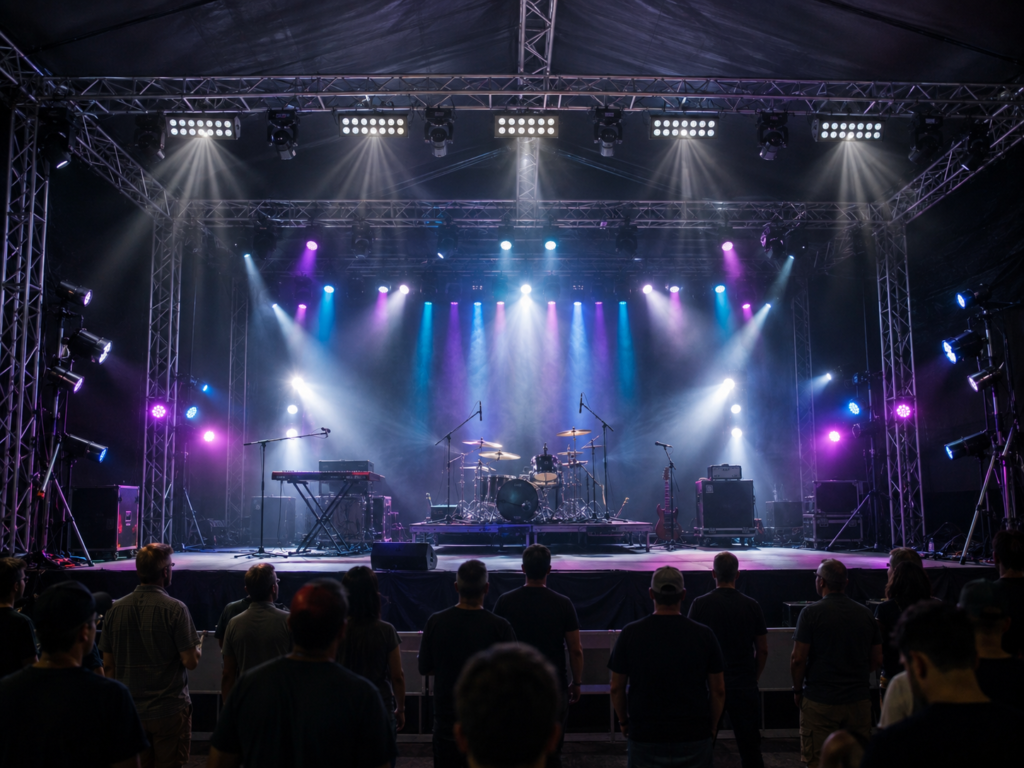

Advantages for Rental Companies and Distributors

The RG-907 combines three common effect-lighting functions in one fixture: RGBW color output, white strobe effects and segmented pixel control.

Rental companies can use fewer separate fixtures to create layered stage effects. This can simplify installation, cabling and transport for certain projects.

The three DMX modes also allow the product to serve different customers. Smaller venues can use the 10CH mode, while professional programmers can access the 46CH or 119CH modes for advanced effects.

The seamless splicing function gives project contractors additional flexibility when building long stage-effect structures.

Frequently Asked Questions

How many main LEDs does the RG-907 use?

The current catalog specifies 12 × 60W RGBW main LEDs.

Should the product be described as a 500W light?

No. The old page title says 500W, but this conflicts with the current 12 × 60W main-light specification. Use the actual light-source configuration instead of 500W as the SEO focus.

What is the white strobe power?

The fixture includes a listed 600W pure-white strobe divided into eight flowing segments.

What pixel bar does the fixture use?

The confirmed specification lists 32 × 3W RGBW LEDs divided into eight segments.

Which DMX modes are available?

The fixture supports 10CH, 46CH and 119CH modes.

Can several fixtures connect visually?

Yes. The housing supports seamless side-by-side splicing for extended pixel and strobe installations.

Can the fixture work without a DMX controller?

Yes. Automatic, sound-activated and master-slave modes are available.

Is the RG-907 waterproof?

No protection rating is confirmed in the current catalog. Use it indoors or in a properly protected installation.

How can I request a wholesale quotation?

Provide the required quantity, destination country, DMX requirements and packing information. WUYESTAGE can then prepare the corresponding quotation.
